Product Description

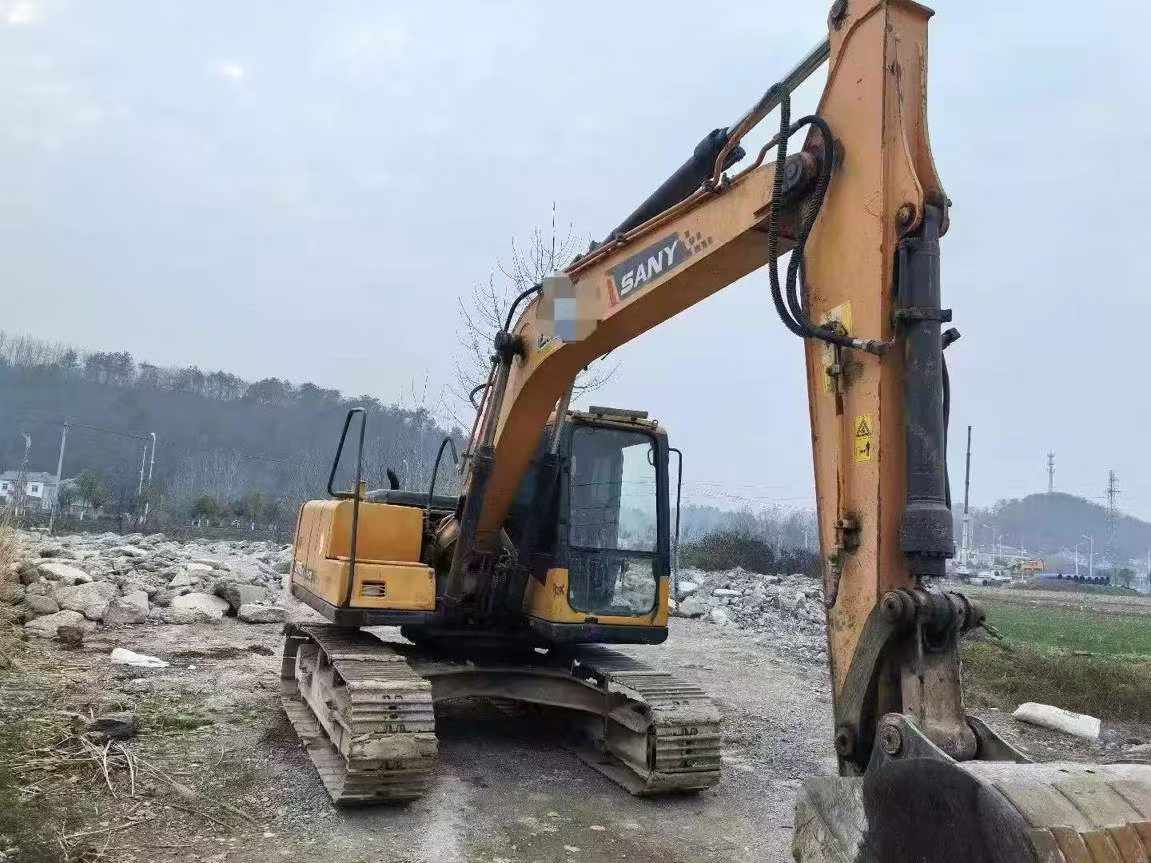

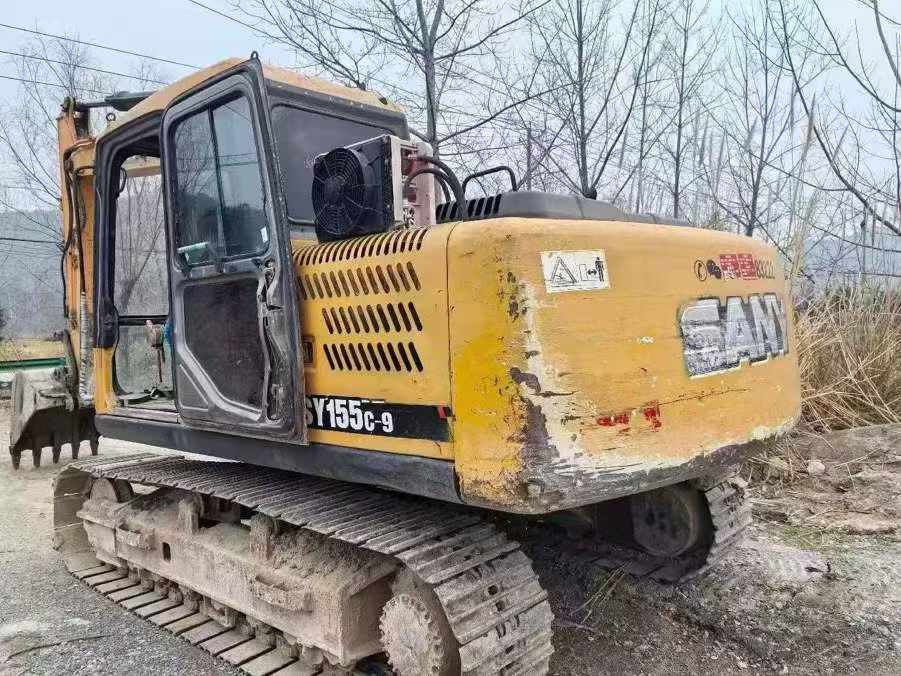

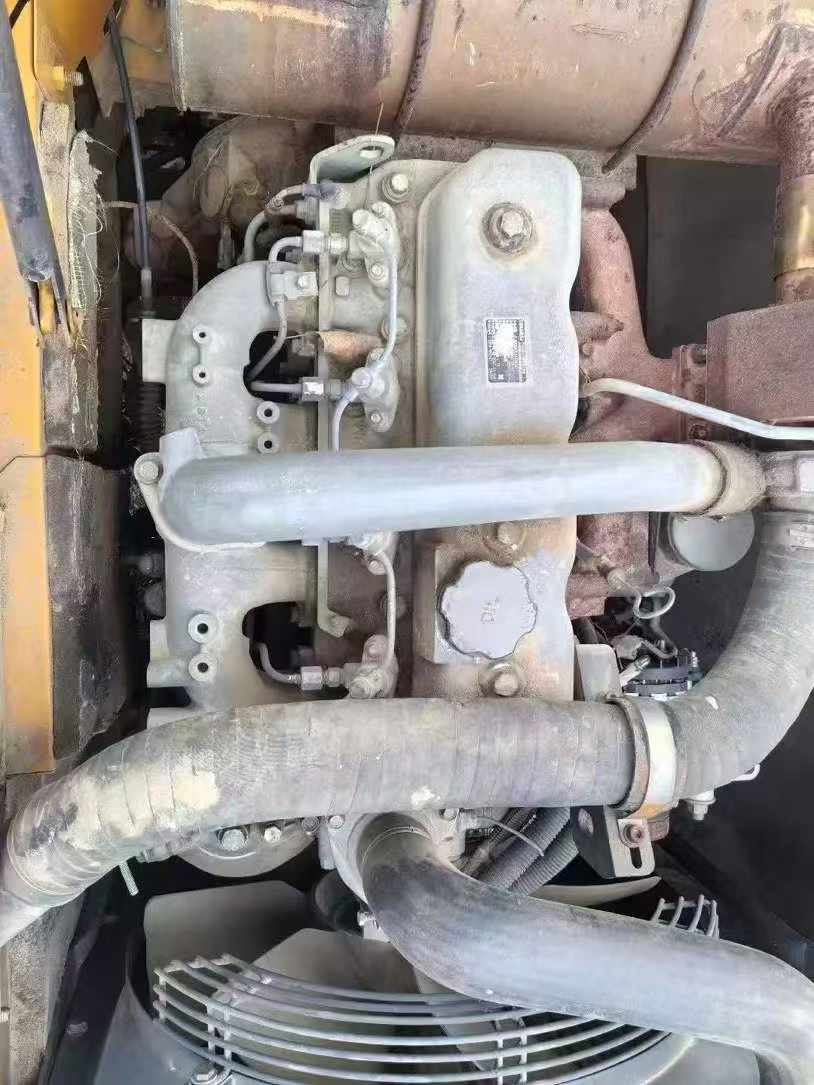

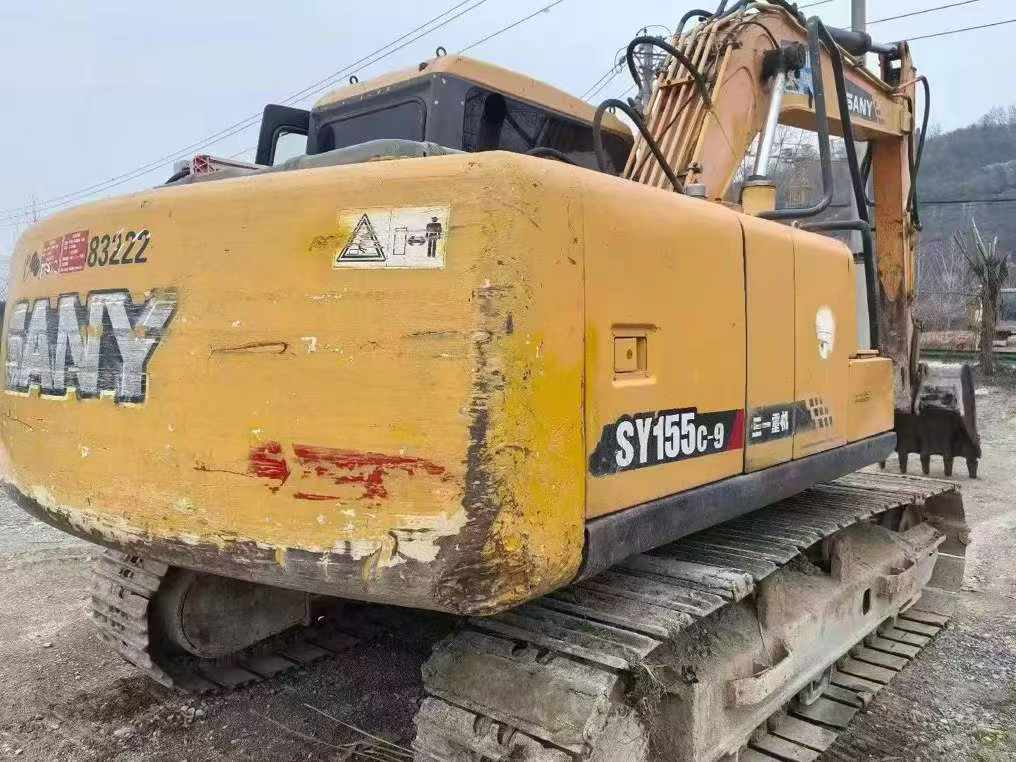

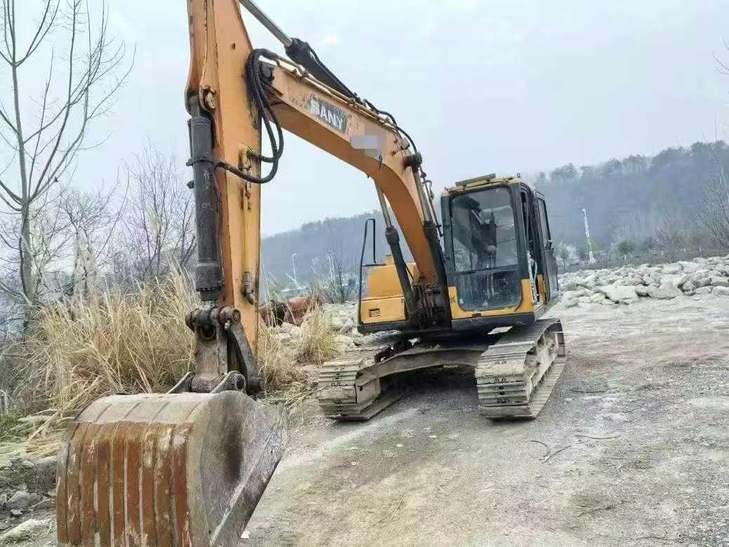

Built for endurance and proven in the field, this 2016 Sany SY155C excavator demonstrates the lasting quality that defines reliable heavy equipment. Operating at 15 tons with a 14,100 kg working weight, this machine delivers consistent performance across demanding job sites. Its 0.55 m³ backhoe bucket, powered by a robust 4JJ1-XDJAG-01-C3 engine generating 73 kW at 2000 rpm, provides the muscle needed for intensive excavation work.
Eight years of service validate this workhorse's durability. Key performance specifications include:
- Bucket digging force: 92.7 kN for powerful material handling
- Climbing ability: 70% (35°) gradient capability
- Travel speed: 5.5/3.5 km/h for efficient site mobility
- Fuel capacity: 240L tank for extended operation
- Ground pressure: 43 Kpa minimizes surface impact
Currently located in Hangzhou, Zhejiang, this Chinese-manufactured excavator represents proven engineering that continues to perform. A dependable choice for contractors seeking tested reliability over unproven alternatives.
| Specifications | Value |
|---|---|
| No. | 1030702 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.55 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/160 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500mm |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 44 |
