Product Description
Built for operator confidence and all-day productivity, this 2018 Sany SY155C medium excavator delivers 15 tons of stable, responsive performance on demanding job sites. Powered by a 73kW Isuzu 4JJ1 engine generating 365 N·m of torque, it provides reliable bucket digging force of 92.7 kN and arm breakout force of 66.13 kN for tough excavation work.

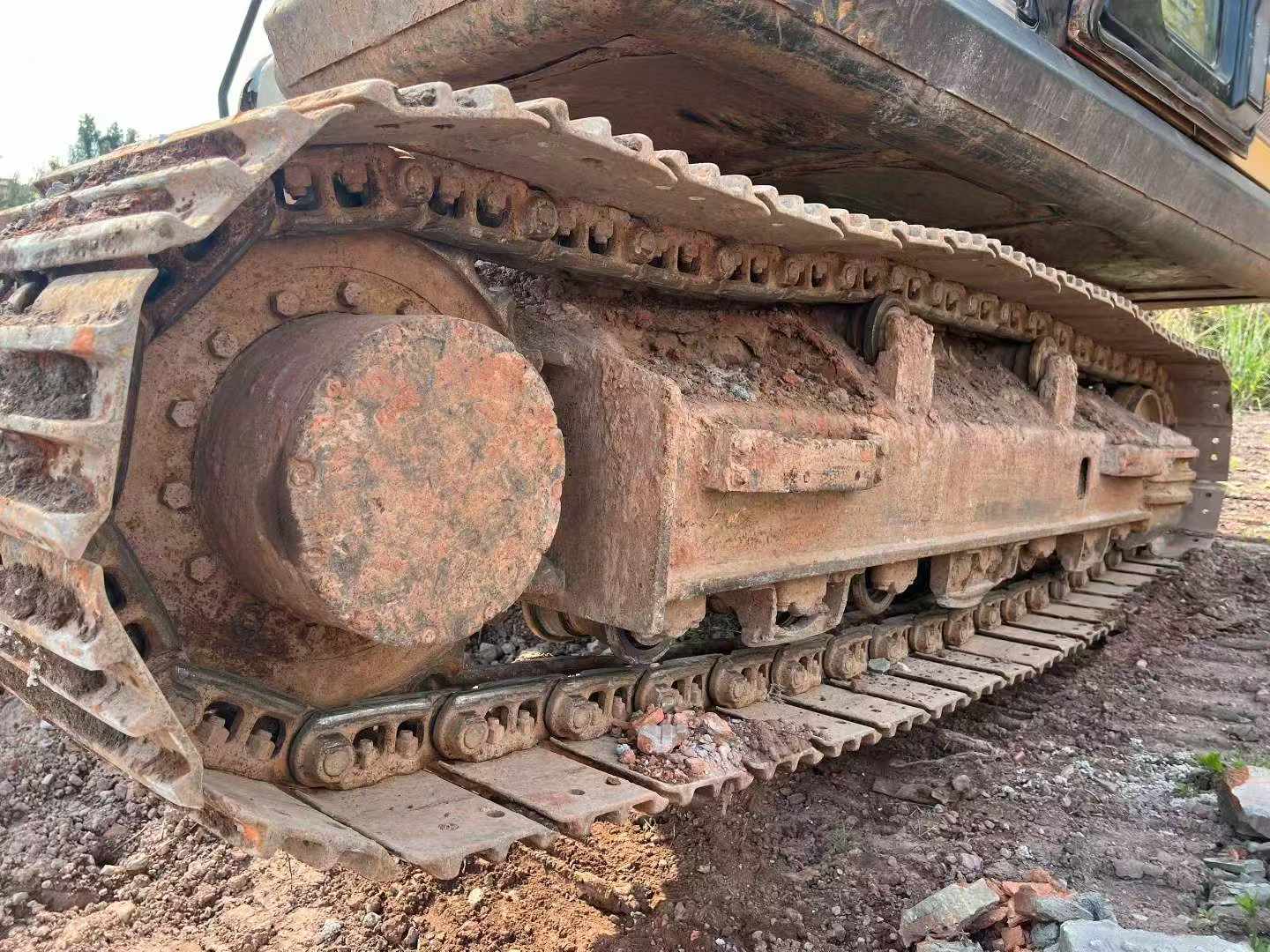

Operators benefit from excellent visibility and intuitive controls inside a spacious cabin designed for extended shifts. The undercarriage features dual track rollers and 500mm triple-grouser tracks that distribute 43 kPa ground pressure, ensuring stability on soft terrain while maintaining a 70% grading capability. With 12 rpm rotation speed and dual travel speeds (5.5/3.5 km/h), this excavator maneuvers efficiently in confined spaces.
- Working weight: 14,100 kg with 0.55 m³ backhoe bucket
- 240L fuel tank and 150L hydraulic reservoir for extended operation

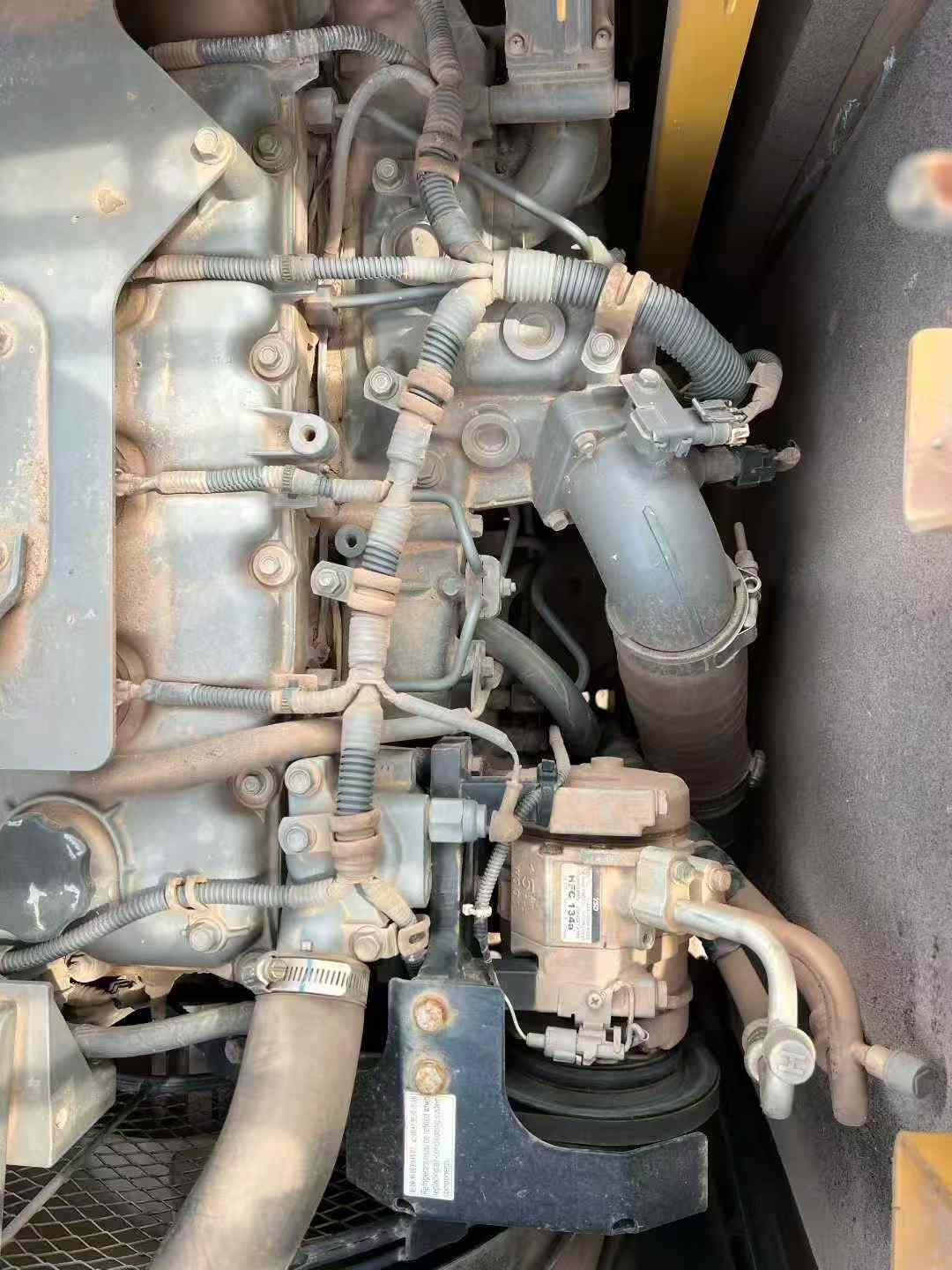

- Isuzu 2.999L diesel engine with proven reliability
- Currently located in Zhejiang, China
- Standard backhoe configuration ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1044291 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.55 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/160 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500mm |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 44 |
