Product Description

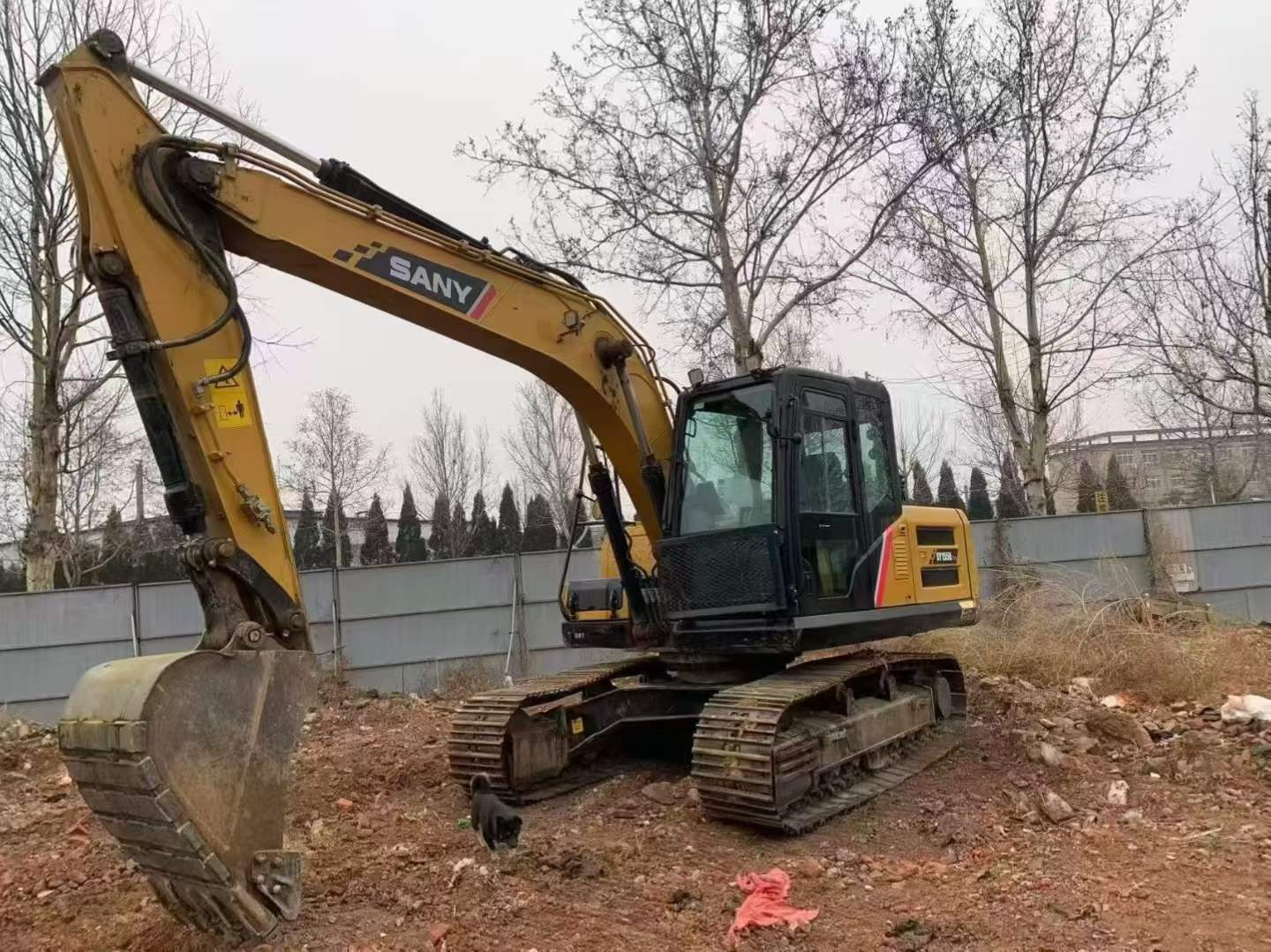

Expand your operational capacity with this 2021 Sany SY155C excavator, currently positioned in Heze, Shandong. Built for contractors managing multiple projects simultaneously, this 15-ton machine delivers consistent performance as a fleet backup or primary unit on mid-scale sites. The 73kW Isuzu 4JJ1 engine generates 365 N·m of maximum torque, while the 0.55m³ bucket handles standard earthmoving tasks efficiently.

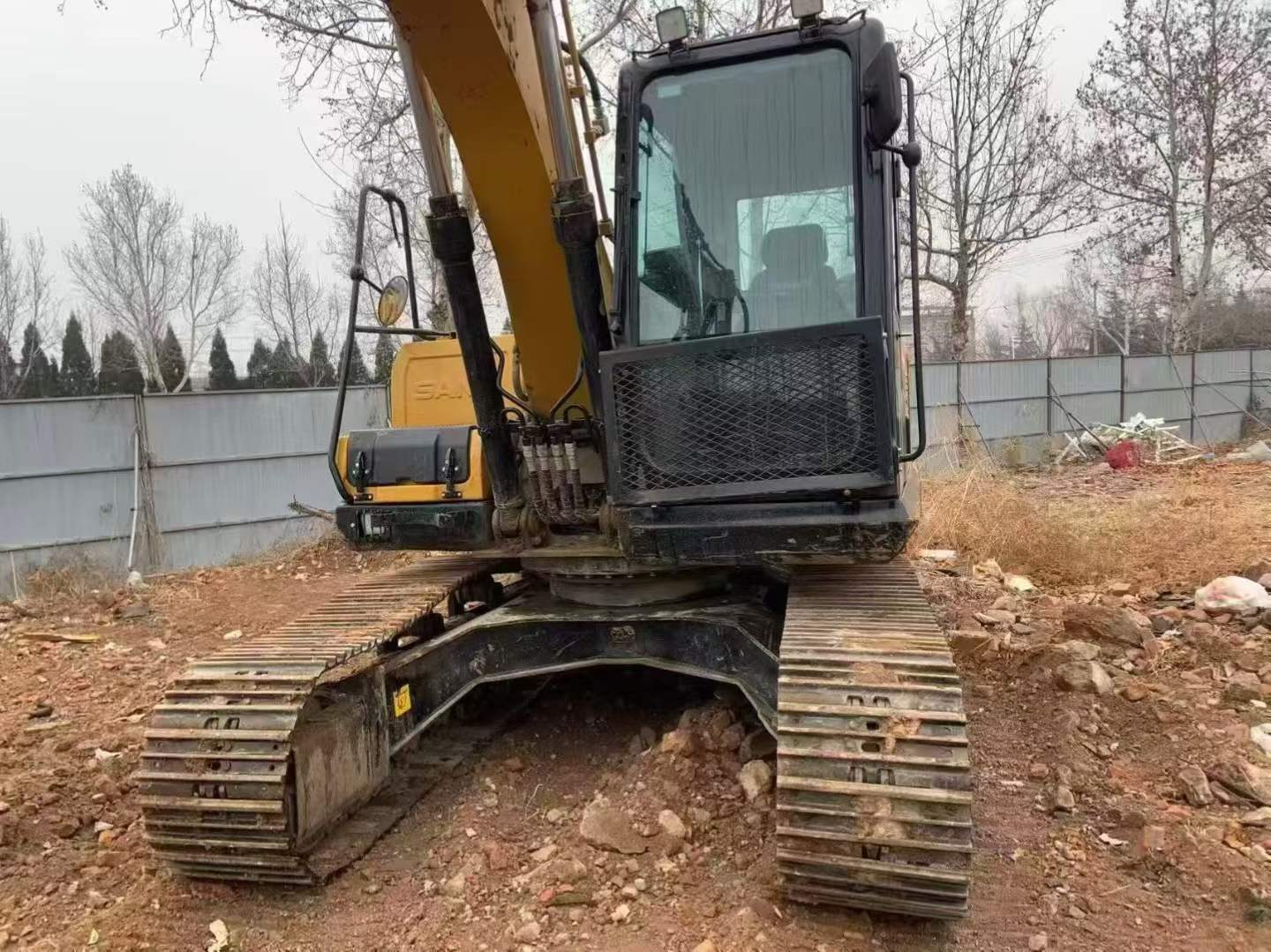

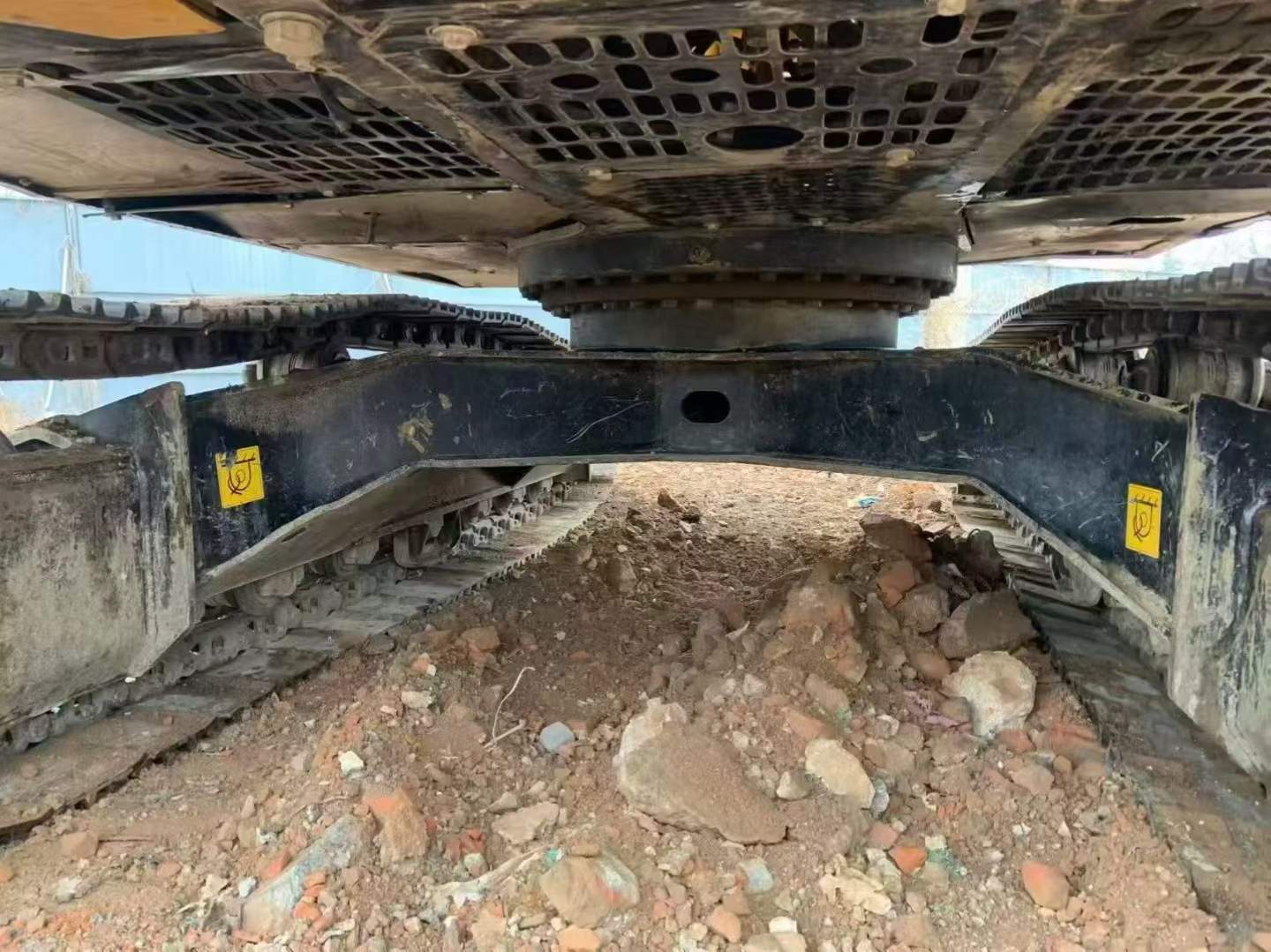

Operational specifications include 92.7kN bucket digging force and 66.13kN arm digging force, supported by a 240L fuel tank for extended shifts. The undercarriage features dual sprockets and eight rollers per side across 500mm track shoes, distributing 14,100kg working weight at just 43kPa ground pressure. With 70% grading capability and 12rpm swing speed, this unit integrates seamlessly into existing fleets requiring reliable Chinese-manufactured equipment.
- Working Weight: 14,100 kg
- Engine: Isuzu 4JJ1-XDJAG-01-C3, 73kW @ 2000rpm
- Bucket Capacity: 0.55m³ backhoe configuration
- Hydraulic System: 150L tank capacity
- Travel Speed: 5.5/3.5 km/h (high/low)
| Specifications | Value |
|---|---|
| No. | 1027395 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.55 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/160 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500mm |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 44 |
