Product Description

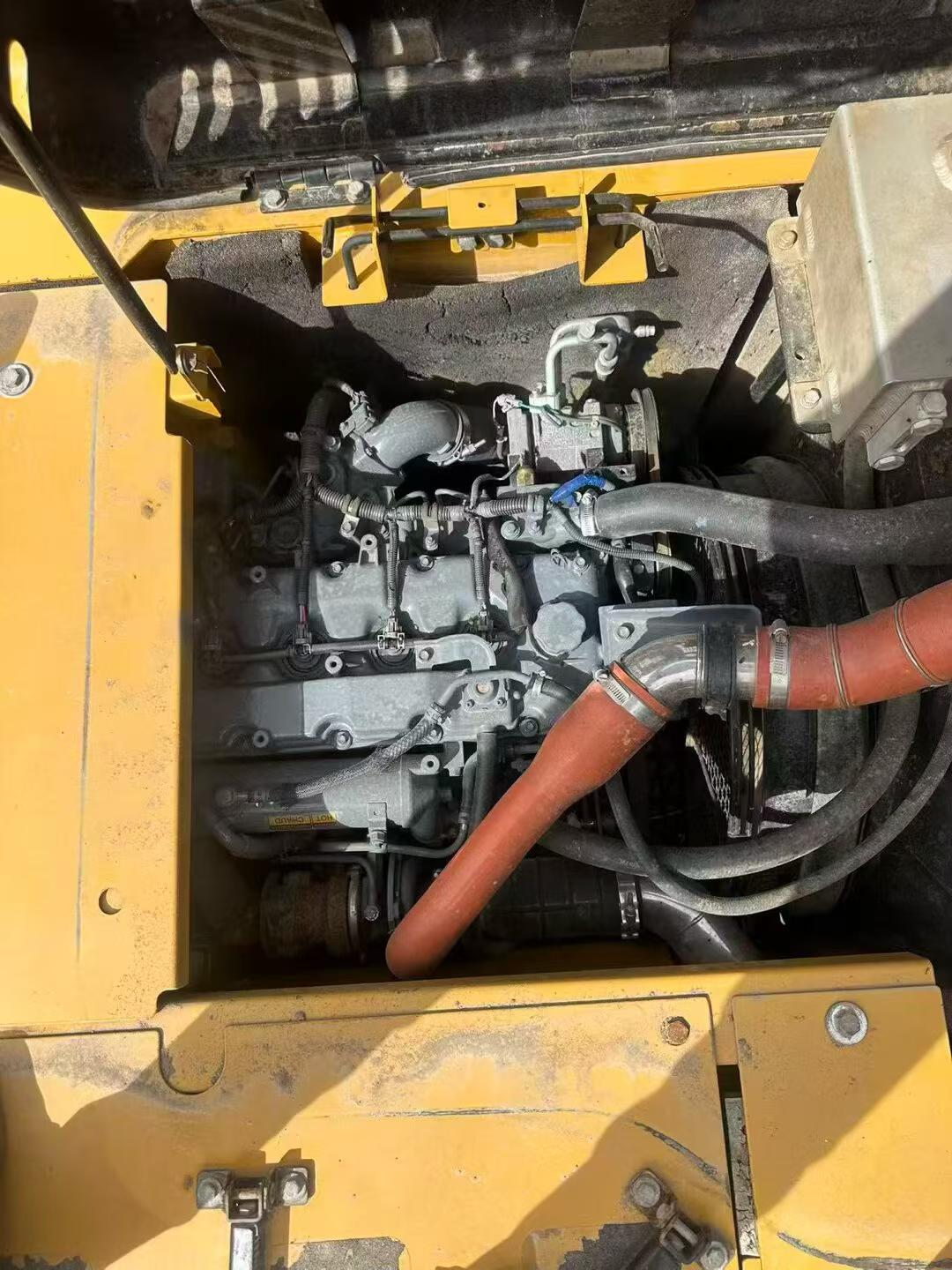

Featuring a robust 15-ton working weight, the Sany SY155C excavator from 2021 offers exceptional performance and reliability. With a bucket capacity of 0.55 m³, it is equipped to handle a wide range of excavation tasks efficiently. The 4JJ1-XDJAG-01-C3 engine, delivering 73 kW at 2000 rpm, ensures powerful and consistent operation.
- Operator Comfort: Enhanced cabin visibility and ergonomic controls provide a comfortable and efficient operating experience.
- Stability and Handling: Ground specific pressure of 43 Kpa and a total track length of 500 mm ensure stability on various terrains, while the 70% climbing ability (35°) allows for excellent maneuverability.
- Powerful Performance: A maximum torque of 365 N.m at 160 rpm and a travel speed of up to 5.5 km/h make this excavator a reliable choice for demanding jobs.
Located in Guangdong, China, this Sany SY155C is ready to meet your heavy equipment needs with its superior handling and operator-focused design.
| Specifications | Value |
|---|---|
| No. | 1057089 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.55 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/160 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500mm |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 44 |
