Product Description

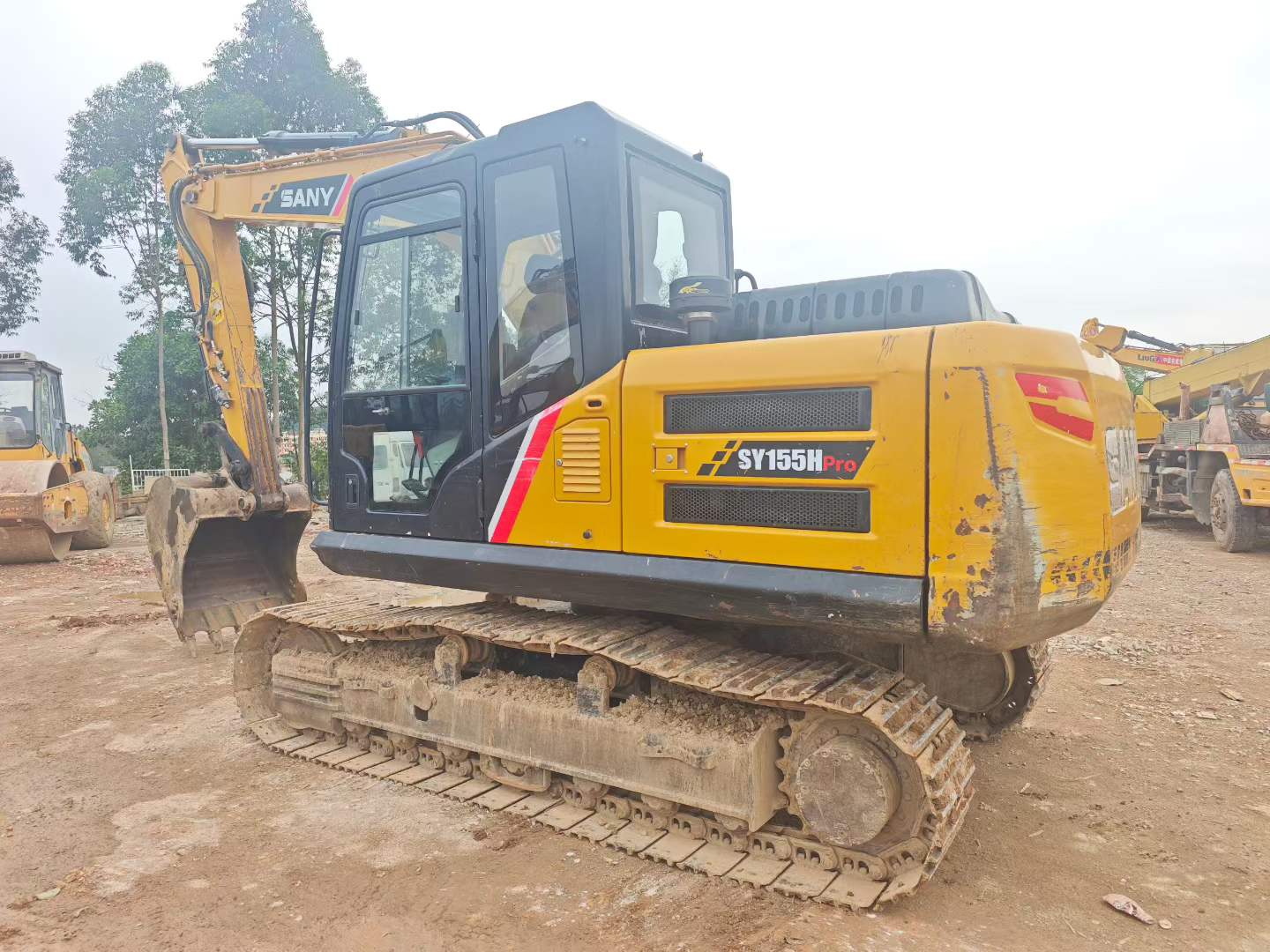

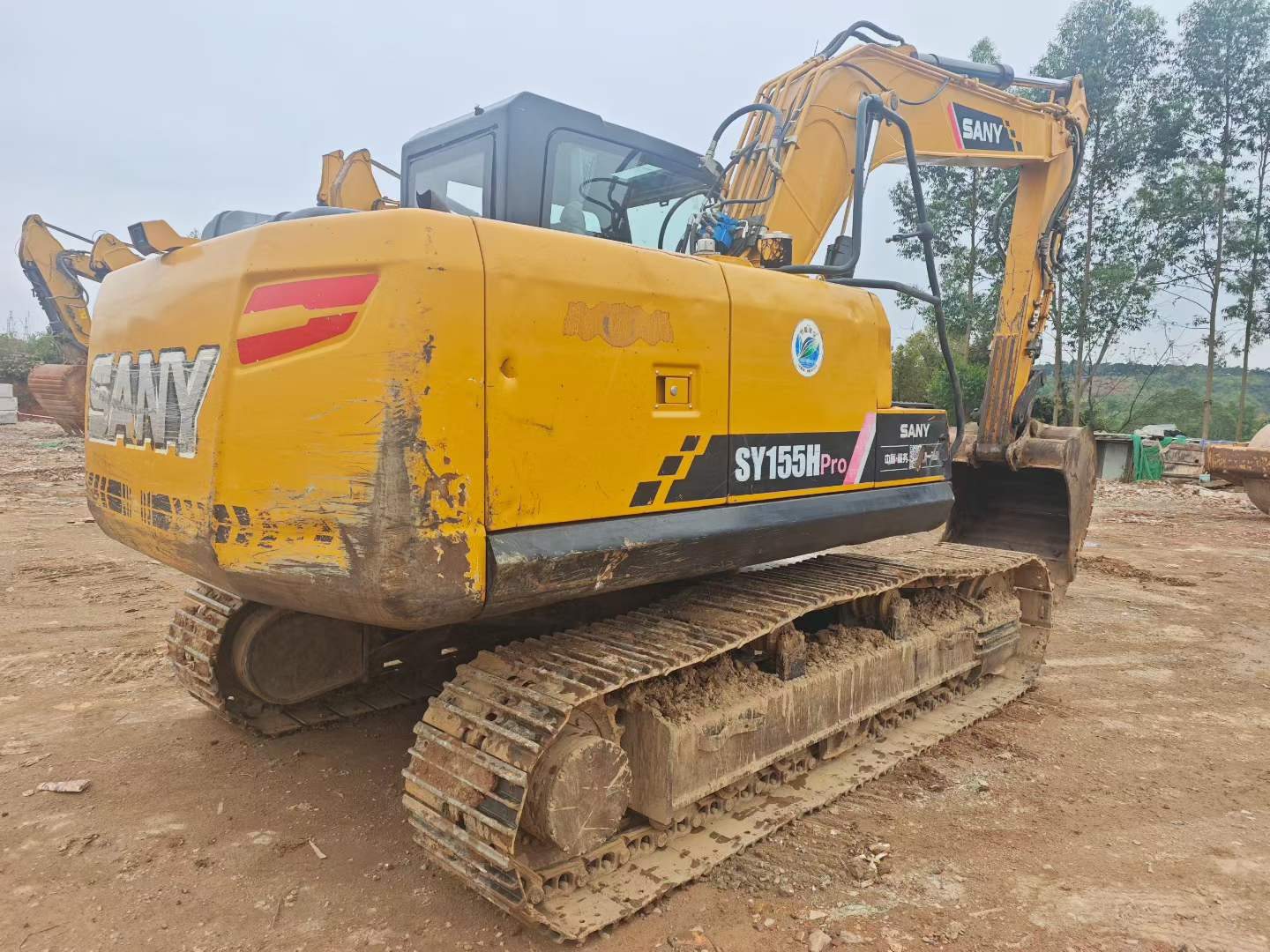

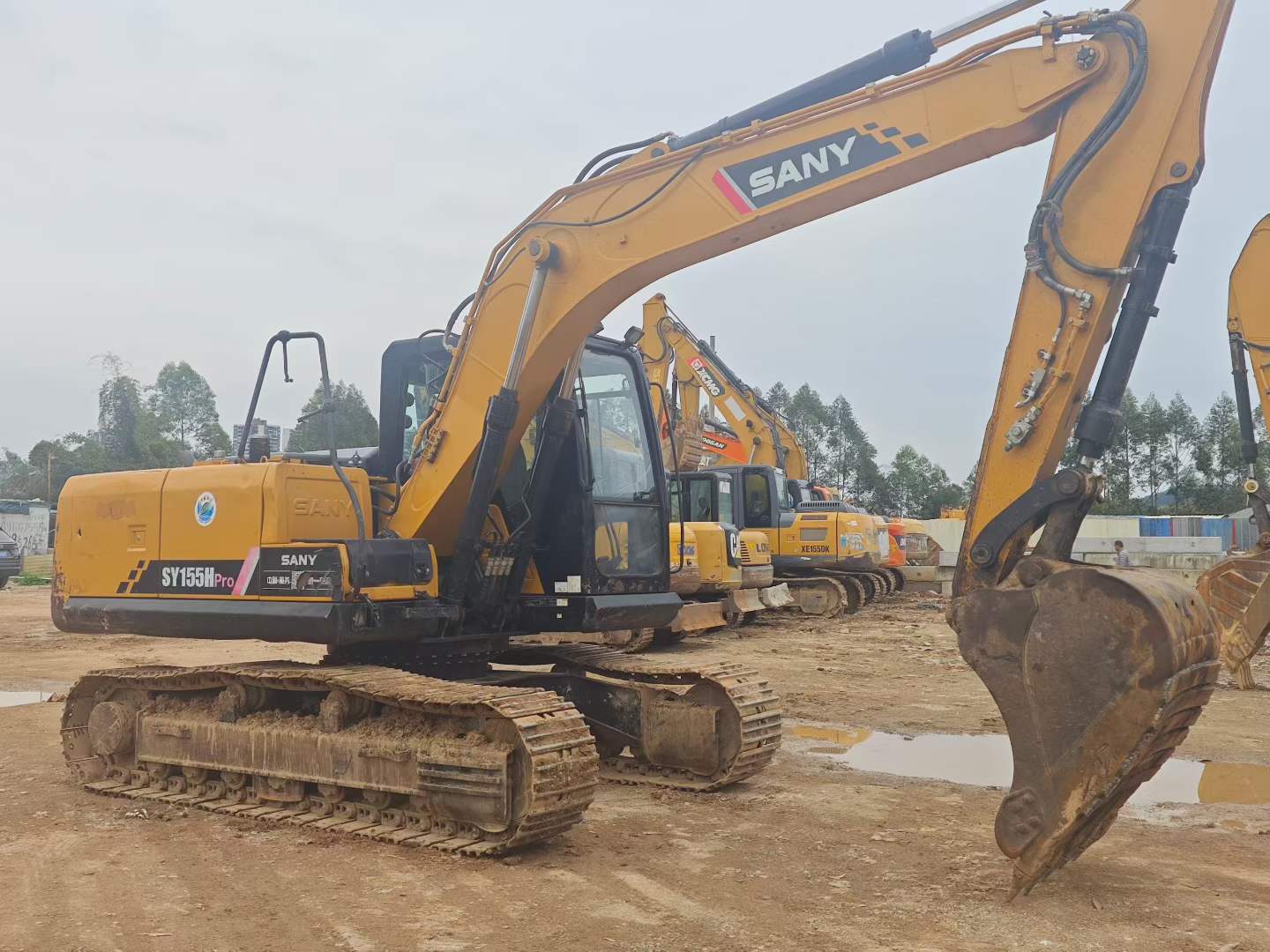

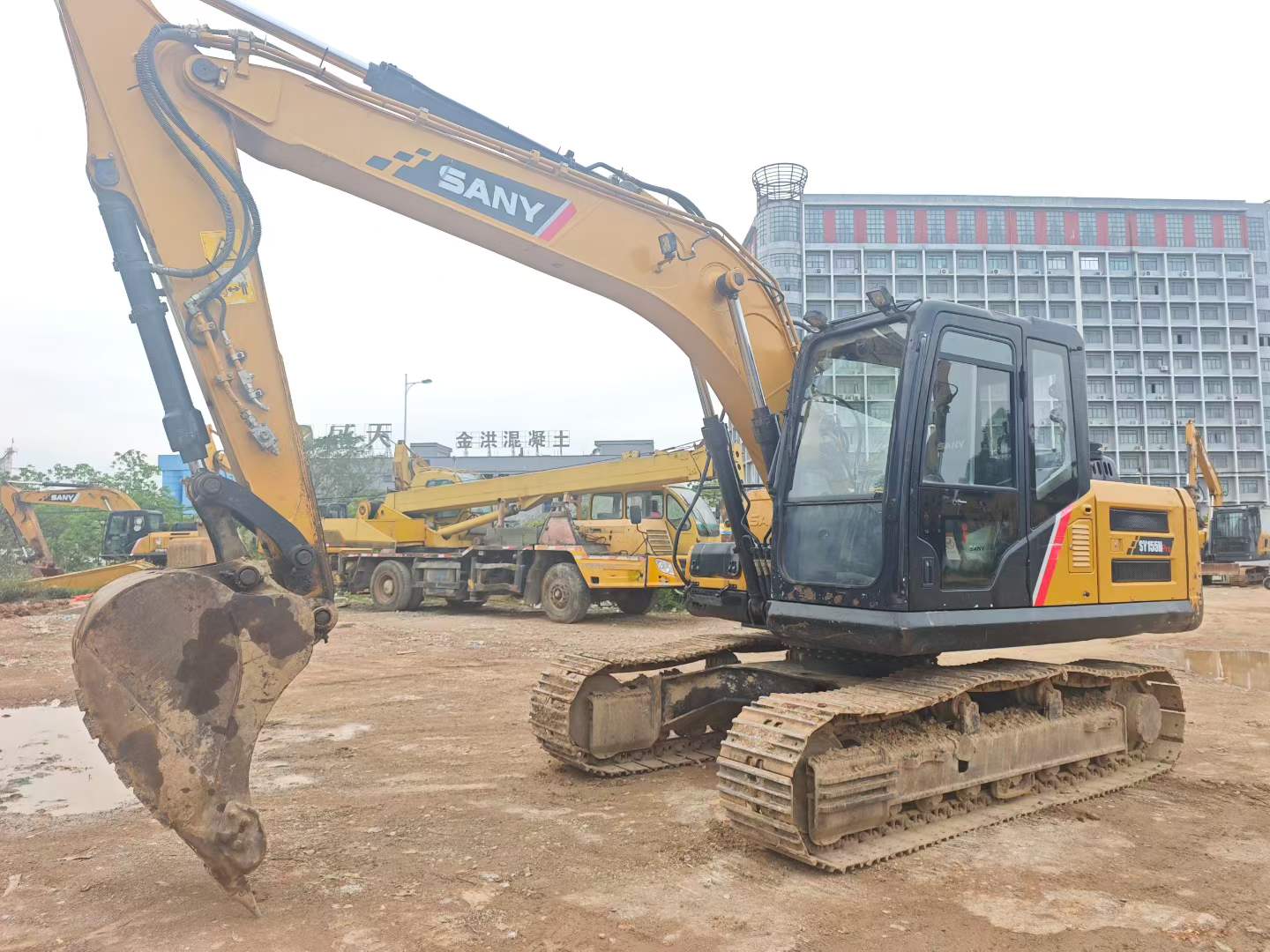

Acquire proven performance without the premium price tag. This 2021 Sany SY155H excavator delivers exceptional value for contractors seeking reliable 15-ton capacity at a fraction of new equipment costs. Operating from Nanning, Guangxi, this machine combines Sany's robust engineering with practical specifications that maximize your return on investment.

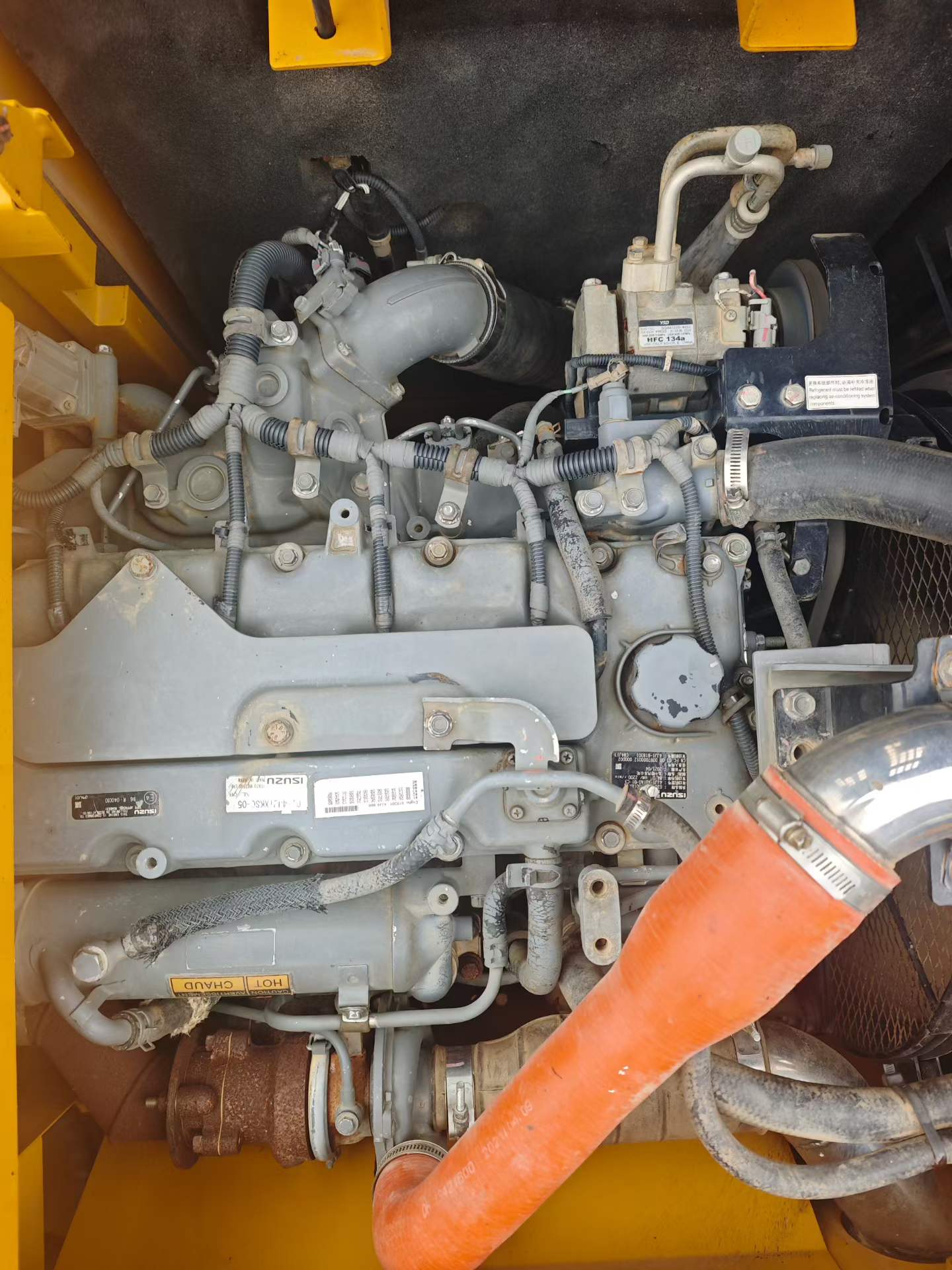

Powered by an ISUZU BB-4BG1TRP engine producing 84kW at 2200rpm, this mid-size excavator handles demanding jobsites with confidence. The 0.65m³ bucket capacity and 8330mm maximum digging radius provide versatile reach for excavation, loading, and grading operations. With 92.7kN bucket digging force and 66.1kN arm force, you'll move material efficiently while the 240L fuel tank extends operational runtime between refills.
- Working weight: 14,100kg with 500mm track plates for stable ground pressure
- Maximum digging depth: 5,500mm for utility and foundation work
- Transport dimensions: 7,870mm × 2,570mm × 2,880mm for easy mobilization
- 70% climbing ability and 12rpm rotation speed enhance productivity
Manufactured in Kunshan, Jiangsu Province, this water-cooled machine represents smart capital allocation for growing fleets and e
| Specifications | Value |
|---|---|
| No. | 1021562 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.22-0.7 (0.65) |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 84/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 375/1800 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.1 |
| Travel speed (km/h) | 5.5/3.5 |
| Hydraulic crushing pipeline is standard | no |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7870 |
| Total transport width (mm) | 2570 |
| Total transport height (mm) | 2880 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2490 |
| Back end turning radius (mm) | 2210 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3730 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2550 |
| Track ground length (mm) | 3010 |
| Maximum height at minimum turning radius (mm) | 6495 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5500 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6115 |
| Maximum vertical digging depth (mm) | 5085 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
