Product Description

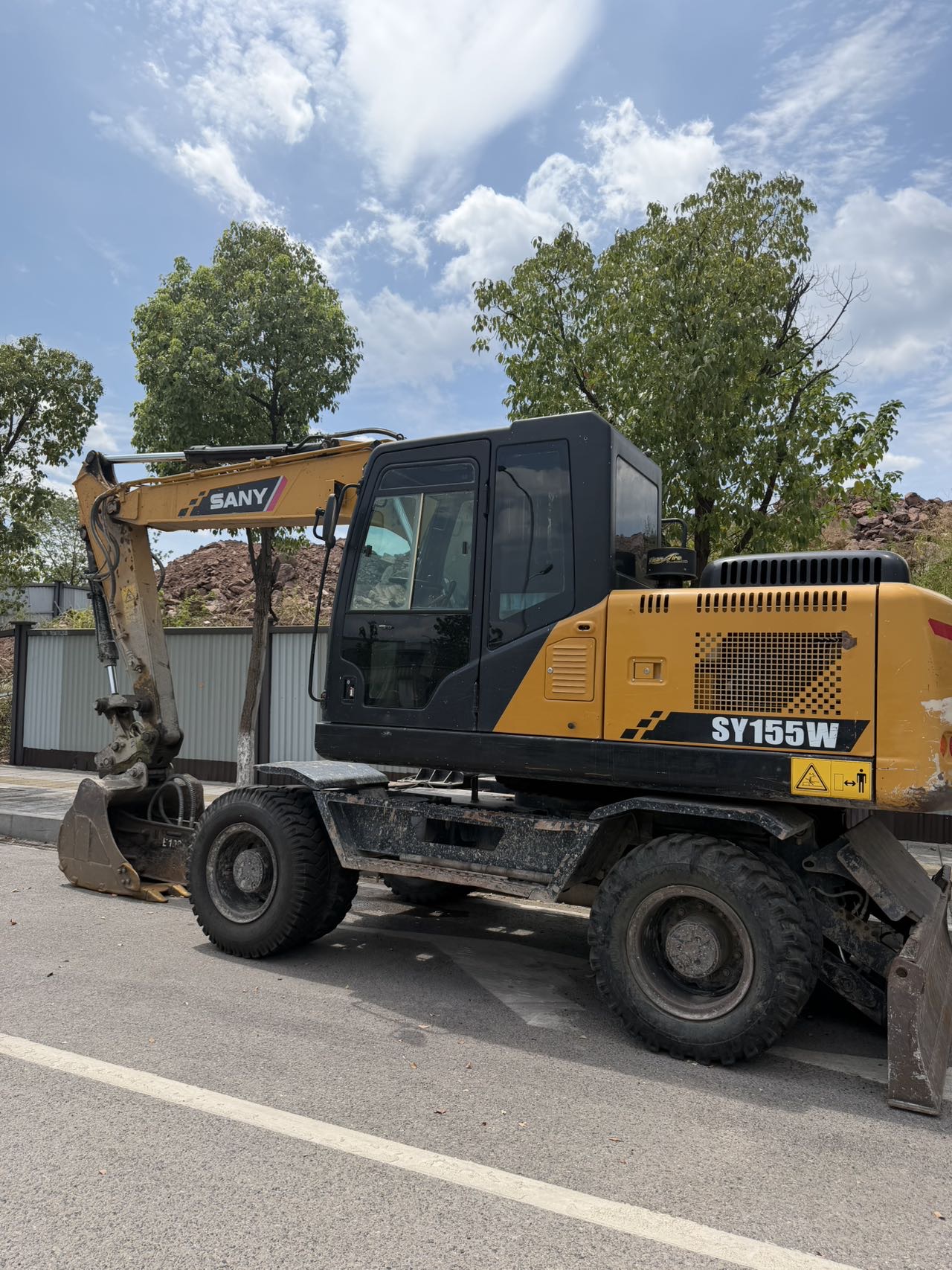

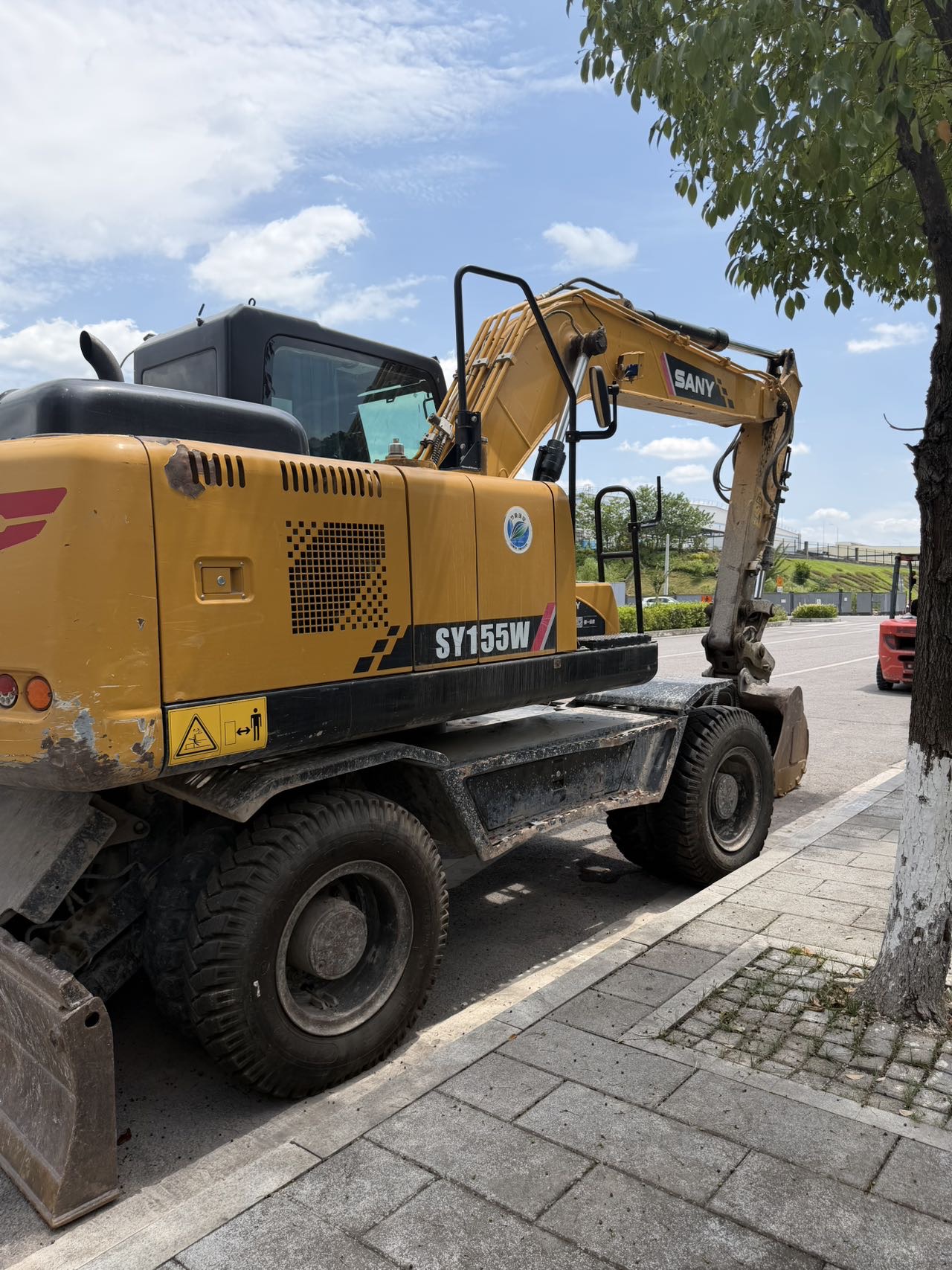

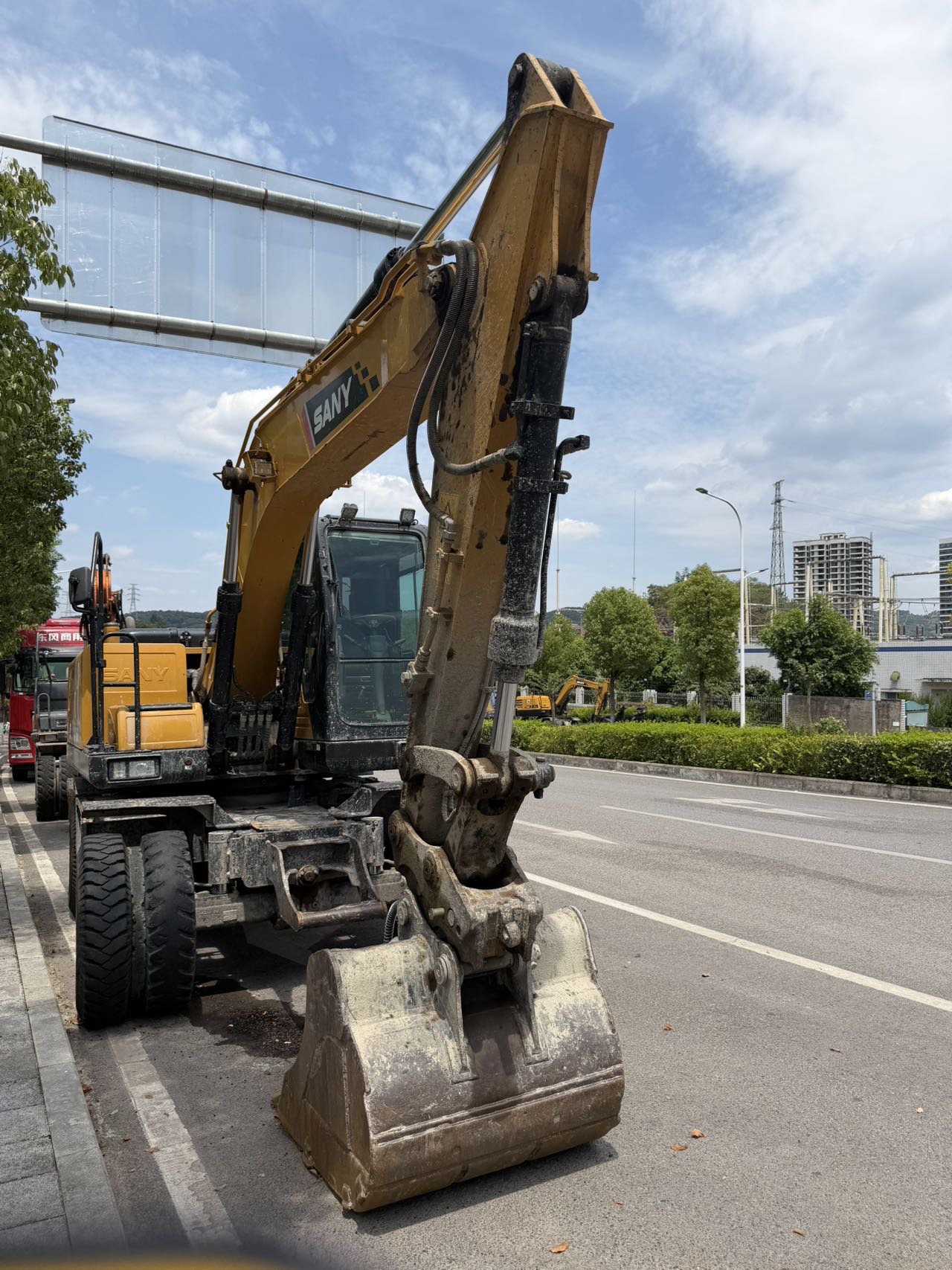

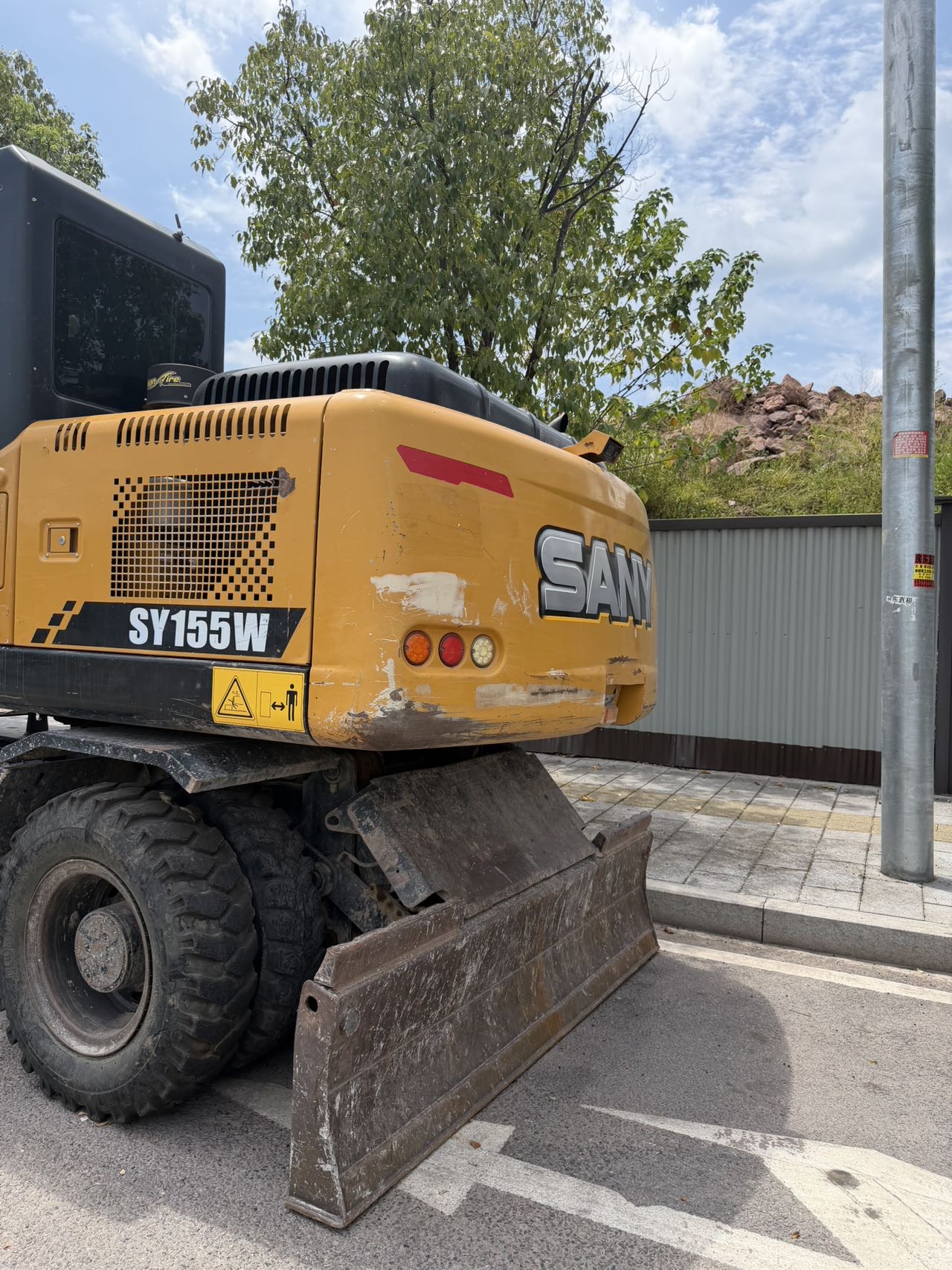

Discover the reliability and efficiency of the 2021 Sany SY155W, a high-spec wheeled excavator, available for purchase from Chongqing, China. This machine has been meticulously maintained and is in excellent condition, boasting over 7,000 operational hours. Ideal for a variety of construction and excavation projects, the SY155W is designed to deliver superior performance and durability, making it a valuable addition to any fleet.
- Year: 2021
- Brand: Sany
- Model: SY155W
- Operational Hours: Over 7,000
- Location: Chongqing, China
| Specifications | Value |
|---|---|
| No. | 1130211 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7(0.58) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4HK1X |
| Rated power (kw/rpm) | 120/2000 |
| Total displacement (L) | 5.193 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 657/1500 |
| Forward speed (Km/h) | 37/10 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 102.3 |
| Rod digging force (kN) | 75.2 |
| Maximum tractive force (kN) | 80 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 18 |
| Total transport length (mm) | 7690 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1230 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1944 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 2310 |
| Maximum digging radius (mm) | 7960 |
| Maximum excavation radius (mm) | 7750 |
| Maximum digging depth (mm) | 4800 |
| Maximum excavation height (mm) | 8600 |
| Maximum unloading height (mm) | 6200 |
| Maximum vertical digging depth (mm) | 4390 |
