Product Description

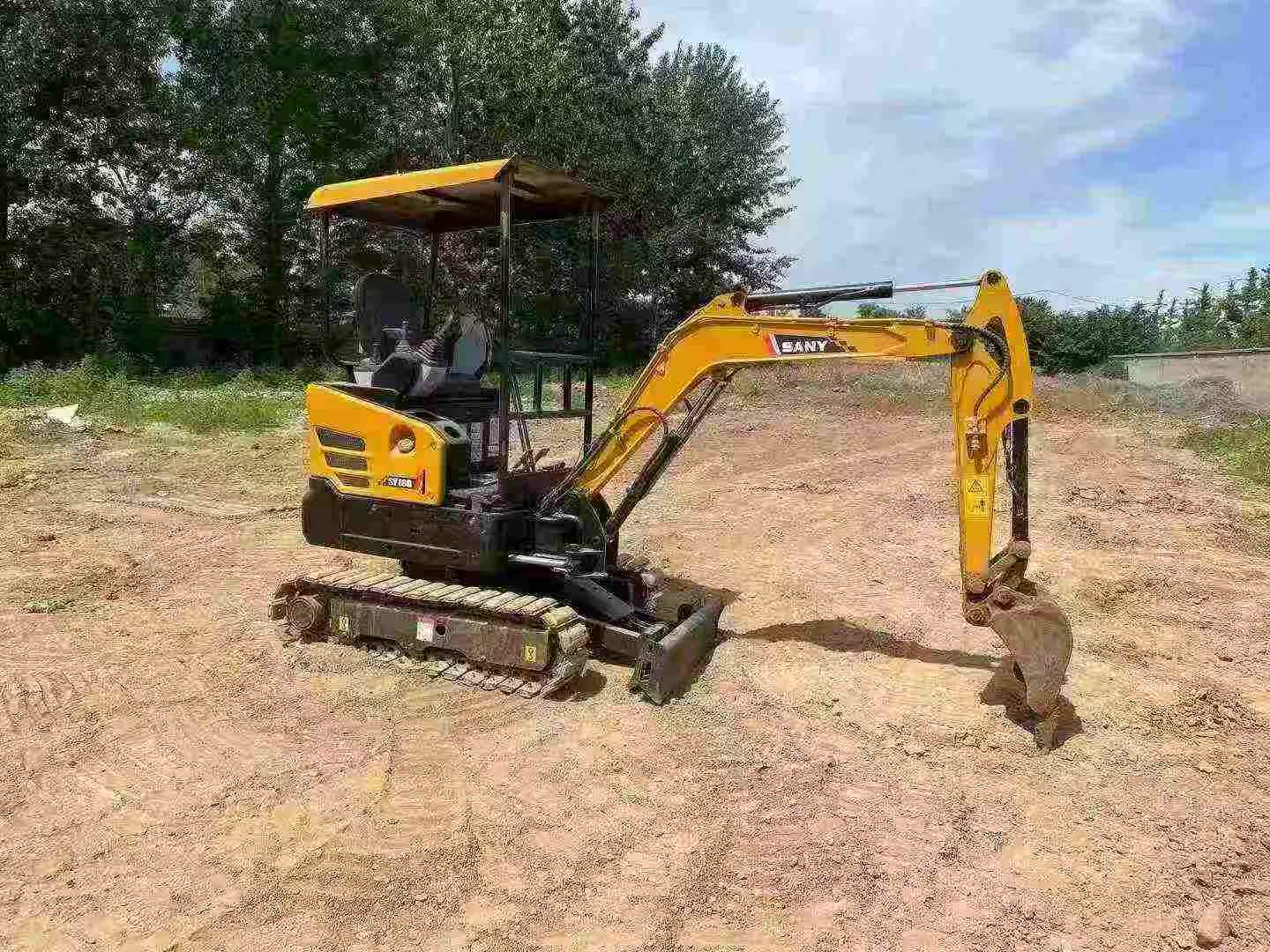

Designed for precision work in confined spaces, this 2016 Sany SY16C mini excavator delivers reliable performance with operator-centered engineering. Powered by a Yanmar 3TNV70 engine producing 10.3 kW at 2200 rpm, this 1.85-ton machine combines compact dimensions with robust digging capabilities. The 4000mm maximum digging radius and 2360mm maximum digging depth provide substantial reach for its class, while the 15.2 kN bucket digging force ensures efficient material handling across varied applications.
Operator advantages include:
- Exceptional maneuverability with a 1655mm minimum turning radius and 920mm rear swing radius
- Enhanced stability through optimized 29.1 kPa ground pressure distribution
- Clear sightlines to the working area, critical for precision tasks and safety
- Responsive hydraulic controls backed by a 21L hydraulic tank capacity
- Variable track width (750/1220mm) adapting to site access requirements
- 58% climbing ability for challenging terrain navigation
Currently located in Hebei, this machine represents proven Chinese manufacturing quality with straightforward maintenance requirements and efficient fuel consumption from its 23L tank. Idea
| Specifications | Value |
|---|---|
| No. | 1009980 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
