Product Description

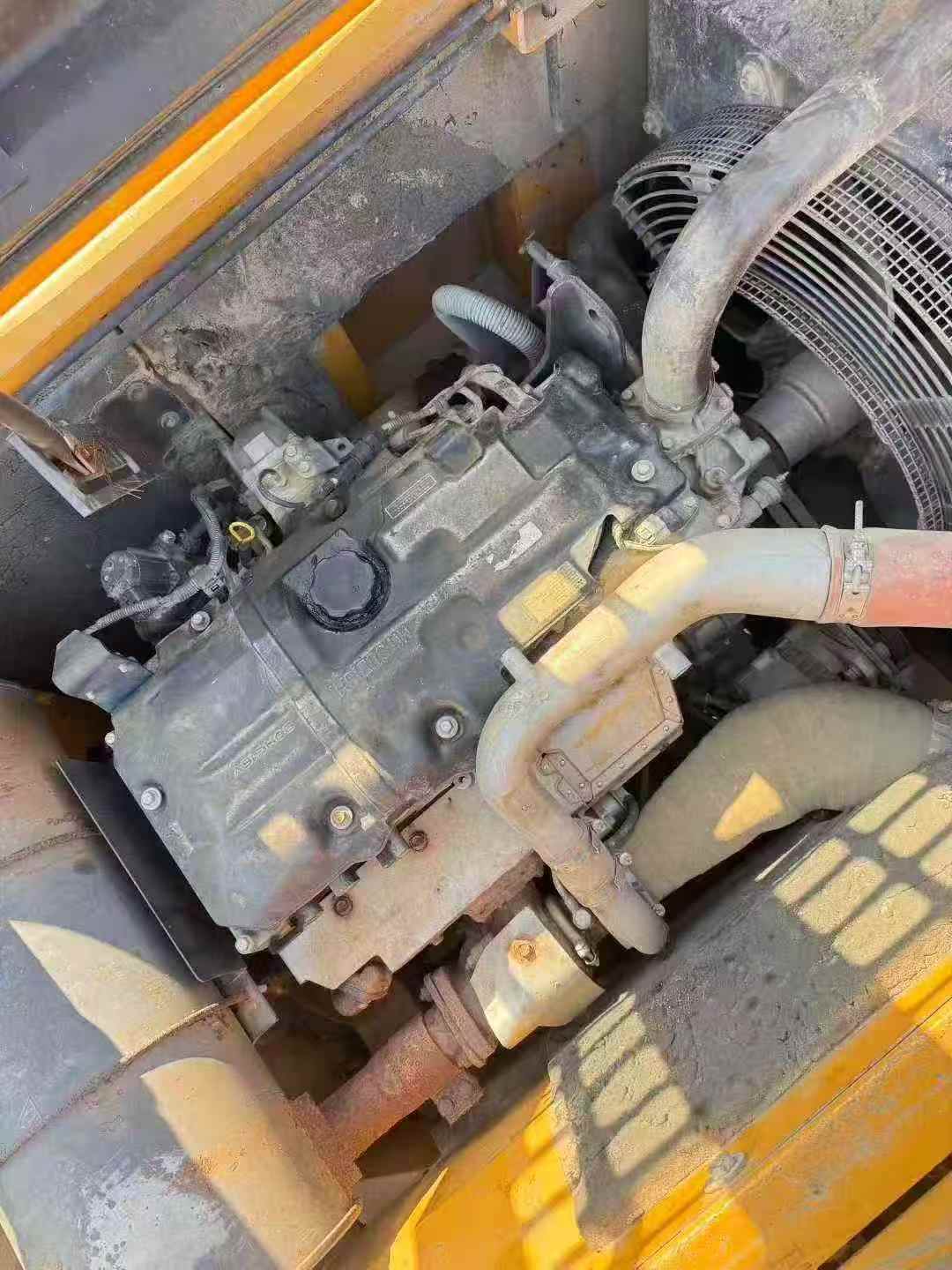

Built for precision work in tight spaces, this 2016 Sany SY16C mini excavator delivers reliable performance with operator-focused engineering. Powered by a Yanmar 3TNV70 engine producing 10.3 kW at 2200 rpm, this compact 1.85-ton machine combines agility with impressive digging capabilities. Operators benefit from excellent visibility across the 4000mm maximum digging radius, while the 980mm transport width enables access to confined job sites where larger equipment cannot operate.
Handling characteristics stand out with a tight 1655mm minimum turning radius and responsive 10 rpm rotation speed, allowing precise positioning around obstacles. Stability remains solid even on slopes up to 58%, supported by 29.1 kPa ground pressure and a low 180mm ground clearance. The hydraulic system generates 15.2 kN bucket digging force and 9.2 kN arm force, providing sufficient breakout power for trenching and utility work.
- Compact dimensions: 3575mm length × 980mm width for superior maneuverability
- Variable track width (750-1220mm) adapts to different working conditions
- 23L fuel tank and 21L hydraulic reservoir minimize refueling downtime
- Maximum digging depth of 2360mm handles standard utility inst
| Specifications | Value |
|---|---|
| No. | 1029147 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
