Product Description

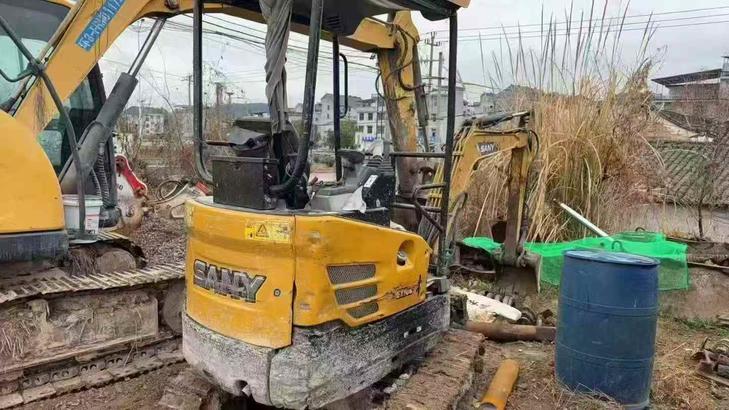

Engineered for precision in confined spaces, this 2017 Sany SY16C mini excavator delivers exceptional performance through its robust Yanmar 3TNV70 engine. Generating 10.3 kW at 2200 rpm with a maximum torque of 48.5-52.4 N·m, this 1.85-ton compact machine combines reliable Japanese engine technology with Sany's proven hydraulic architecture. The system produces 15.2 kN bucket digging force and 9.2 kN rod digging force, enabling effective material handling across diverse jobsite conditions.
- Operational Range: 4000mm maximum digging radius, 2360mm digging depth, 3665mm excavation height
- Compact Footprint: 3575mm transport length, variable width 980-1350mm for tight access
- Maneuverability: 1655mm front turning radius, 920mm rear swing radius, 58% climbing capability
- Hydraulic Capacity: 21L tank, 0.02-0.06m³ bucket range, 10 rpm rotation speed
- Fuel Efficiency: 23L tank capacity, 0.854L displacement for extended runtime
Currently located in Fujian Sanming, China, this machine represents Sany's commitment to manufacturing durable, specification-driven equipment for professional contractors r
| Specifications | Value |
|---|---|
| No. | 1020203 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
