Product Description

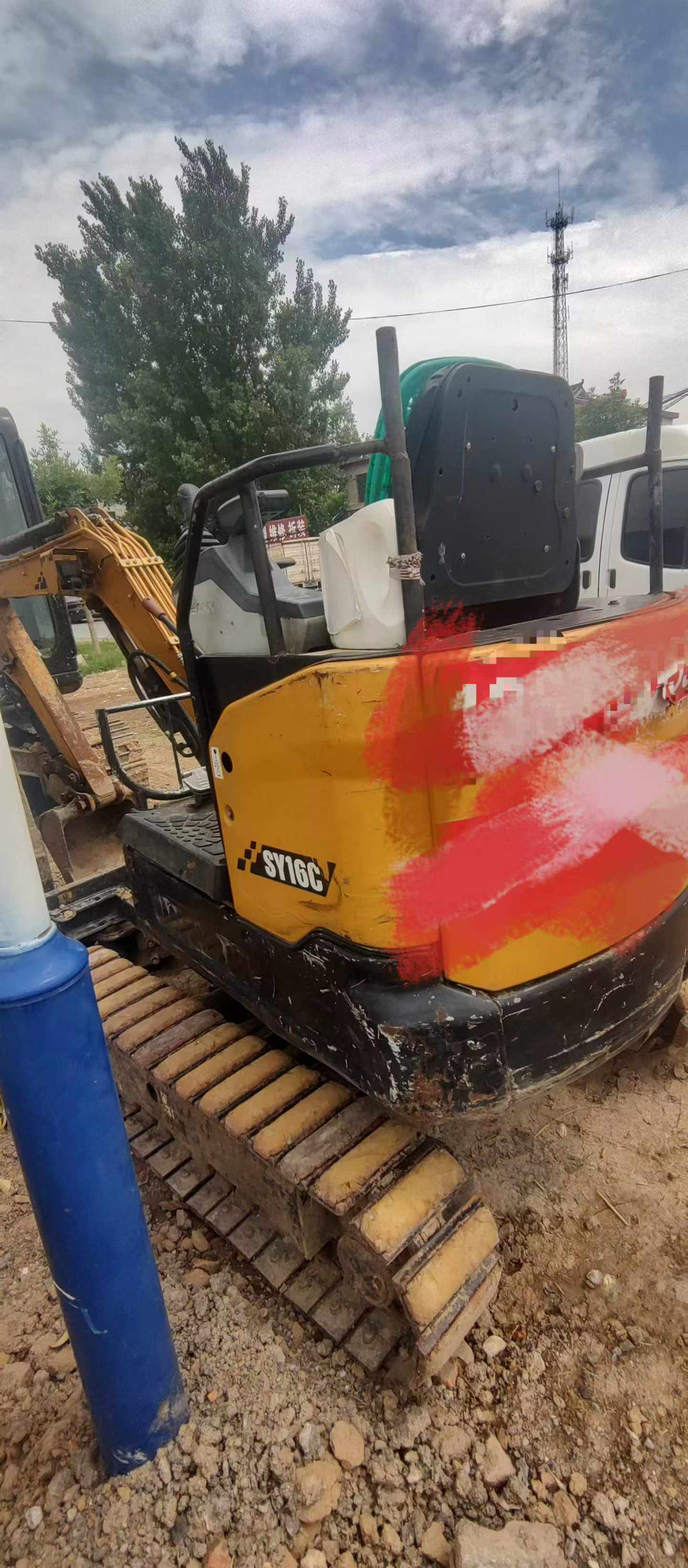

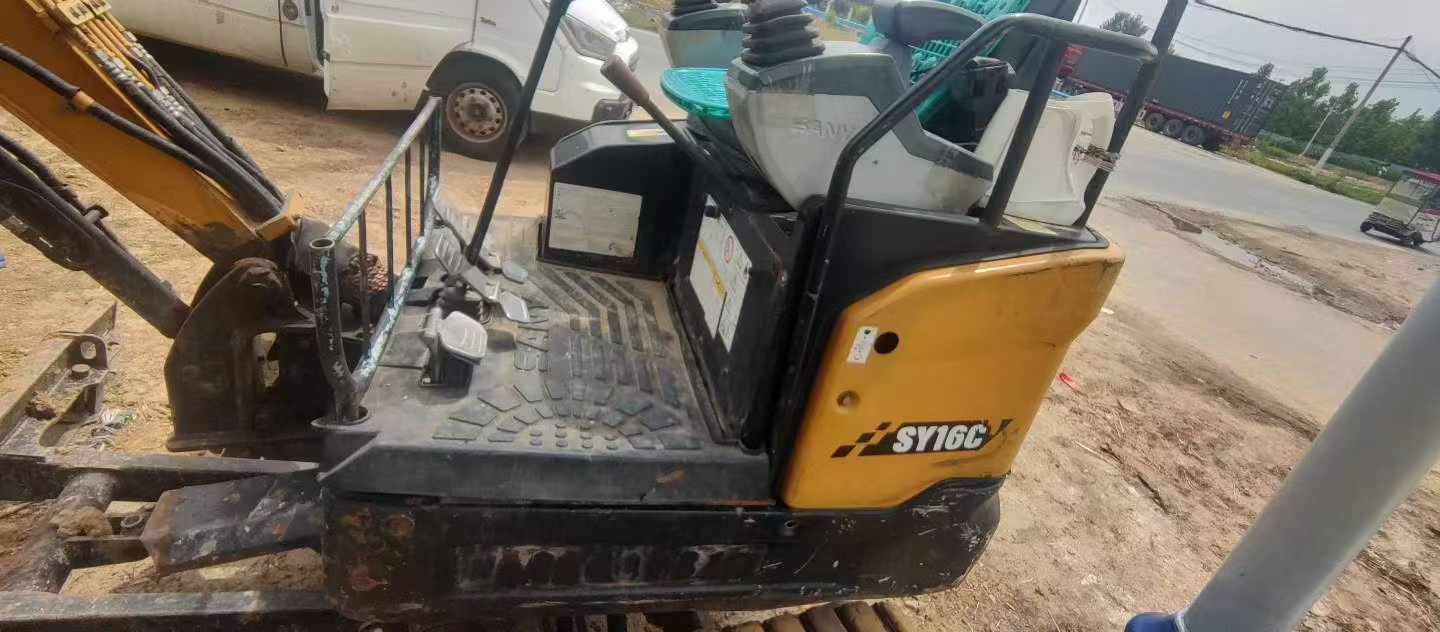

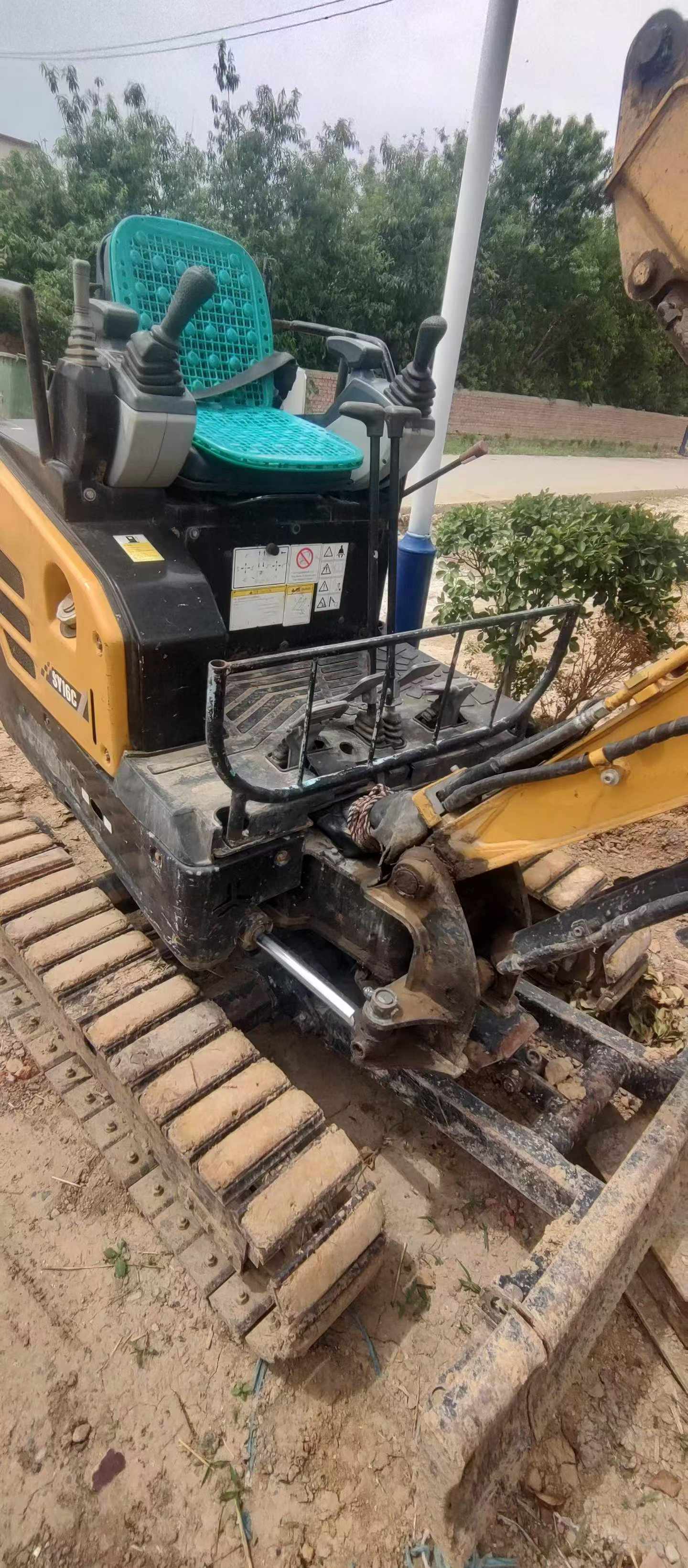

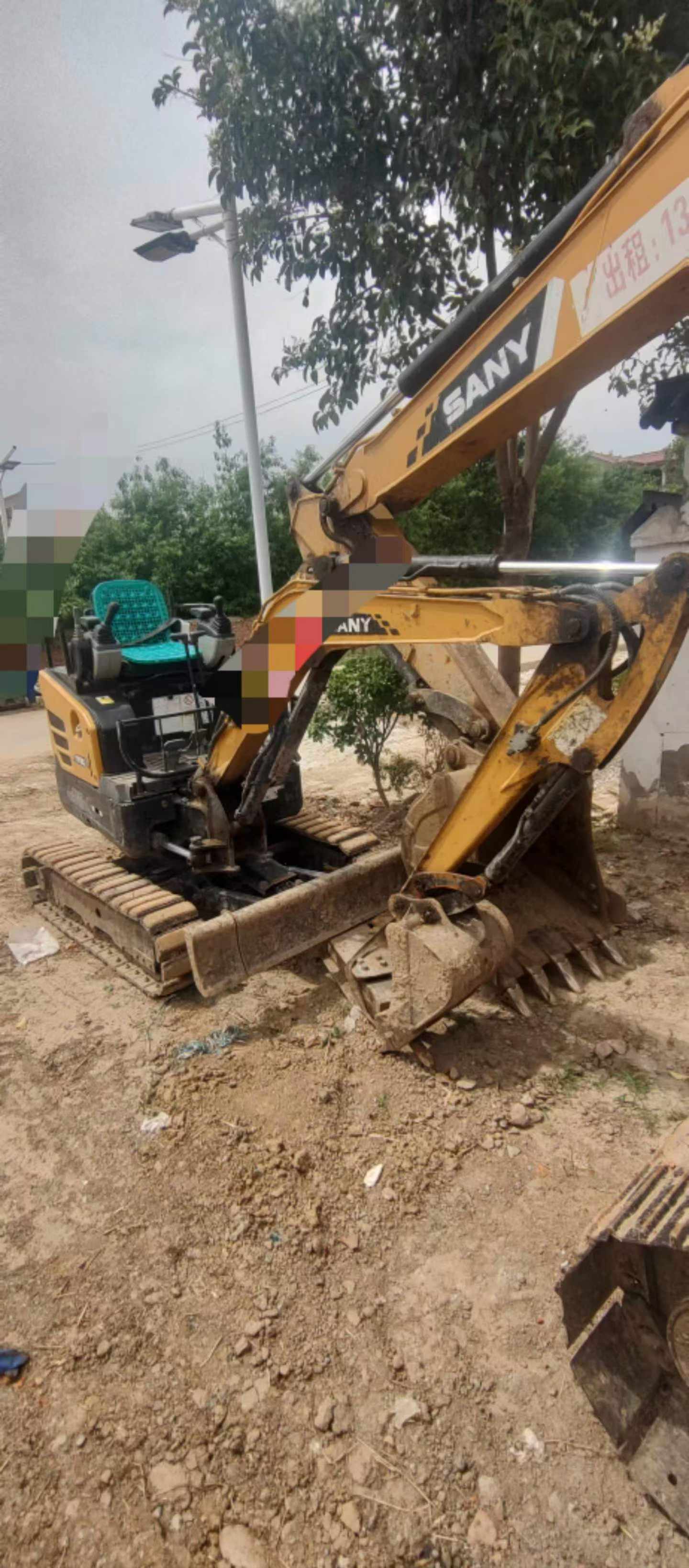

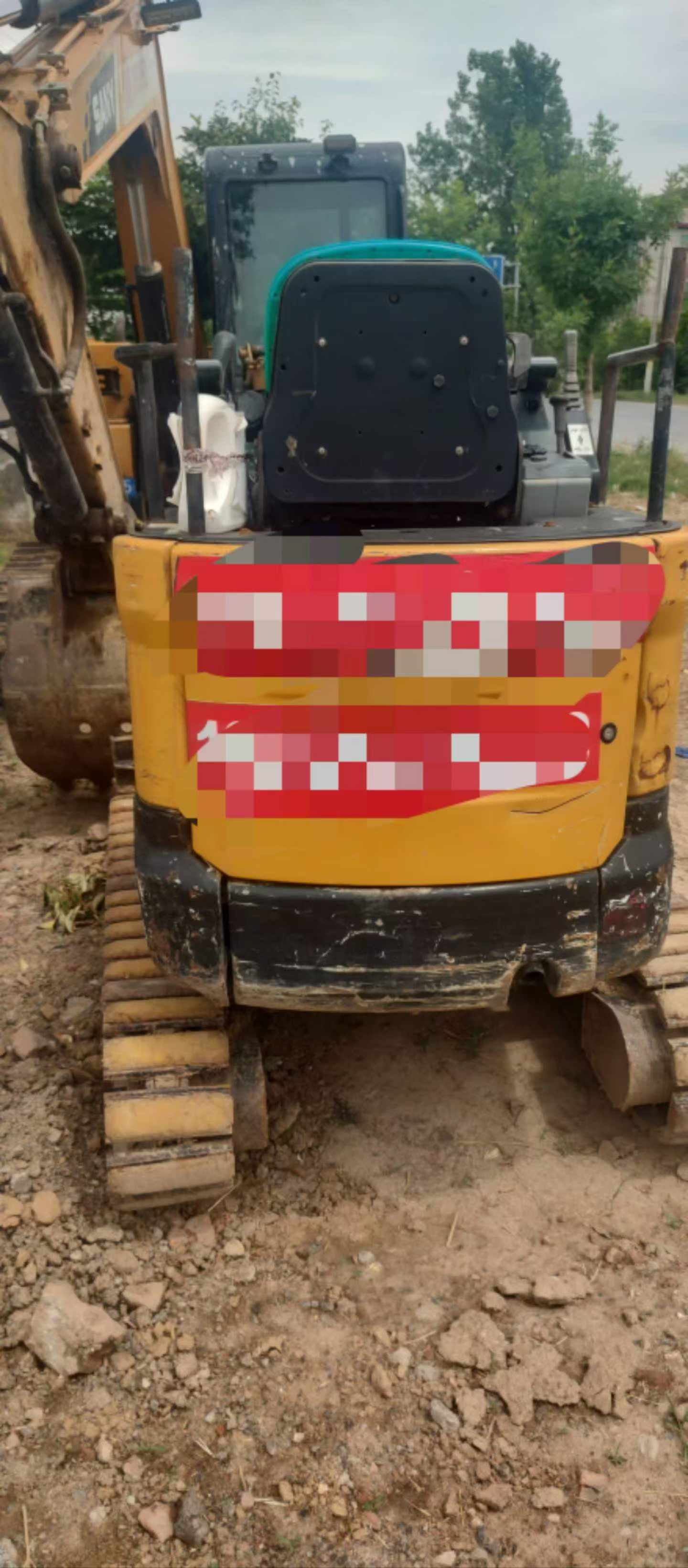

This 2018 Sany SY16C mini excavator represents a reliable solution for compact excavation projects. As a well-maintained working unit from one of China's leading heavy equipment manufacturers, this 1.6-ton class machine has been actively used in operational conditions, demonstrating its field-proven durability. Currently located in Zhejiang, China, this excavator is ideal for contractors seeking dependable performance in confined jobsites.
The SY16C is engineered for urban construction, landscaping, and light earthmoving applications where maneuverability is essential. This model features compact dimensions for easy transportation and operation in restricted spaces.
- Manufacturing Year: 2018
- Operating Weight Class: 1.6 tons
- Current Location: Zhejiang Province, China
- Condition: Used, operational working machine
- Application: Urban construction, trenching, landscaping
Contact us directly to discuss pricing and arrange inspection. Suitable for international buyers and export arrangements available.
| Specifications | Value |
|---|---|
| No. | 1080736 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |

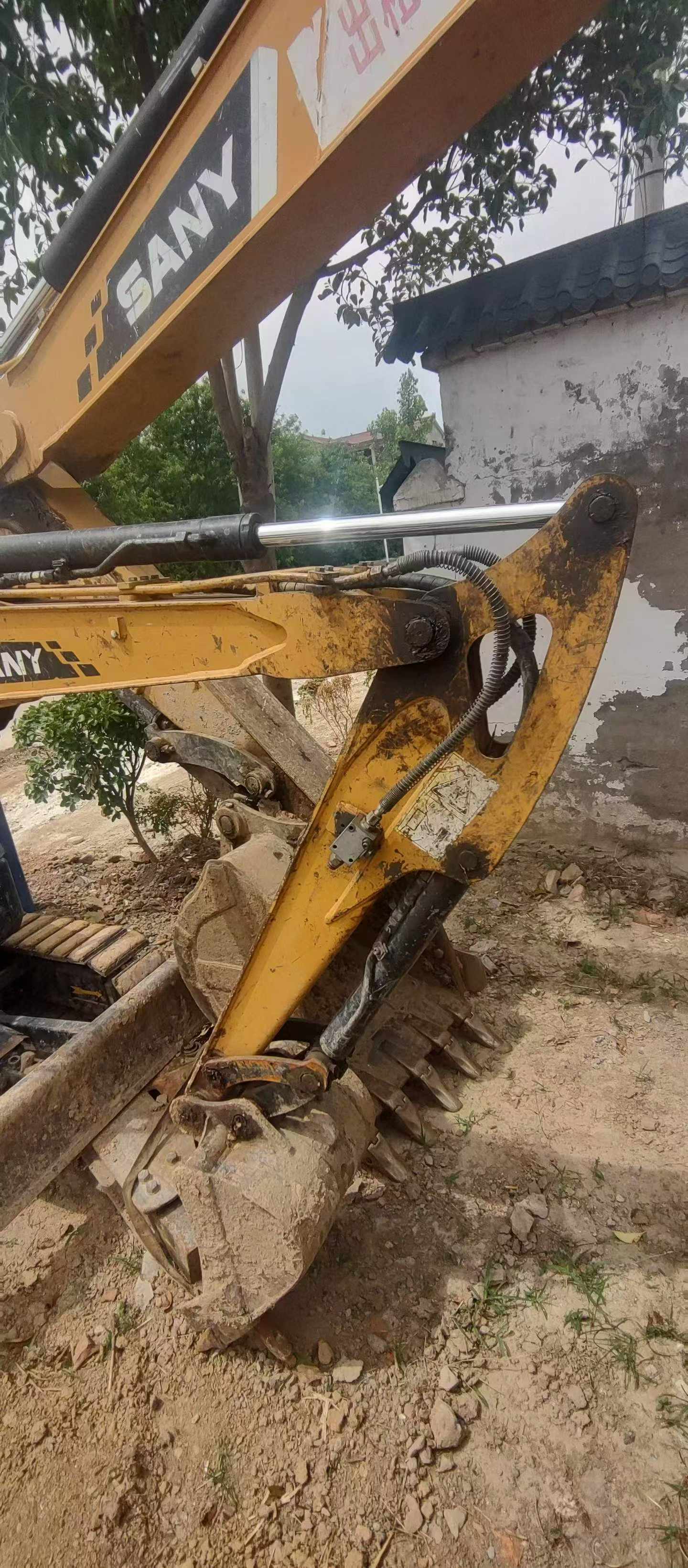

| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

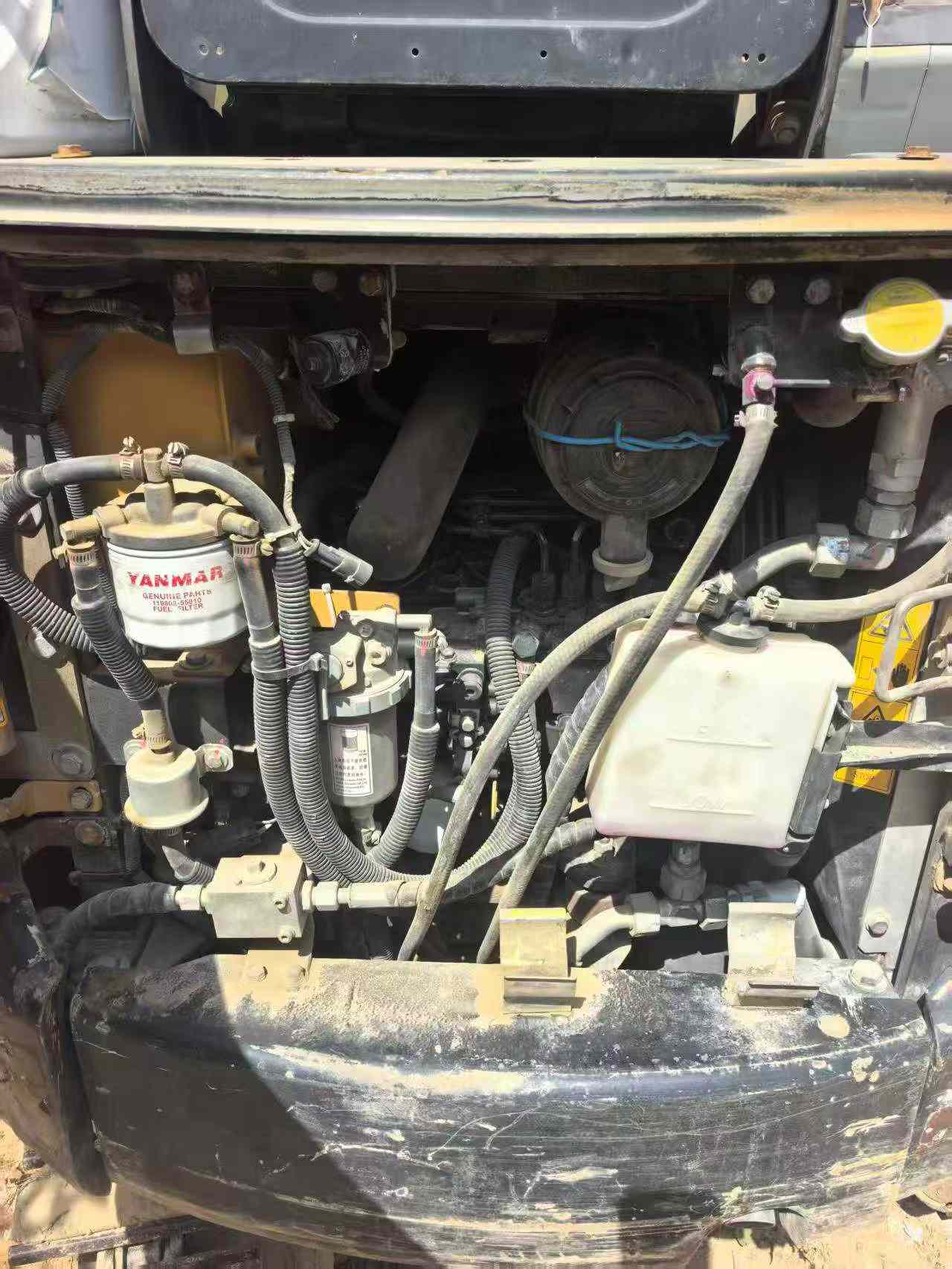

| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |

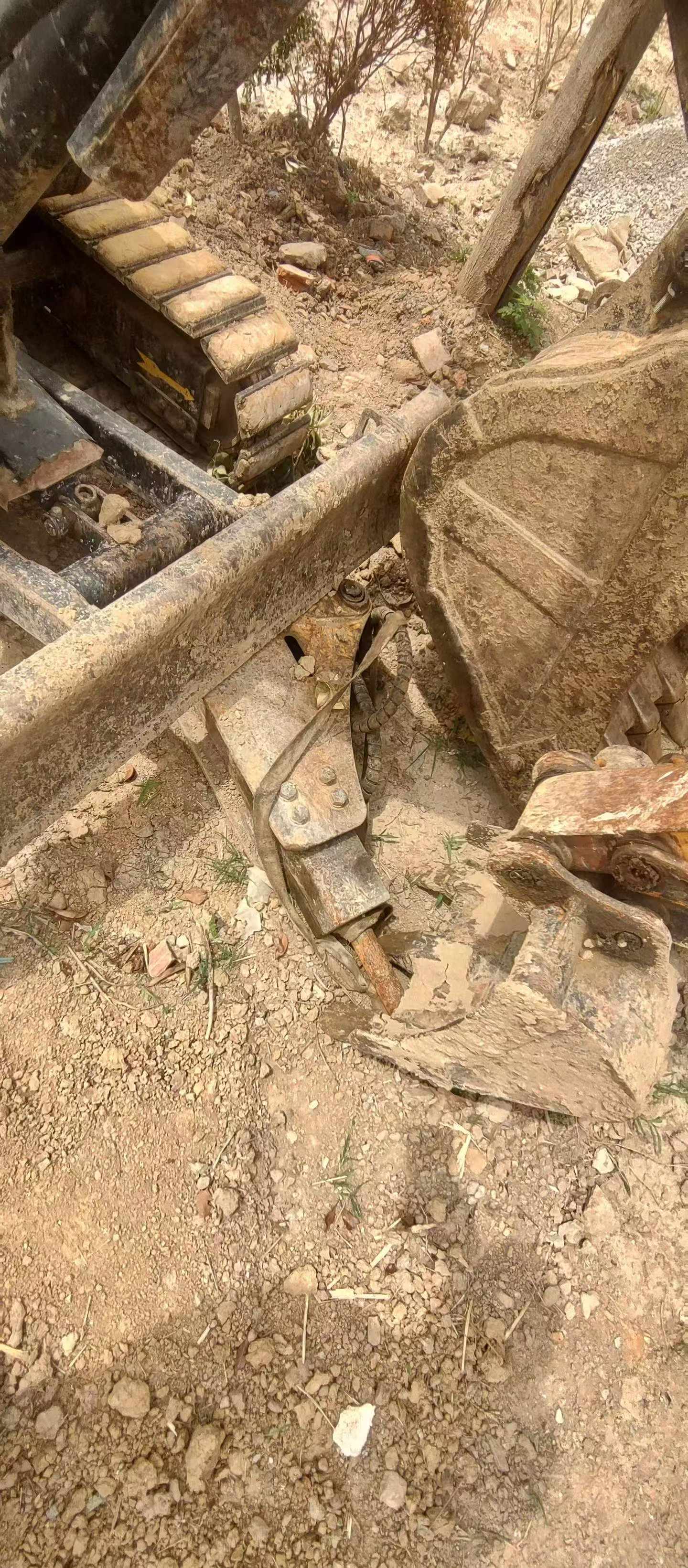

| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
