Product Description

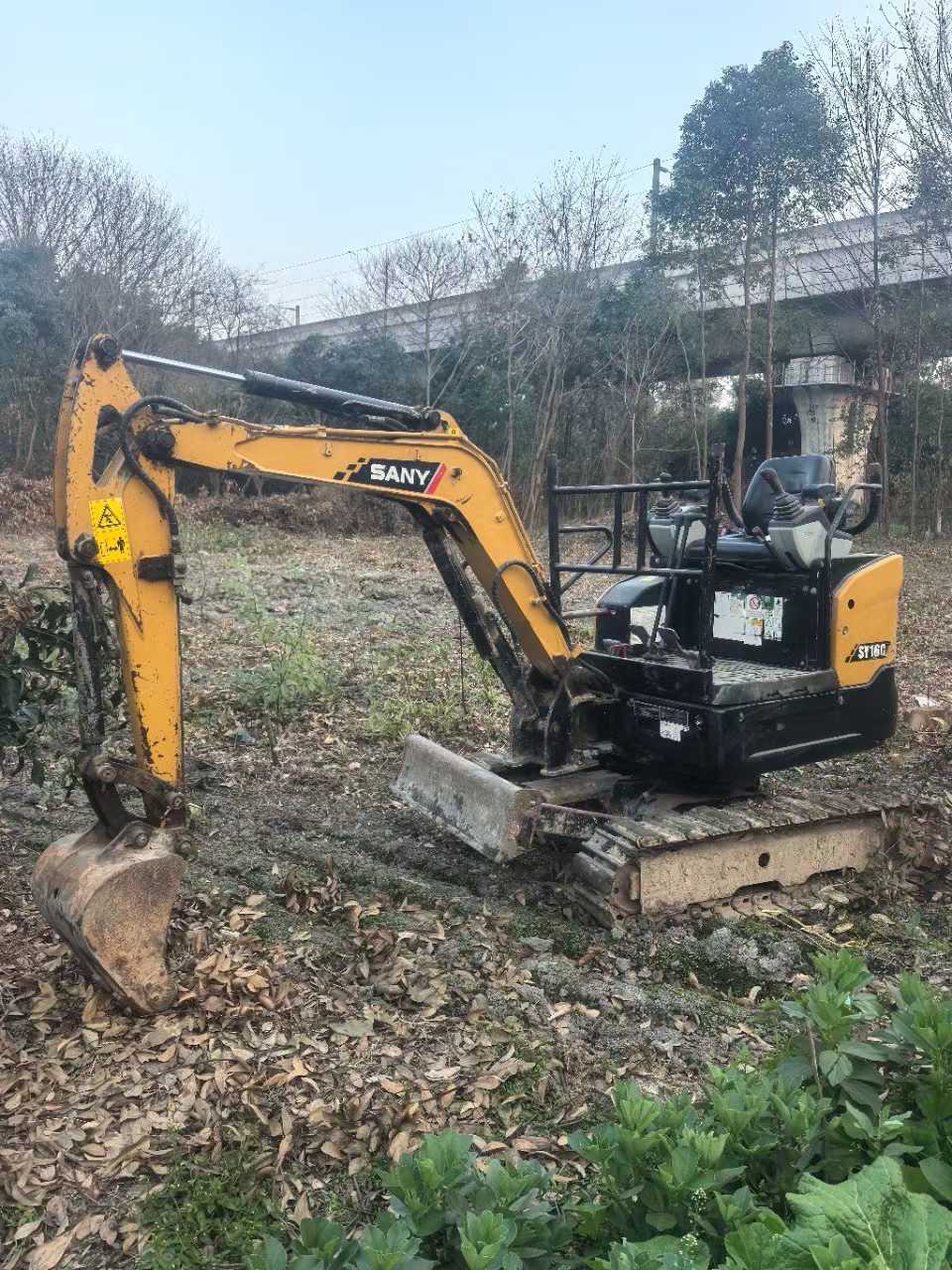

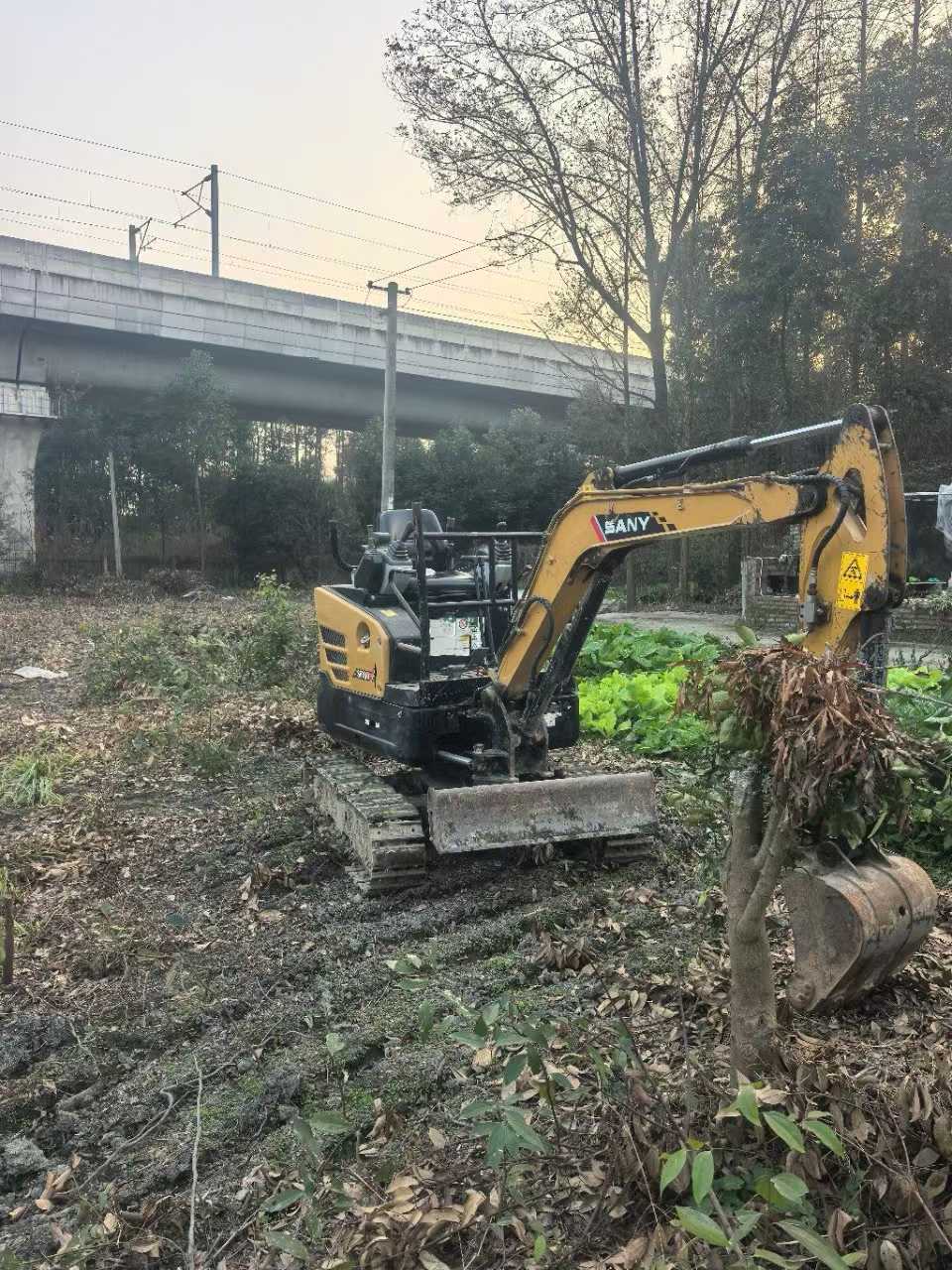

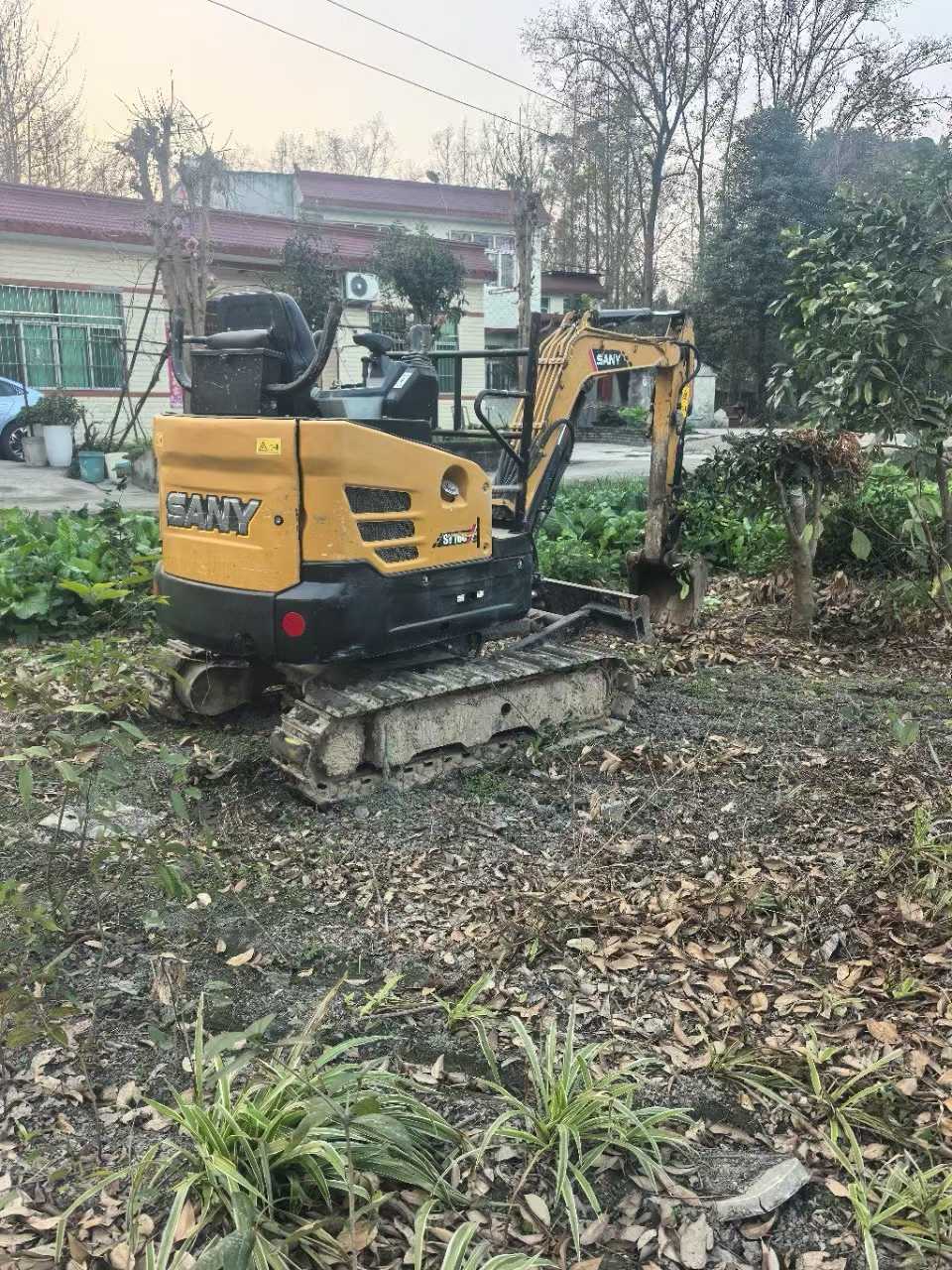

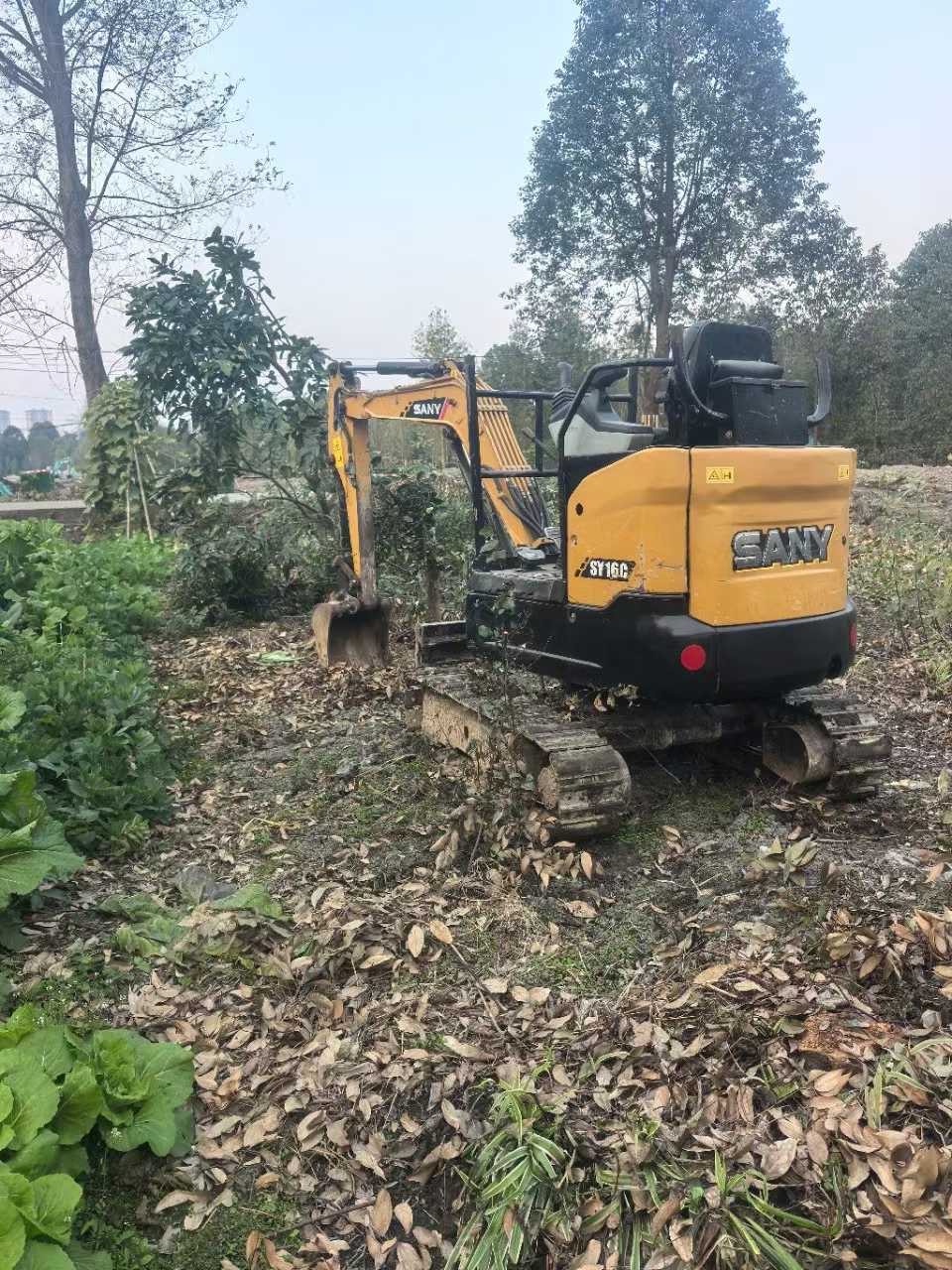

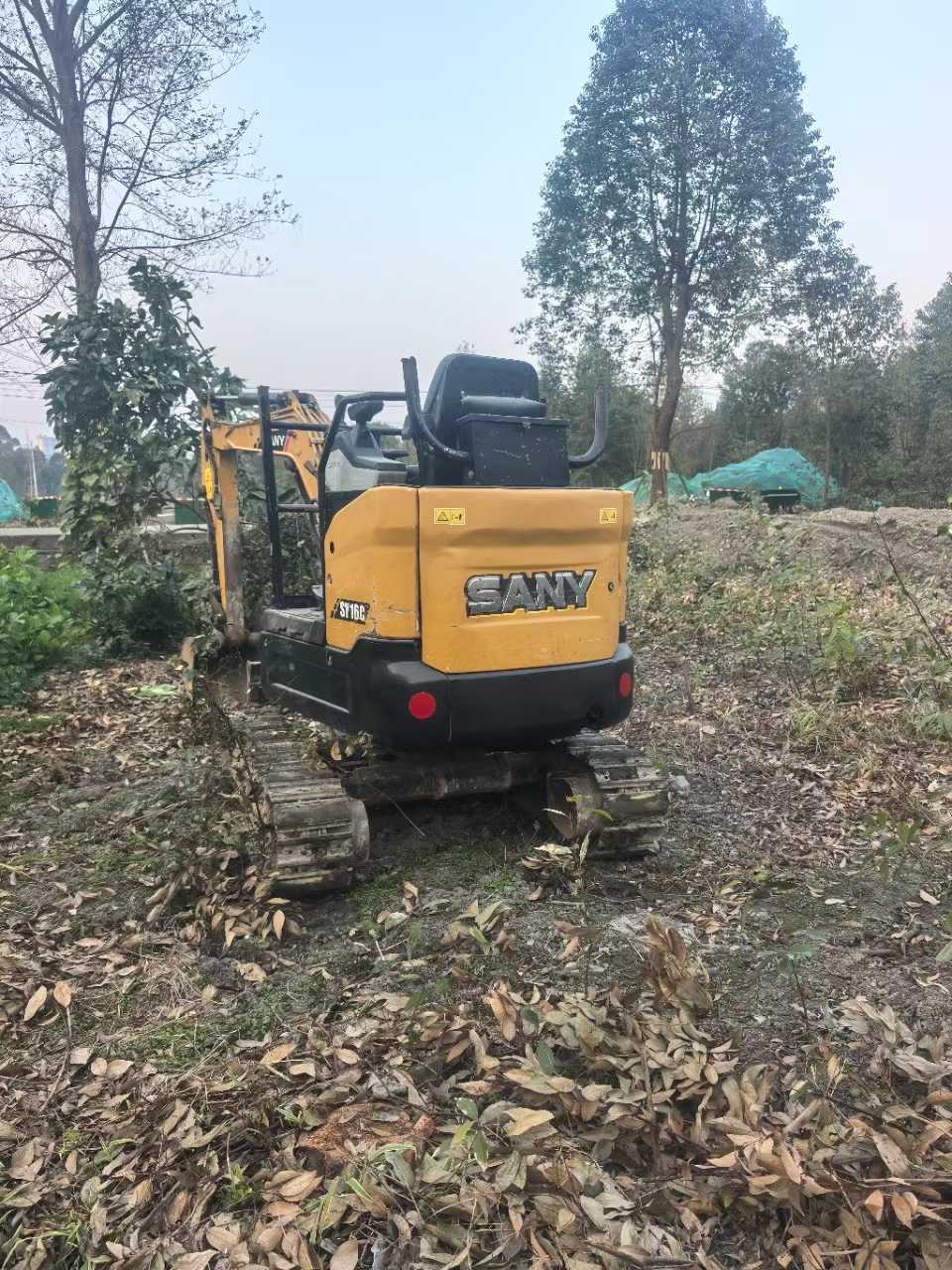

Compact power meets exceptional value in this 2020 Sany SY16C mini excavator, currently available in Sichuan. Built for tight-access jobsites, this 1.85-ton machine delivers professional-grade performance at a fraction of new equipment costs. Powered by a reliable Yanmar 3TNV70 engine producing 10.3kW, it combines impressive digging capabilities with fuel-efficient operation from its 23L tank.
Performance specifications include:
- Maximum digging depth of 2,360mm with 4,000mm reach
- Bucket digging force: 15.2kN for demanding excavation tasks
- Compact dimensions (3,575mm length, 980mm width) for confined spaces
- 58% climbing ability for challenging terrain
- Variable track width (980-1,350mm) for versatility
- 0.02-0.06m³ bucket capacity range
With minimal operating hours for a 2020 model, this Chinese-manufactured excavator offers proven Sany reliability without the new-machine premium. Ideal for landscaping, utility work, and residential construction where maneuverability and cost-efficiency drive profitability. Smart contractors recognize that purchasing quality used equipment preserves capital while maintaining productivity standards.
| Specifications | Value |
|---|---|
| No. | 1024958 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

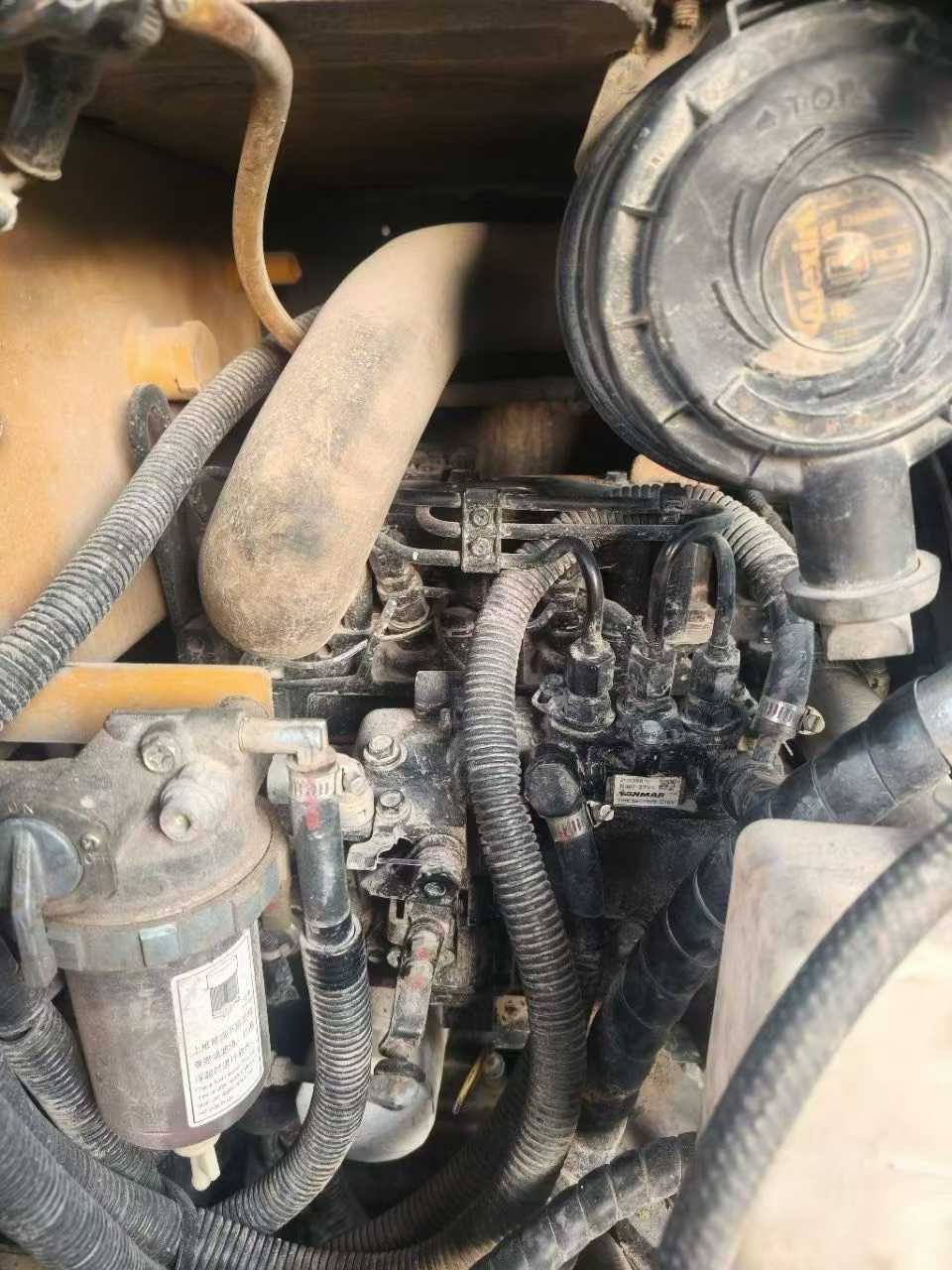

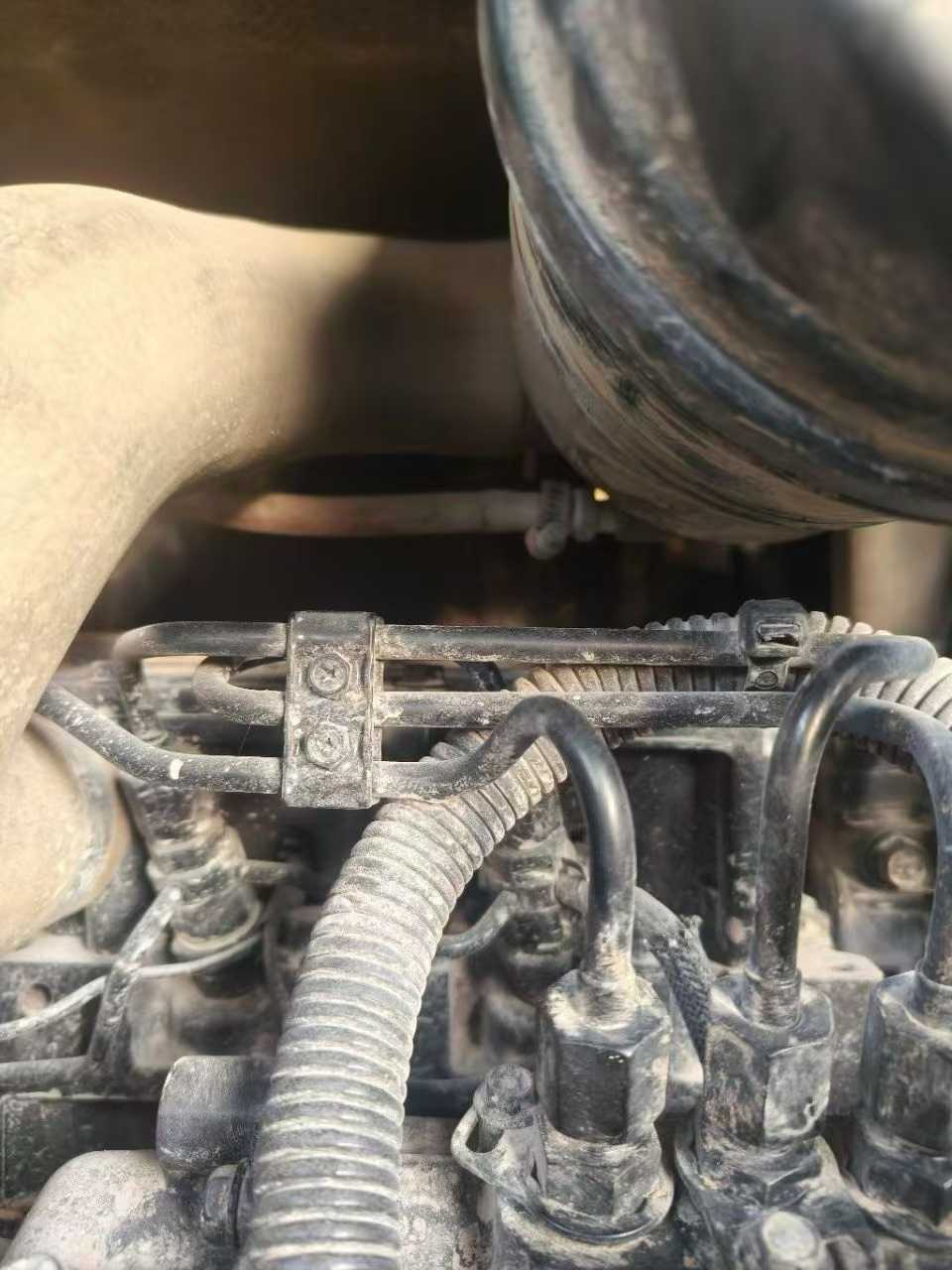

| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
