2020 Sany SY16C

1/9
Buy Sany SY16C Used Excavator / 1

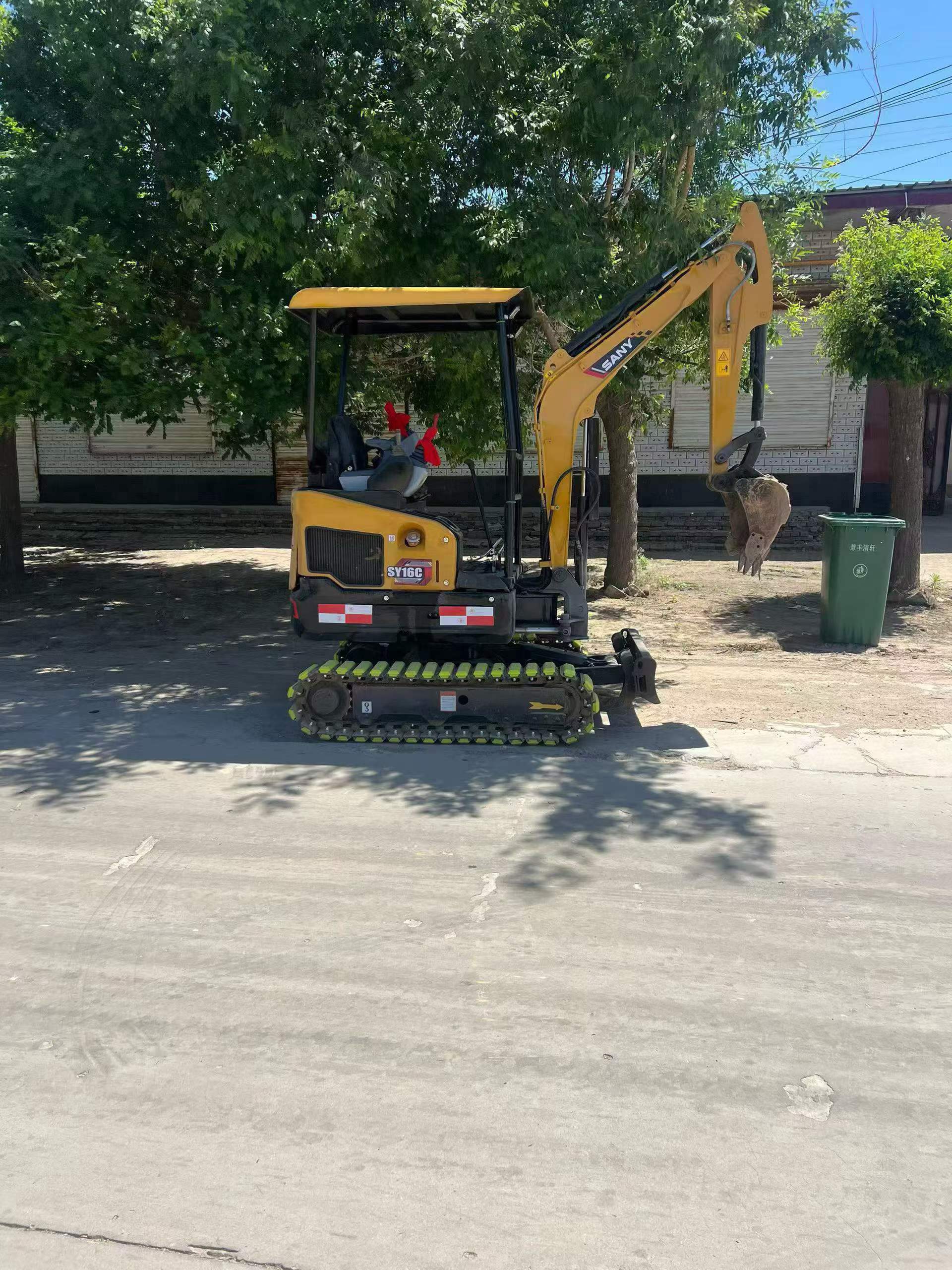

Buy Sany SY16C Used Excavator / 2

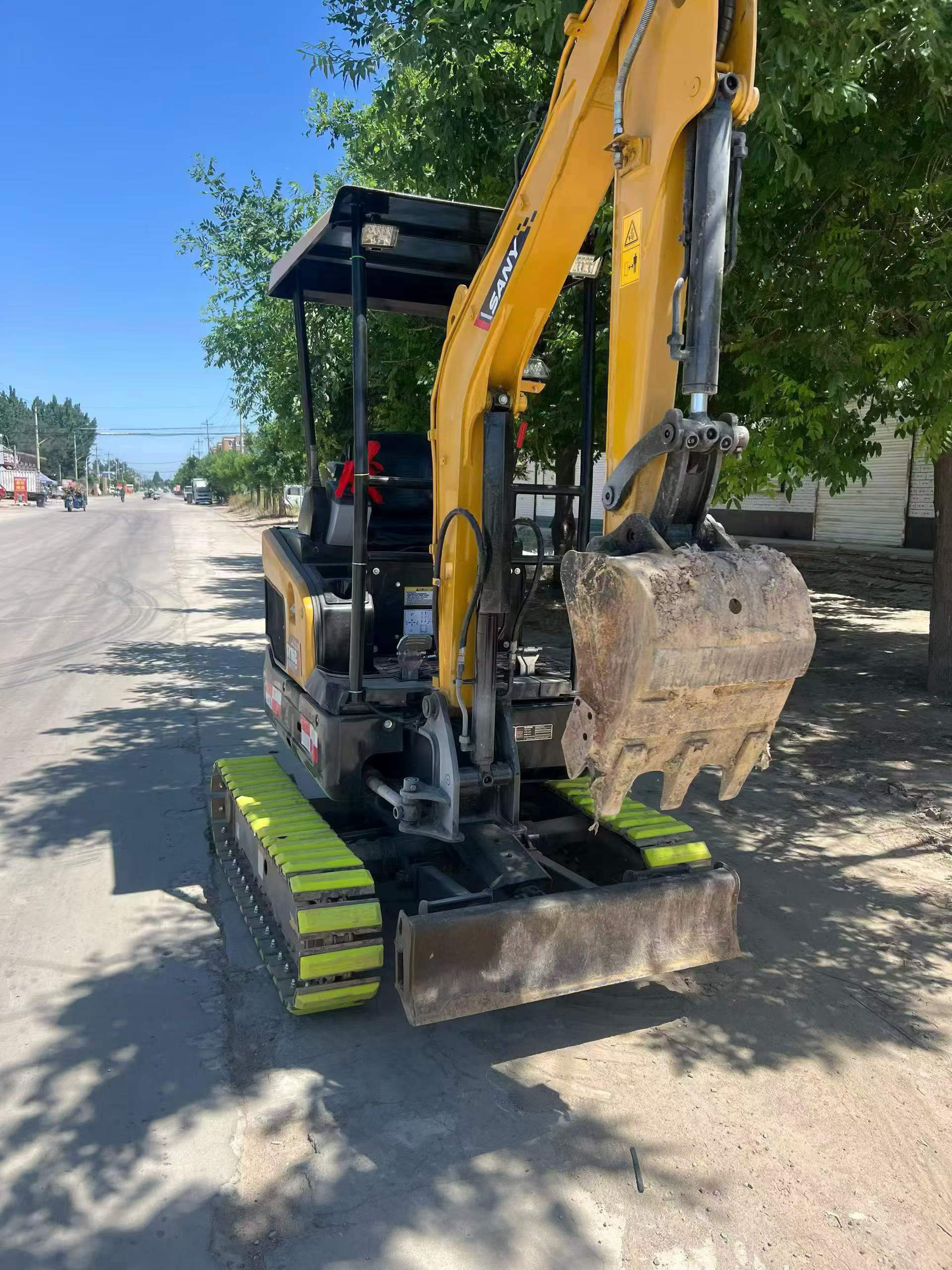

Buy Sany SY16C Used Excavator / 3

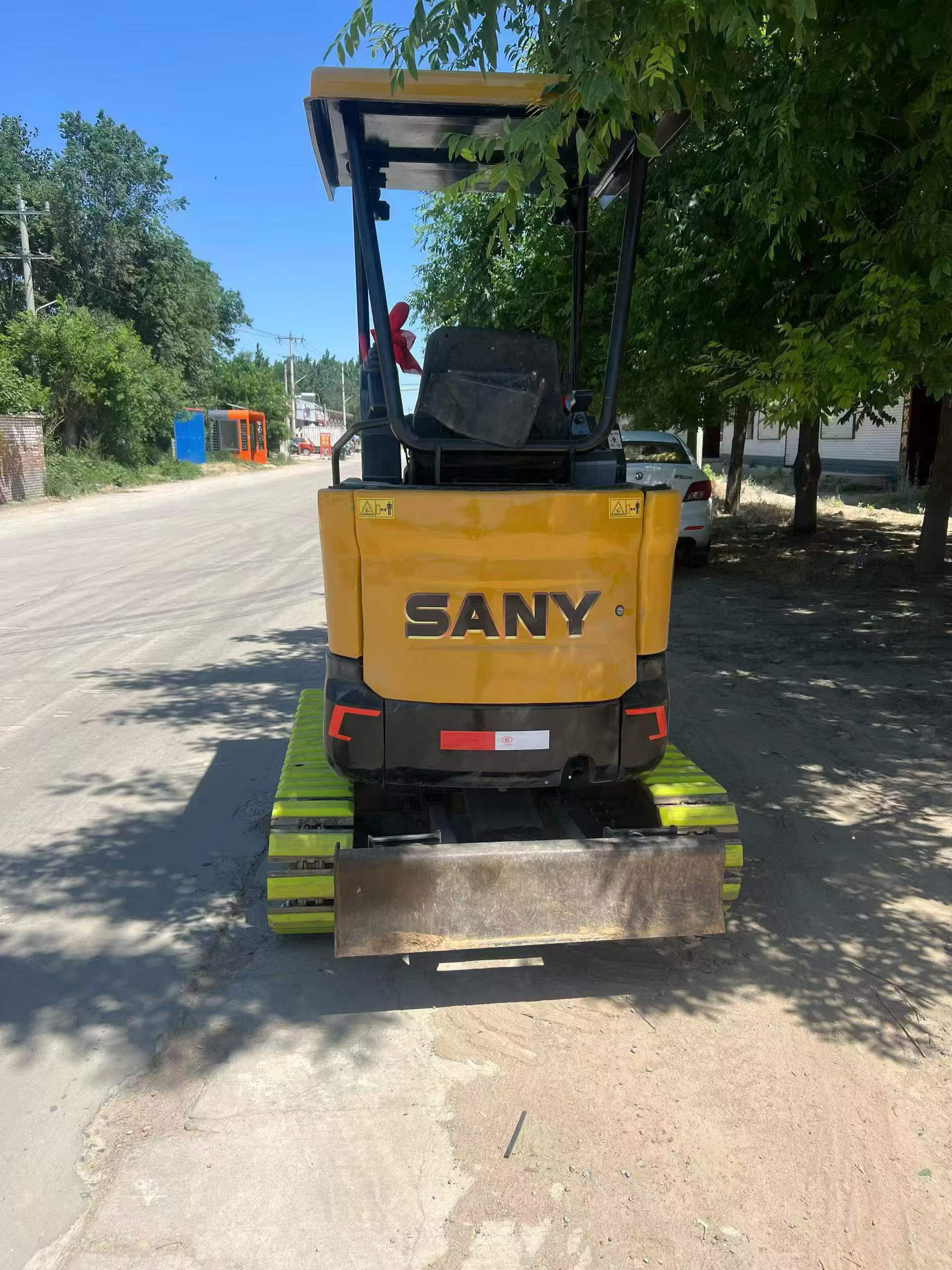

Buy Sany SY16C Used Excavator / 4

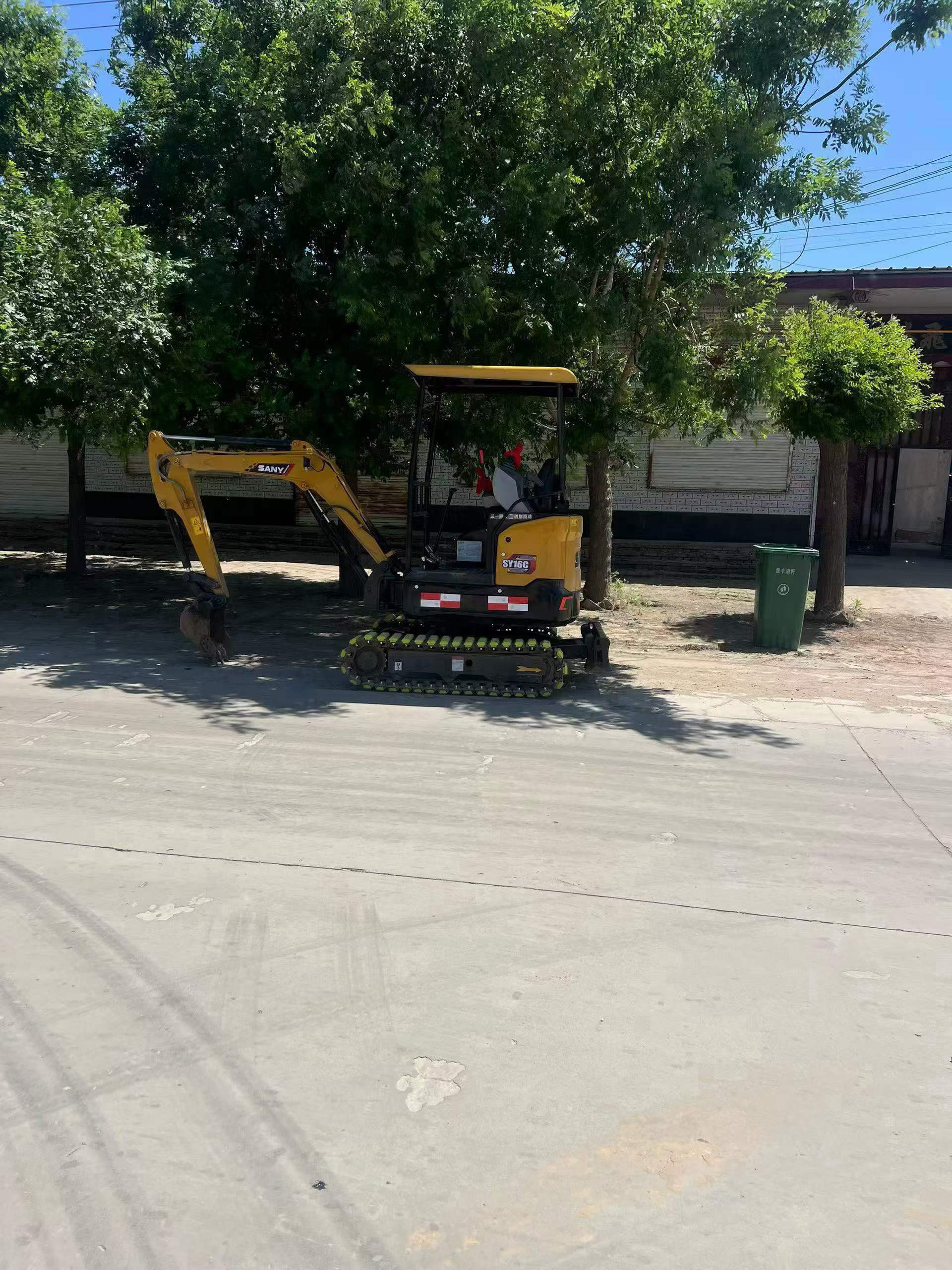

Buy Sany SY16C Used Excavator / 5

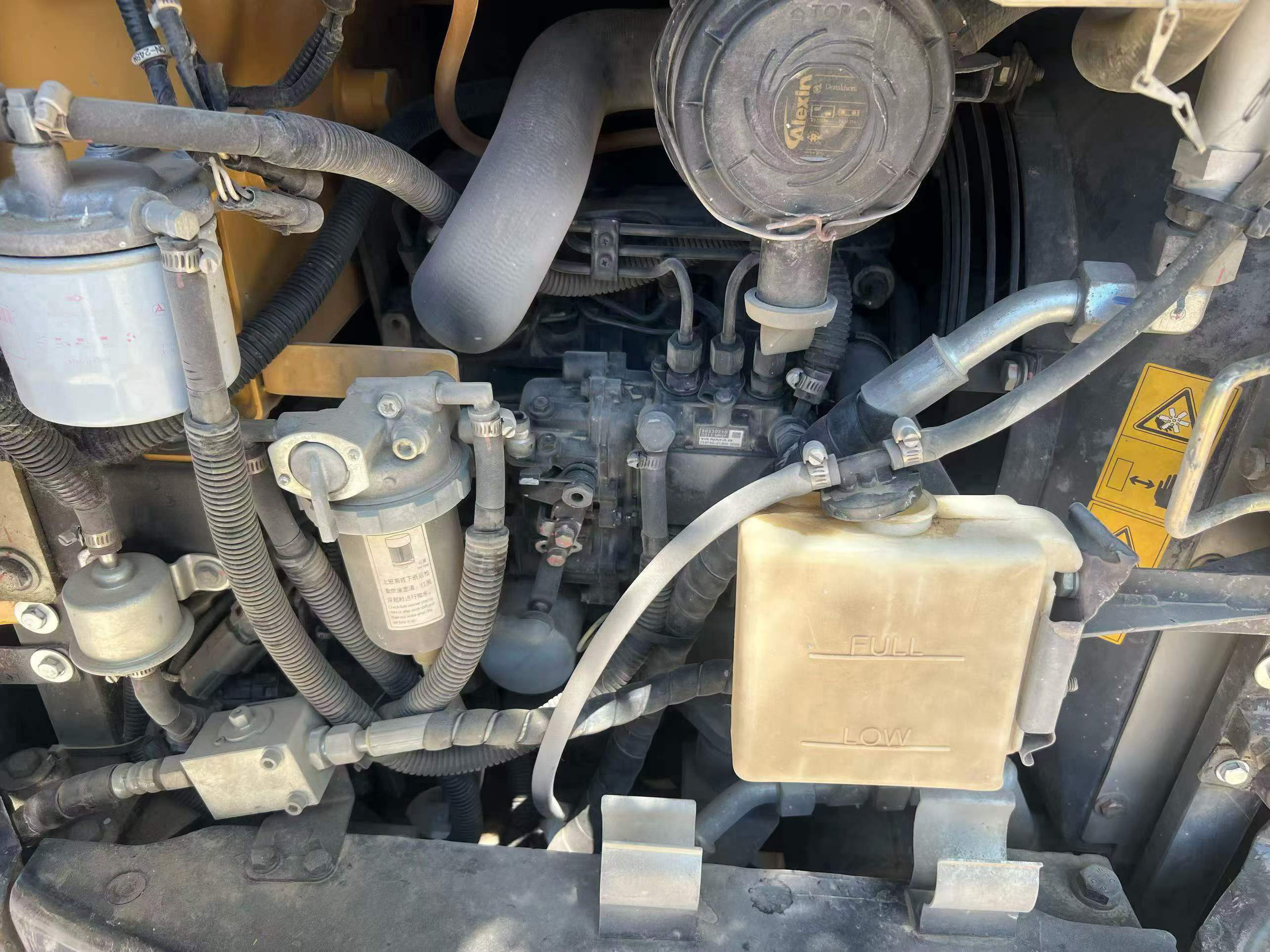

Buy Sany SY16C Used Excavator / 6

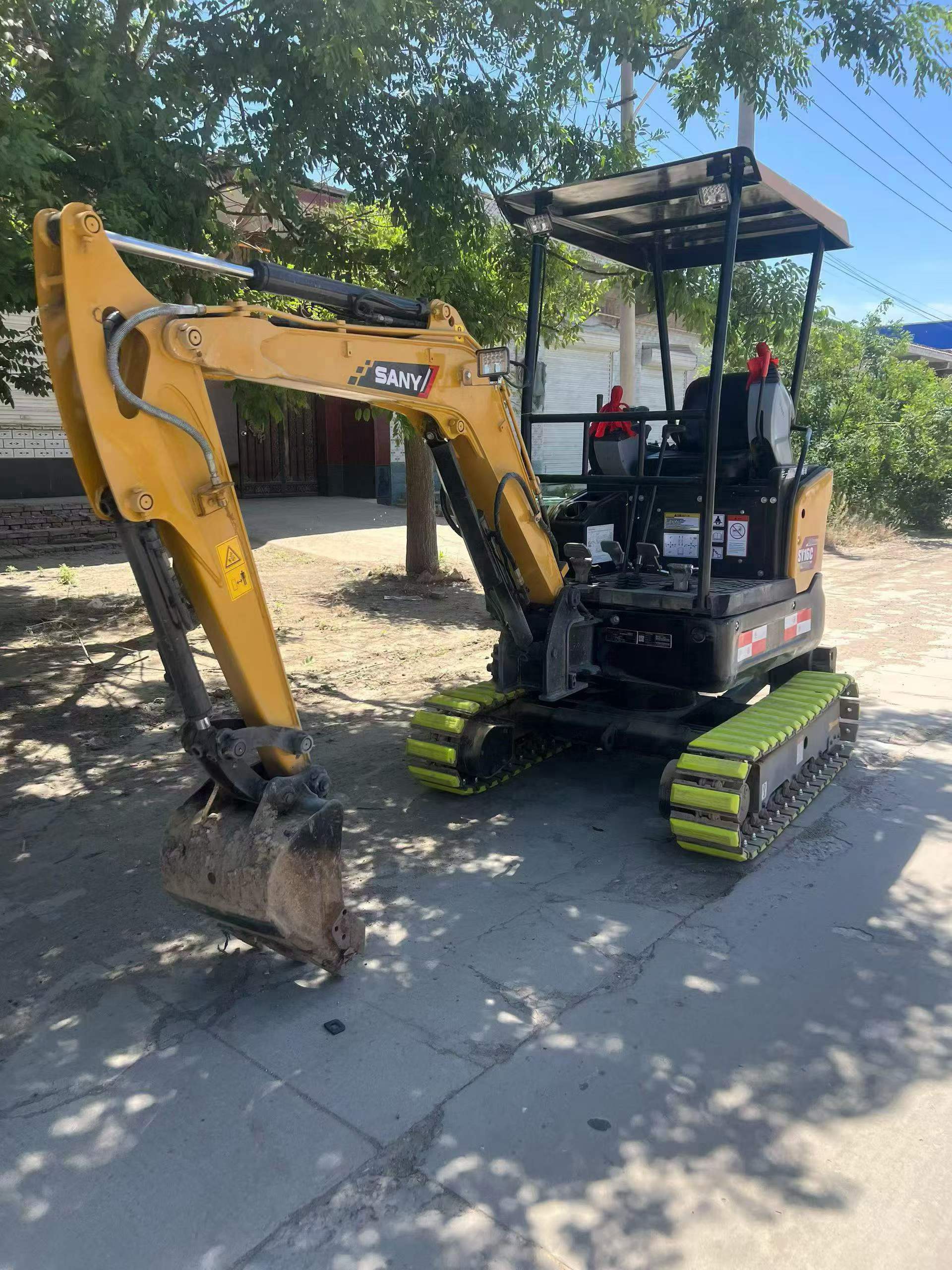

Buy Sany SY16C Used Excavator / 7

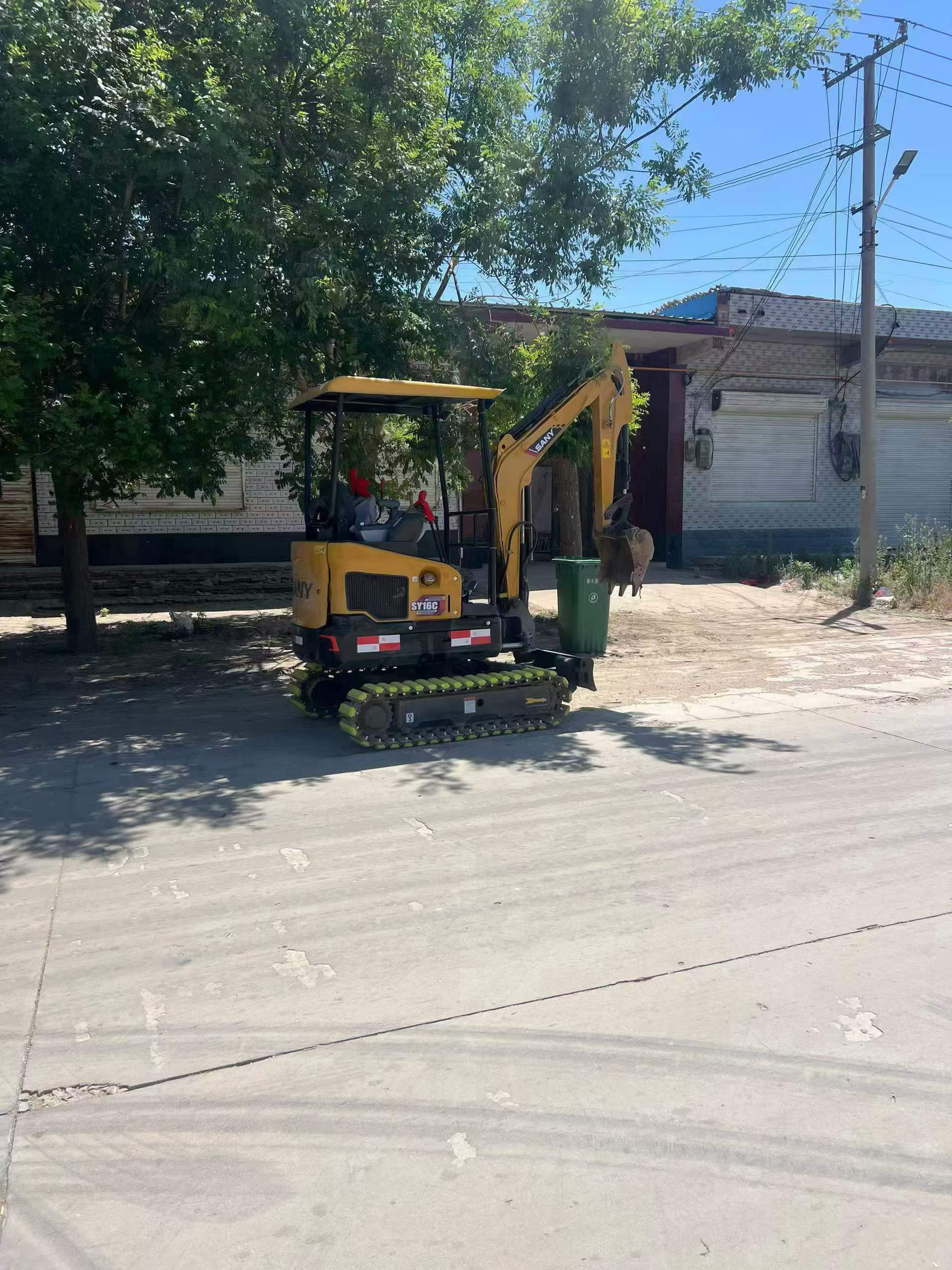

Buy Sany SY16C Used Excavator / 8

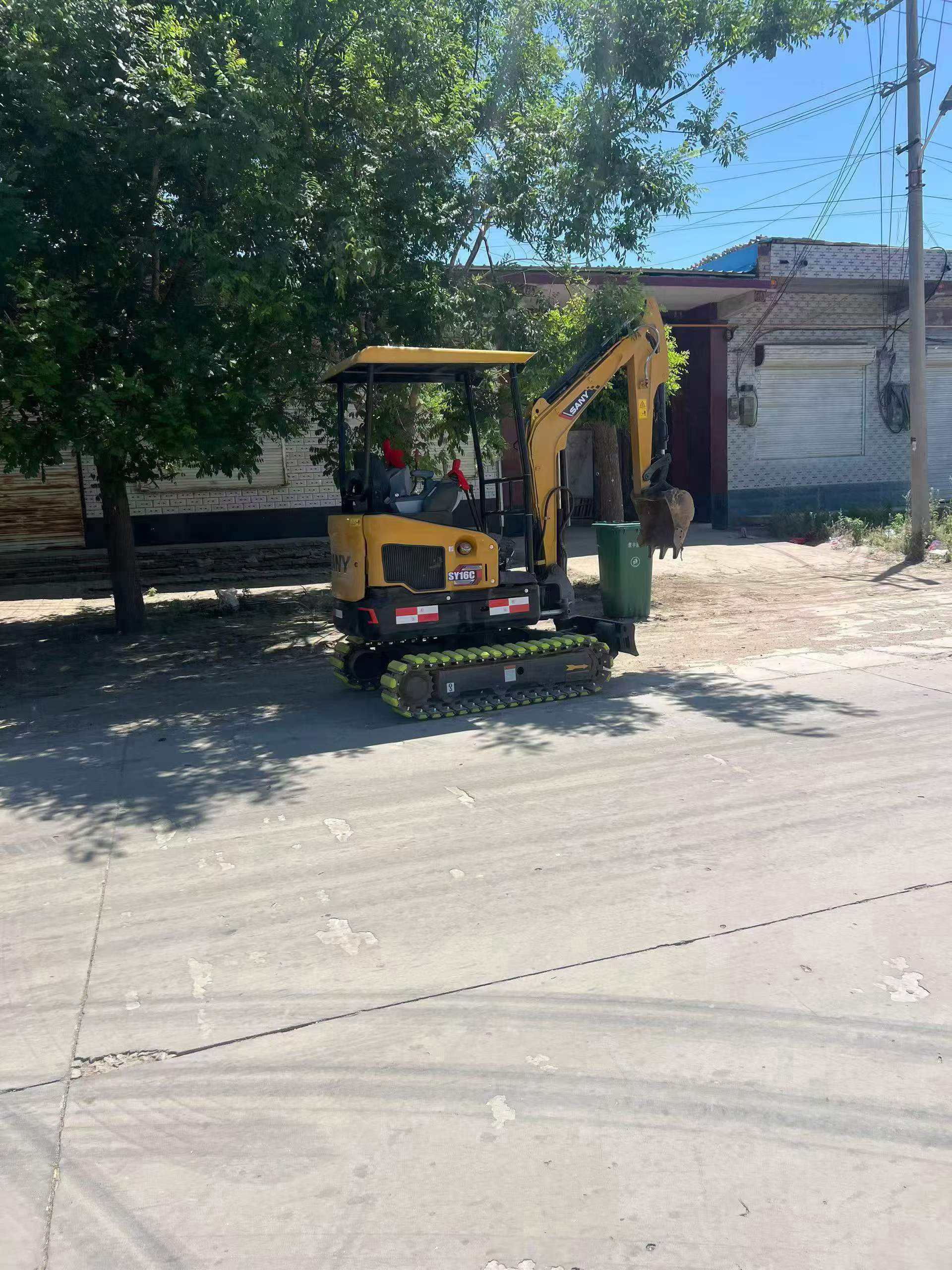

Buy Sany SY16C Used Excavator / 9

Product Description

Well-maintained 2020 Sany SY16C mini excavator available from Hebei, China. This compact machine has been privately owned and operated in rural agricultural applications, demonstrating reliable performance throughout its service life. The unit comes equipped with a hydraulic breaker and bucket attachment, enhancing versatility for various earthmoving and light demolition tasks.

This single-owner machine shows excellent structural integrity, with major components remaining in original condition without significant repairs or replacements. The undercarriage exhibits normal operational wear consistent with agricultural use. The SY16C's compact 1.6-tonne class design delivers efficient performance in confined spaces while maintaining fuel economy and maneuverability.

  • Year: 2020
  • Model: Sany SY16C
  • Included: Hydraulic hammer and bucket
  • Ownership: Single private owner
  • Application: Rural agricultural work
  • Location: Hebei Province, China

Suitable for landscaping, small construction projects, and agricultural operations requiring a reliable compact excavator.

SpecificationsValue
No.1089543
Tonnage (tons)1
Working weight (kg)1850
Bucket capacity (m³)0.02-0.06(0.04)
Country of originChina
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 3TNV70
Rated power (kw/rpm)10.3/2200
Maximum torque (N.m)48.5~52.4
Displacement (L)0.854
Ground specific pressure (Kpa)29.1
Rotation speed (rpm)10
Climbing ability (%)58
Bucket digging force (kN)15.2
Rod digging force (kN)9.2
Maximum tractive force (kN)15.5
Travel speed (km/h)2.1~3.7
Fuel Tank (L)23
Hydraulic Tank (L)21
Engine Oil changes (L)2
Coolant (L)4.5
Total transport length (mm)3575
Total transport width (mm)980/1350
Total transport height (mm)2420
Counterweight ground clearance (mm)470
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1655
Back end turning radius (mm)920
Onboard width (mm)980
Total track length (mm)1585
Track gauge (mm)750/1220
Track plate width (mm)230
Total track width (mm)3575
Track ground length (mm)1225
Maximum height at minimum turning radius (mm)2745
Number of wheels (single side) (each)3
Maximum digging radius (mm)4000
Maximum digging depth (mm)2360
Maximum excavation height (mm)3665
Maximum unloading height (mm)2635
Maximum vertical digging depth (mm)2215
Bulldozer lift or depth (mm)310/320
Dodging plate width × height (mm)3575 x 270
Maximum excavation radius of stop surface (mm)3900
