2020 Sany SY16C

1/3
Buy Sany SY16C Used Excavator / 1

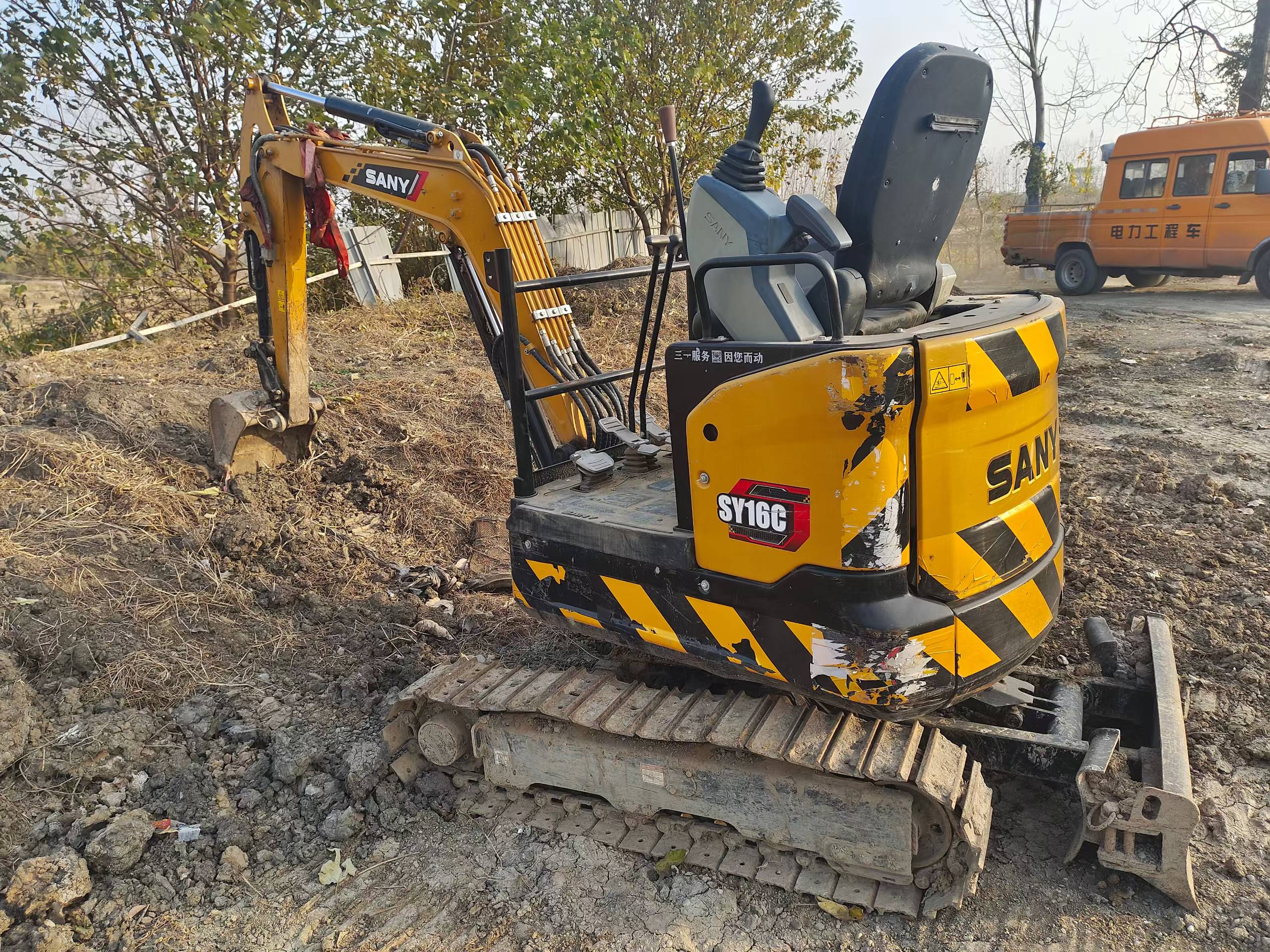

Buy Sany SY16C Used Excavator / 2
Buy Sany SY16C Used Excavator / 3

Product Description

Discover the reliability and efficiency of the 2020 Sany SY16C, a compact excavator designed for versatility and performance. Located in Jiangsu, China, this machine is ready for rental and ideal for a variety of construction and excavation projects. Known for its robust build and user-friendly operation, the SY16C offers an excellent combination of power and maneuverability, making it perfect for both tight spaces and more open job sites.

  • Year: 2020
  • Brand: Sany
  • Model: SY16C
  • Location: Jiangsu, China
  • Available for rental
SpecificationsValue
No.1101433
Tonnage (tons)1
Working weight (kg)1850
Bucket capacity (m³)0.02-0.06(0.04)
Country of originChina
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 3TNV70
Rated power (kw/rpm)10.3/2200
Maximum torque (N.m)48.5~52.4
Displacement (L)0.854
Ground specific pressure (Kpa)29.1
Rotation speed (rpm)10
Climbing ability (%)58
Bucket digging force (kN)15.2
Rod digging force (kN)9.2
Maximum tractive force (kN)15.5
Travel speed (km/h)2.1~3.7
Fuel Tank (L)23
Hydraulic Tank (L)21
Engine Oil changes (L)2
Coolant (L)4.5
Total transport length (mm)3575
Total transport width (mm)980/1350
Total transport height (mm)2420
Counterweight ground clearance (mm)470
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1655
Back end turning radius (mm)920
Onboard width (mm)980
Total track length (mm)1585
Track gauge (mm)750/1220
Track plate width (mm)230
Total track width (mm)3575
Track ground length (mm)1225
Maximum height at minimum turning radius (mm)2745
Number of wheels (single side) (each)3
Maximum digging radius (mm)4000
Maximum digging depth (mm)2360
Maximum excavation height (mm)3665
Maximum unloading height (mm)2635
Maximum vertical digging depth (mm)2215
Bulldozer lift or depth (mm)310/320
Dodging plate width × height (mm)3575 x 270
Maximum excavation radius of stop surface (mm)3900
see more

Overview

No.1101433

Brand Name:

Sany

Model Number:

SY16C

Year:

2020

Location:

Jiangsu China
