Product Description

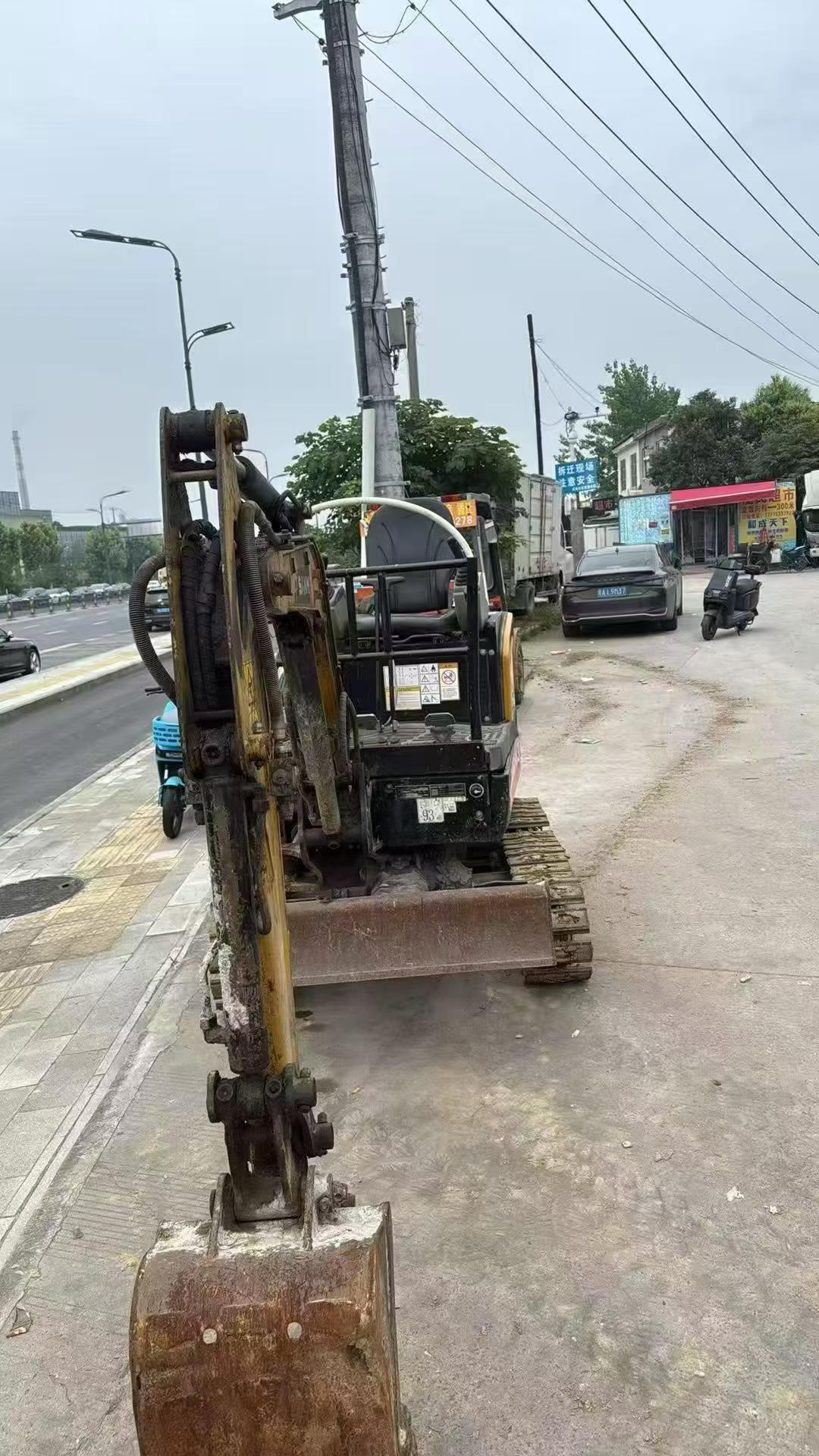

Built for contractors who need a reliable compact machine to handle tight-access jobs without pulling larger equipment off critical tasks, this 2021 Sany SY16C mini excavator is a smart fleet addition. Sourced from Sichuan, China, this 1-tonne machine runs a Yanmar 3TNV70 engine producing 10.3 kW at 2,200 RPM — dependable, fuel-efficient, and easy to service on any job site.
- Operating weight: 1,850 kg — maneuverable in confined spaces without sacrificing digging performance
- Bucket digging force: 15.2 kN with a 0.04 m³ standard bucket capacity
- Maximum digging depth: 2,360 mm | Maximum digging radius: 4,000 mm
- Travel speed: 2.1–3.7 km/h with a 58% climbing capability for varied terrain
- Ultra-compact transport dimensions: 3,575 mm (L) × 980 mm (W) × 2,420 mm (H)
- Rear swing radius of just 920 mm — ideal for urban or restricted-access sites
- 23 L fuel tank keeps downtime low across extended shifts
- Integrated dozer blade with 310/320 mm lift/depth for grading and backfill tasks
For fleets already running Sany equipment, parts availability and operator familiarity make this unit a low-friction addition. Competitively priced and ready to work from day one.
| Specifications | Value |
|---|---|
| No. | 1078619 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
