Product Description

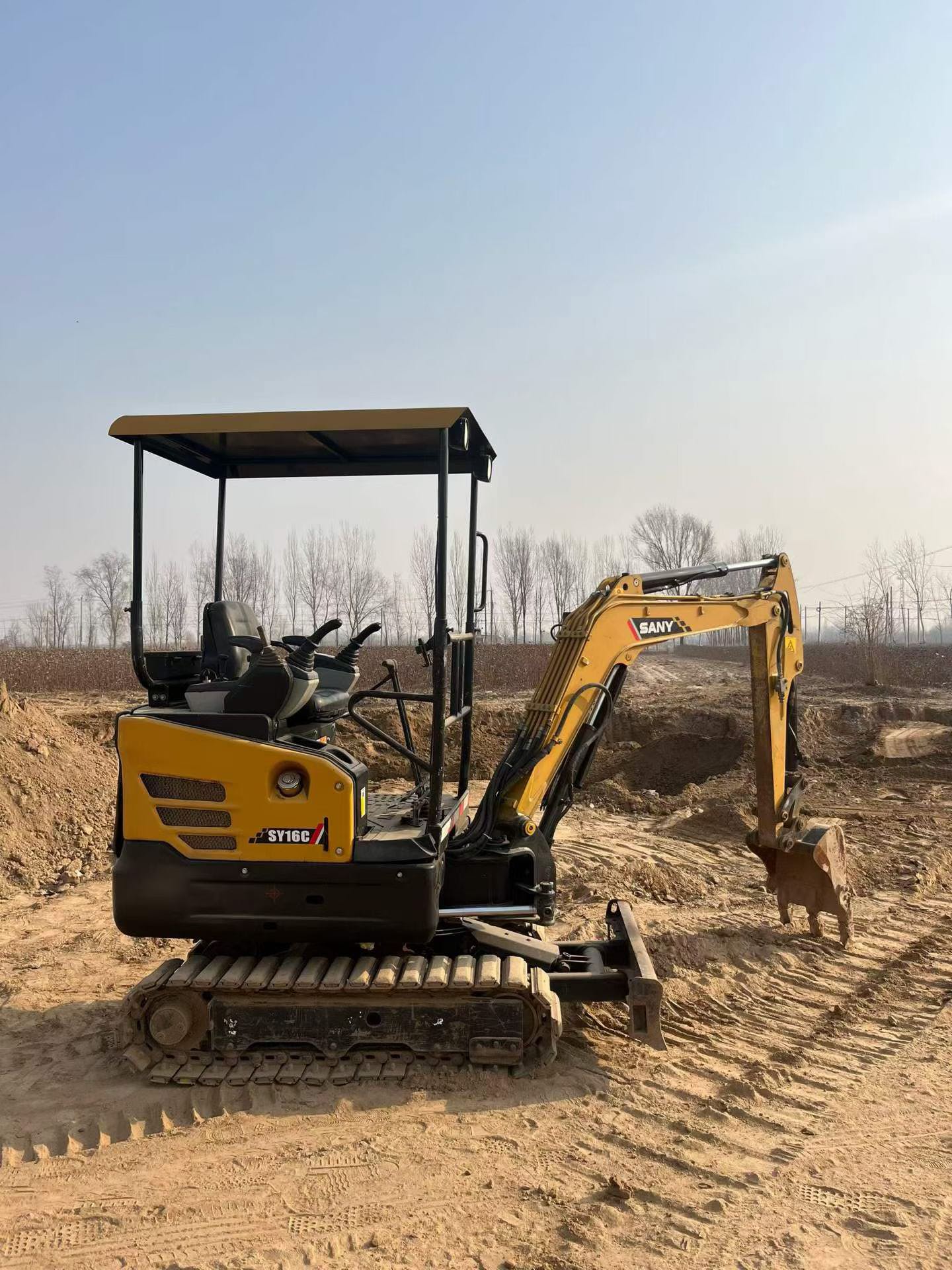

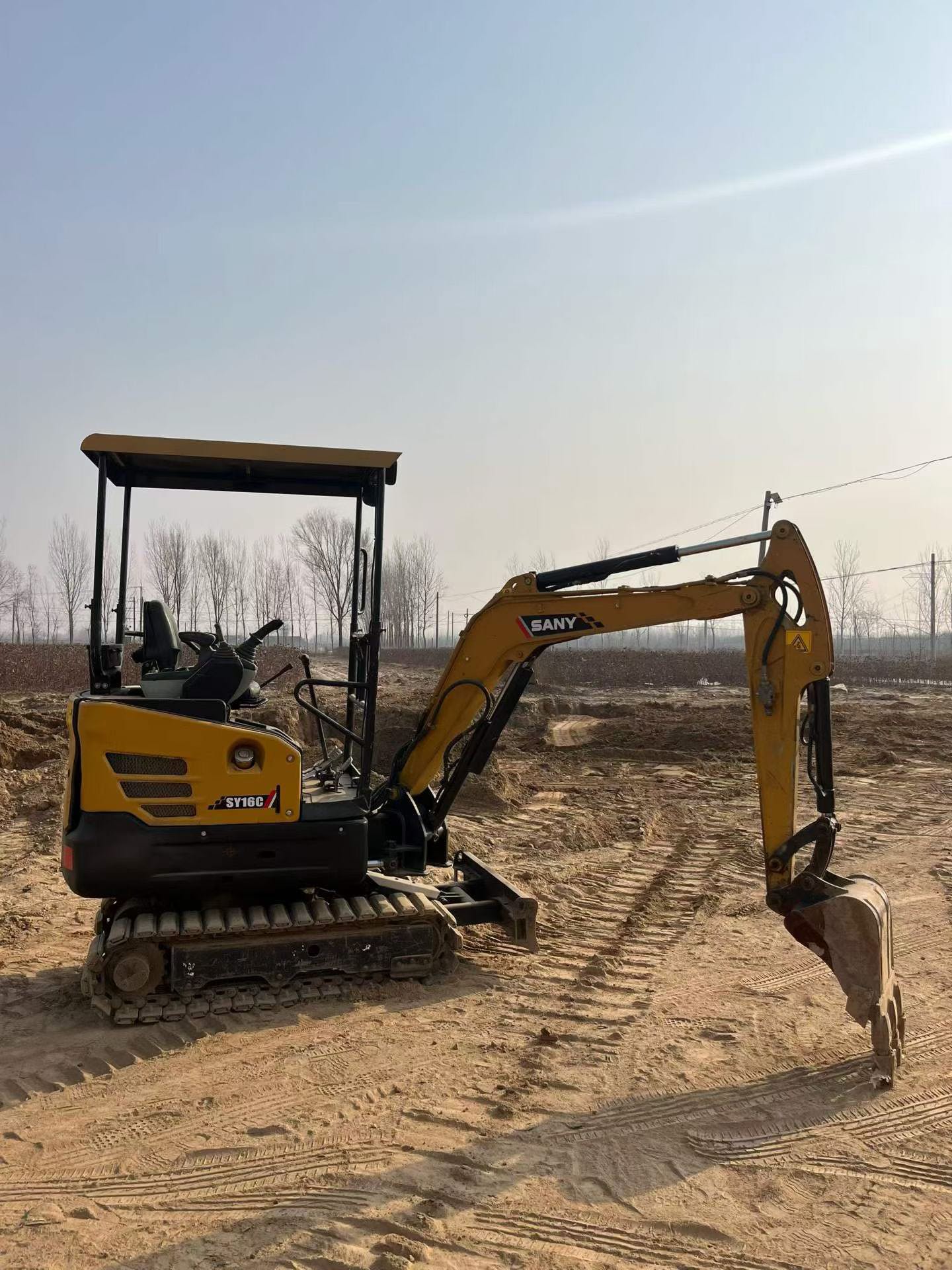

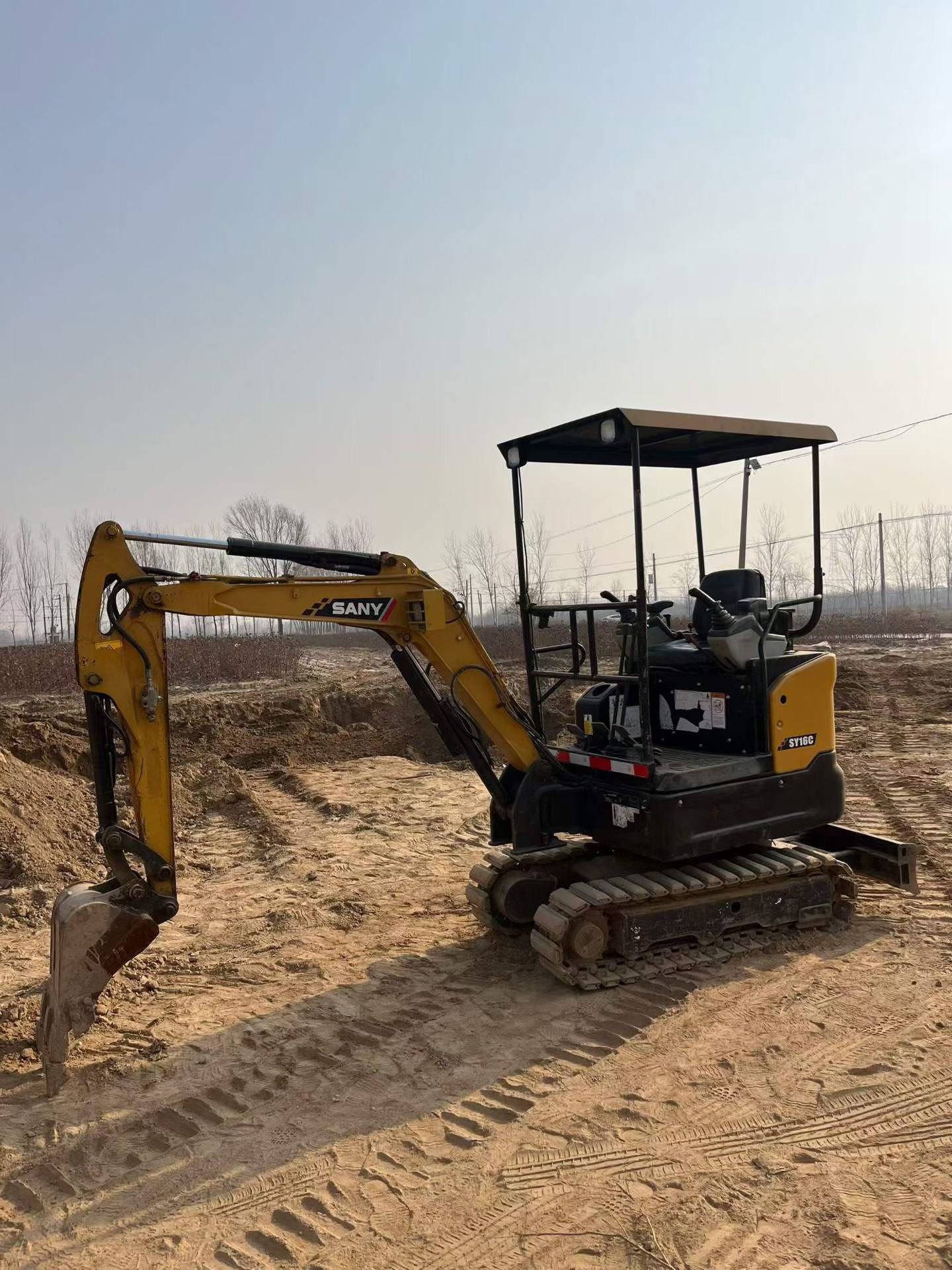

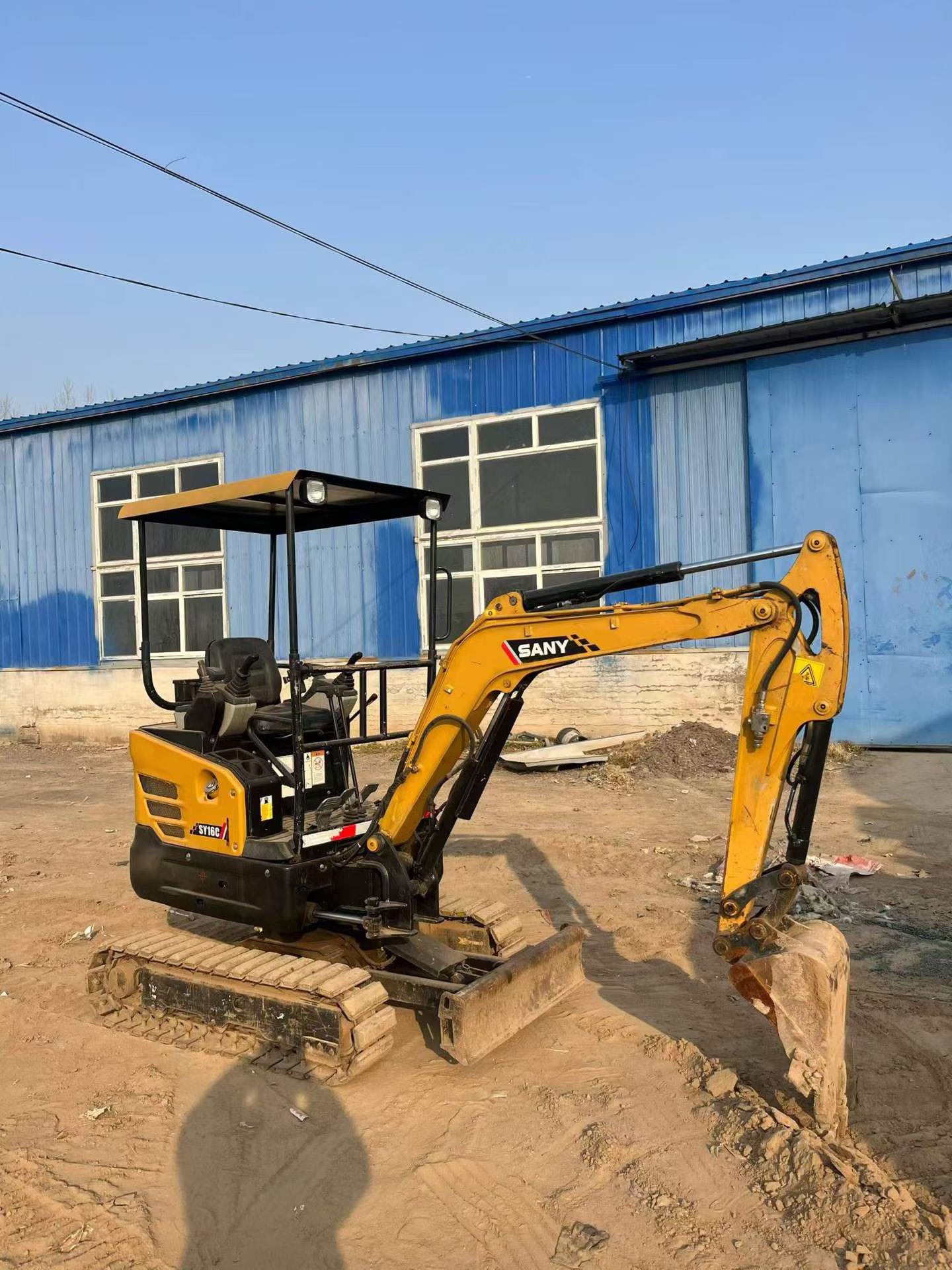

Discover the 2021 Sany SY16C, a robust and reliable compact excavator available for immediate transfer from Hebei, China. This used machine has been meticulously maintained, with all major components in excellent condition, ensuring performance that exceeds expectations. The excavator features both an arm and boom, designed for versatility and efficiency on various job sites. With no significant repairs or part replacements, this unit is ready to meet your project demands without compromise. Offered at a competitive price, the Sany SY16C represents a cost-effective solution for businesses looking to enhance their fleet with a dependable piece of equipment.
- Year: 2021
- Brand: Sany
- Model: SY16C
- Location: Hebei, China

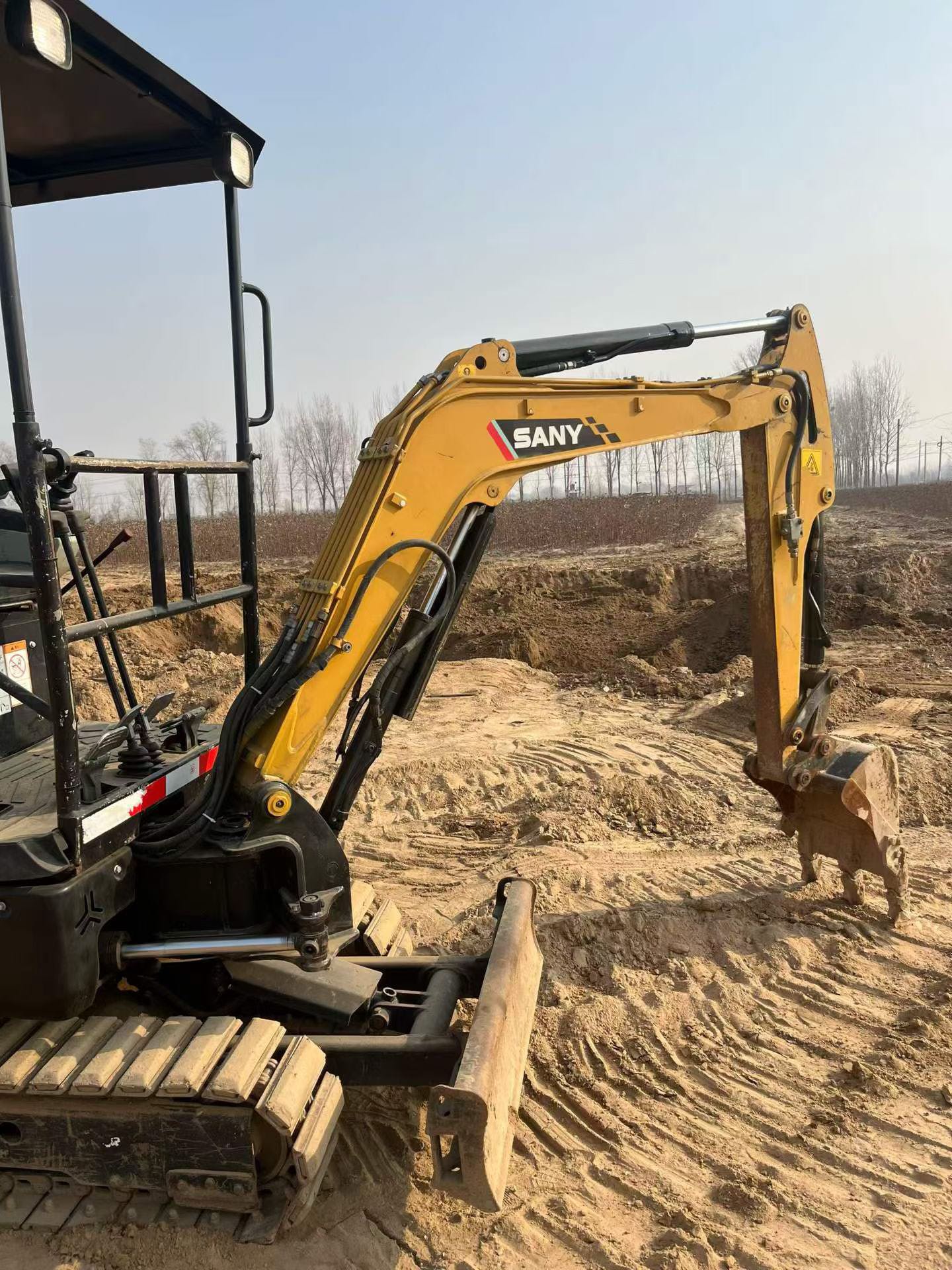

- Features: Arm and boom included
- Condition: All major parts in original, excellent condition
| Specifications | Value |
|---|---|
| No. | 1129731 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

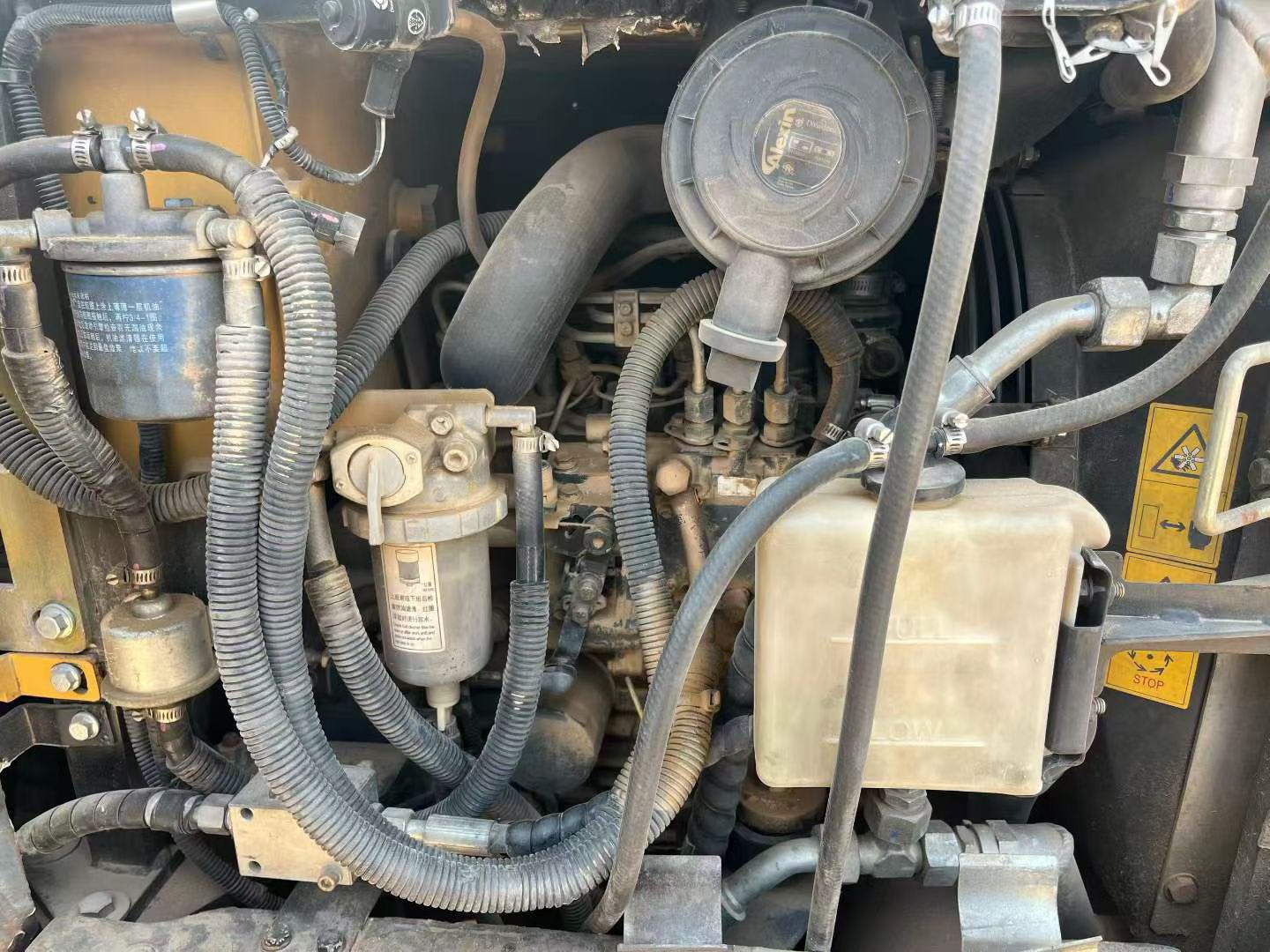

| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |

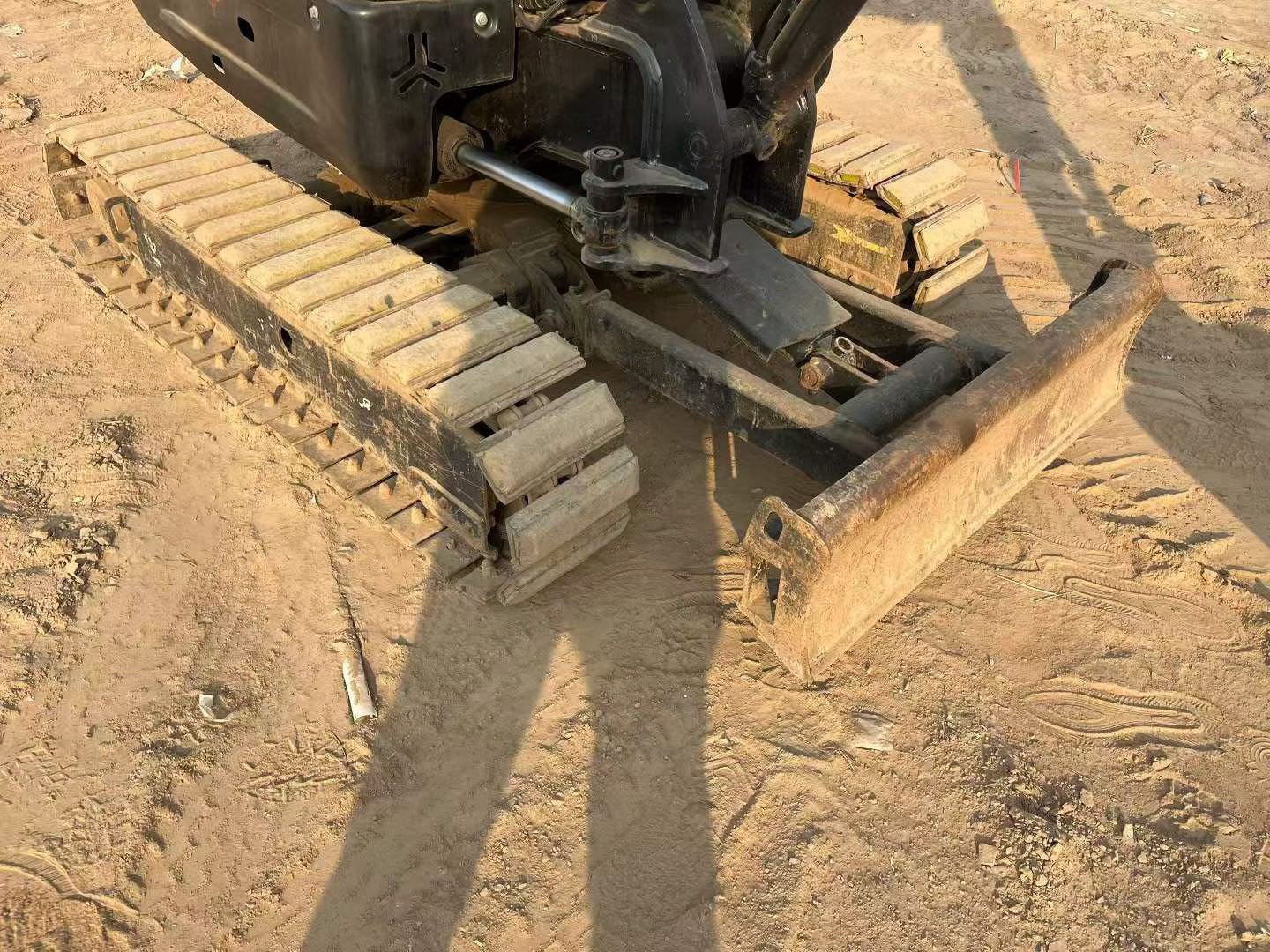

| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
