Product Description

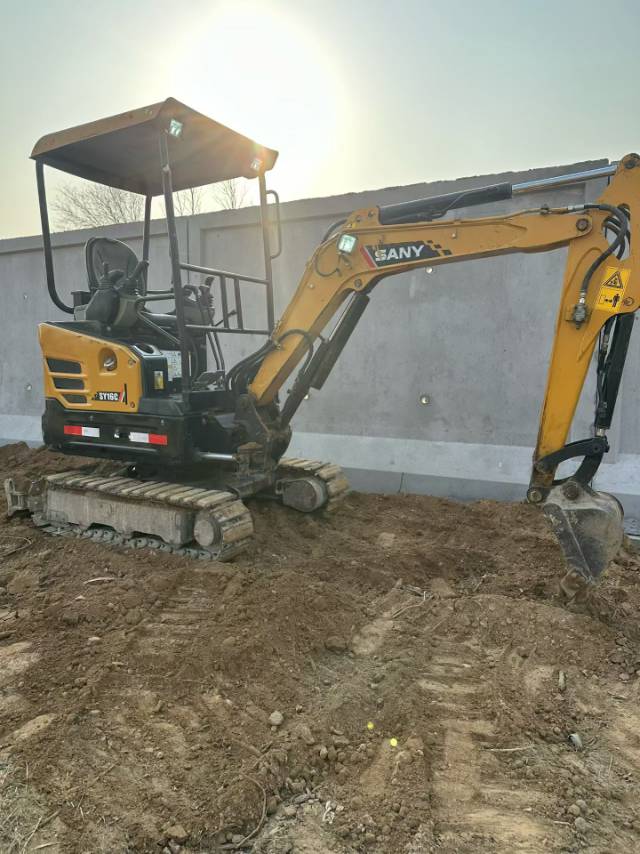

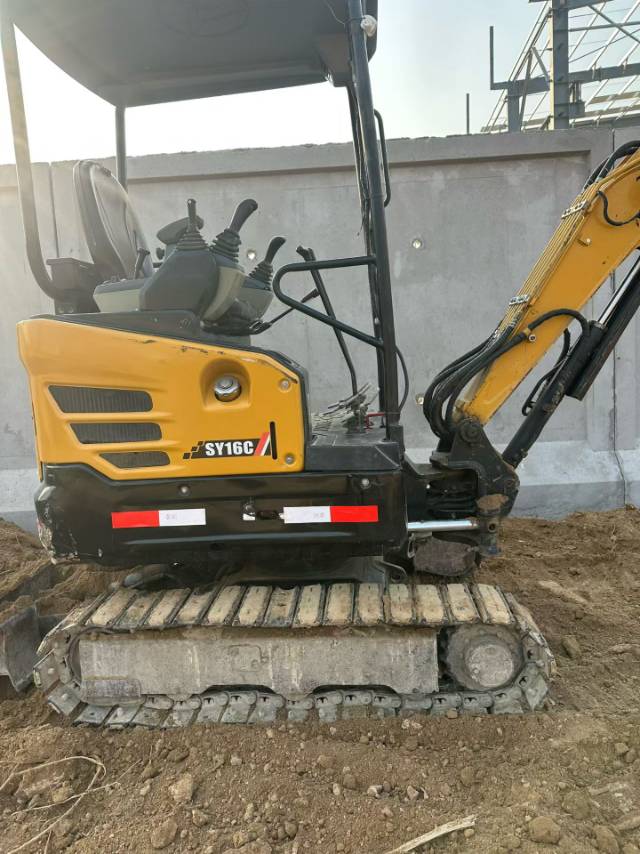

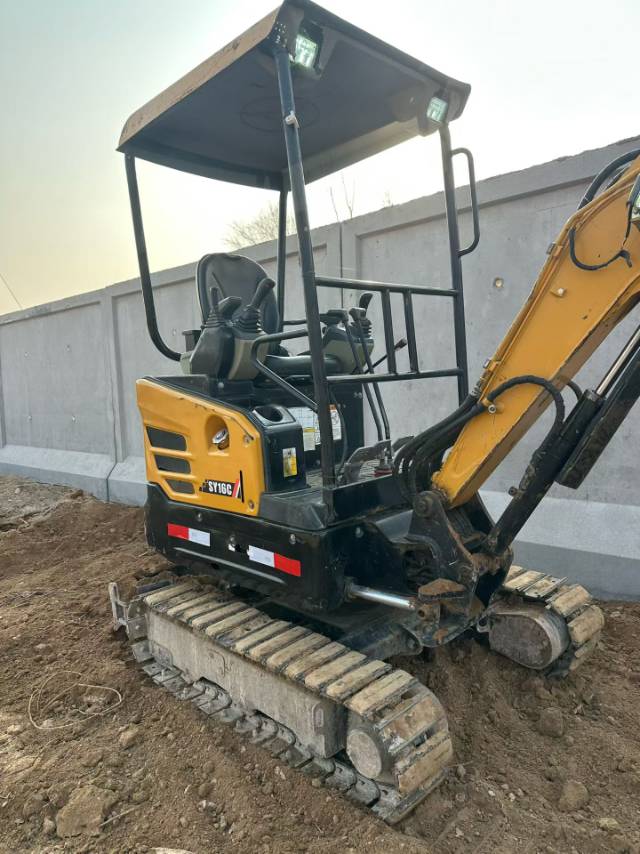

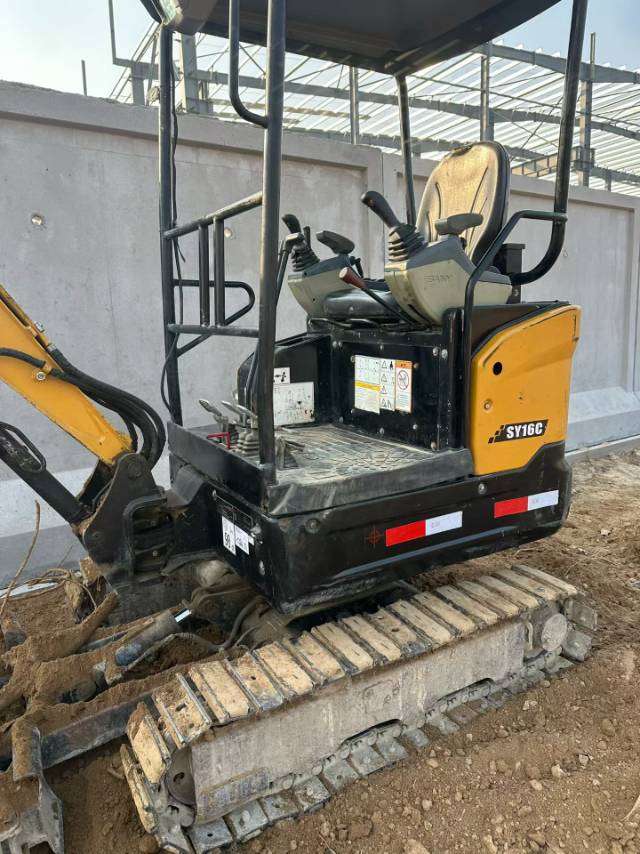

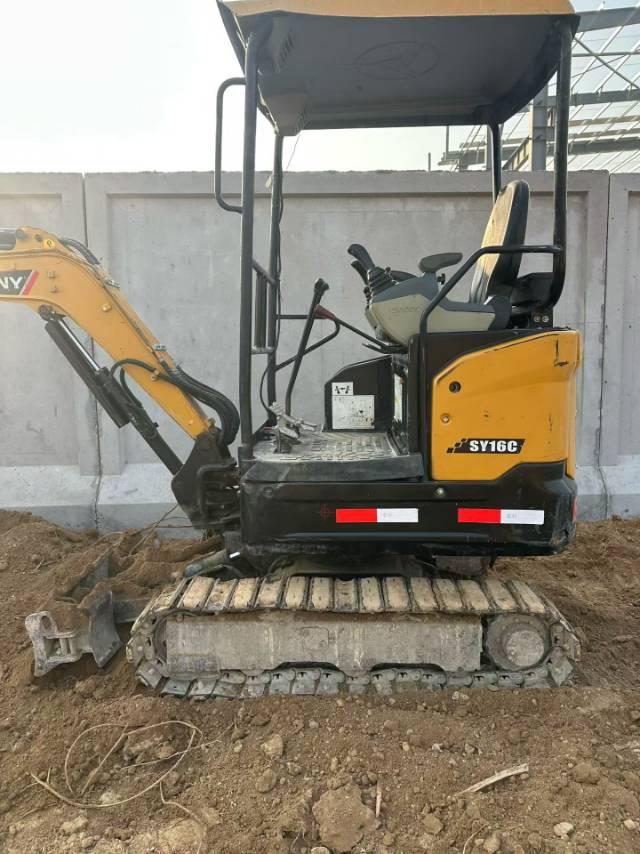

Featuring a Yanmar 3TNV70 engine with a rated power of 10.3 kW, this 2023 Sany SY16C mini excavator offers high performance at a fraction of the cost of new equipment. With a working weight of 1850 kg and a bucket capacity ranging from 0.02 to 0.06 m³, it is designed for efficiency and versatility. Located in 河北省邢台市, this Chinese-made machine provides a smart investment for those looking to maximize their budget without compromising on quality.
- Maximum digging depth: 2360 mm
- Travel speed: 2.1-3.7 km/h
- Ground specific pressure: 29.1 Kpa
- Fuel tank capacity: 23 L
- Total transport dimensions: 3575 x 980/1350 x 2420 mm (L x W x H)
Engineered for durability and reliability, the SY16C ensures that you get the best return on your investment. Its compact design and robust performance make it an ideal choice for various construction and excavation tasks.
| Specifications | Value |
|---|---|
| No. | 1000964 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
