Product Description

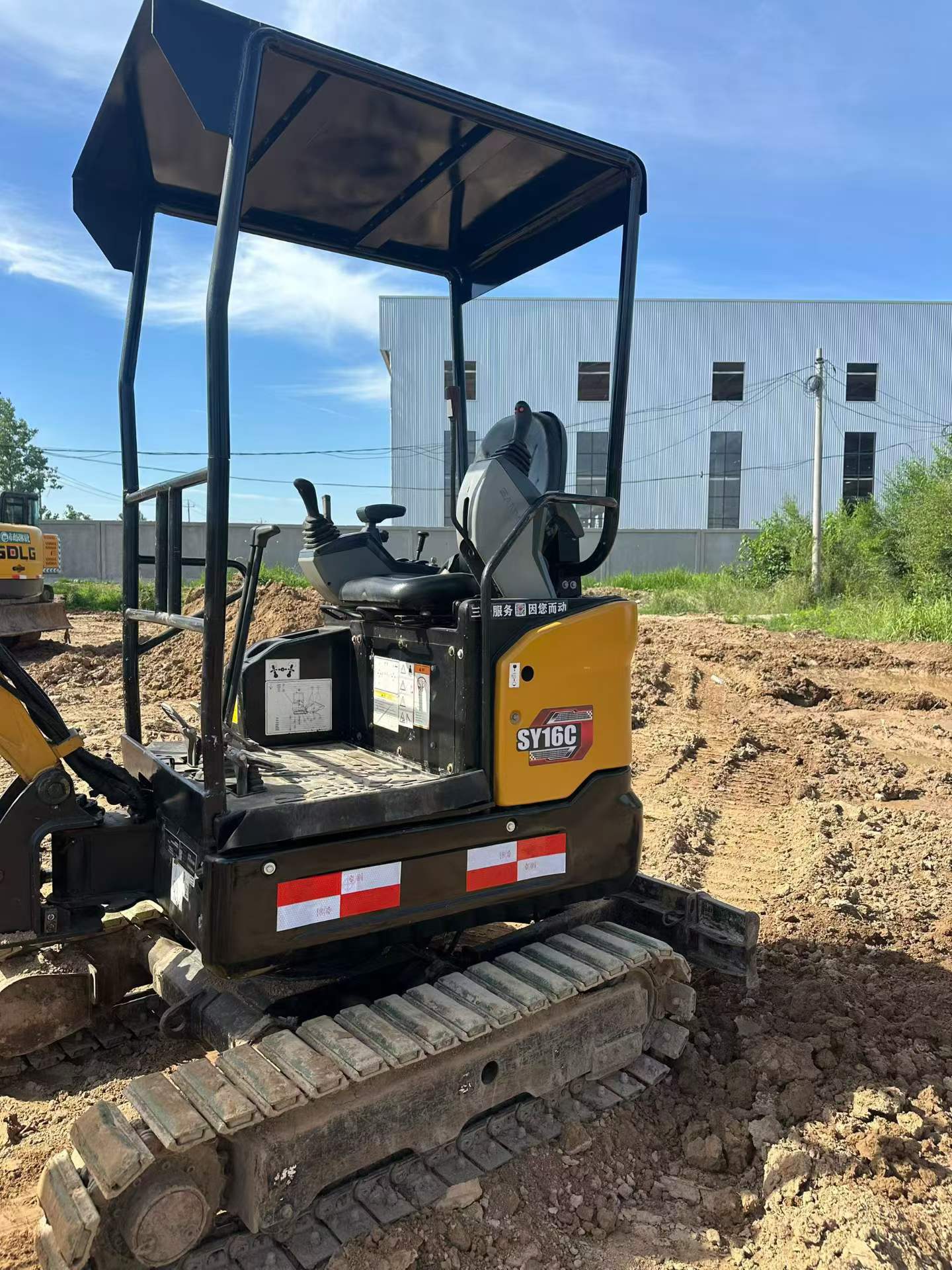

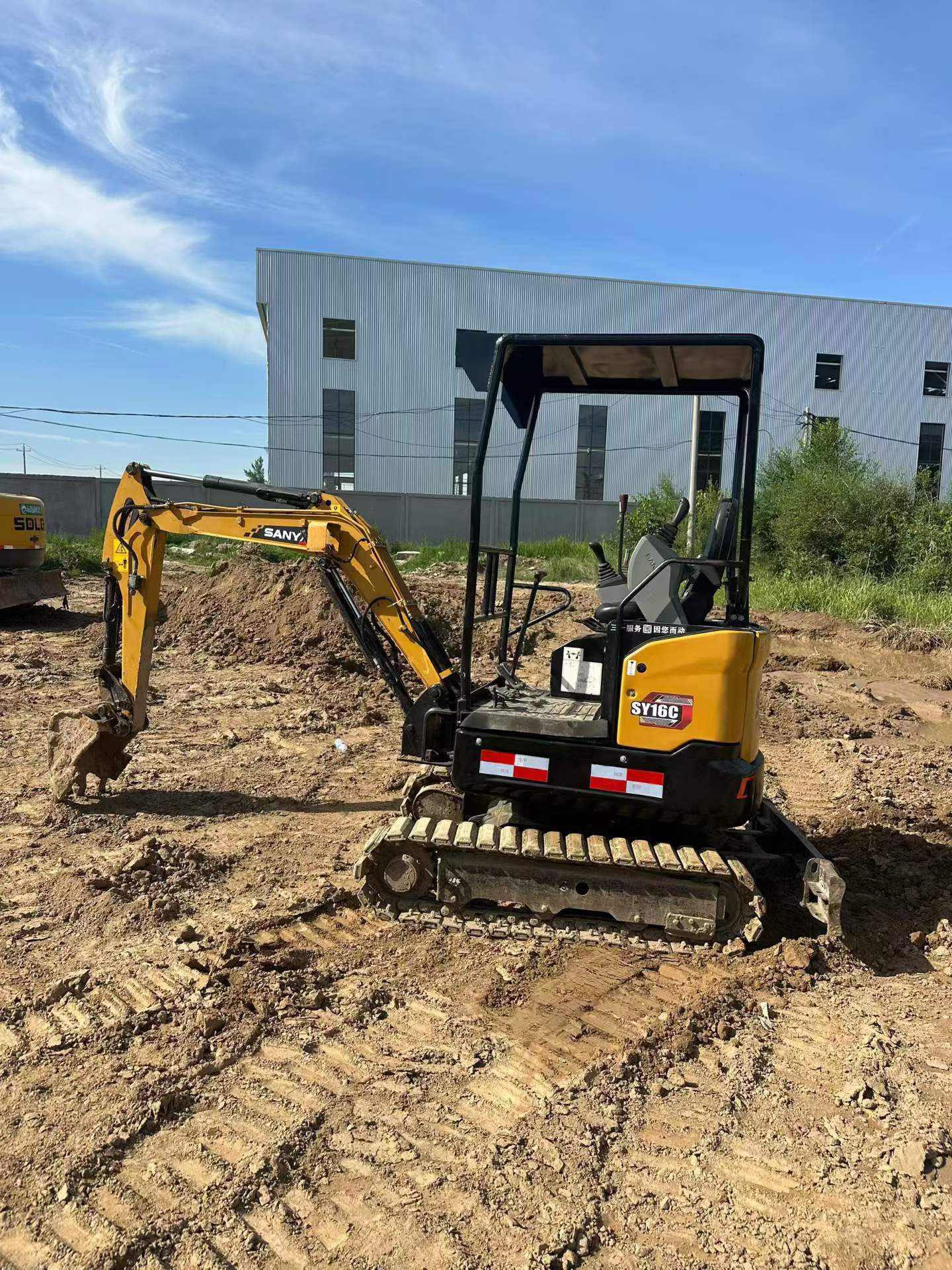

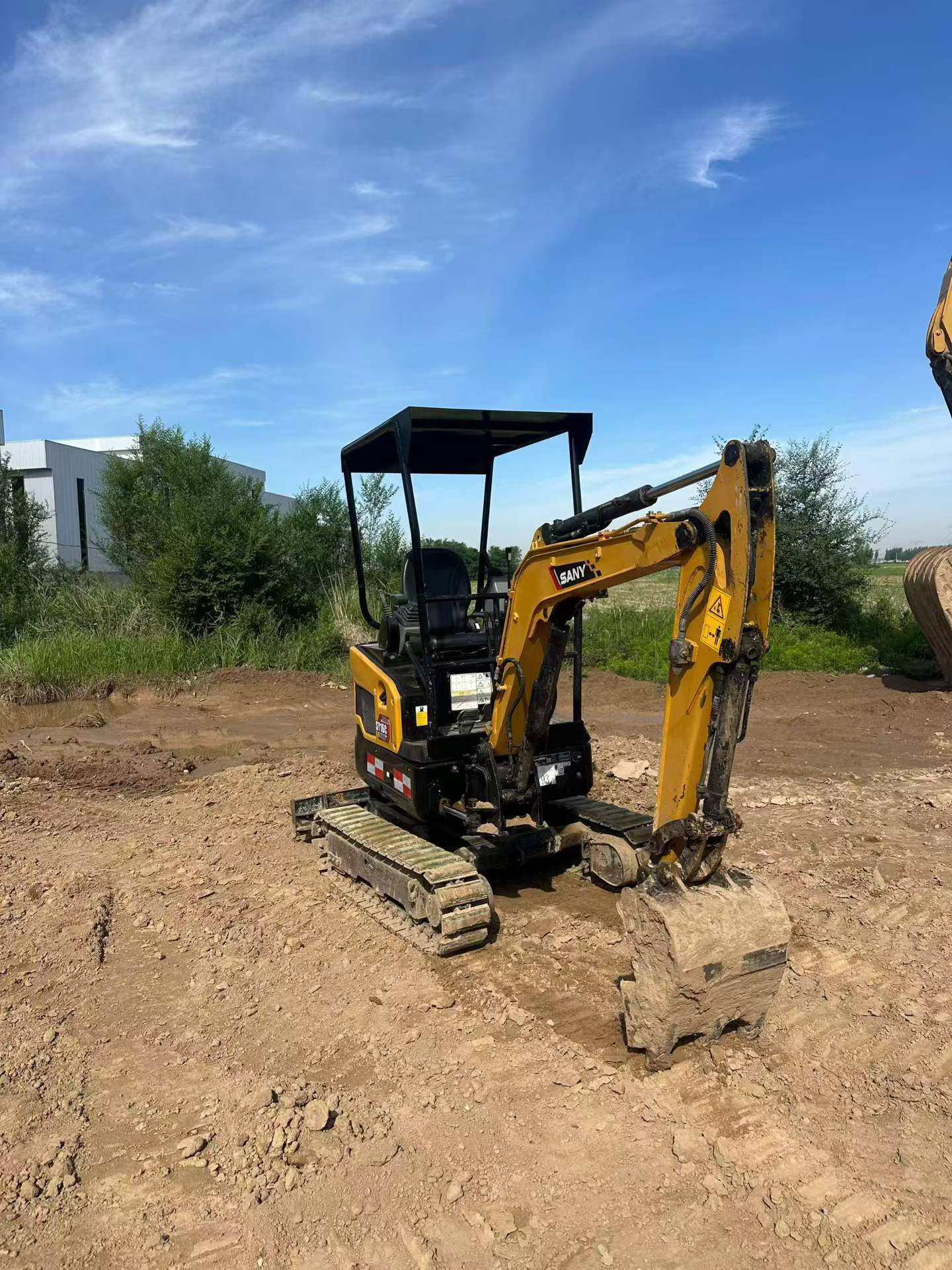

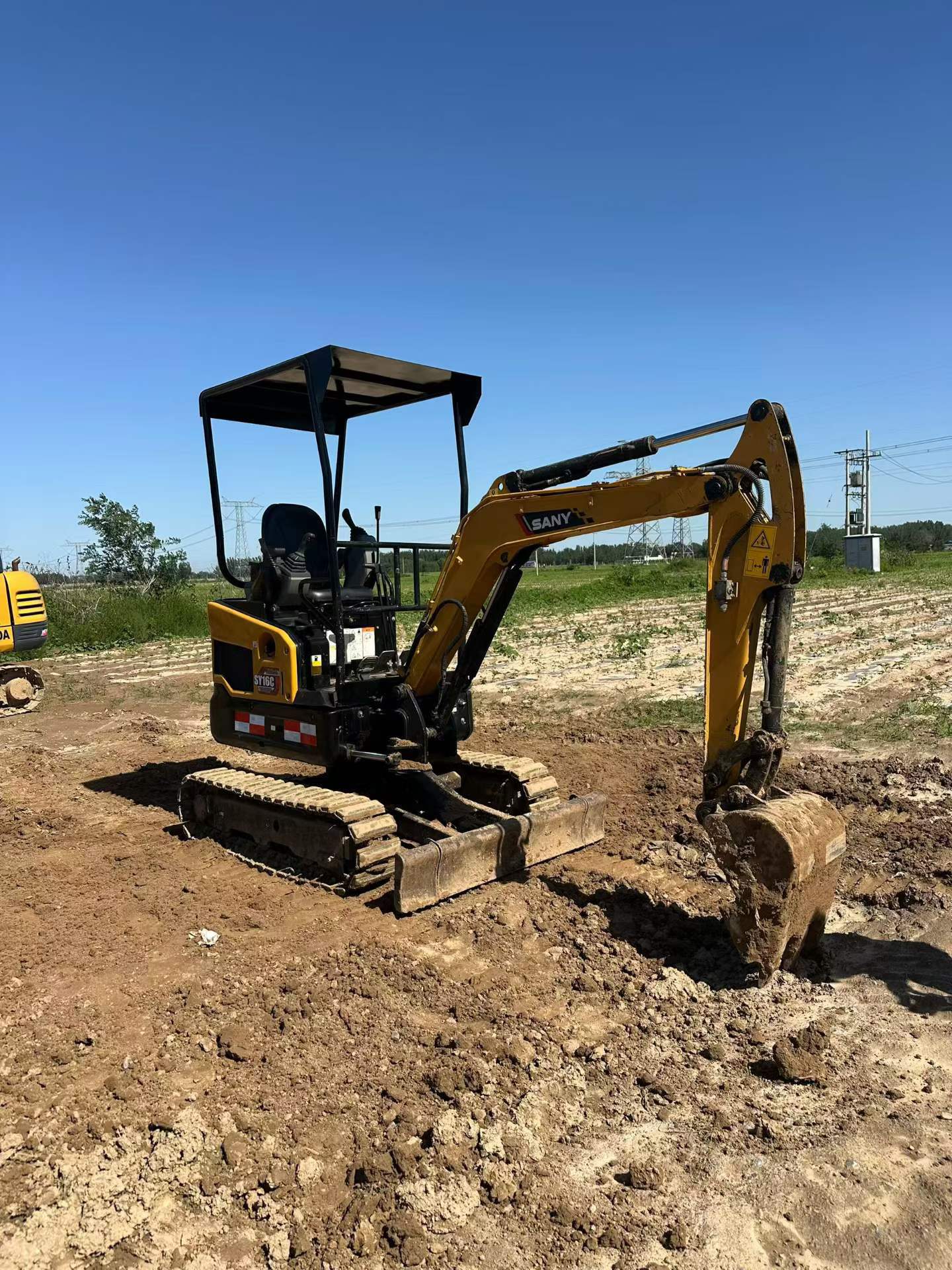

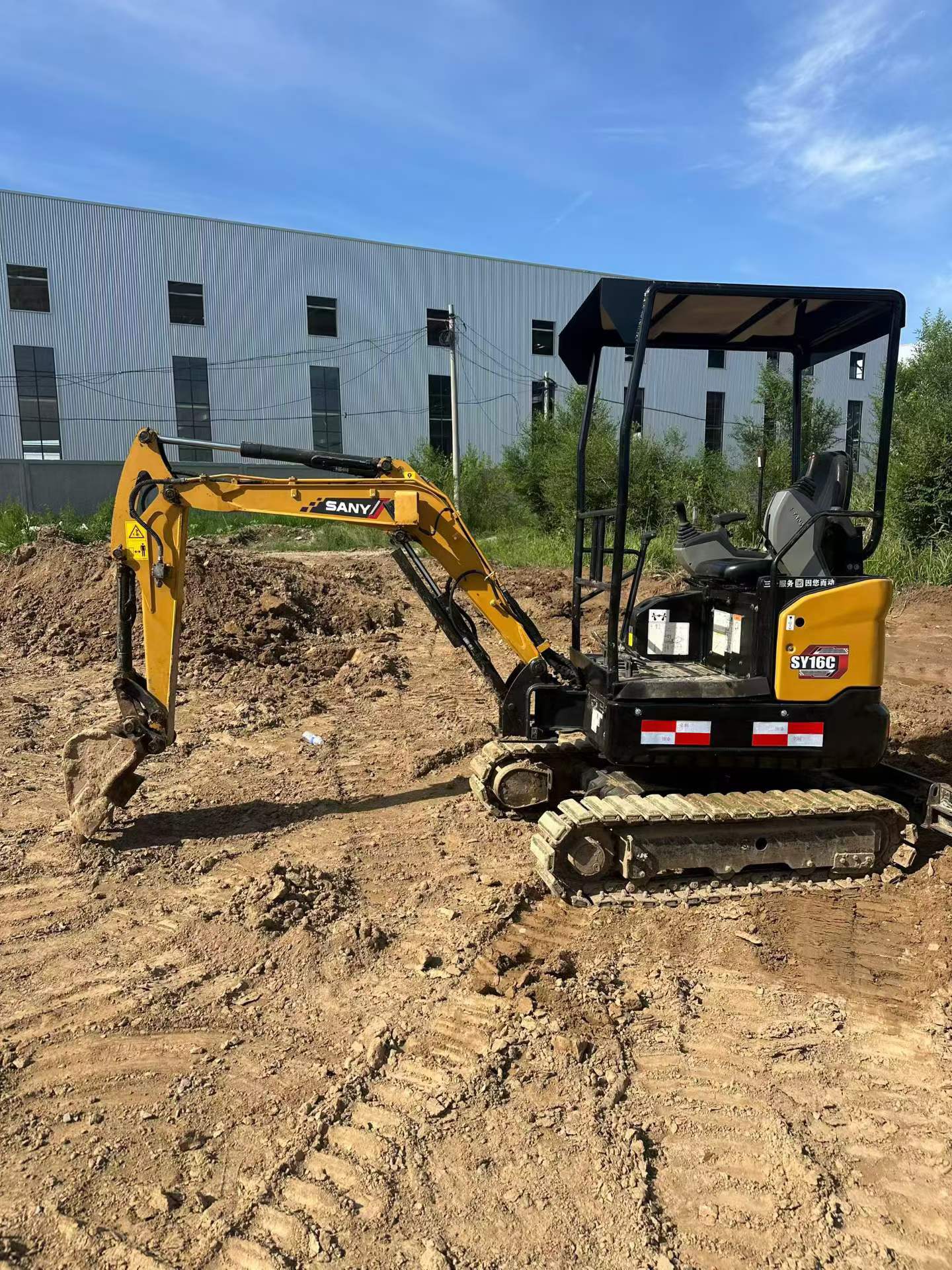

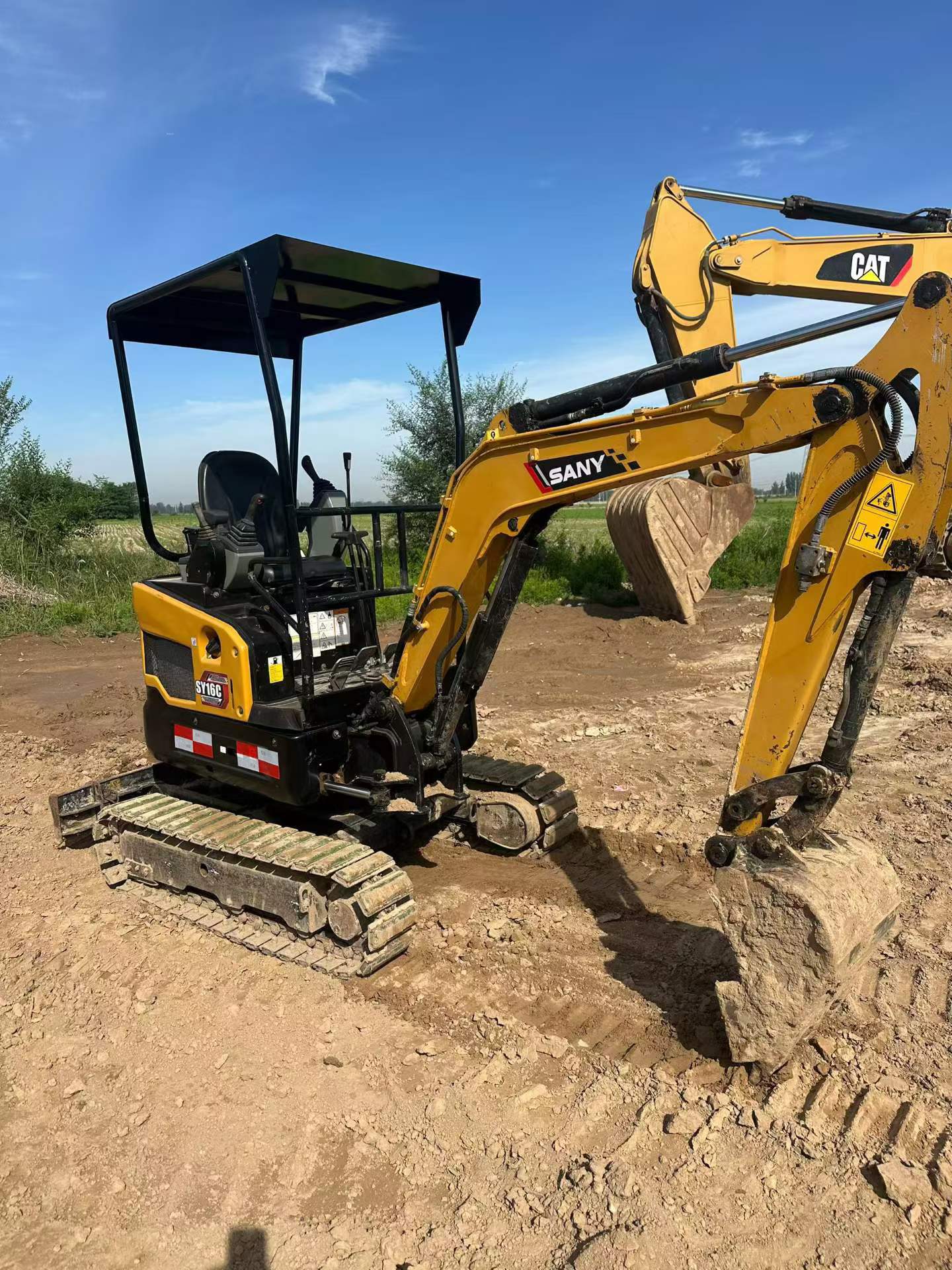

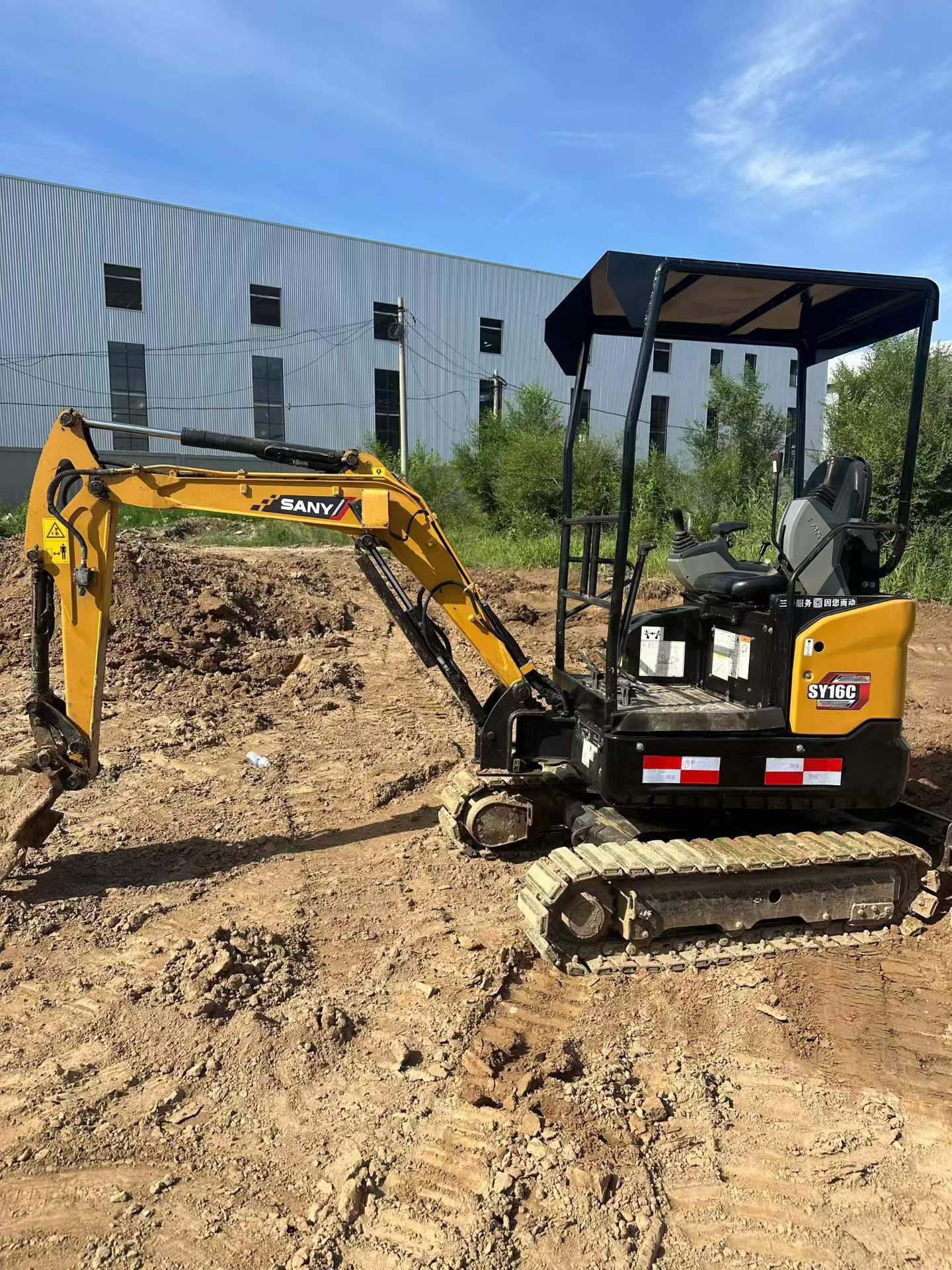

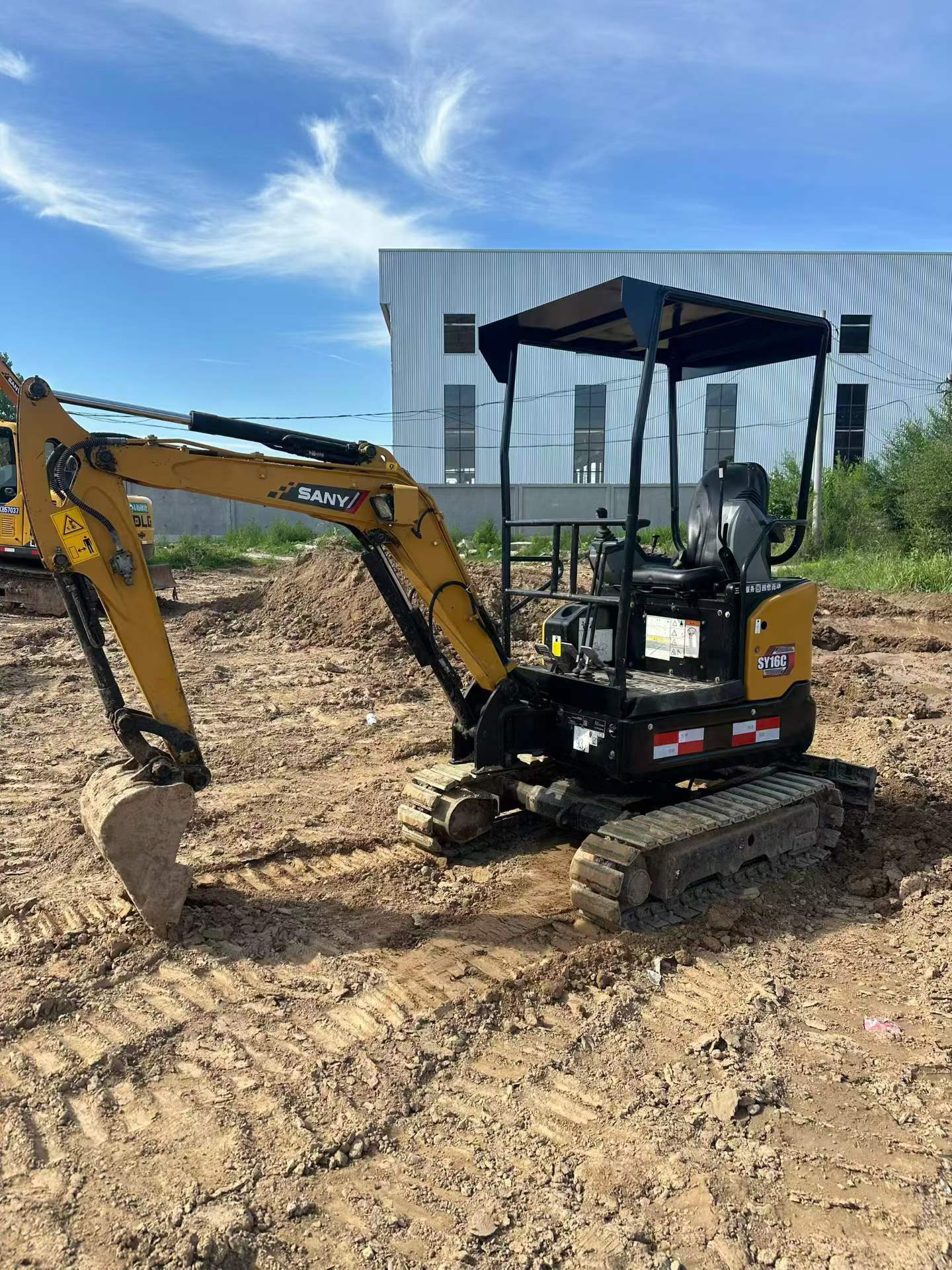

This 2023 Sany SY16C mini excavator, currently located in Beijing, China, represents exceptional value in the compact equipment segment. With minimal operating hours since manufacture, this machine demonstrates outstanding performance capabilities and comprehensive factory specifications.
The unit comes fully equipped with rubber tracks for versatile terrain navigation, extendable arm functionality for enhanced reach, swing boom for improved maneuverability in confined spaces, and protective canopy for operator comfort. The machine has been meticulously maintained with no hydraulic leaks reported, ensuring reliable operation and minimizing downtime.
Key features include:
- 2023 model year with low operational hours
- Rubber track pads installed
- Telescopic arm and offset boom configuration
- Operator canopy included
- Excellent hydraulic system integrity
- High operational efficiency
- Ready for immediate deployment
This turnkey unit requires no additional investment and is ready for productive work upon delivery.
| Specifications | Value |
|---|---|
| No. | 1076950 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

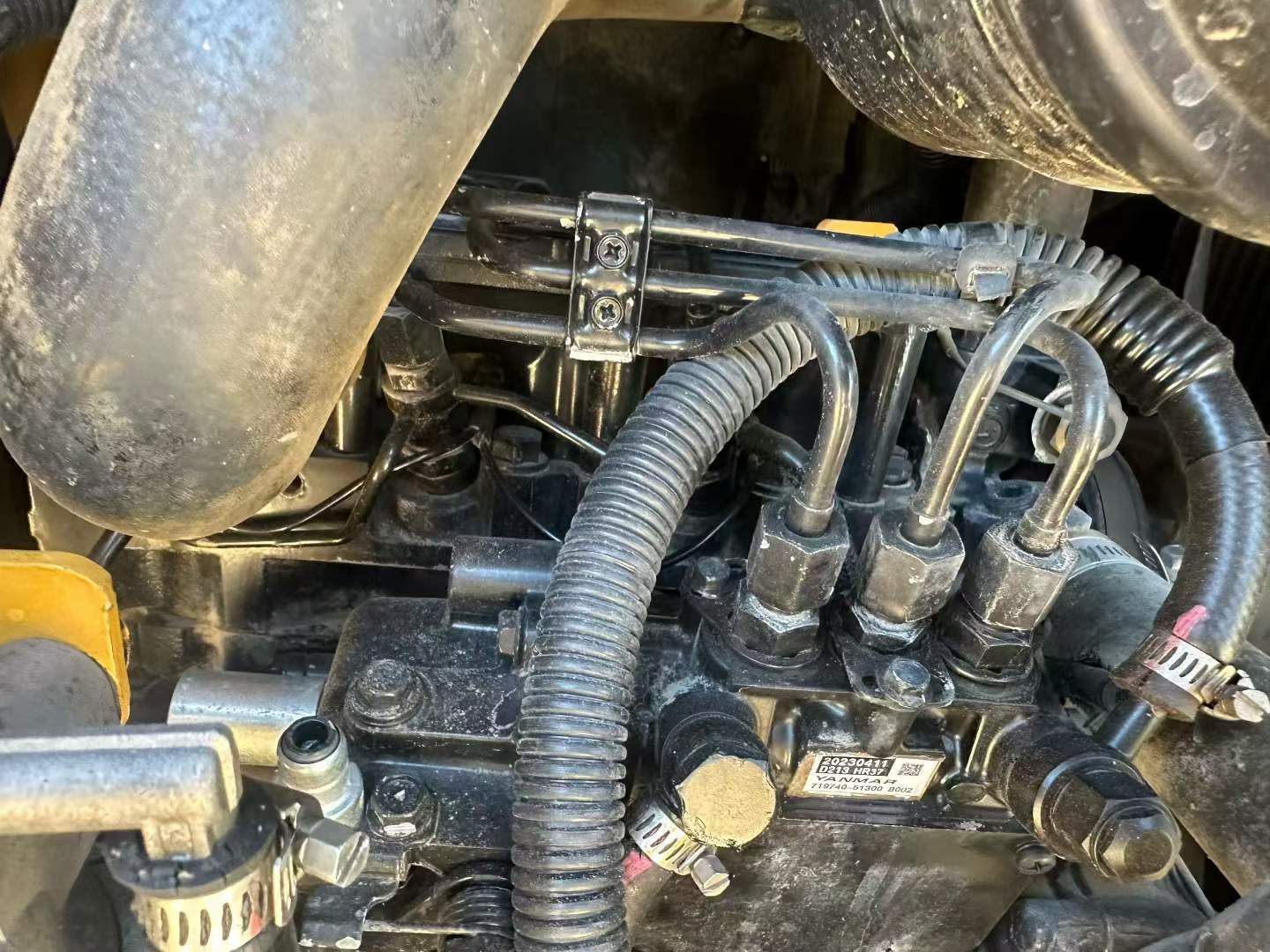

| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
