Product Description

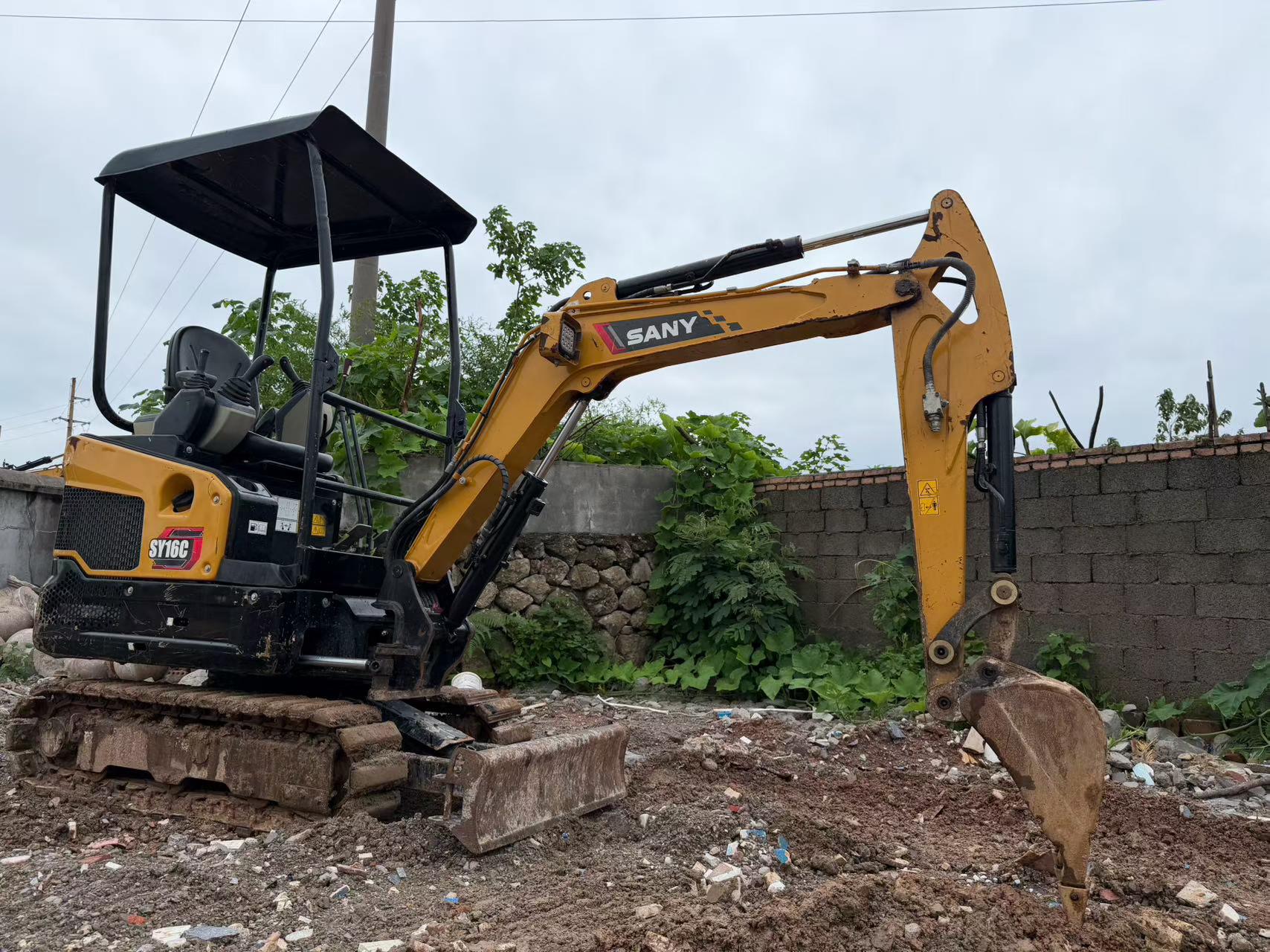

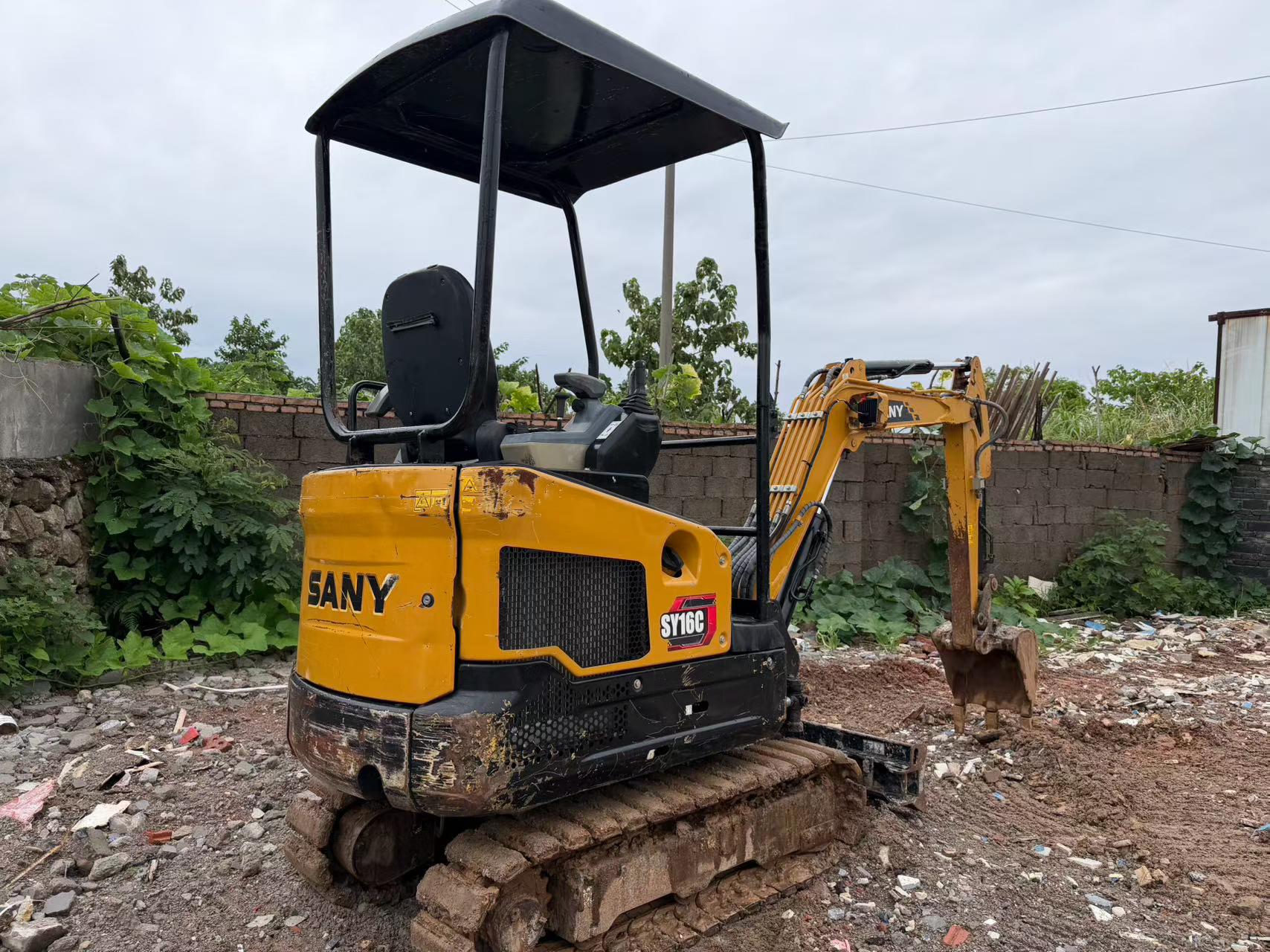

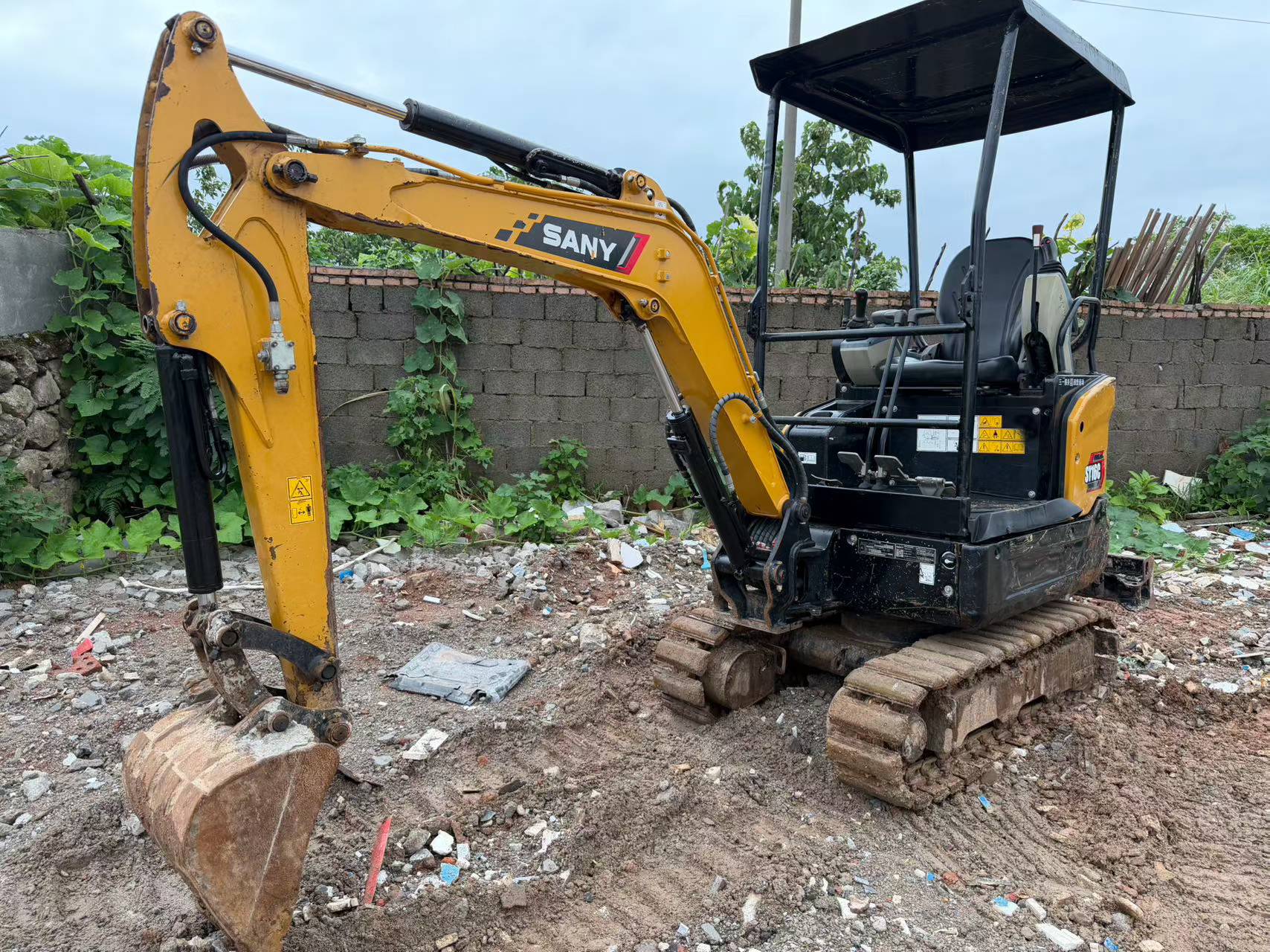

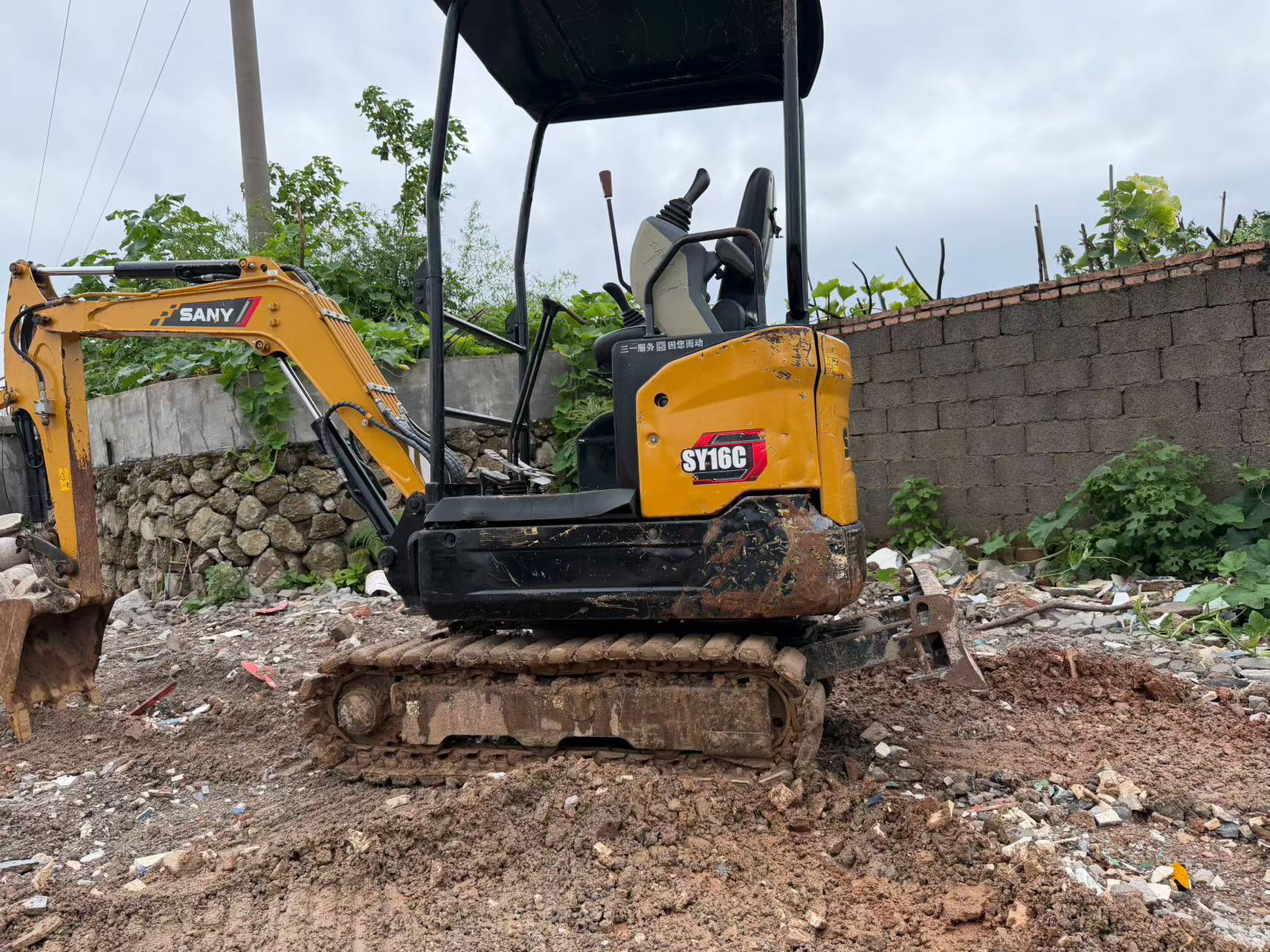

Discover the reliability and efficiency of the 2023 Sany SY16C, a compact excavator designed for versatile performance in various construction and excavation tasks. This machine, located in Zhejiang, China, is known for its robust build and user-friendly operation, making it an ideal choice for contractors and small to medium-sized projects. The SY16C features a powerful engine that ensures optimal fuel efficiency without compromising on power, allowing for effective and economical use. Its compact design enables easy maneuverability in tight spaces, while the durable undercarriage and reinforced boom and arm provide the strength needed for tough jobs. Ideal for both urban and rural applications, this excavator is ready to enhance your project's productivity.
- Year: 2023
- Brand: Sany
- Model: SY16C
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1115987 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
