Product Description

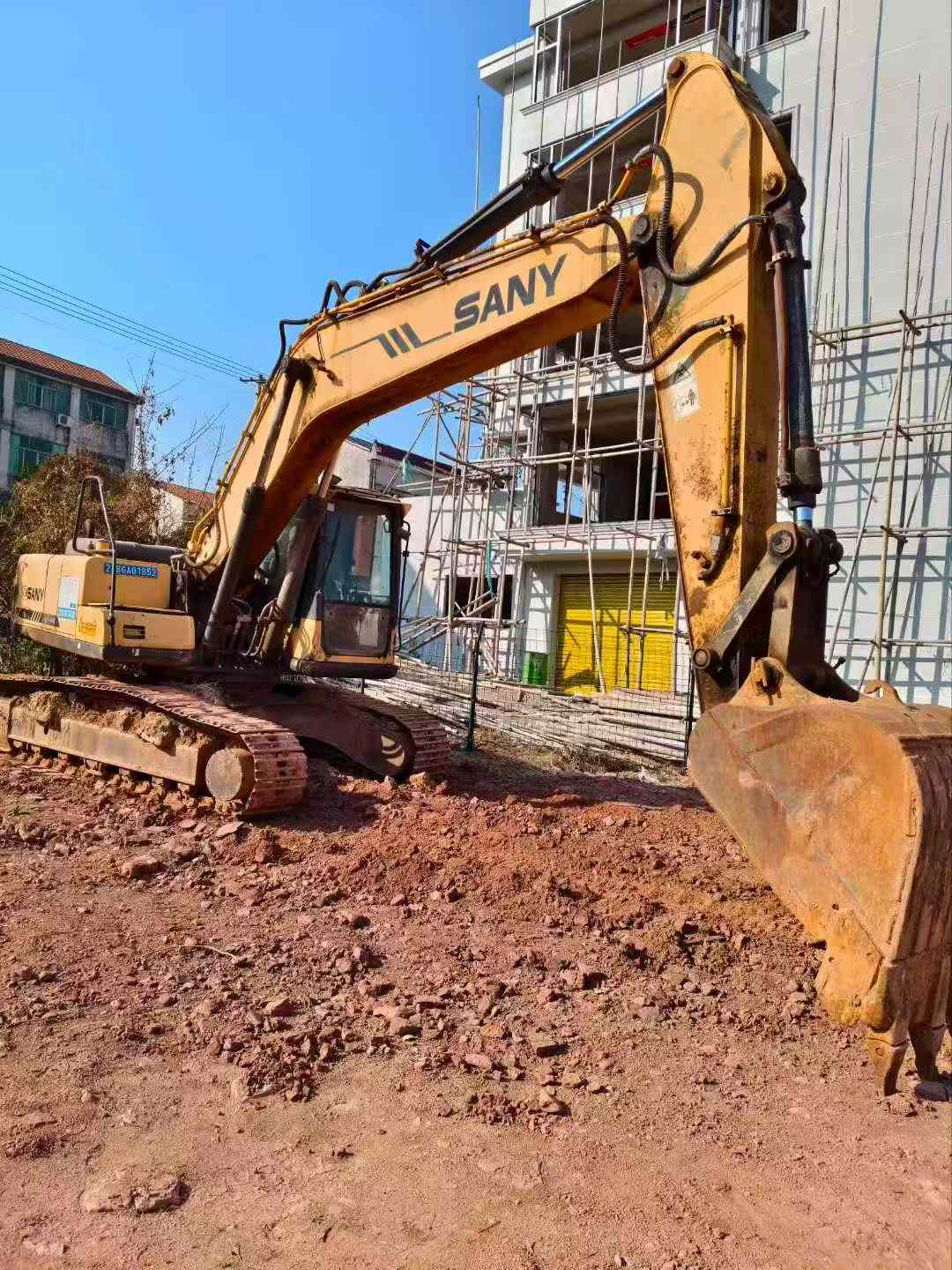

With a working weight of 20,900 kg and a bucket capacity ranging from 0.8 to 1.1 m³, this 2012 Sany SY195C excavator is an ideal fleet addition for busy contractors. Made in China, it features a 4M50 engine delivering 118 kW at 2000 rpm, ensuring reliable performance. The backhoe bucket provides a digging force of 138 kN, making it suitable for tough excavation tasks.
- Maximum digging depth: 6600 mm
- Maximum unloading height: 9600 mm
- Fuel tank capacity: 340 L
- Travel speed: 5.4/3.3 km/h
- Ground specific pressure: 47.3 Kpa
Its robust design and efficient power make the SY195C a dependable backup or primary unit. With a total transport length of 9680 mm and a width of 2800 mm, it is easy to transport and maneuver on various job sites. Integrate this excavator into your fleet for enhanced productivity and reliability.
| Specifications | Value |
|---|---|
| No. | 1002506 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
