Product Description

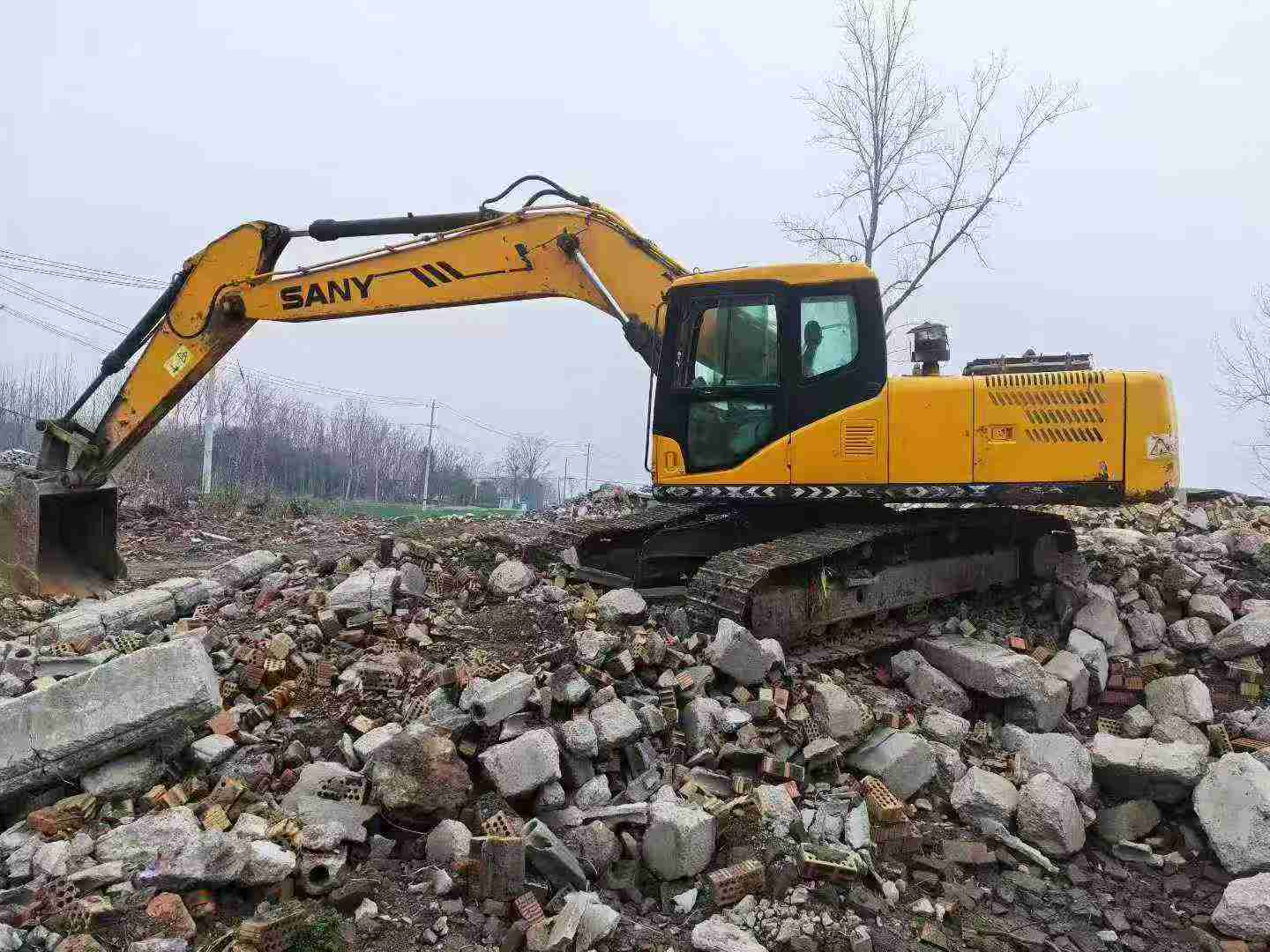

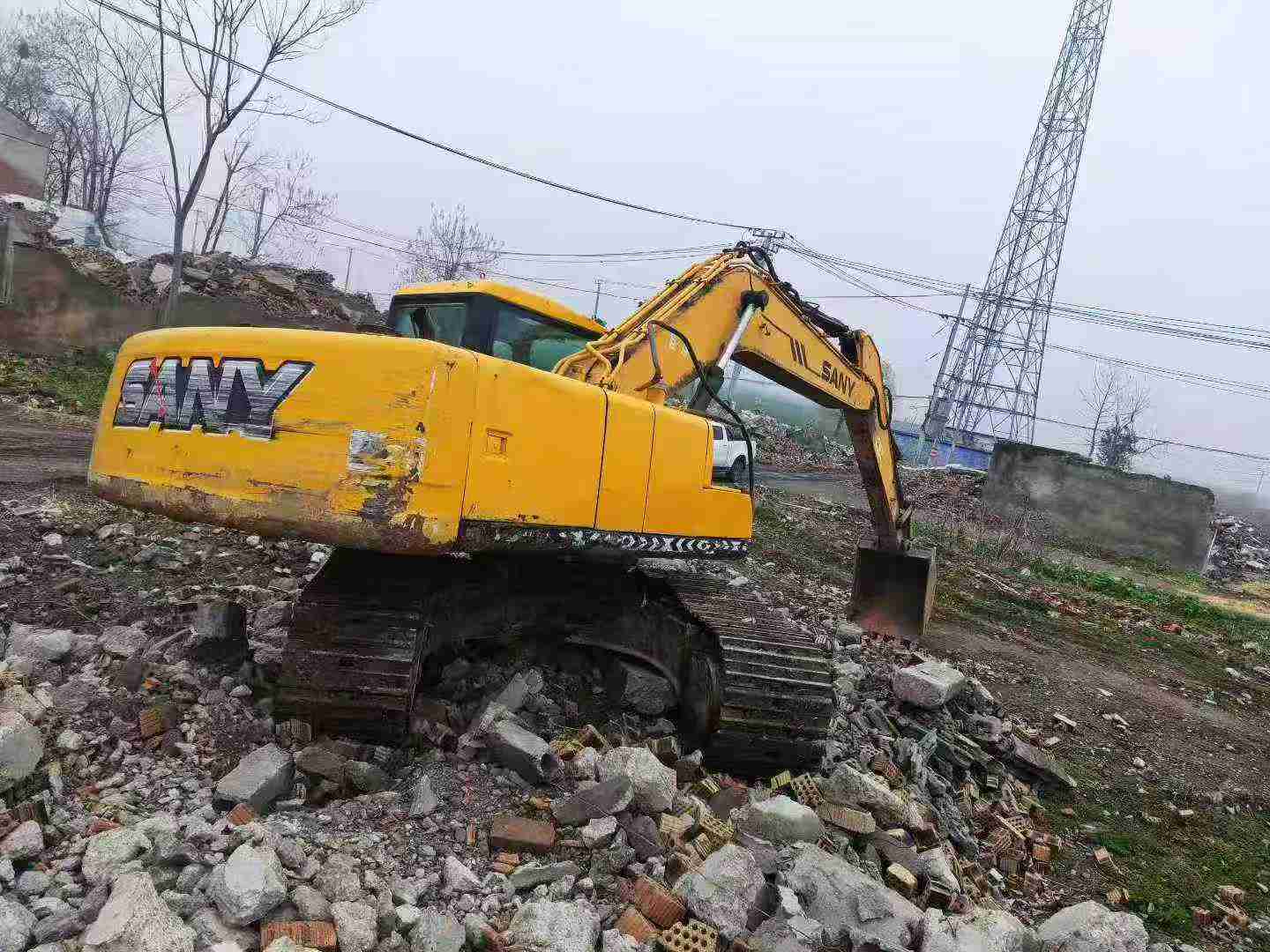

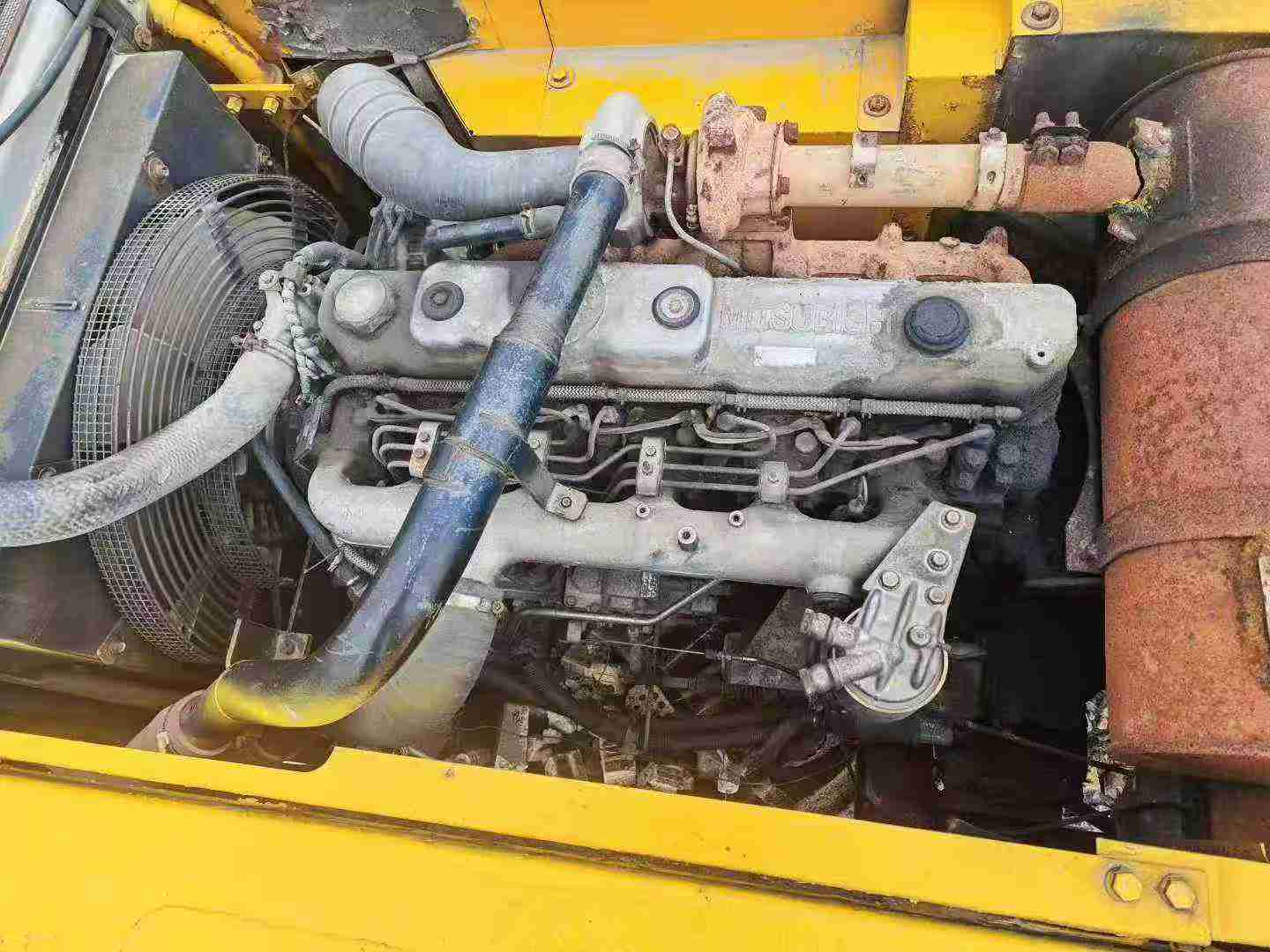

Powered by a robust 118kW 4M50 engine, this 2012 Sany SY195C excavator delivers 19 tons of reliable performance without the wait. Currently located in Hangzhou, Zhejiang, this machine is available for immediate deployment—skip the factory lead times and get your project moving. With 138kN bucket digging force and a maximum reach of 10,280mm, it tackles demanding excavation tasks across construction and infrastructure sites.
- Operating Weight: 20,900 kg with 0.8-1.1m³ bucket capacity
- Performance: 580 N·m maximum torque at 1,600 rpm; 70% gradeability
- Reach & Depth: 10,280mm digging radius; 6,600mm maximum depth
- Mobility: 5.4 km/h travel speed; 2,900mm rear turning radius for confined spaces
- Capacity: 340L fuel tank and 239L hydraulic tank for extended operation
Manufactured in China and ready for fast logistics from Hangzhou, this SY195C represents a cost-effective solution for contractors requiring proven mid-size excavation power. Arrange inspection and shipping today—no production delays, no backorders.
| Specifications | Value |
|---|---|
| No. | 1021552 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
