Product Description

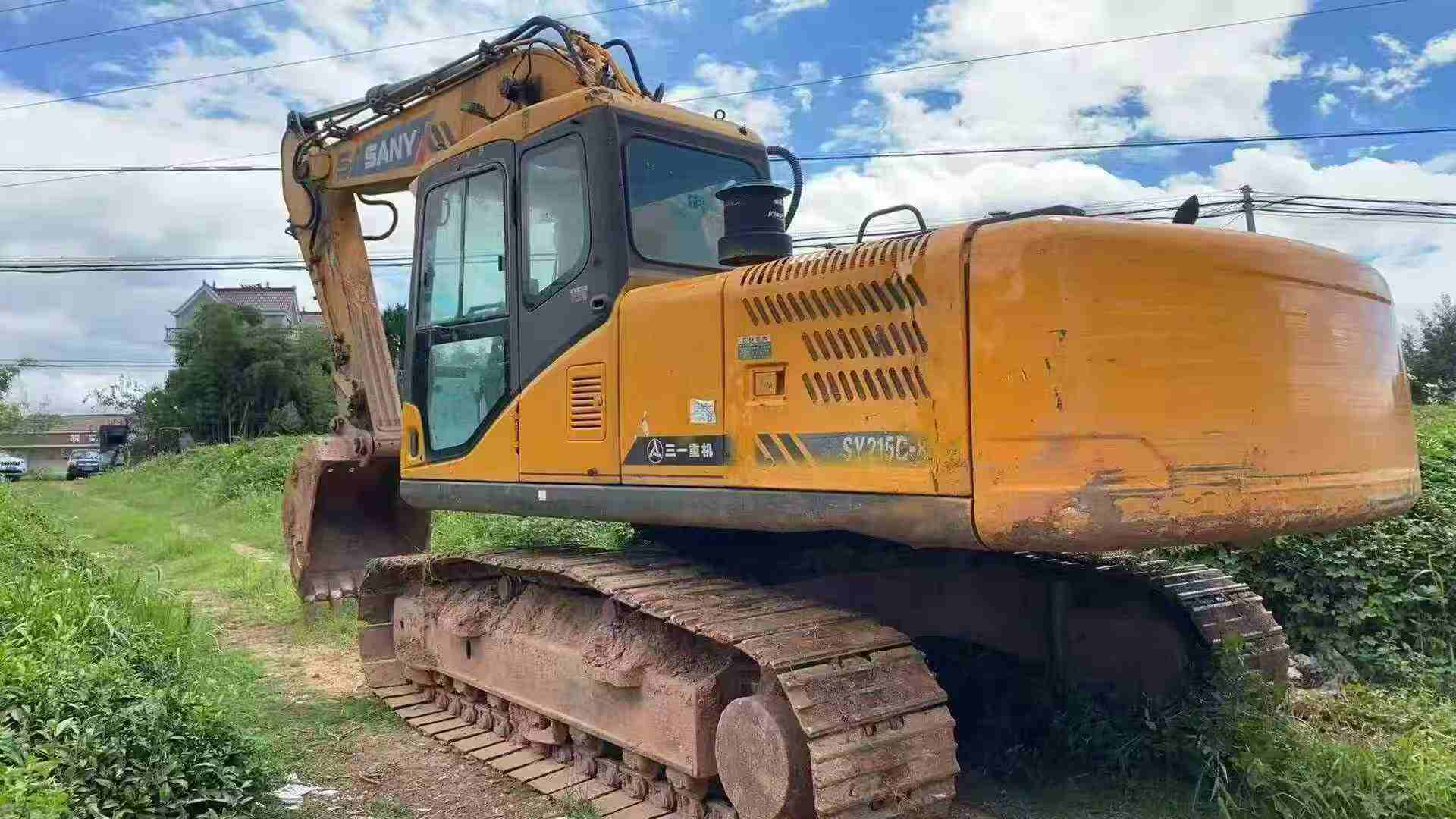

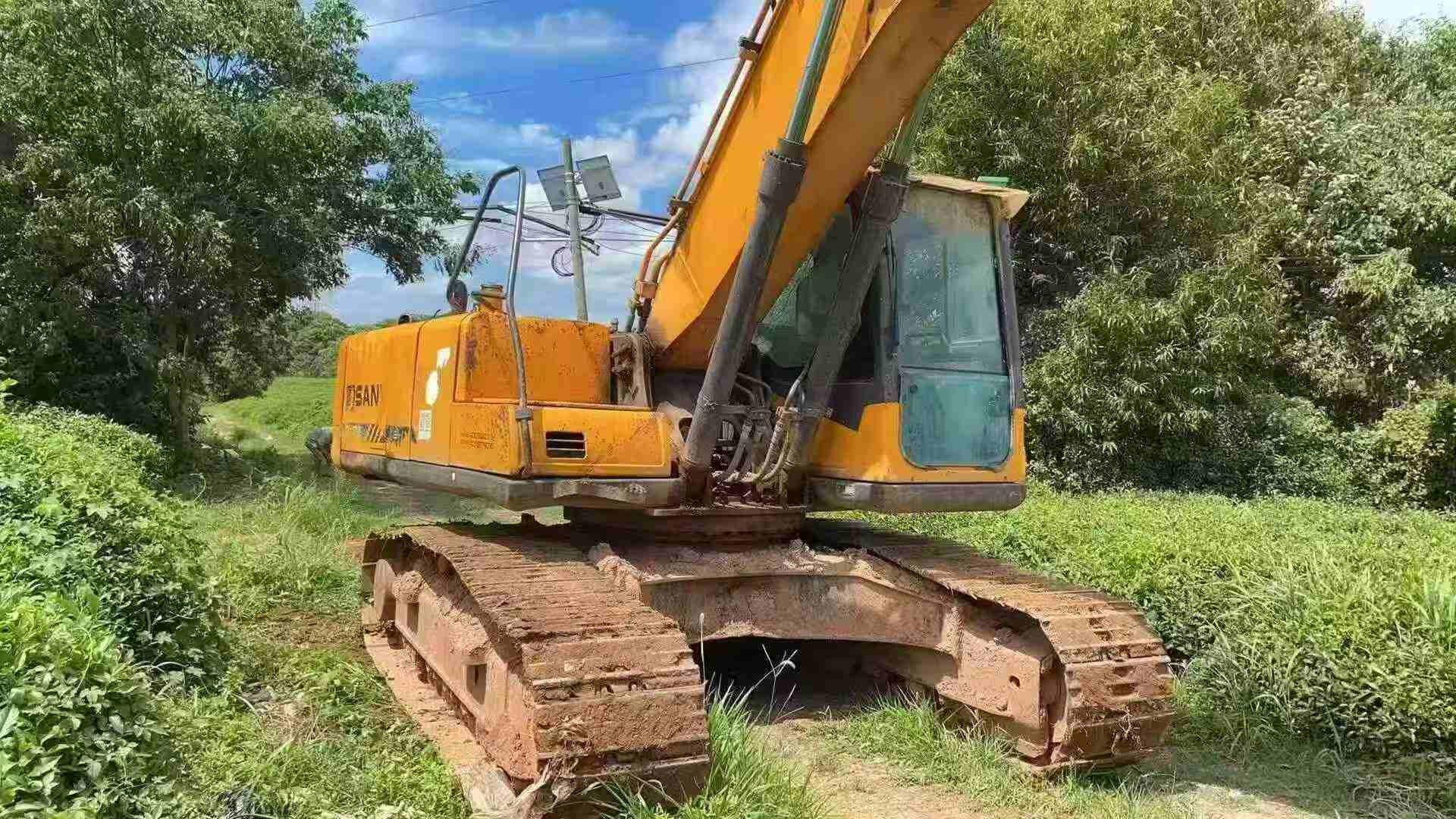

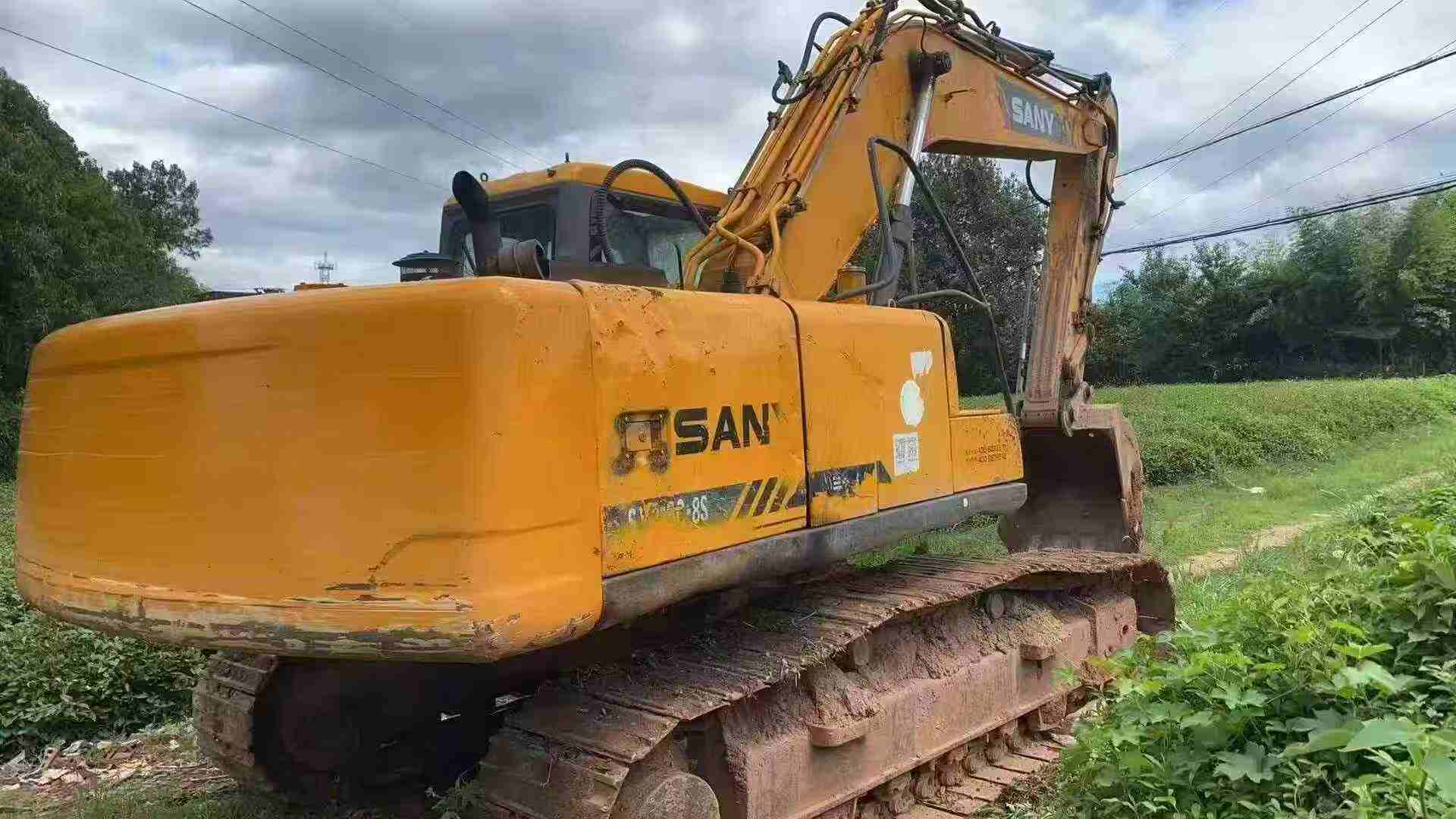

The 2012 Sany SY195C hydraulic excavator offers reliable performance for construction and earthmoving operations. This mid-size crawler excavator from one of China's leading heavy equipment manufacturers combines proven hydraulic technology with operator-focused design. Currently located in Zhejiang, China, this machine represents an economical entry point for contractors seeking dependable excavation capacity.
Key features of the SY195C model include:
- Approximately 19-ton operating weight class suitable for medium-duty applications
- Fuel-efficient engine design for reduced operational costs
- Robust undercarriage and crawler system built for demanding job sites
- Spacious operator cabin with ergonomic controls
- Established parts availability through Sany's extensive service network
With over a decade of field operation, this excavator has demonstrated Sany's commitment to manufacturing durable equipment. Ideal for excavation, trenching, loading, and general construction tasks. Competitive pricing makes this unit an attractive option for businesses expanding their fleet or entering the excavation market.
| Specifications | Value |
|---|---|
| No. | 1078428 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
