2014 Sany SY195C

1/7
Buy Sany SY195C Used Excavator / 1

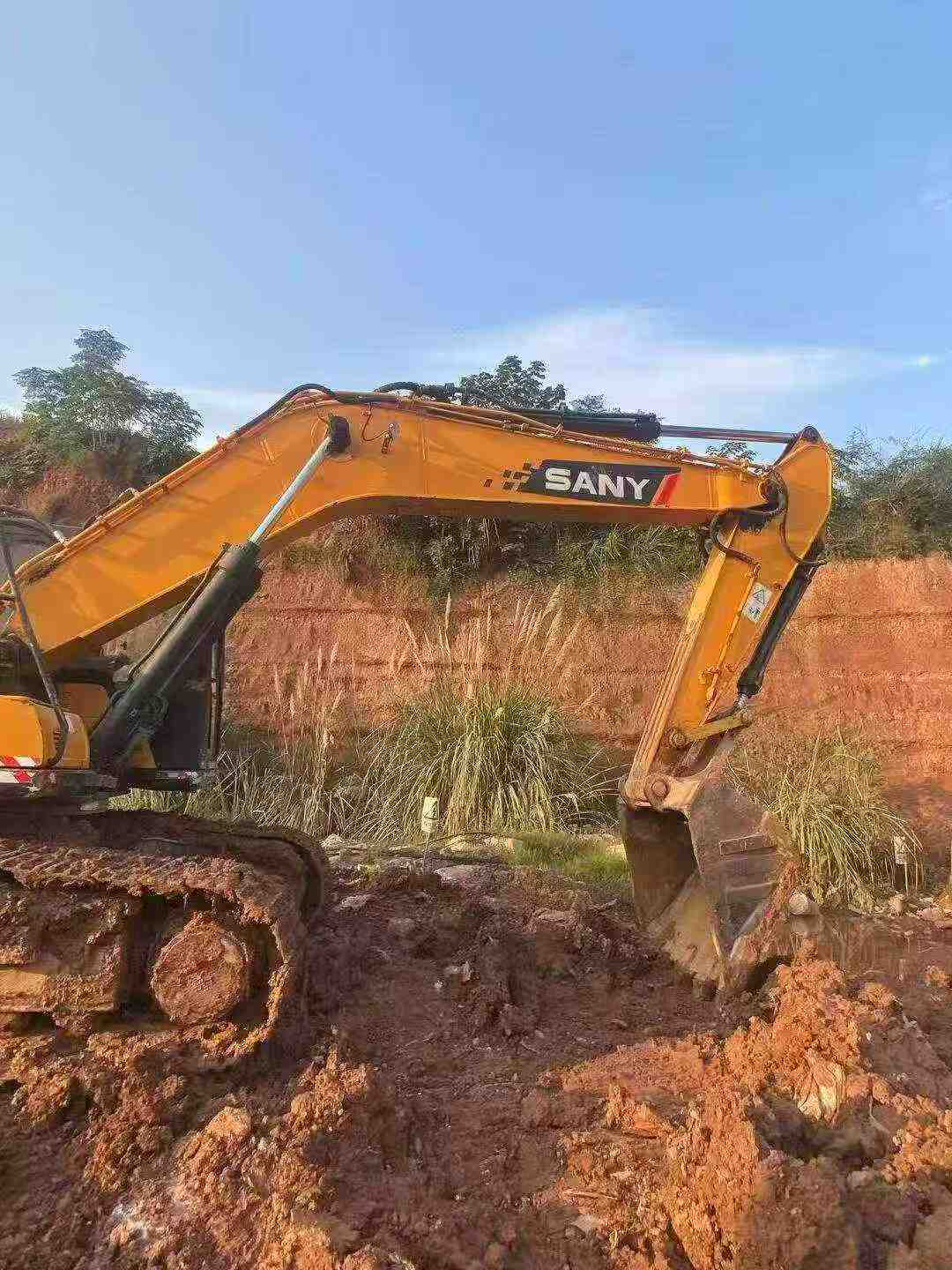

Buy Sany SY195C Used Excavator / 2

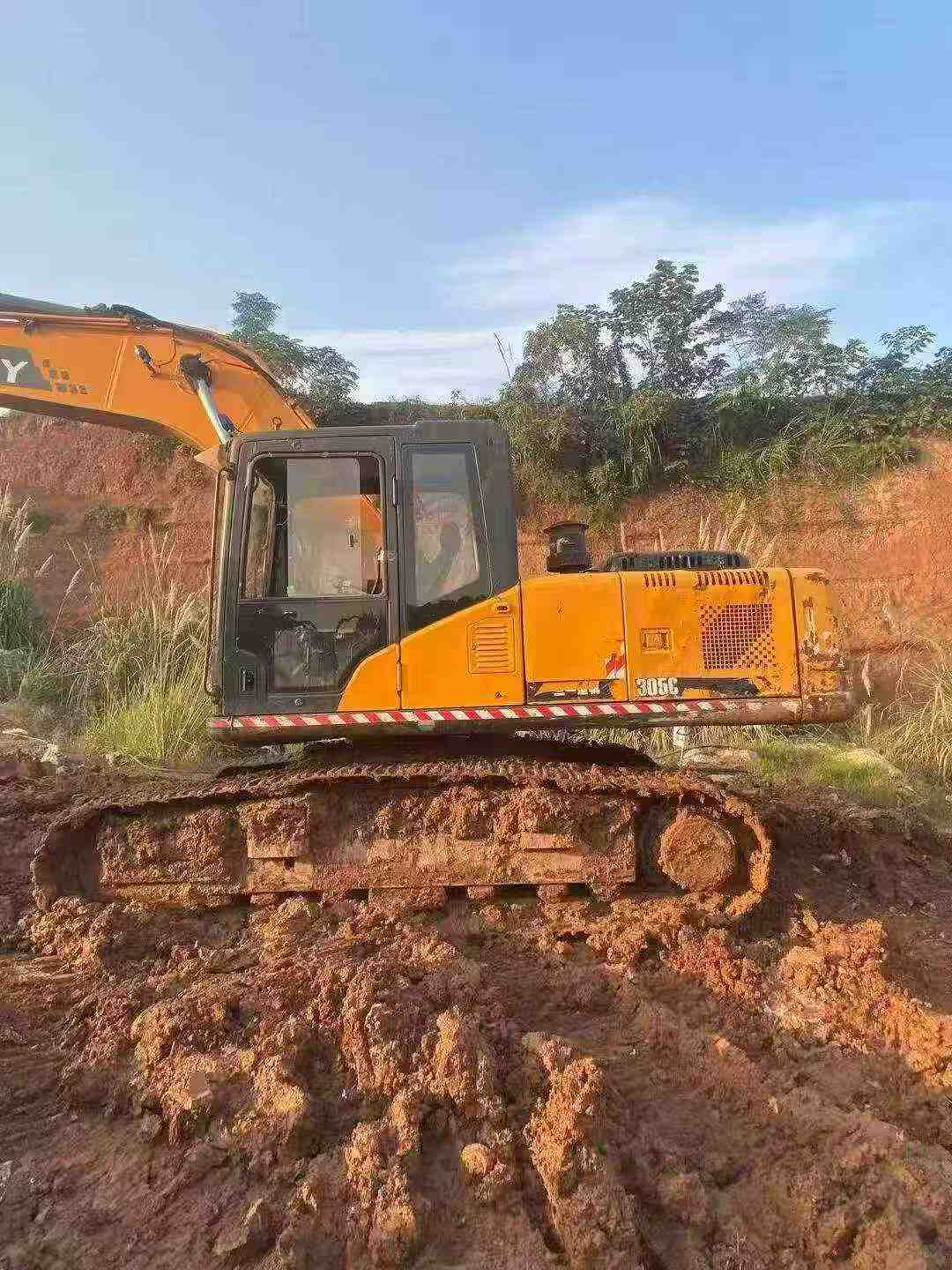

Buy Sany SY195C Used Excavator / 3

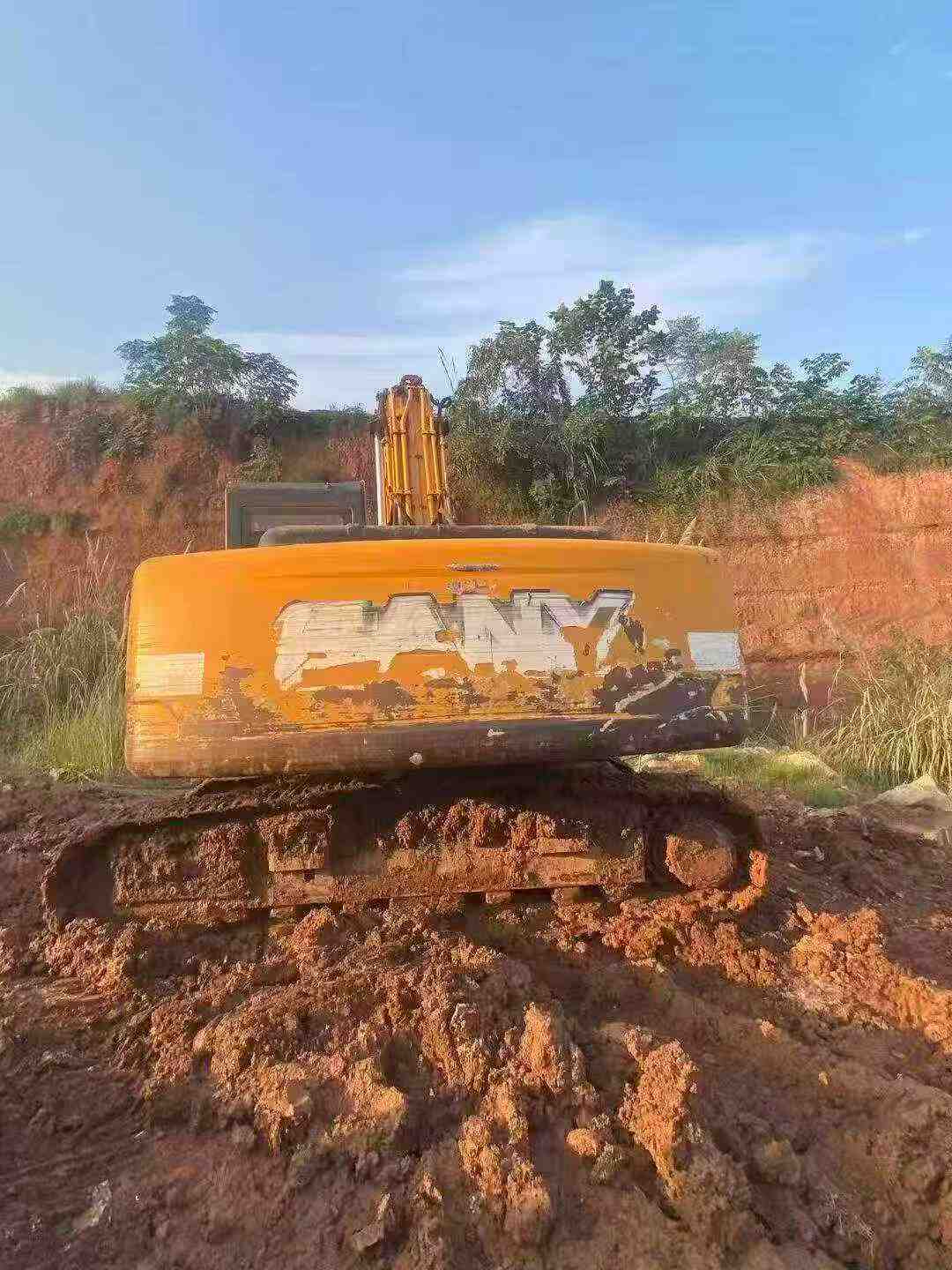

Buy Sany SY195C Used Excavator / 4

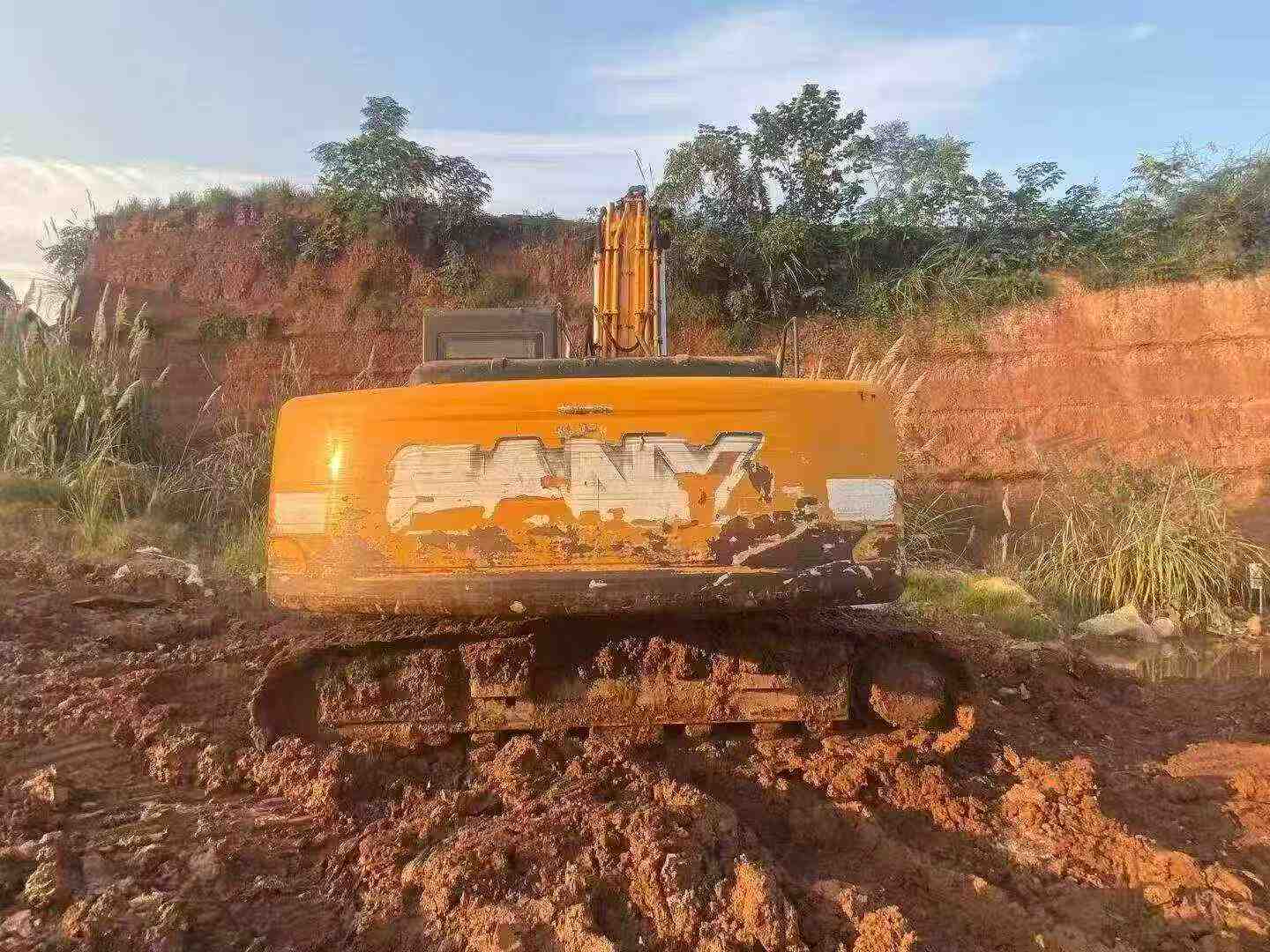

Buy Sany SY195C Used Excavator / 5

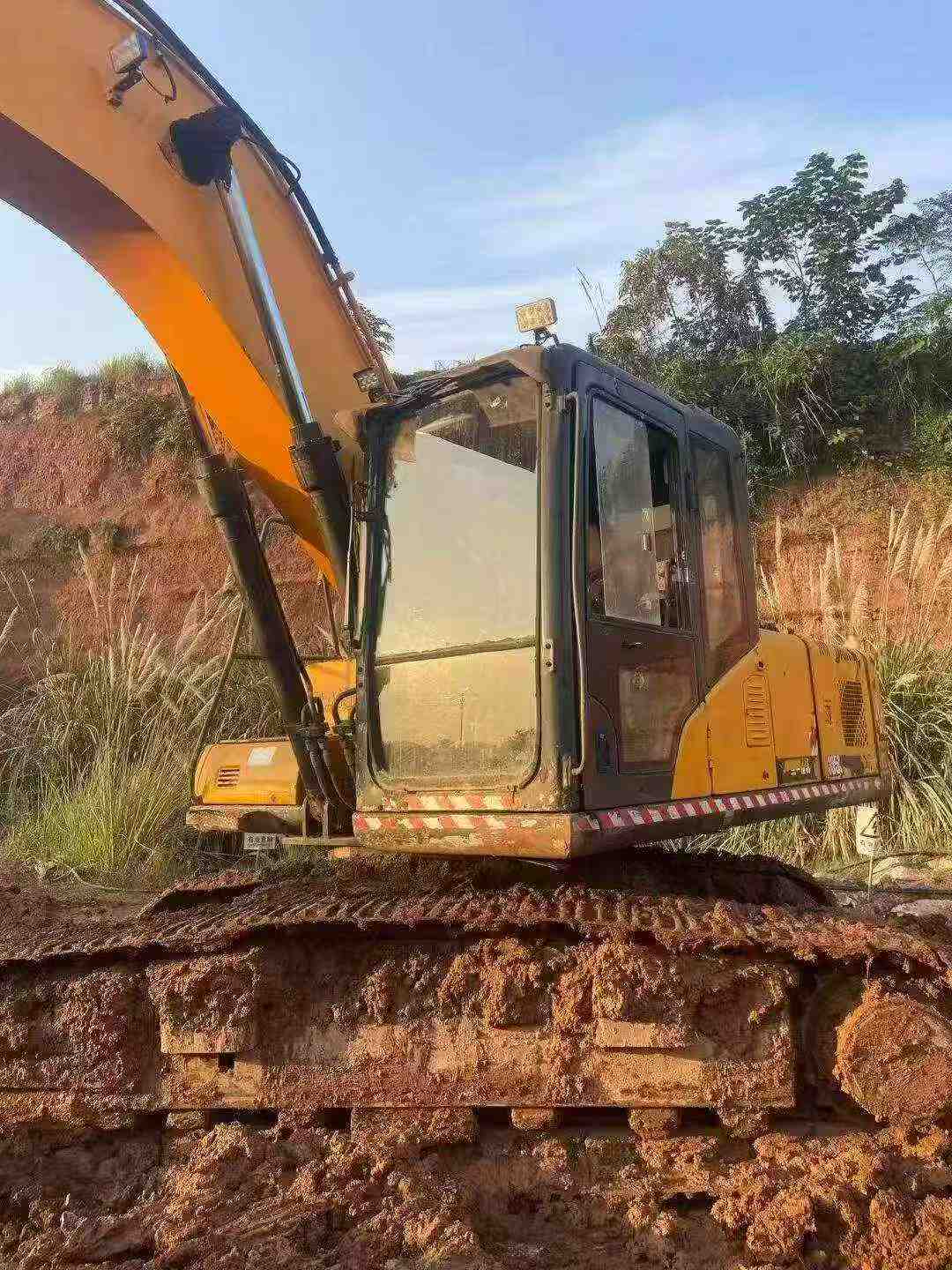

Buy Sany SY195C Used Excavator / 6

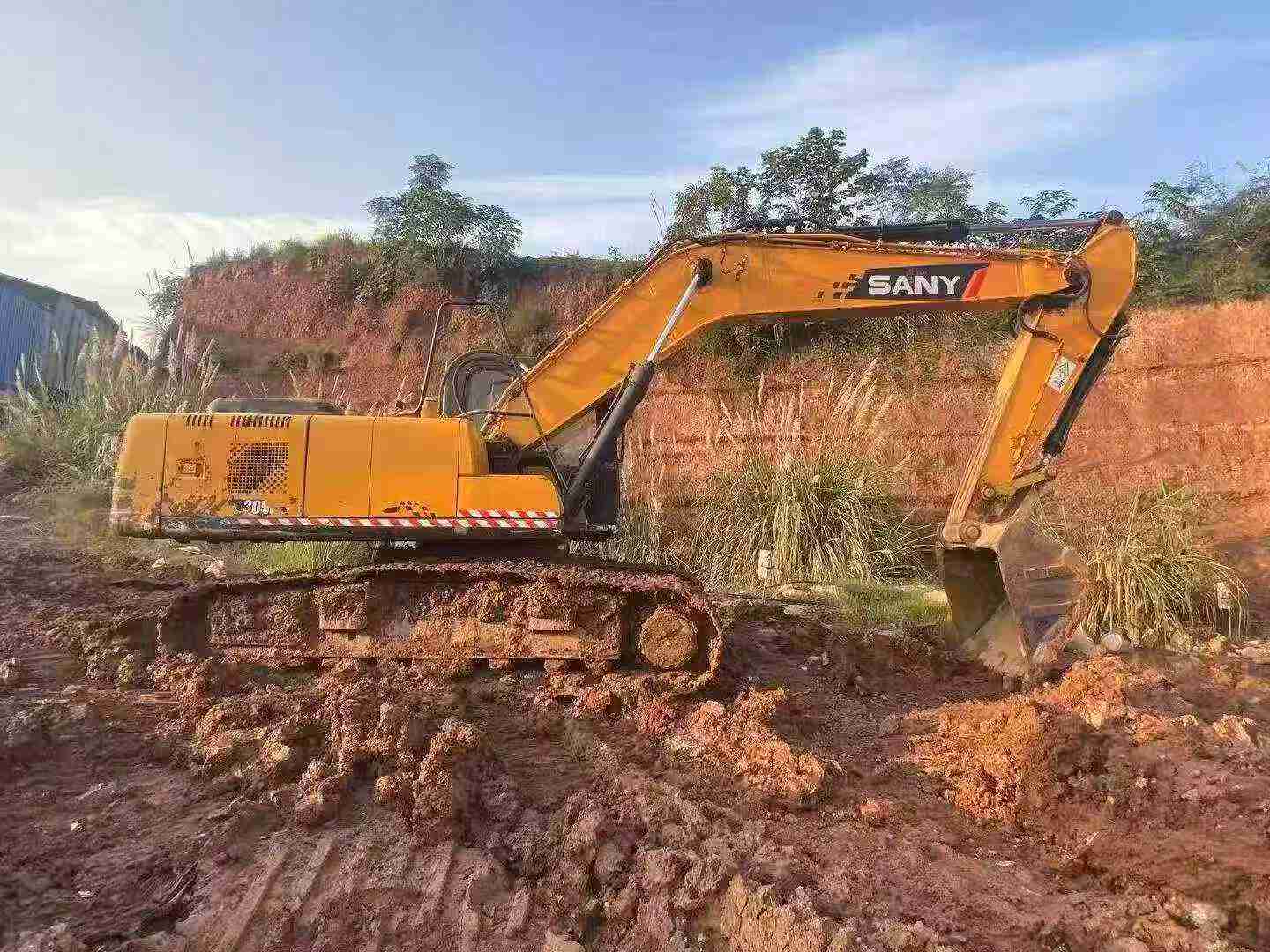

Buy Sany SY195C Used Excavator / 7

Product Description

Well-maintained 2014 Sany SY195C hydraulic excavator available from first-hand source in Sichuan, China. This mid-size crawler excavator from Sany's proven C-series lineup offers reliable performance for construction, earthmoving, and infrastructure projects.

The SY195C features Sany's durable undercarriage design and efficient hydraulic system, delivering consistent productivity in demanding applications. With approximately 10 years of operational history, this unit represents a cost-effective solution for contractors seeking dependable mid-range excavation equipment.

  • Year: 2014
  • Manufacturer: Sany Heavy Industry
  • Model: SY195C
  • Location: Sichuan Province, China
  • Condition: Used, first-hand source
  • Category: Crawler excavator

Suitable for general earthmoving, foundation work, and site development. Currently located in Sichuan with direct sourcing availability. Contact for detailed inspection reports and shipping arrangements.

SpecificationsValue
No.1140111
Tonnage (tons)19
Working weight (kg)20900
Bucket capacity (m³)0.8~1.1(0.95)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2800
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3260
Maximum height at minimum turning radius (mm)7680
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
see more

Overview

No.1140111

Brand Name:

Sany

Model Number:

SY195C

Year:

2014

Location:

Sichuan China

Pub Date
