Product Description

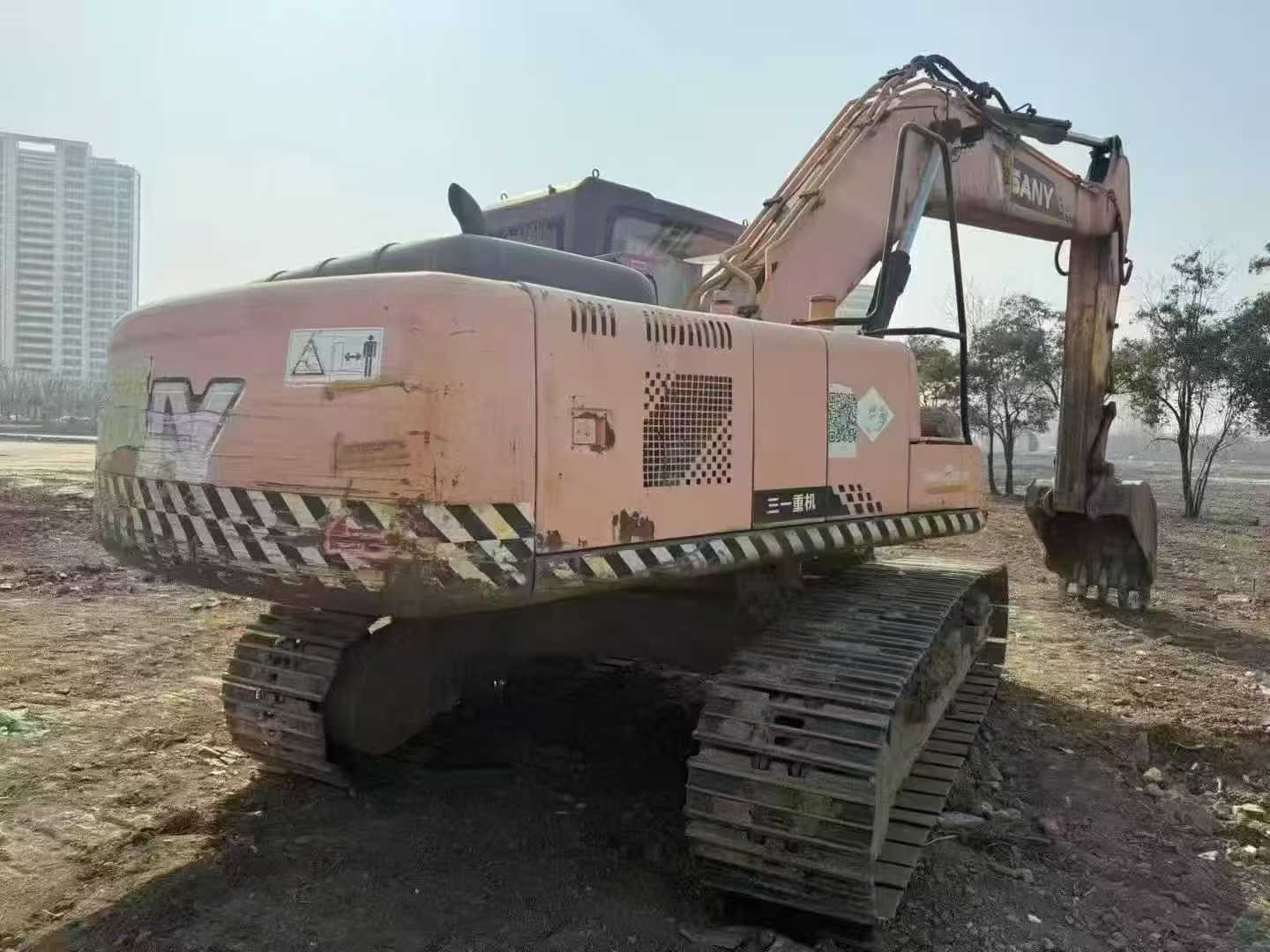

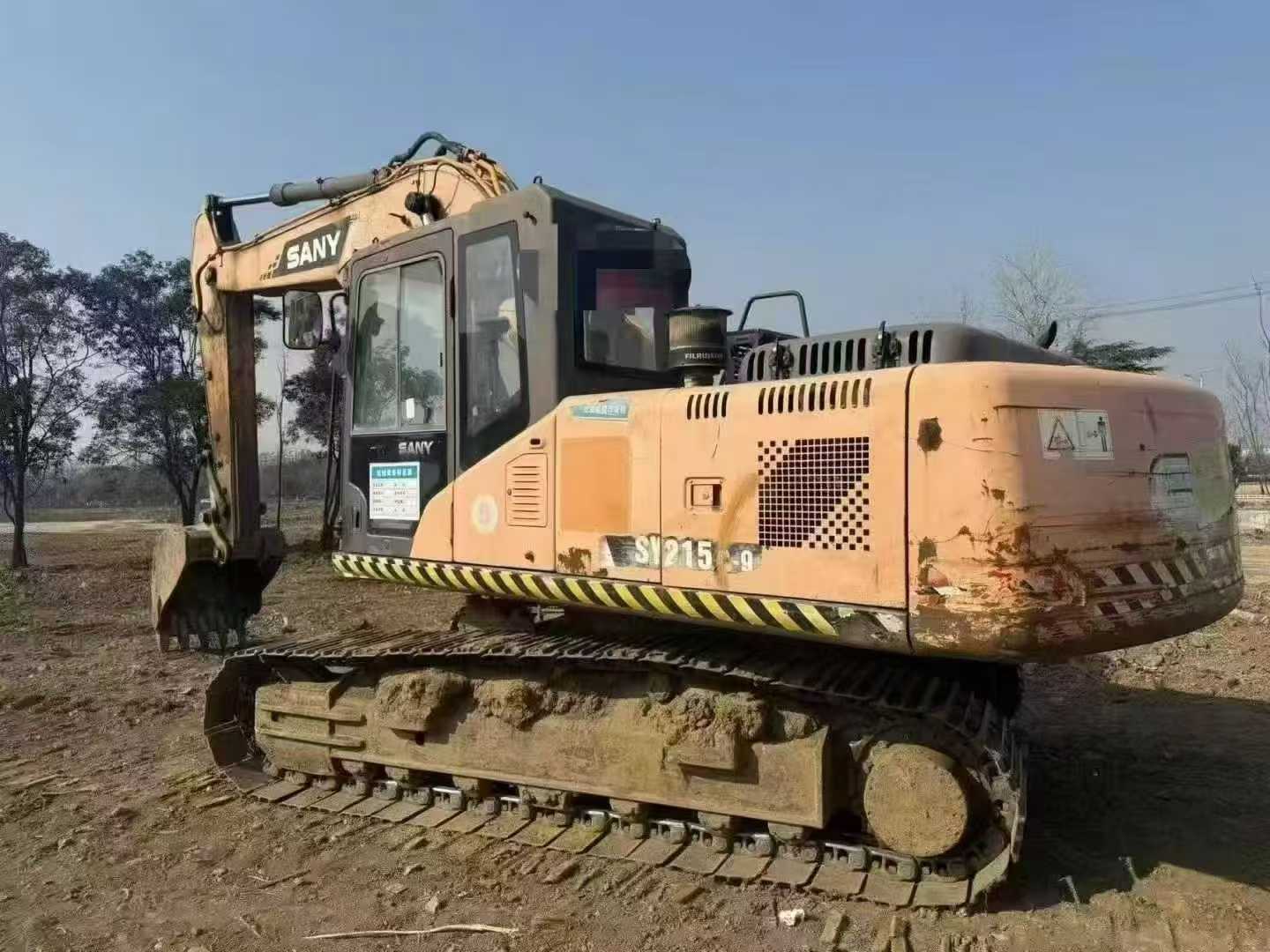

With a working weight of 20,900 kg and a bucket capacity ranging from 0.8 to 1.1 m³, the Sany SY195C excavator, manufactured in 2014, stands as a testament to durability and reliability. Built to last, this machine has proven its worth in various demanding environments. Powered by a robust 4M50 engine, it delivers 118 kW at 2000 rpm, ensuring consistent performance. The SY195C features a maximum digging force of 138 kN, making it a powerful tool for any construction site. Its travel speed of 5.4/3.3 km/h and climbing ability of 70% (35°) enhance its versatility. Equipped with a 340-liter fuel tank and a 239-liter hydraulic tank, this excavator is designed for long, uninterrupted work hours. Located in 浙江杭州, this Sany SY195C is ready to tackle your next project with its proven record and enduring build quality.
| Specifications | Value |
|---|---|
| No. | 995505 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

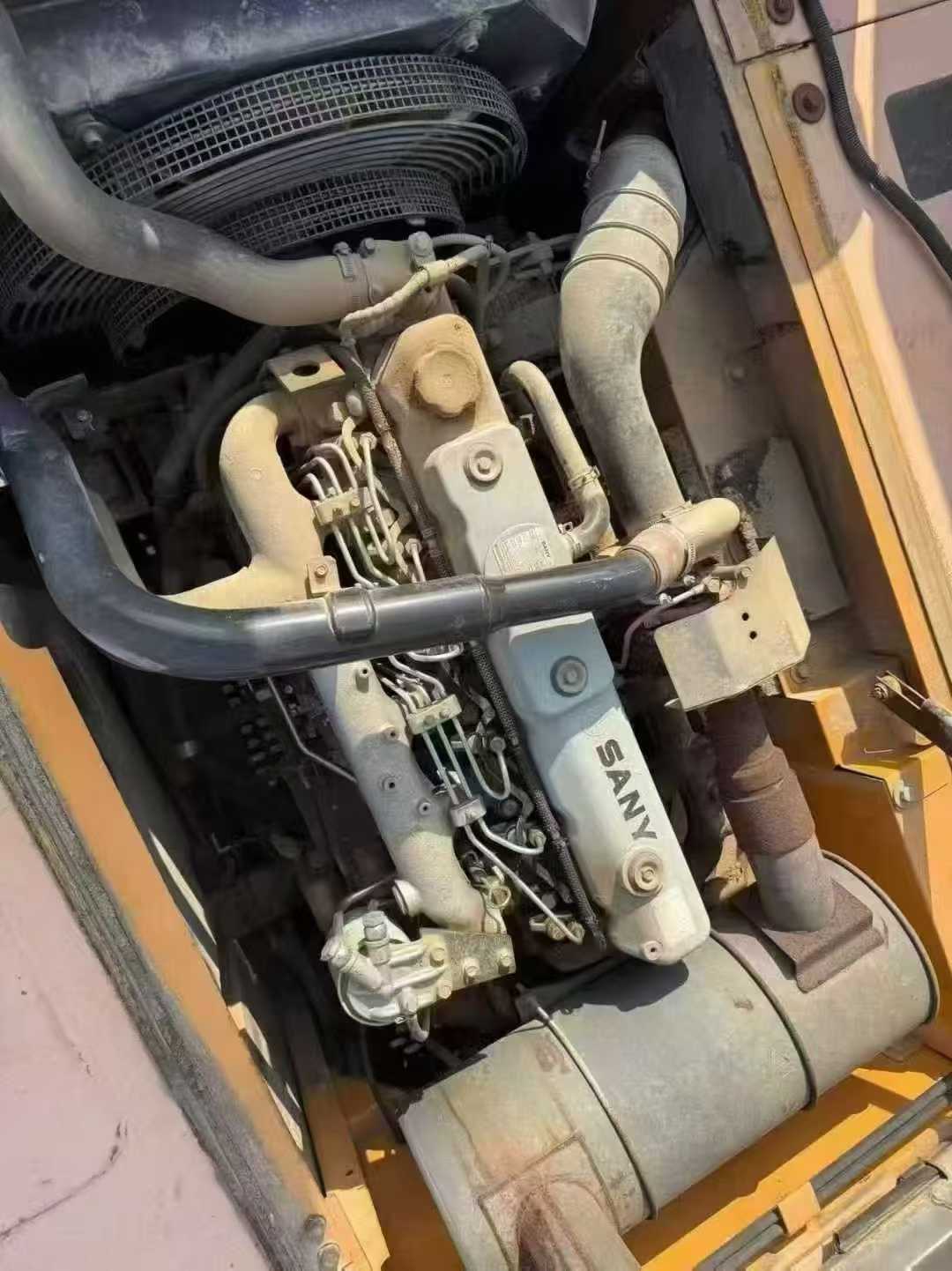

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
