2015 Sany SY195C

1/5
Buy Sany SY195C Used Excavator / 1
Buy Sany SY195C Used Excavator / 2

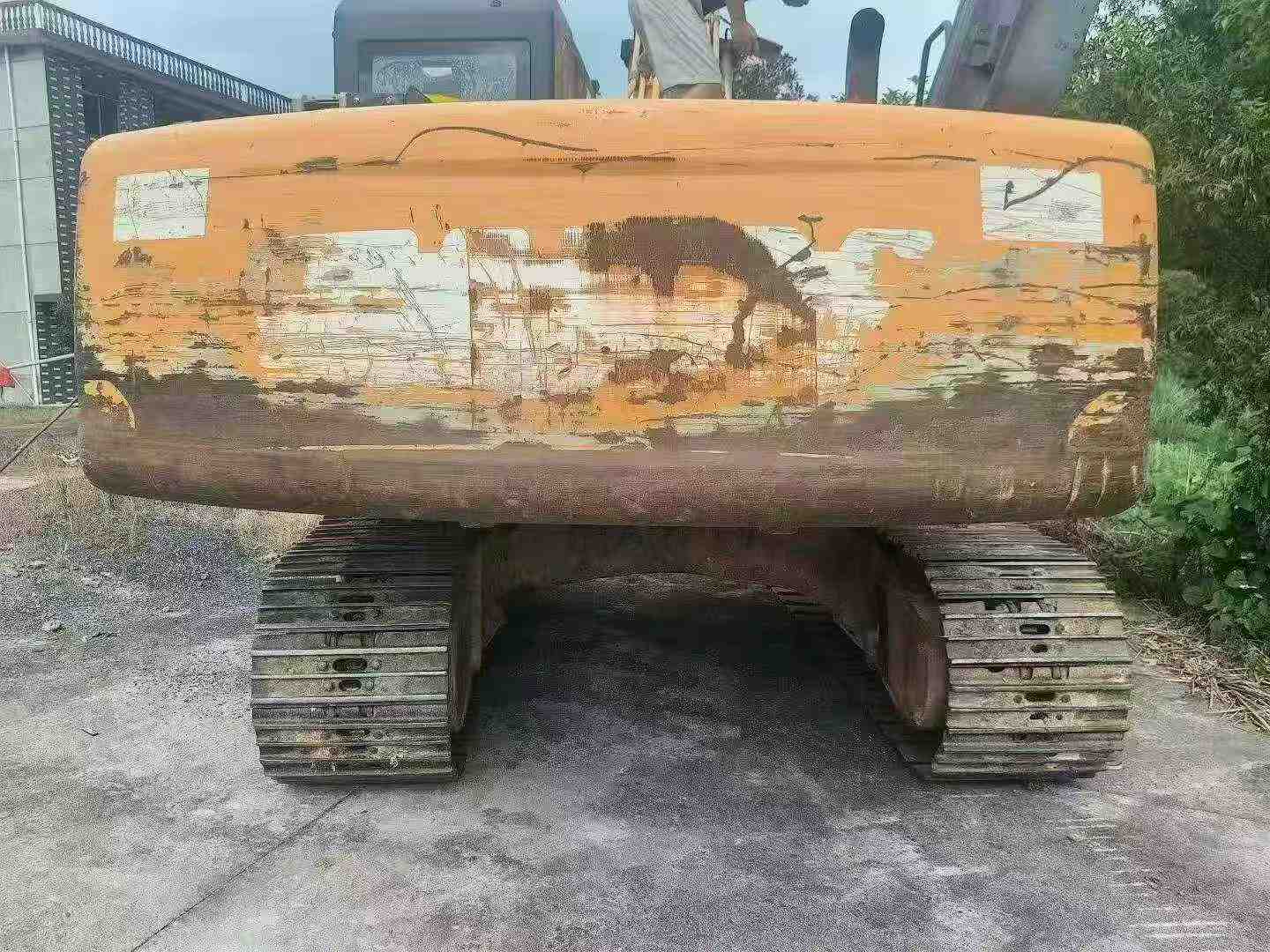

Buy Sany SY195C Used Excavator / 3
Buy Sany SY195C Used Excavator / 4

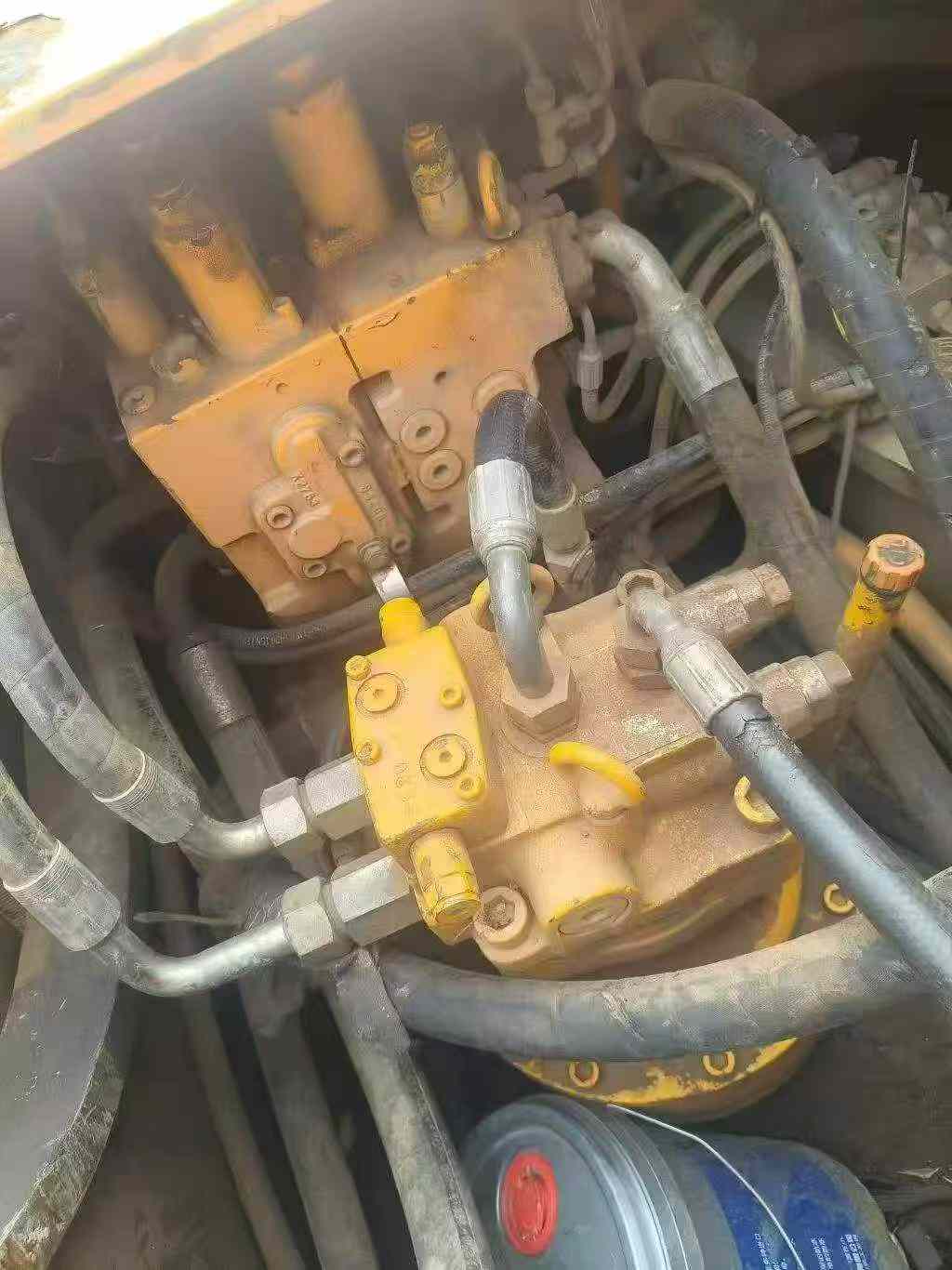

Buy Sany SY195C Used Excavator / 5

Product Description

This 2015 Sany SY195C excavator offers reliable performance for medium-duty construction and earthmoving applications. With nearly a decade of field use, this machine demonstrates Sany's proven engineering in the 19-ton class. Currently located in Sichuan, China, it represents an opportunity for operators seeking dependable hydraulic excavation capacity at a competitive price point.

Key features of the SY195C include:

  • Operating weight approximately 19 tons
  • Reliable Isuzu engine technology
  • Hydraulic system designed for efficient cycle times
  • Suitable for excavation, loading, and grading operations
  • Established parts and service network across Asia

This unit is priced for immediate sale. Inspection is recommended prior to purchase. The SY195C remains a practical choice for contractors requiring proven excavation capabilities in a mid-size platform.

SpecificationsValue
No.1139223
Tonnage (tons)19
Working weight (kg)20900
Bucket capacity (m³)0.8~1.1(0.95)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2800
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3260
Maximum height at minimum turning radius (mm)7680
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
see more

Overview

No.1139223

Brand Name:

Sany

Model Number:

SY195C

Year:

2015

Location:

Sichuan China
