Product Description

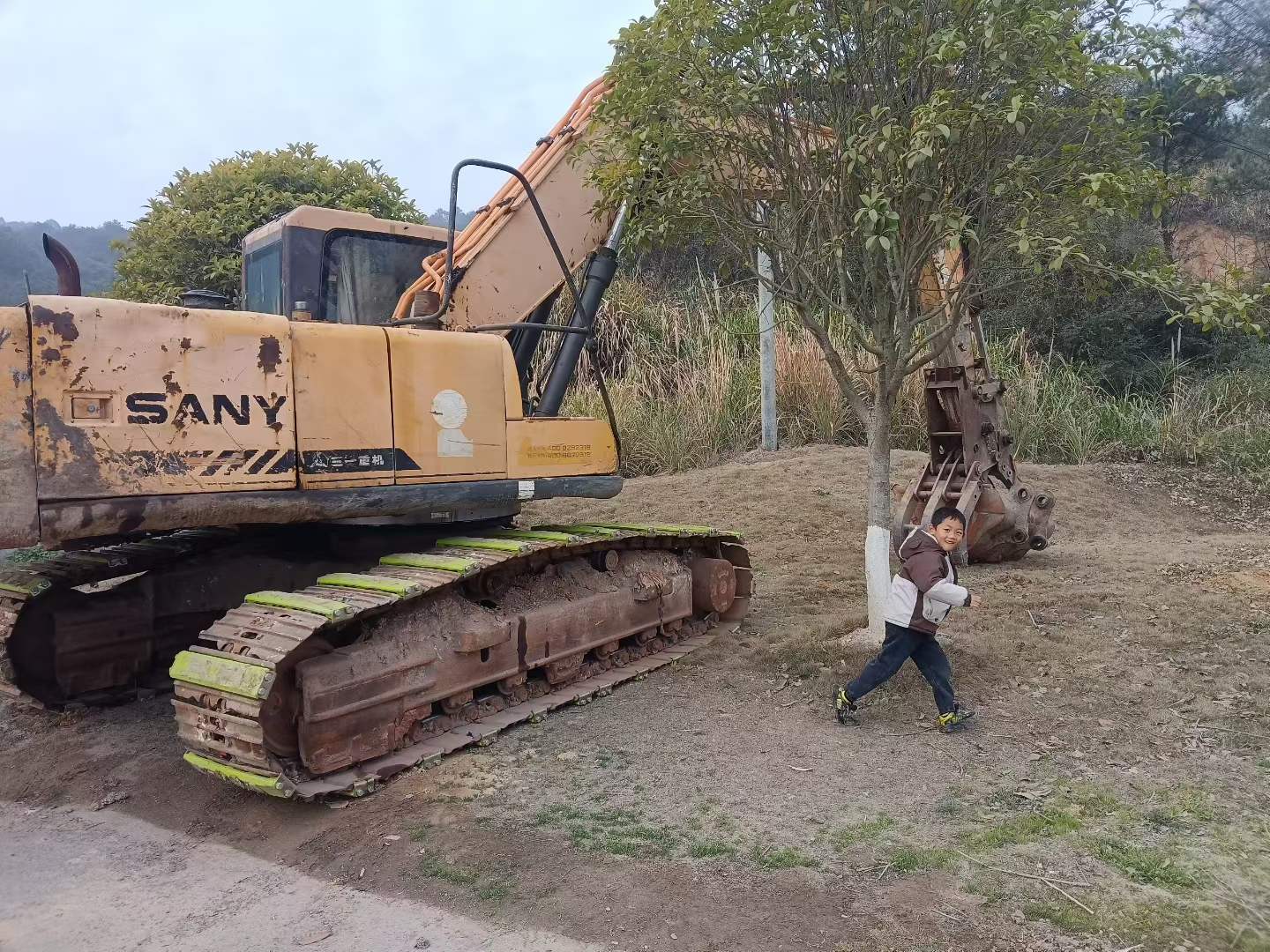

Built for demanding excavation work, this 2016 Sany SY195C delivers proven performance in the 19-ton class. Powered by a robust 4M50 engine producing 118kW at 2000rpm, this machine combines 138kN bucket digging force with an impressive 10,280mm maximum digging radius. Currently located in Jiangxi Ji'an, this excavator represents exceptional value in the used equipment market.
Sany has established itself as a reliable choice for operators seeking long-term equipment investments. Parts availability remains strong across China and international markets, ensuring minimal downtime and straightforward maintenance. With a working weight of 20,900kg and bucket capacity ranging from 0.8 to 1.1m³, this model handles diverse applications from foundation work to material handling.
- Proven 4M50 engine with 580N.m maximum torque
- Excellent resale value backed by Sany's growing market presence
- Comprehensive parts network reduces operational costs
- 340L fuel tank and 239L hydraulic tank for extended operation
- 70% climbing ability for challenging terrain
Investing in established Chinese manufacturing means accessing affordable parts and service support while maintaining productivi
| Specifications | Value |
|---|---|
| No. | 1008344 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
