Product Description

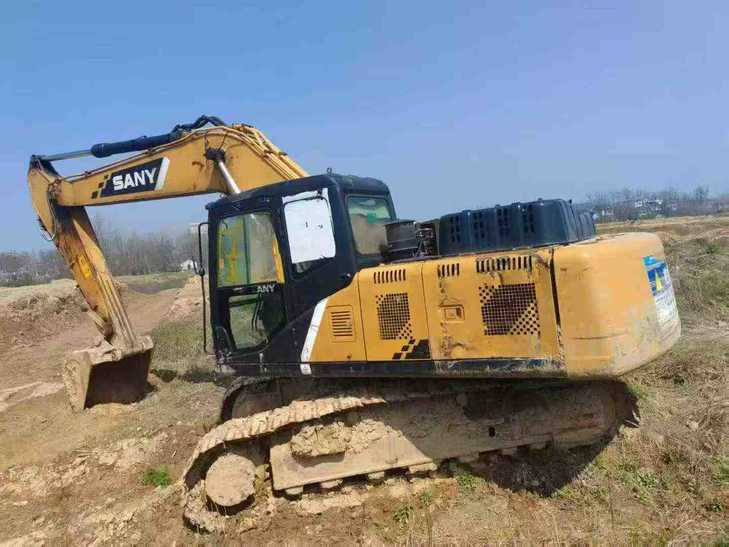

Expand your fleet capacity with this 2017 Sany SY195C, a 19-ton excavator engineered for reliable backup duty on demanding jobsites. Powered by a 4M50 engine delivering 118kW at 2000rpm, this machine provides consistent performance when your primary units are deployed elsewhere. With 138kN bucket digging force and 103kN arm force, it handles excavation, trenching, and material handling without compromise.
Currently located in Hangzhou, Zhejiang, this unit offers practical specifications for fleet integration:
- 0.95m³ bucket capacity matches standard 20-ton class productivity
- 10,280mm maximum digging radius covers typical excavation requirements
- 6,600mm digging depth handles most utility and foundation work
- 340L fuel tank supports extended operation between refills
- 2,800mm transport width allows standard trailer mobilization
Built for contractors managing multiple projects simultaneously, this SY195C serves as cost-effective insurance against equipment downtime. Add proven Chinese manufacturing quality to your rotation without the premium of newer models.
| Specifications | Value |
|---|---|
| No. | 1029560 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
