Product Description

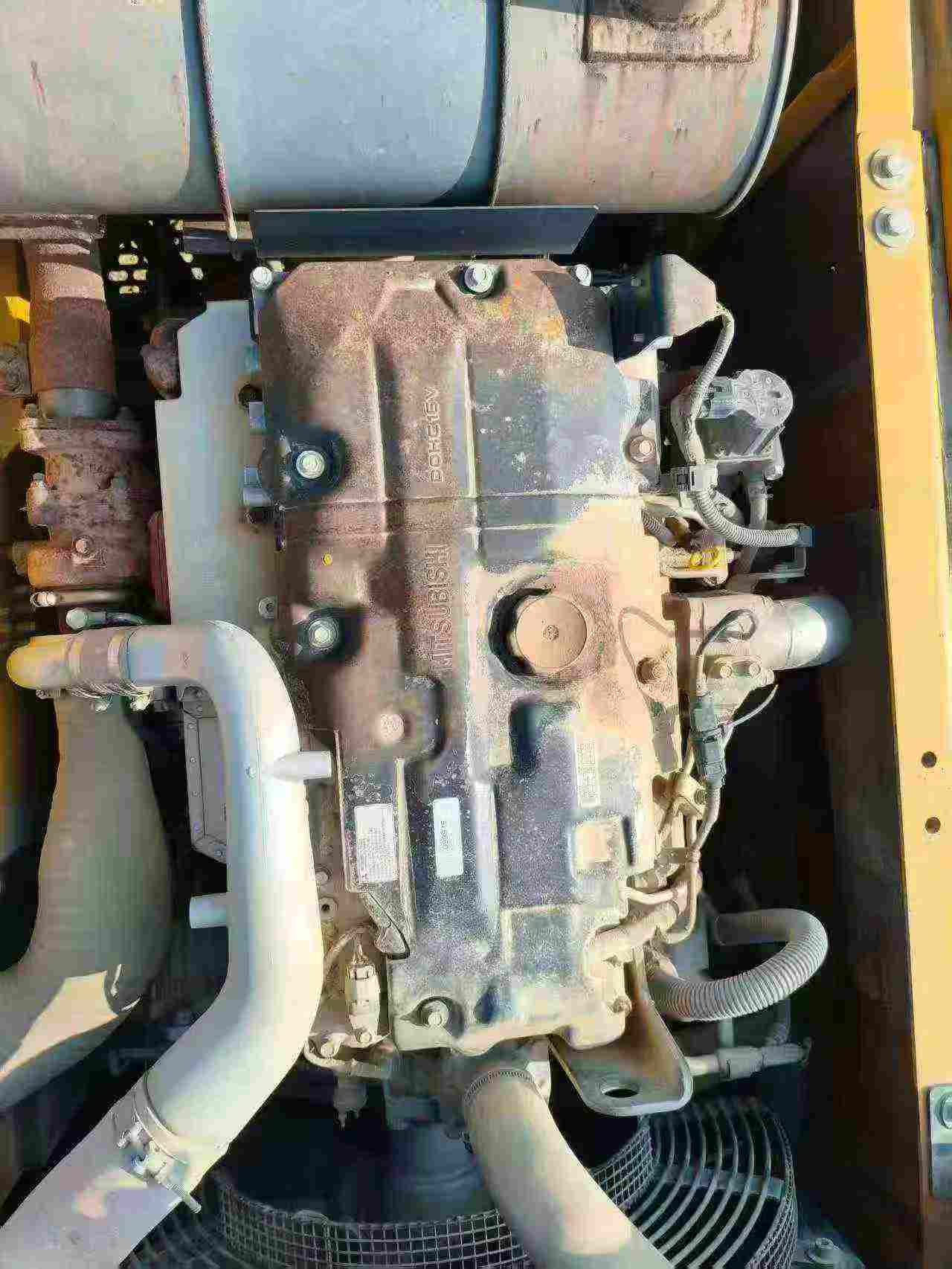

Built for serious excavation work, this 2017 Sany SY195C delivers proven 19-ton performance at a fraction of new machine pricing. Powered by a Mitsubishi 4M50 engine producing 118 kW at 2,000 RPM with 580 N·m of peak torque, this backhoe excavator handles demanding dig cycles with authority. A 0.95 m³ bucket paired with 138 kN digging force means productive material movement on every pass — whether you're trenching, grading, or mass excavation.
Sourced from Zhejiang, China, this unit represents a smart capital allocation for contractors who need reliable output without the depreciation hit of a new purchase. Key performance specifications include:
- Maximum digging depth: 6,600 mm | Maximum digging radius: 10,280 mm
- Maximum excavation height: 9,600 mm | Maximum unloading height: 9,600 mm
- Travel speed: 5.4 / 3.3 km/h | Climbing ability: 70% (35°)
- Ground pressure: 47.3 kPa | 600 mm track plates for stable footing
- Fuel tank: 340 L | Hydraulic tank: 239 L for extended field operations
- Working weight: 20,900 kg | Transport dimensions: 9,680 × 2,800 × 3,440 mm
Solid specs, proven reliability, and competitive used-market pricing — this SY195C puts p
| Specifications | Value |
|---|---|
| No. | 1035310 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
