Product Description

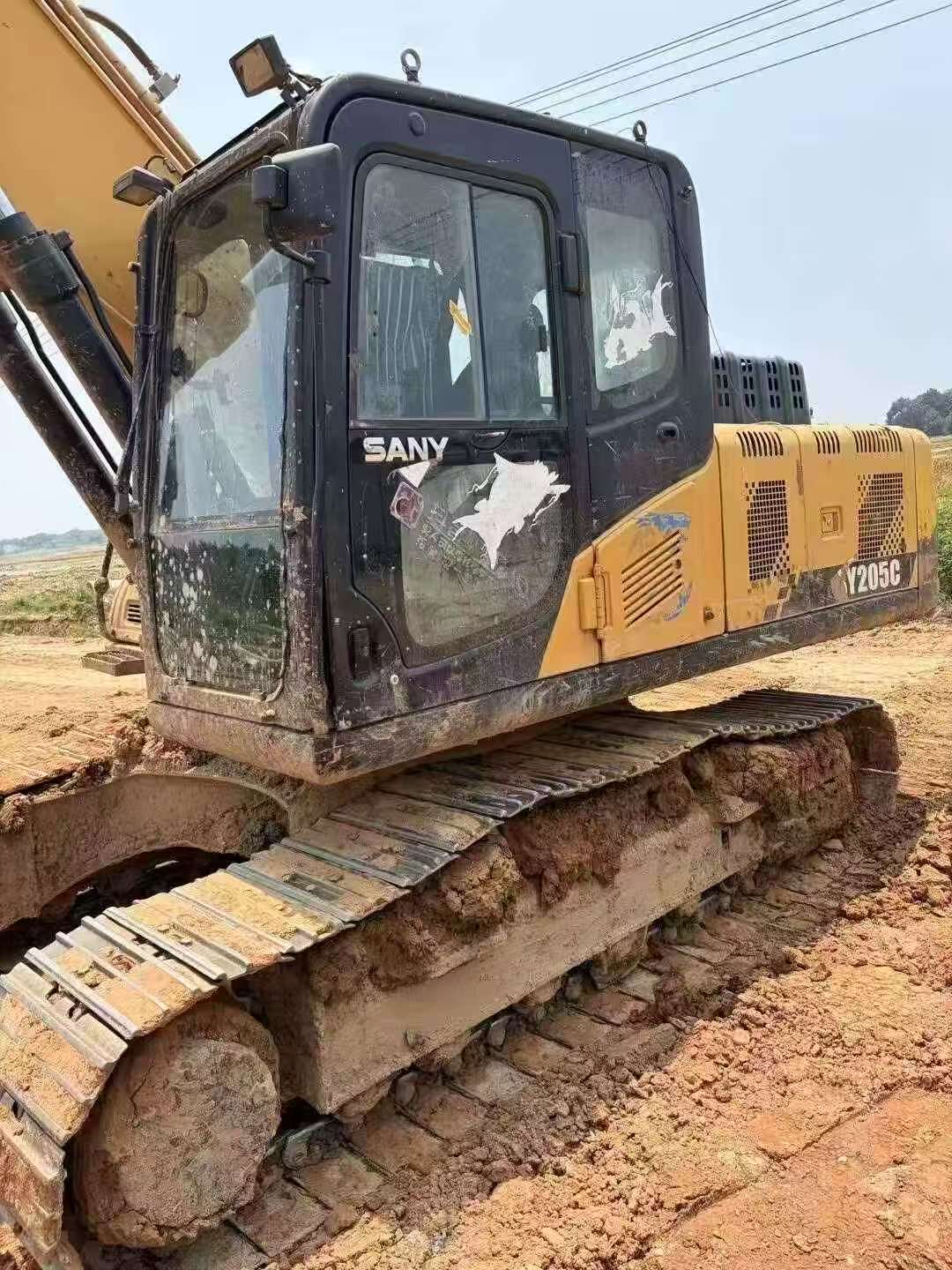

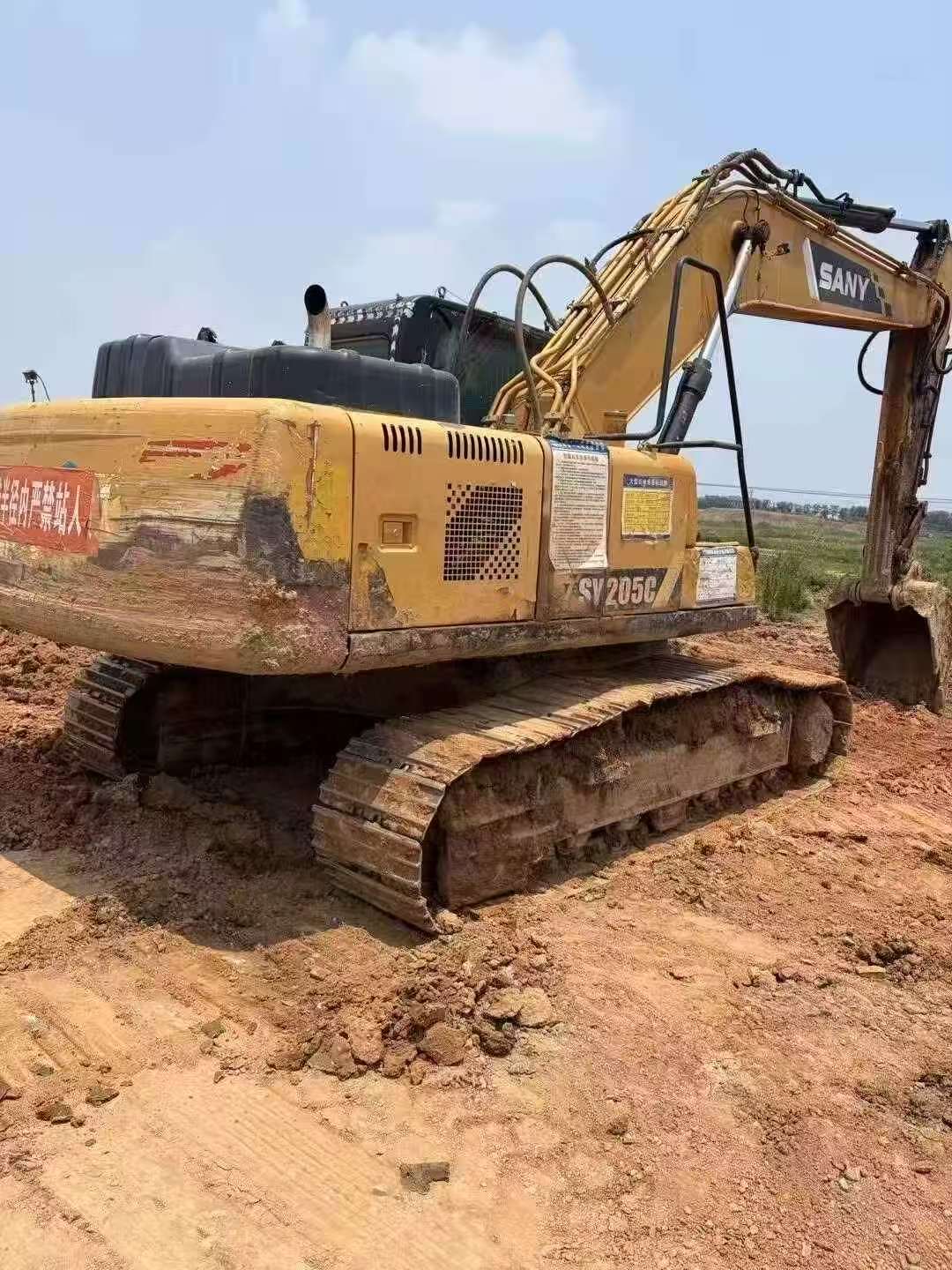

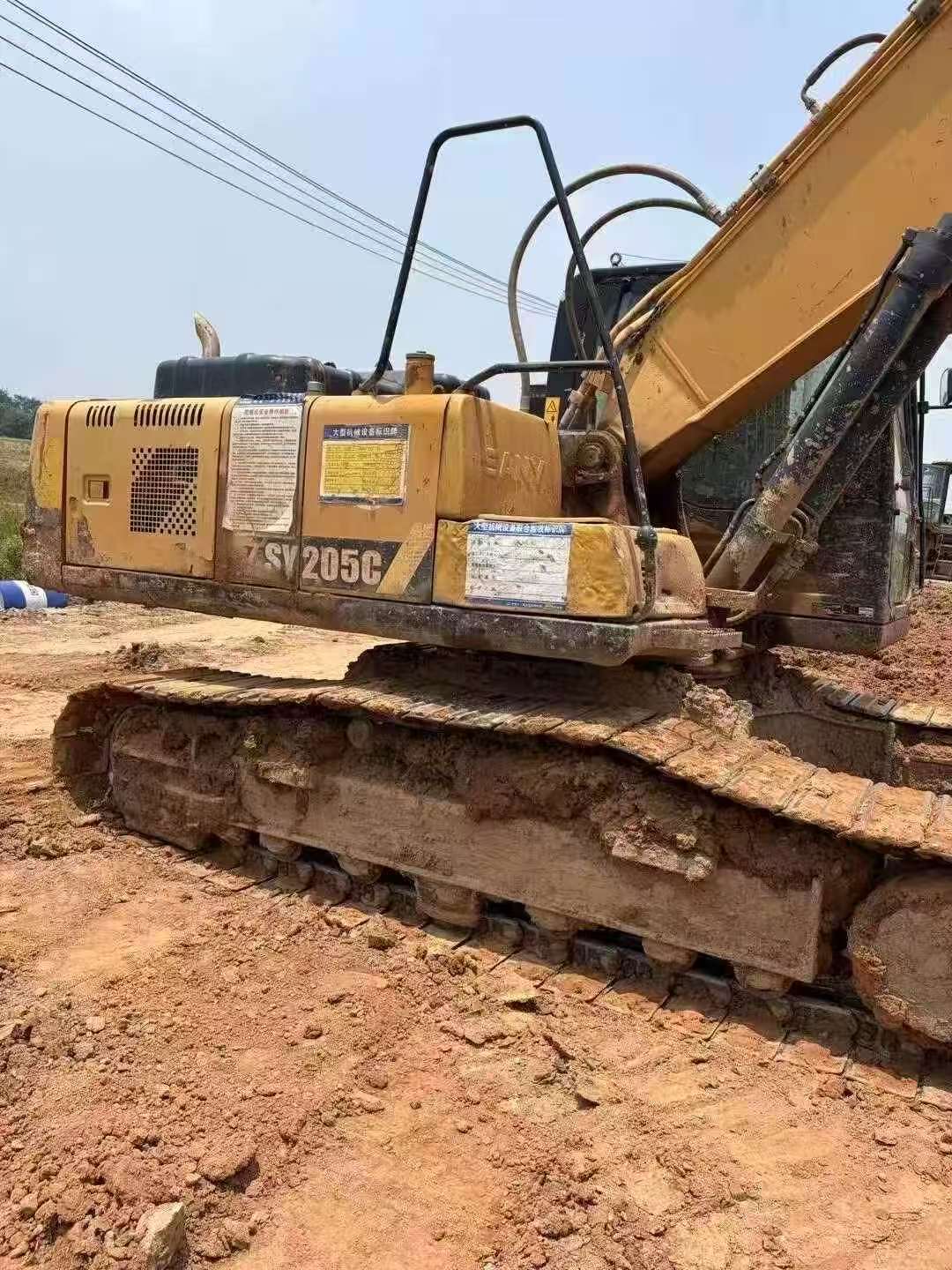

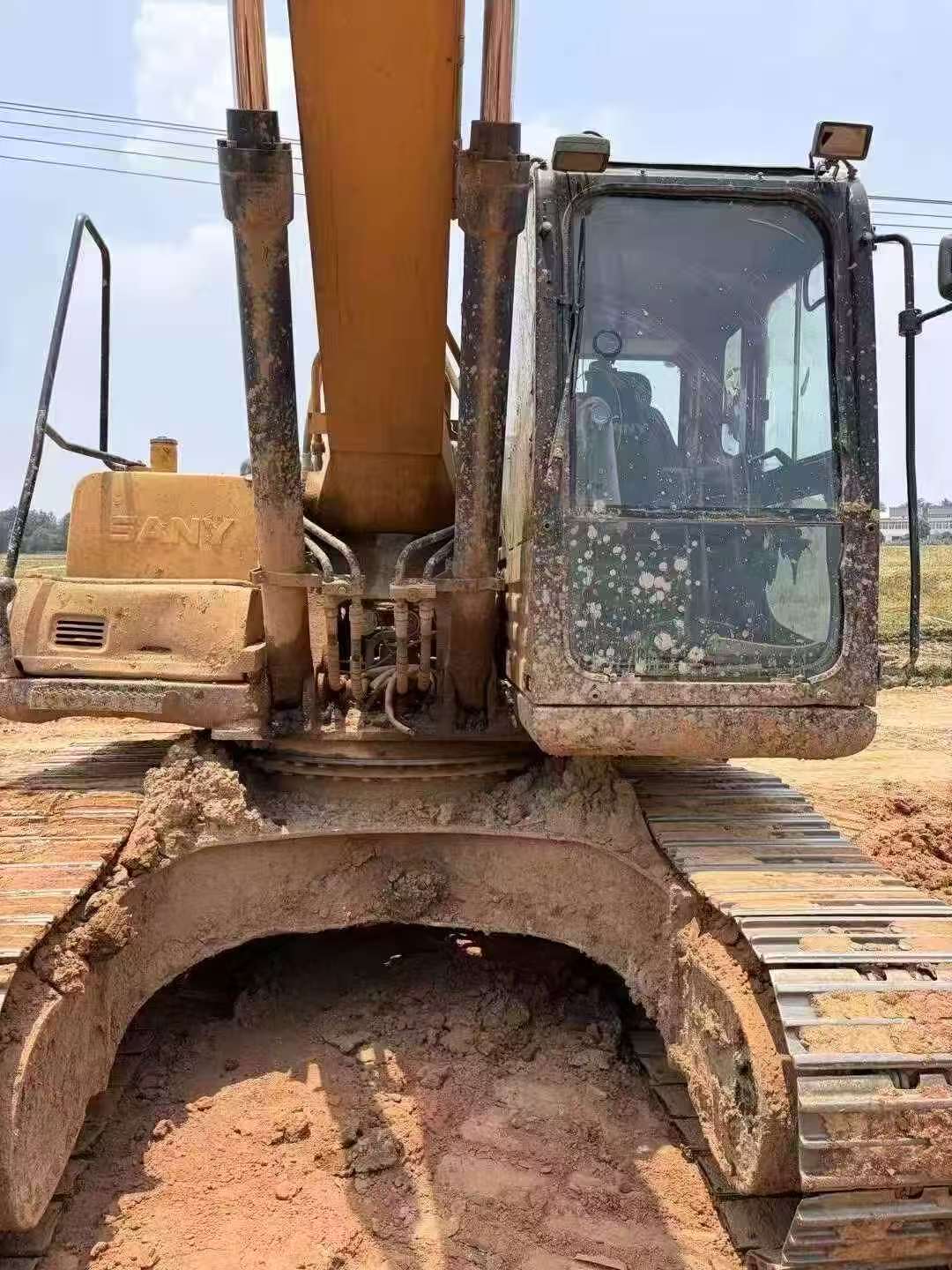

Engineered for longevity, this 2017 Sany SY195C excavator from Guizhou, China demonstrates proven reliability after years of field operation. With a 19-ton operating weight and robust 118kW rated power from its 4M50 engine, this machine delivers consistent performance across demanding applications. Built to last, the SY195C features impressive digging capabilities—138kN bucket force and 10,280mm maximum reach—backed by a durable undercarriage with 45 track plates per side.
- Proven Workhorse: 2017 model with demonstrated durability
- Power & Capacity: 0.8–1.1m³ bucket, 118kW at 2000rpm
- Excavation Performance: 6,600mm dig depth, 9,600mm dig height
- Robust Design: 20,900kg working weight, 70% gradeability
- Field-Ready: 340L fuel tank, 239L hydraulic capacity
Backed by Sany's manufacturing standards and sustained performance record, this SY195C represents reliable value for contractors seeking a dependable mid-size excavator with proven operational history.
| Specifications | Value |
|---|---|
| No. | 1096708 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

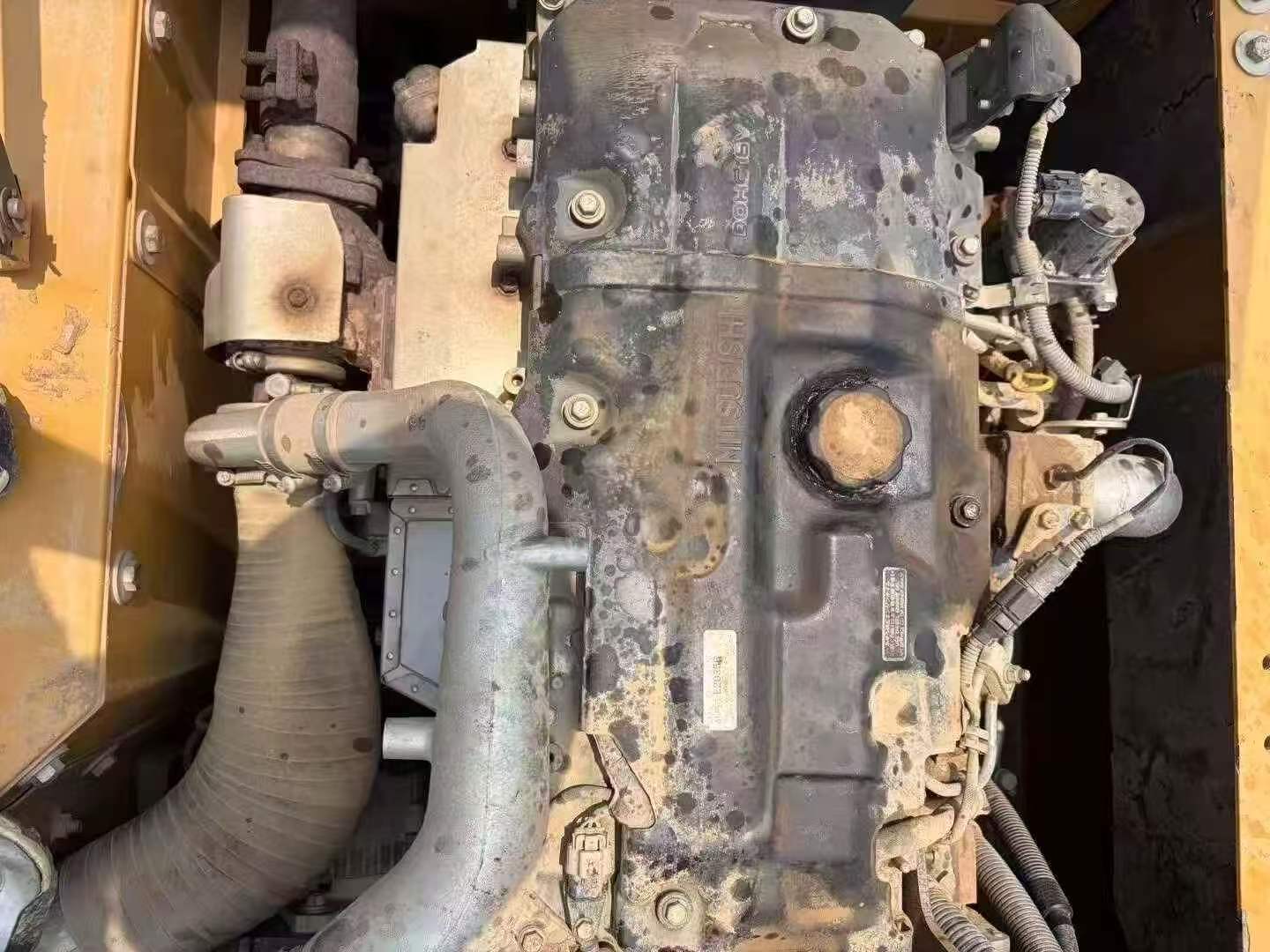

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
