Product Description

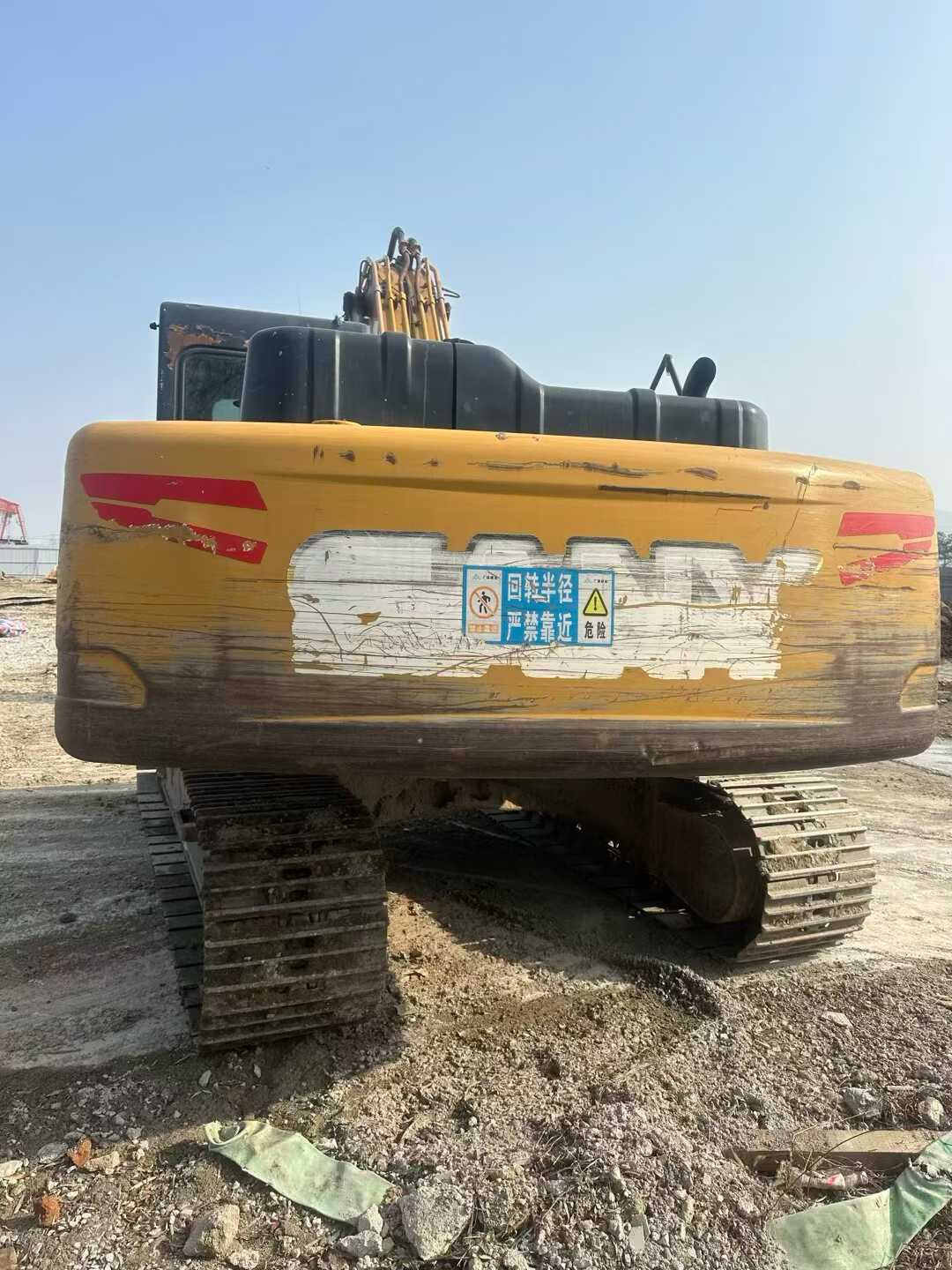

Maximize your equipment budget with this 2018 Sany SY195C excavator, currently located in Putian, Fujian. Delivering professional-grade performance at a fraction of new equipment costs, this 19-ton workhorse combines proven reliability with impressive operational capabilities. Powered by a robust 4M50 engine generating 118kW at 2000rpm, it provides 138kN bucket digging force and 103kN arm digging force for demanding excavation tasks.
Key specifications include:
- Operating weight: 20,900kg with 0.8-1.1m³ bucket capacity
- Maximum digging reach: 10,280mm with 6,600mm digging depth
- Superior climbing ability: 70% (35°) grade capability
- Efficient fuel management: 340L tank capacity
- Compact transport dimensions: 9,680mm × 2,800mm × 3,440mm
Built with Chinese manufacturing precision, this backhoe-equipped excavator offers exceptional value for contractors seeking reliable performance without new equipment premiums. Its 600mm track plates and 47.3kPa ground pressure ensure stability across varied terrain, while dual travel speeds (5.4/3.3 km/h) optimize productivity. Smart buyers recognize that strategic used equipment purchases like this deliver immediate ROI while mainta
| Specifications | Value |
|---|---|
| No. | 1007645 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
