Product Description

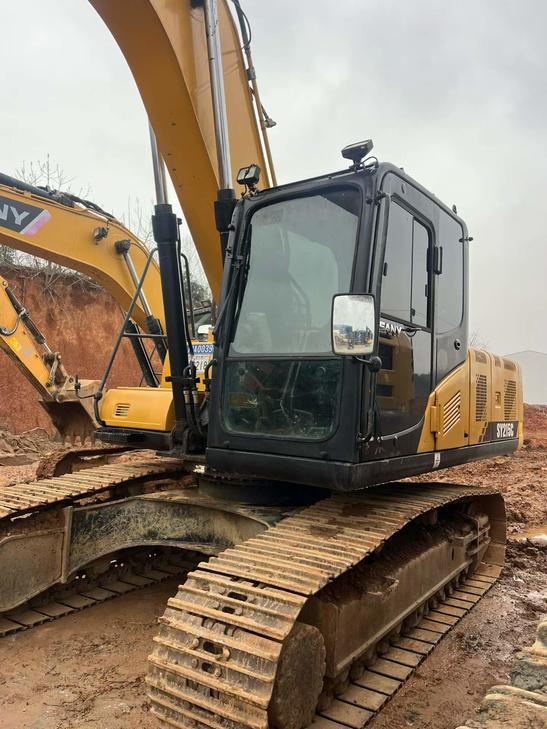

Built for demanding operators who value precision and control, this 2018 Sany SY195C mid-size excavator delivers 19 tons of proven performance from Hunan, China. Powered by a robust 4M50 engine generating 118 kW at 2000 rpm, this machine combines 138 kN bucket digging force with refined hydraulics that respond instantly to operator input. The spacious cab offers commanding 360-degree visibility essential for complex jobsite maneuvering, while the tight 2,900 mm rear swing radius enables confident work in confined areas.
- Operator-Centric Design: Enhanced cabin sightlines and intuitive controls reduce fatigue during extended shifts
- Stable Platform: 2,200 mm track gauge and 47.3 kPa ground pressure ensure solid footing on variable terrain
- Responsive Handling: 11 rpm rotation speed and dual-speed travel (5.4/3.3 km/h) provide precise positioning
- Reliable Power: 4.9L displacement engine with 580 N·m maximum torque handles tough digging cycles
- Versatile Reach: 10,280 mm maximum digging radius with 6,600 mm depth capability
Standard backhoe configuration with 0.8-1.1 m³ bucket capacity. Ready
| Specifications | Value |
|---|---|
| No. | 1021726 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
