Product Description
Engineered with precision and built for demanding excavation work, this 2018 Sany SY195C delivers exceptional performance through advanced hydraulic systems and robust power delivery. At its core, the 4M50 engine generates 118 kW at 2000 rpm with maximum torque of 580 N·m, providing reliable power for continuous operation across challenging terrain.
Operating at 19 tons with a working weight of 20,900 kg, this excavator combines substantial digging force with impressive reach capabilities:
- Bucket digging force: 138 kN with rod force of 103 kN
- Maximum digging radius: 10,280 mm with depth reaching 6,600 mm
- Bucket capacity: 0.8-1.1 m³ (standard 0.95 m³)
- Ground specific pressure: 47.3 kPa for superior stability
- Climbing ability: 70% (35°) grade capability

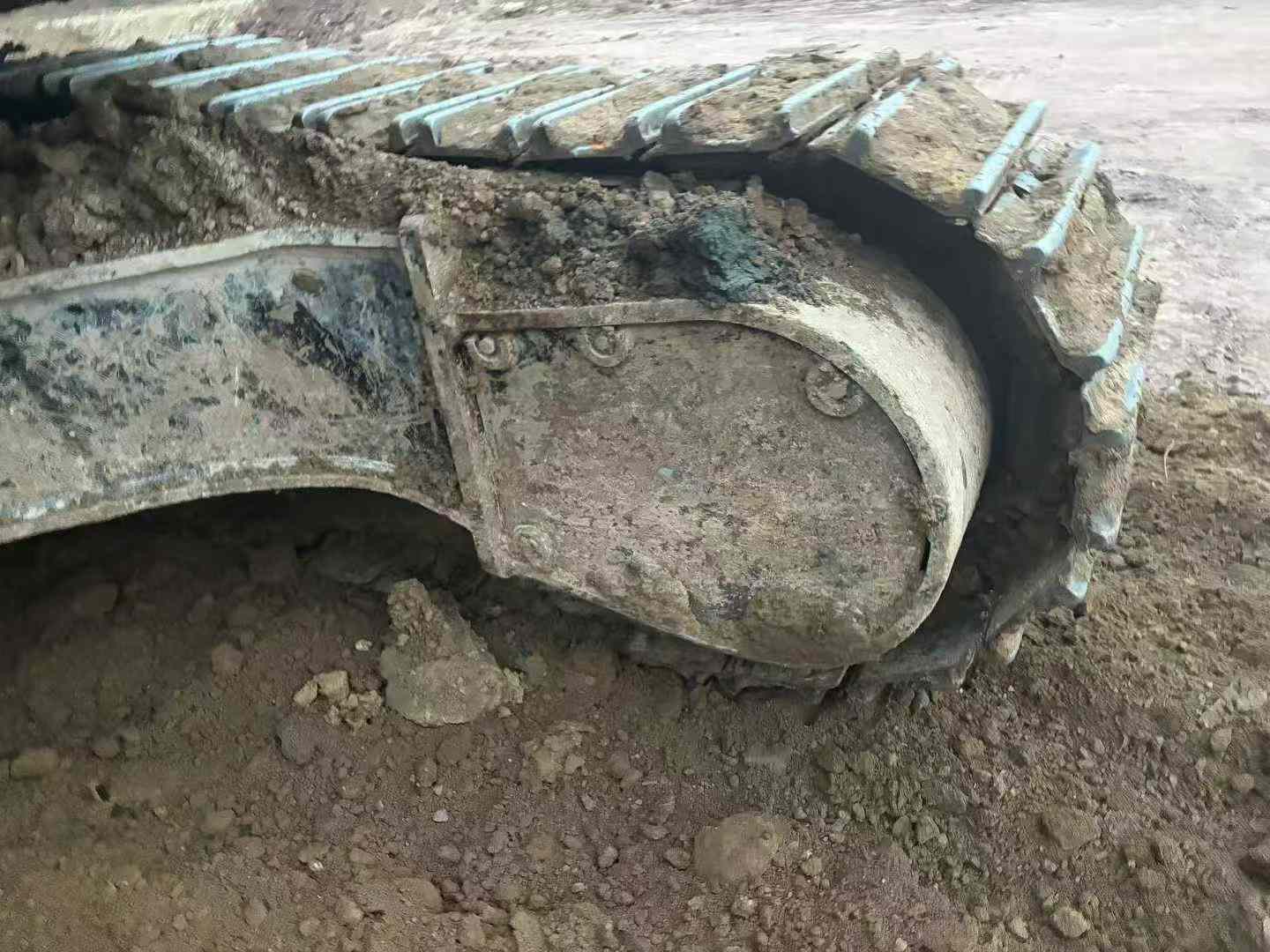

Manufactured in China and currently located in Shandong, this SY195C features optimized fuel efficiency with a 340L tank, 239L hydraulic reservoir, and precision-engineered track system spanning 3,260 mm ground contact length. The machine's 600 mm track plates and 2,200 mm gauge ensure balanced weight distribution for extended component life.
| Specifications | Value |
|---|---|
| No. | 1026153 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
