Product Description
Built for demanding excavation work, this 2018 Sany SY195C delivers 19-ton performance with operator-focused engineering. Powered by a robust 4M50 engine producing 118 kW at 2000 rpm, this Chinese-manufactured excavator combines reliability with precise hydraulic control. Operating weight of 20,900 kg provides exceptional stability during heavy digging operations, while the 0.95 m³ bucket capacity tackles high-volume material handling efficiently.
Operator comfort and control define this machine's design philosophy. The spacious cabin sits 3,075 mm high, offering commanding visibility across the 10,280 mm maximum digging radius. Smooth rotation at 11 rpm and responsive travel speeds of 5.4/3.3 km/h enable precise positioning on congested sites. Low ground pressure of 47.3 kPa minimizes ground disturbance while maintaining a 70% climbing ability for challenging terrain.
- Maximum digging depth: 6,600 mm
- Bucket digging force: 138 kN
- 340L fuel tank for extended operation
- 600 mm track plates for superior traction
- Currently located in Luzhou, Sichuan
| Specifications | Value |
|---|---|
| No. | 1030588 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

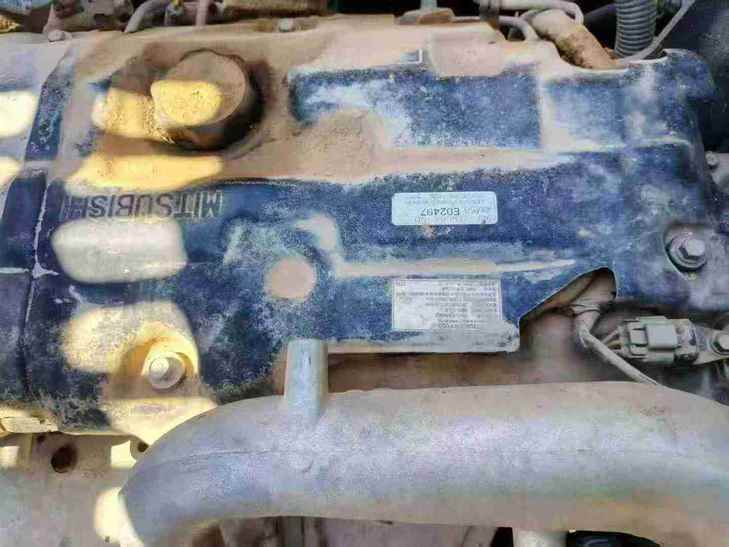

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
