Product Description

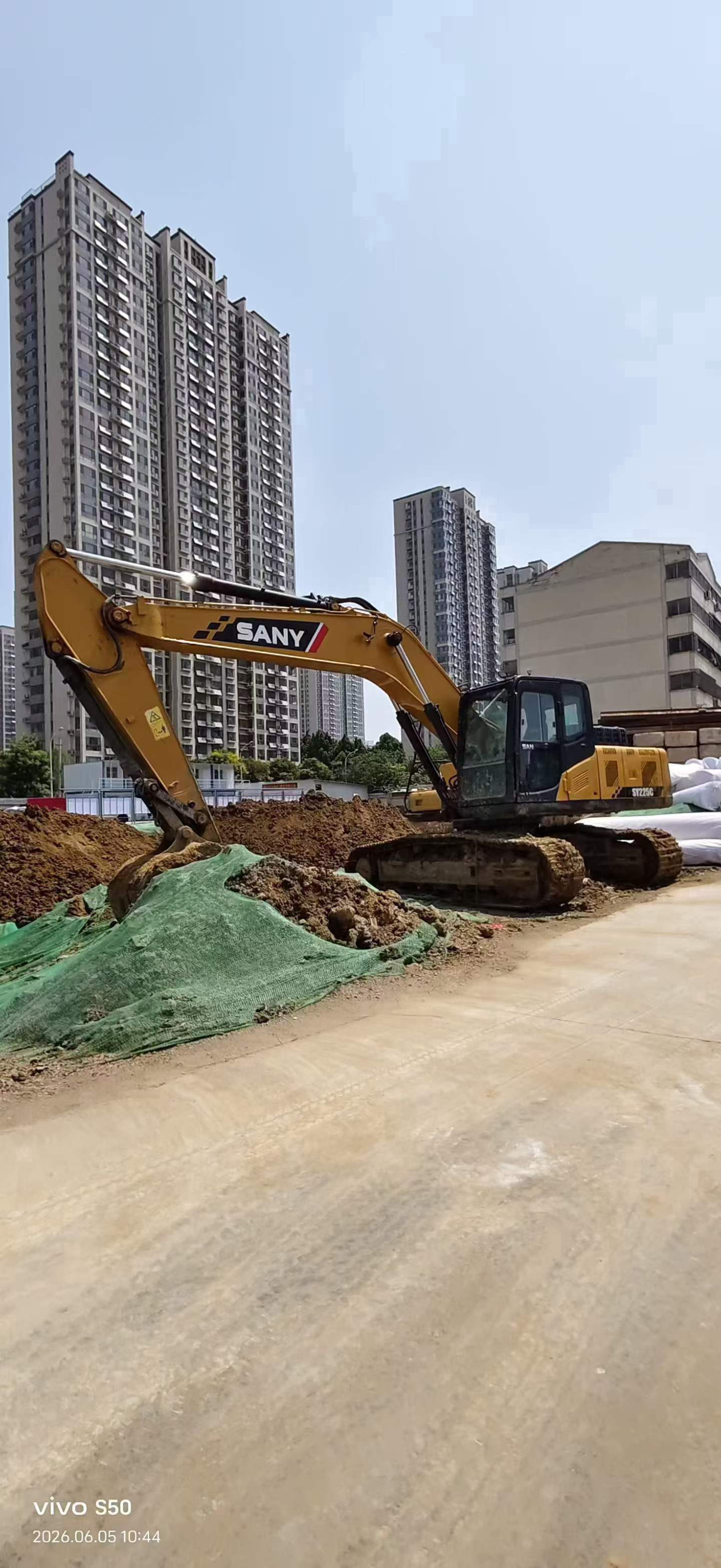

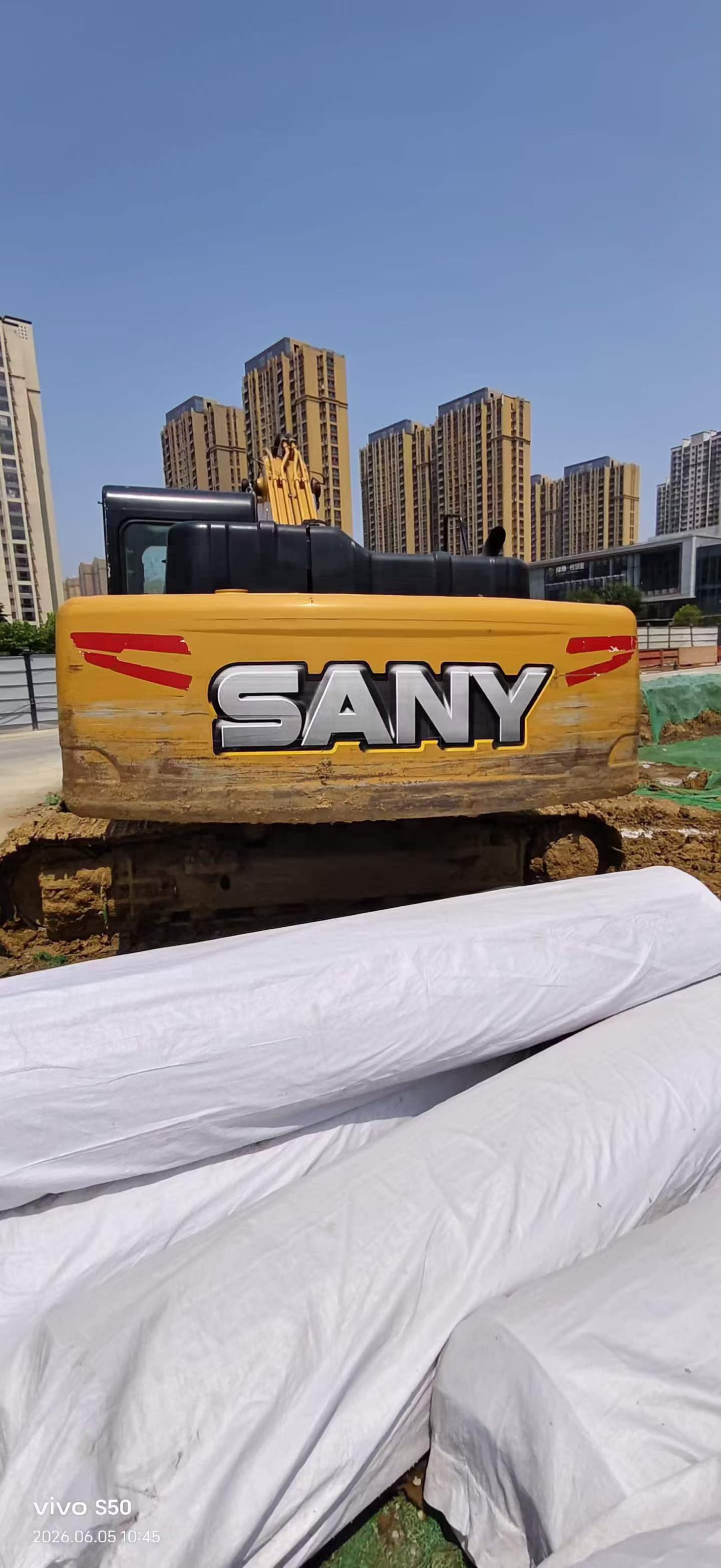

This 2018 Sany SY195C hydraulic excavator represents a well-maintained mid-size crawler excavator from one of China's leading heavy equipment manufacturers. Currently active on jobsites in Shandong Province, this machine demonstrates proven operational reliability and readiness for immediate deployment.
The SY195C series is engineered for versatility across construction, earthmoving, and infrastructure projects. With its 19-ton operating weight class, this excavator delivers balanced performance for general excavation, trenching, and material handling applications.
- Year of Manufacture: 2018
- Model: Sany SY195C
- Current Location: Shandong Province, China
- Status: Operational and field-ready
- Machine Type: Crawler Excavator
Available for inspection at the current work location. Suitable for contractors seeking reliable used equipment with documented operational history.
| Specifications | Value |
|---|---|
| No. | 1081321 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

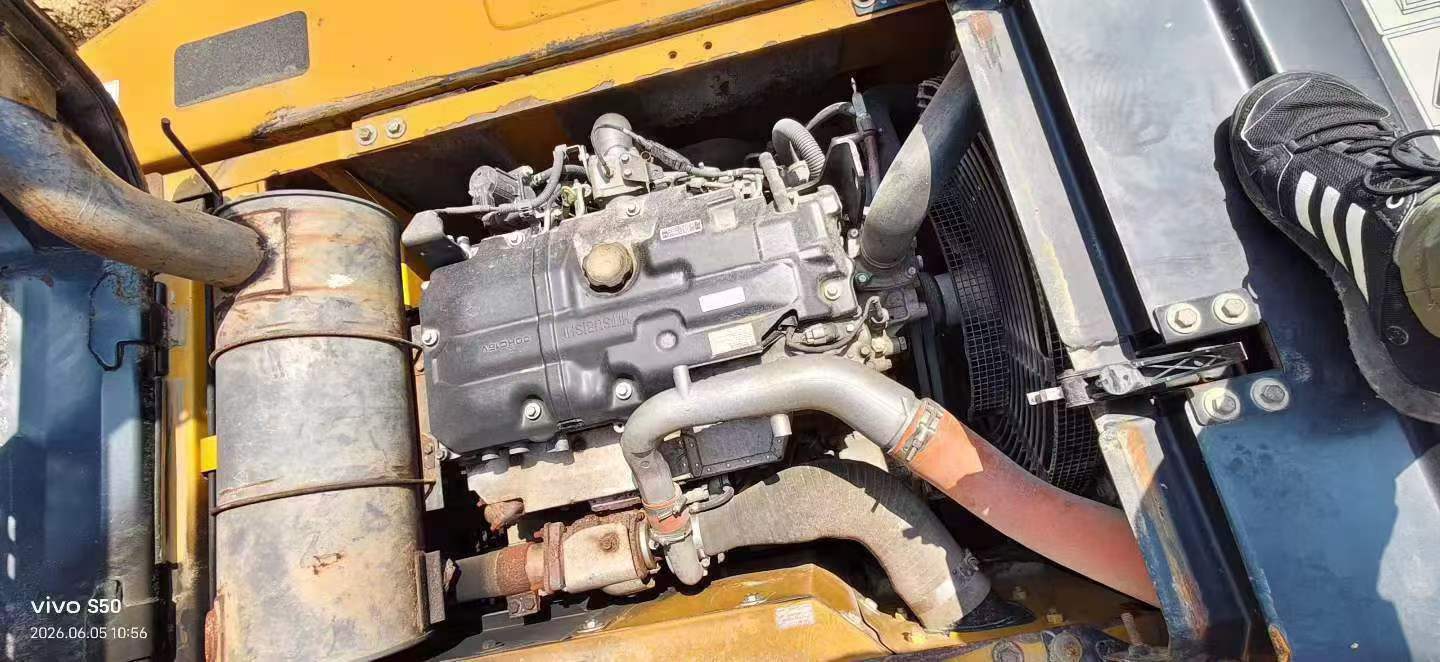

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
