Product Description

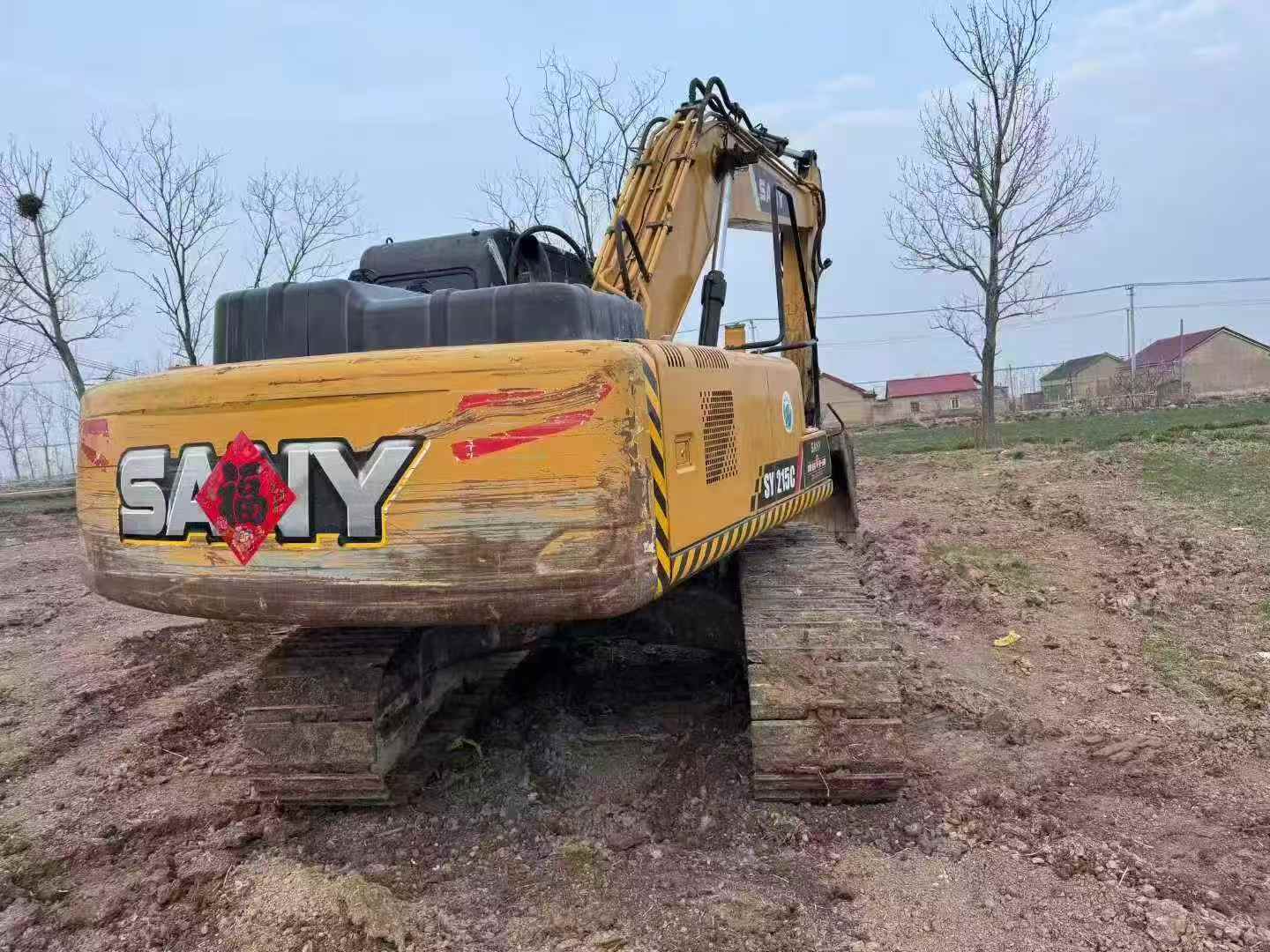

Ready to deploy from Jiangsu, this 2019 Sany SY195C excavator eliminates factory wait times and gets your project moving immediately. Operating at 19 tons with a robust 118kW engine delivering 580 N·m of torque, this machine combines proven Chinese manufacturing with reliable field performance. The 0.95m³ bucket capacity and 138kN digging force tackle demanding excavation work, while the 10,280mm maximum reach and 6,600mm digging depth handle large-scale operations efficiently.
- Available Now: Skip months of lead time—secure this unit and mobilize fast
- Jiangsu Location: Strategic positioning for rapid logistics across domestic and export routes
- Operational Specs: 20,900kg working weight, 340L fuel capacity for extended shifts

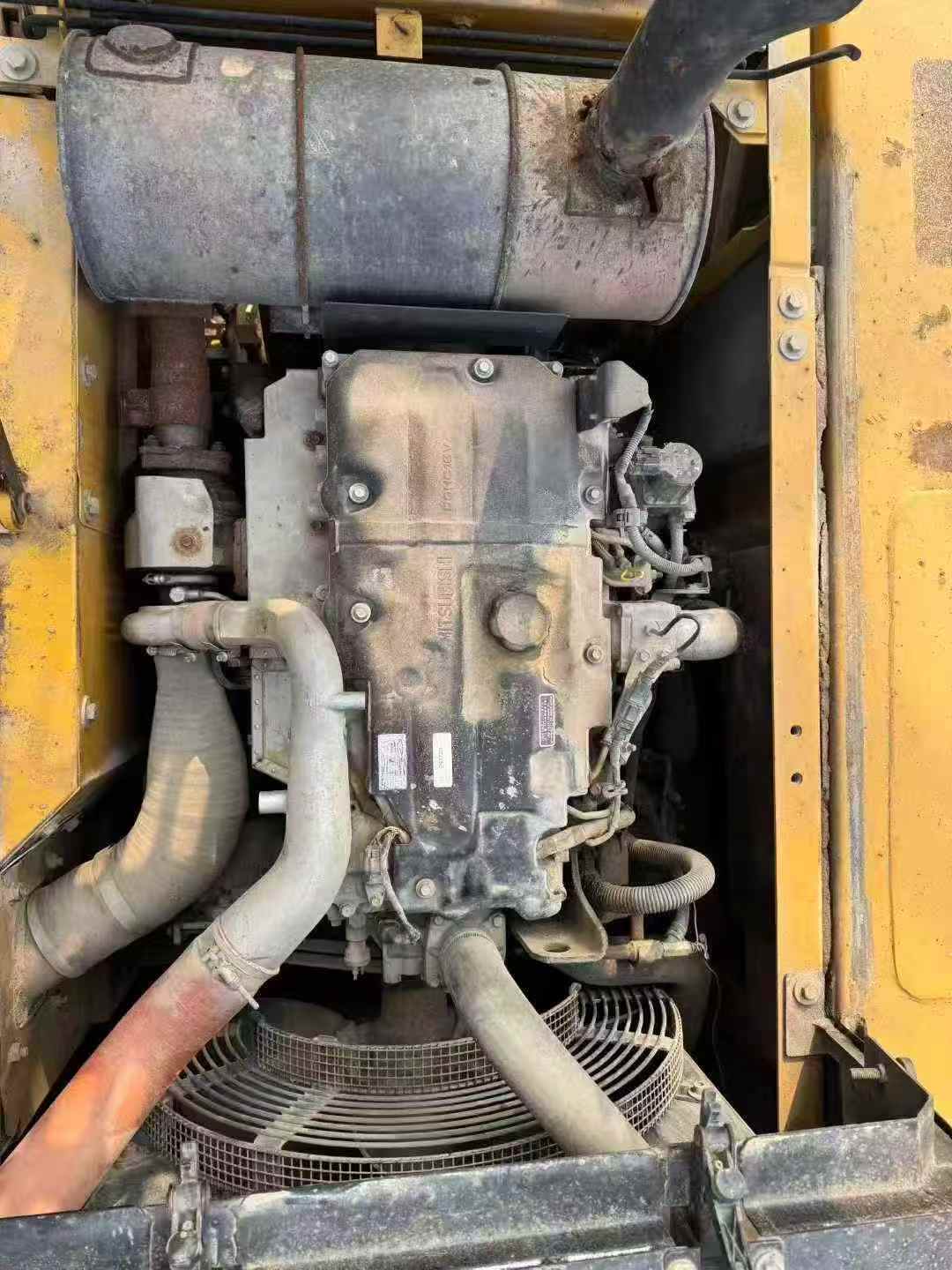

- Performance Ready: 4M50 engine with proven reliability, 5.4km/h travel speed
- Versatile Reach: 9,600mm max digging height, 70% climbing ability for challenging terrain
Transport dimensions of 9,680mm × 2,800mm × 3,440mm facilitate straightforward shipping. This backhoe-equipped excavator represents immediate availability in a market where downtime costs money. Secur
| Specifications | Value |
|---|---|
| No. | 1019660 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
