Product Description
Proven performance meets long-term value in this 2019 Sany SY195C excavator, now available from our Luzhou, Sichuan facility. Operating at 19 tons with a robust 118kW engine delivering 580 N·m of maximum torque, this machine combines substantial digging force (138kN bucket, 103kN arm) with a versatile 0.8-1.1m³ bucket capacity for medium to heavy-duty applications. Sany's reputation for engineering reliability translates directly into lower ownership costs—parts remain widely available across global markets, and the brand's strong resale values protect your investment over time.
- Working Weight: 20,900 kg with 340L fuel capacity for extended operations
- Reach & Depth: 10,280mm maximum digging radius, 6,600mm digging depth
- Mobility: 70% grading ability, 5.4 km/h travel speed, 2,900mm rear turning radius

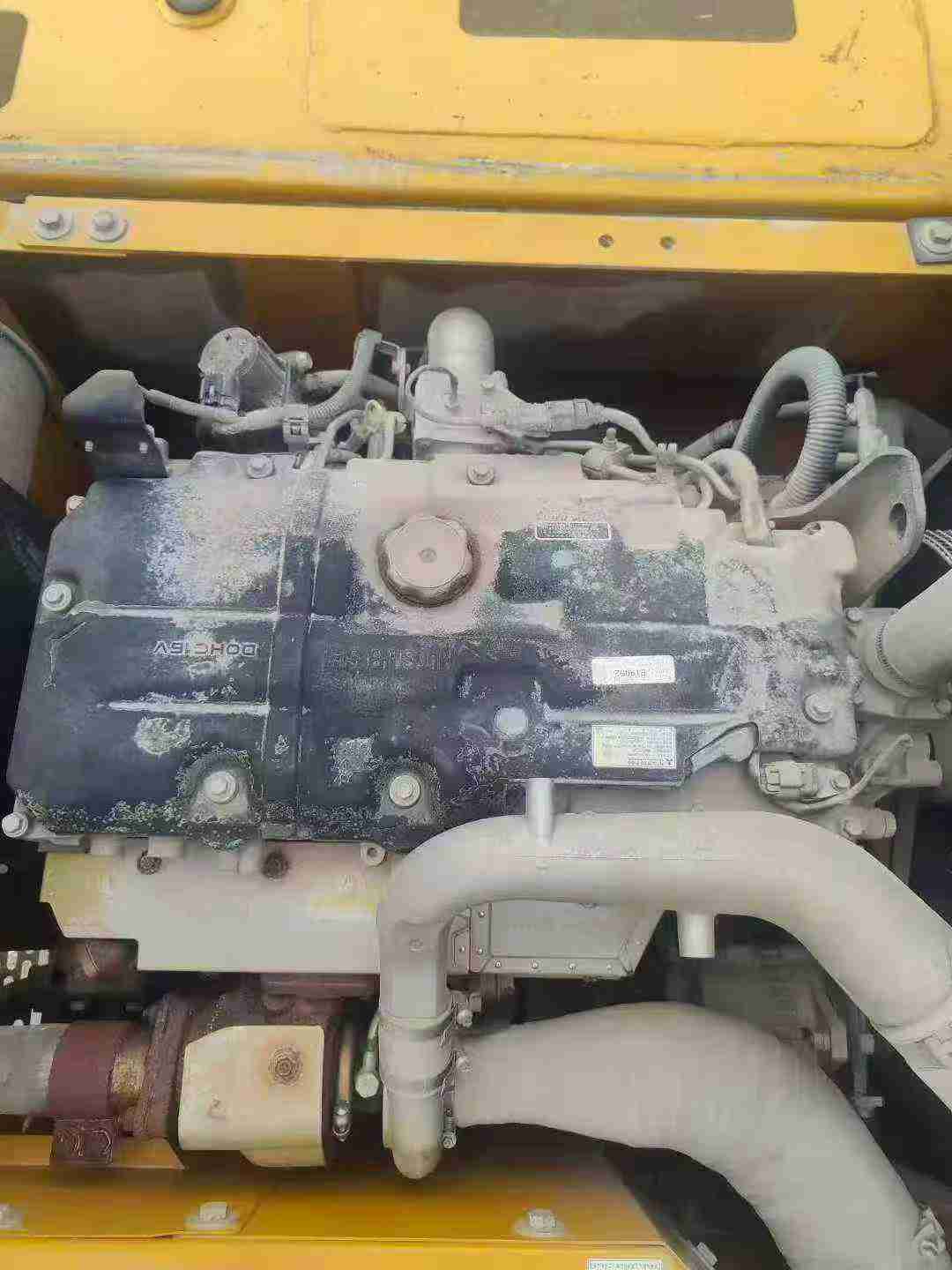

- Power Plant: 4M50 engine (4.9L displacement) rated at 2,000 rpm
- Transport Dimensions: 9,680mm × 2,800mm × 3,440mm
Backed by China's largest construction equipment manufacturer, this SY195C represents a strategic choice for operators prioritizing parts accessibility and predictable maintena
| Specifications | Value |
|---|---|
| No. | 1028208 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
