2019 Sany SY195C

1/8
Buy Sany SY195C Used Excavator / 1

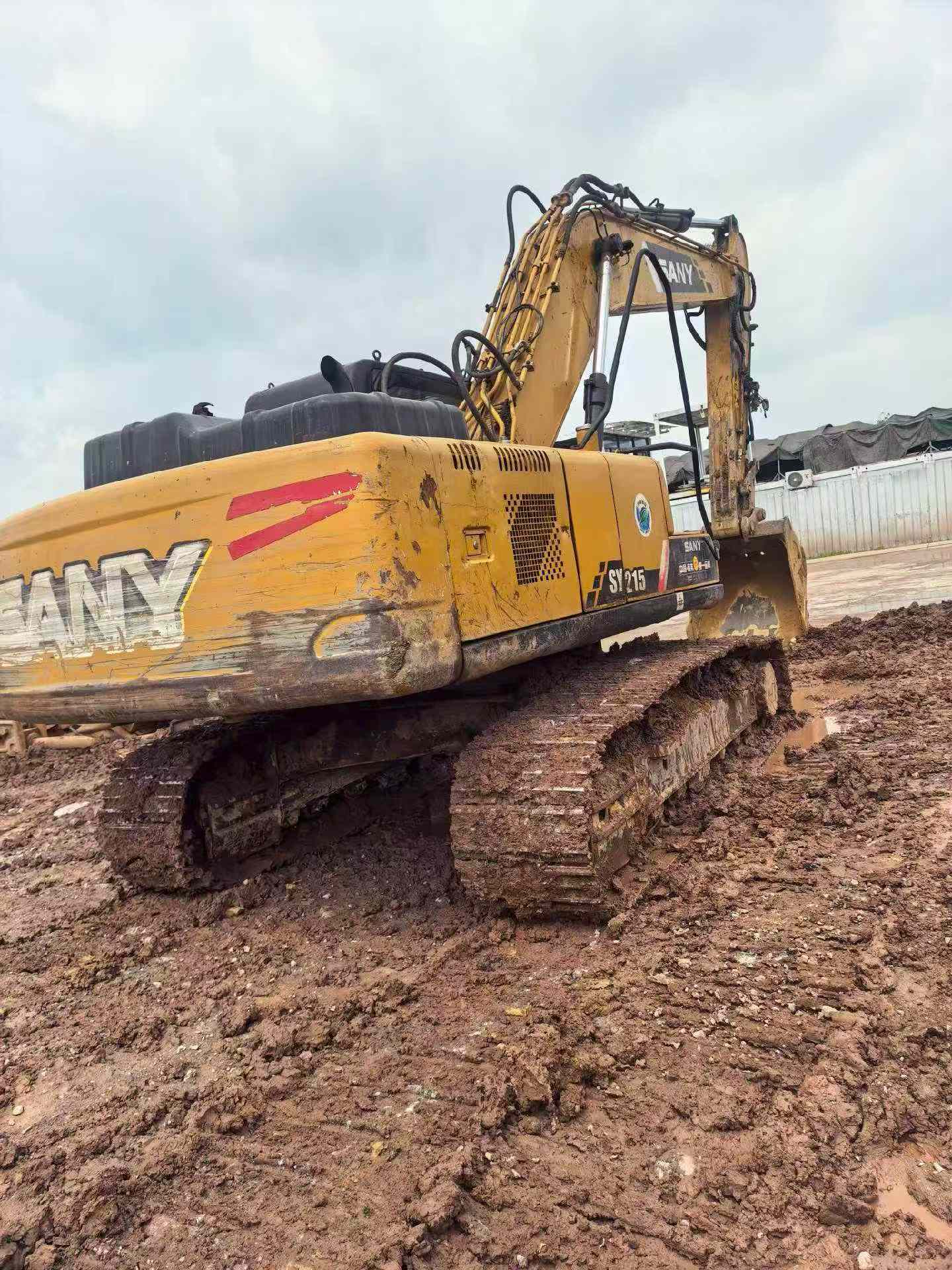

Buy Sany SY195C Used Excavator / 2

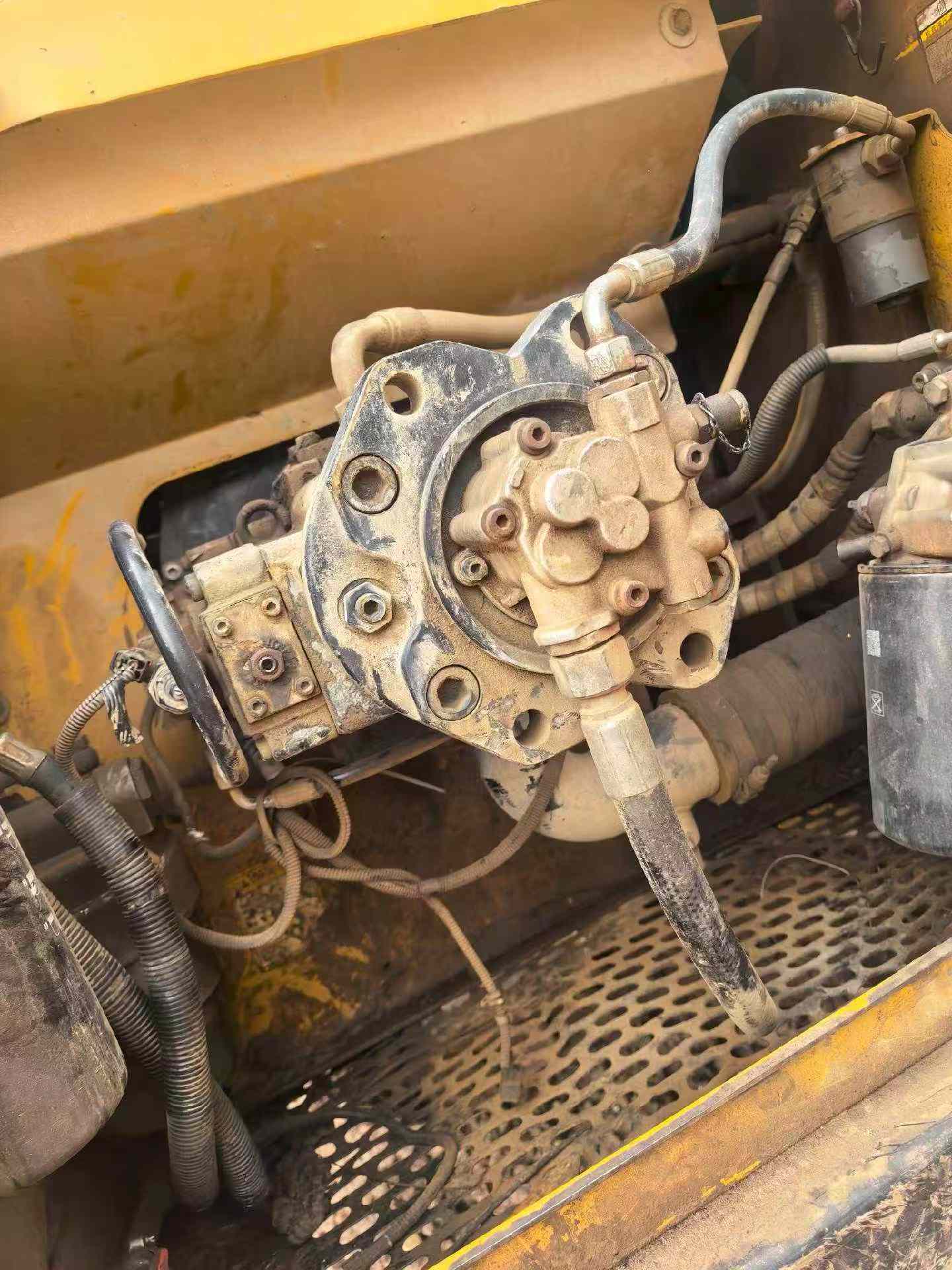

Buy Sany SY195C Used Excavator / 3

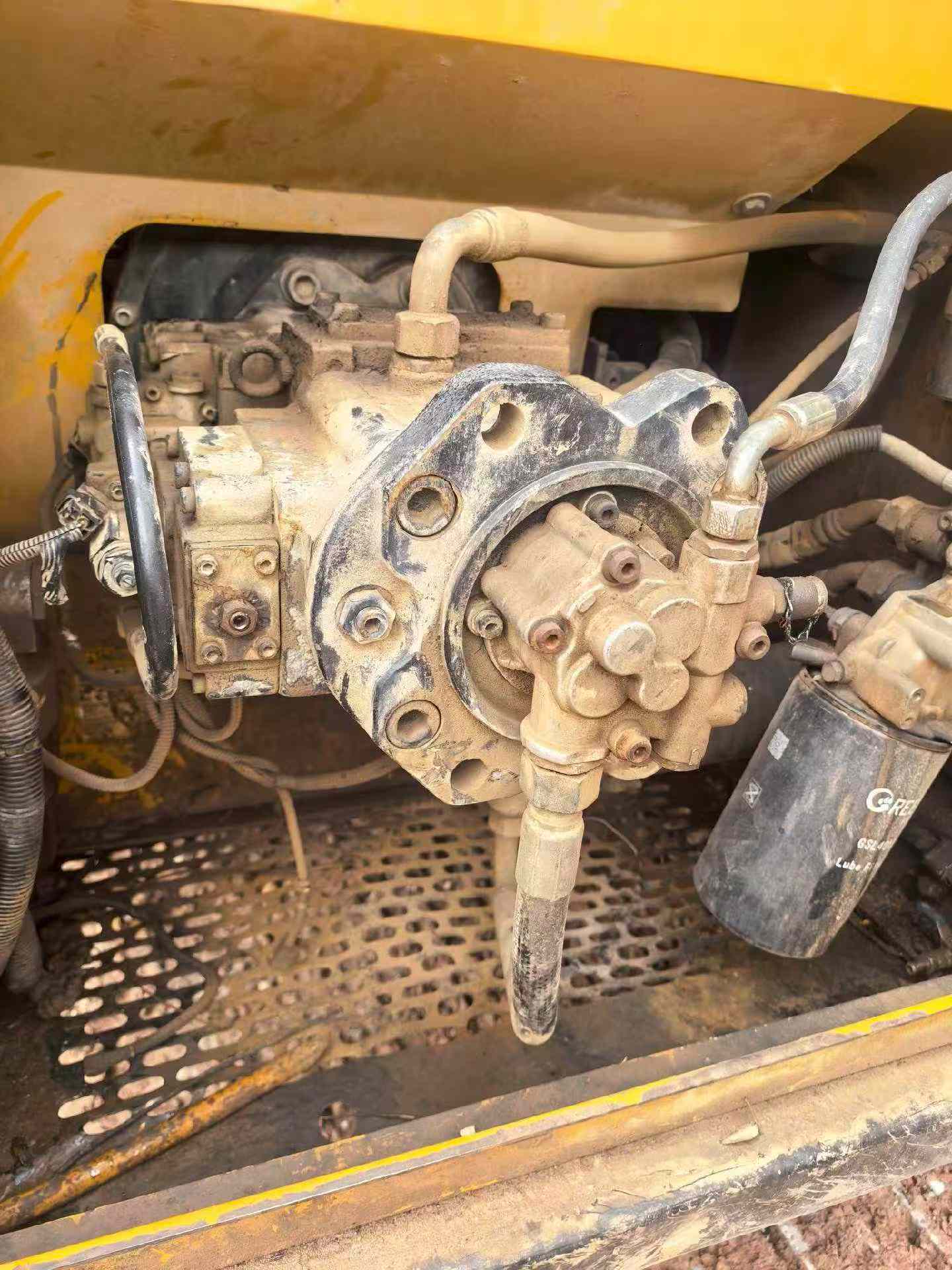

Buy Sany SY195C Used Excavator / 4

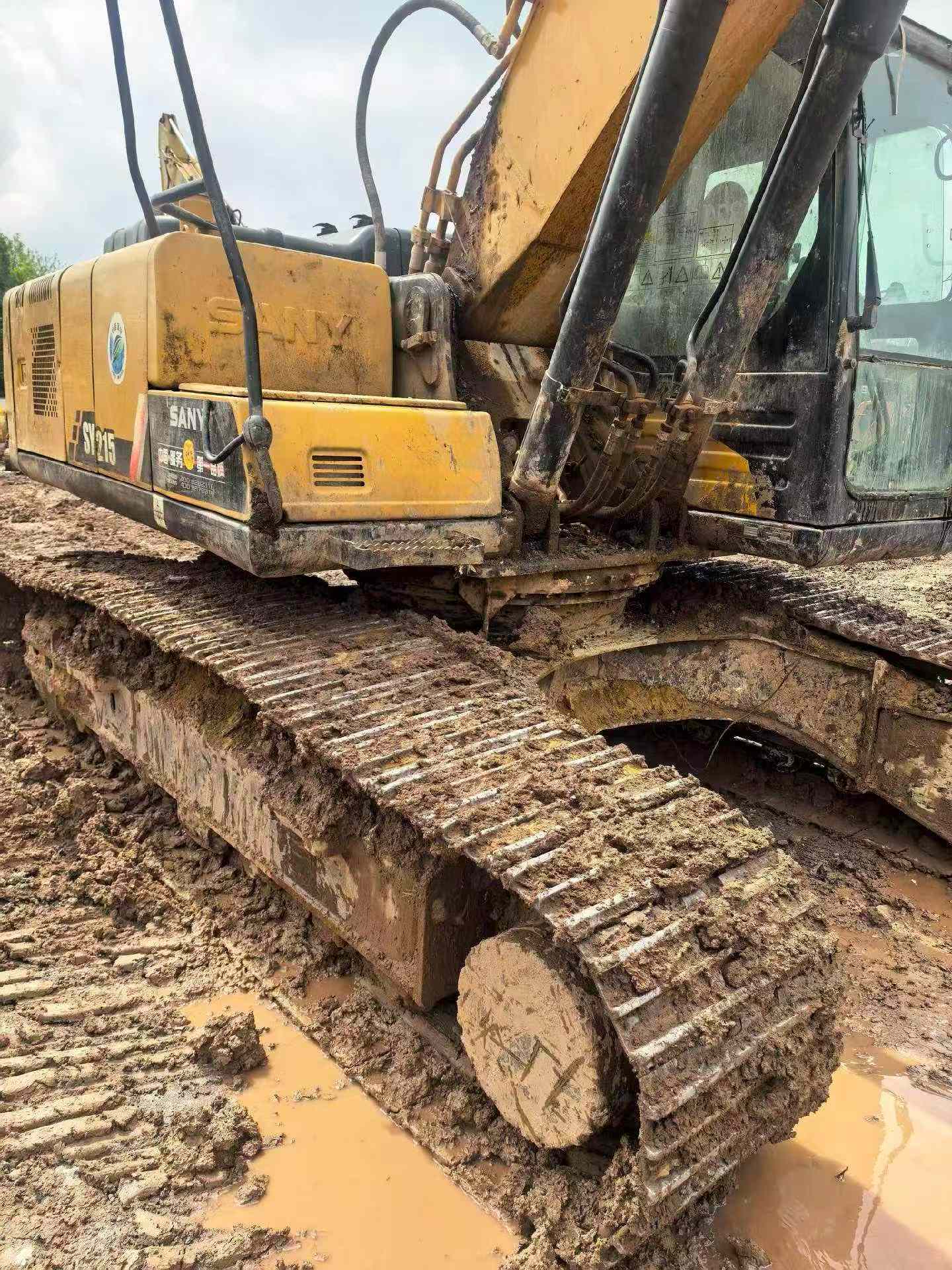

Buy Sany SY195C Used Excavator / 5

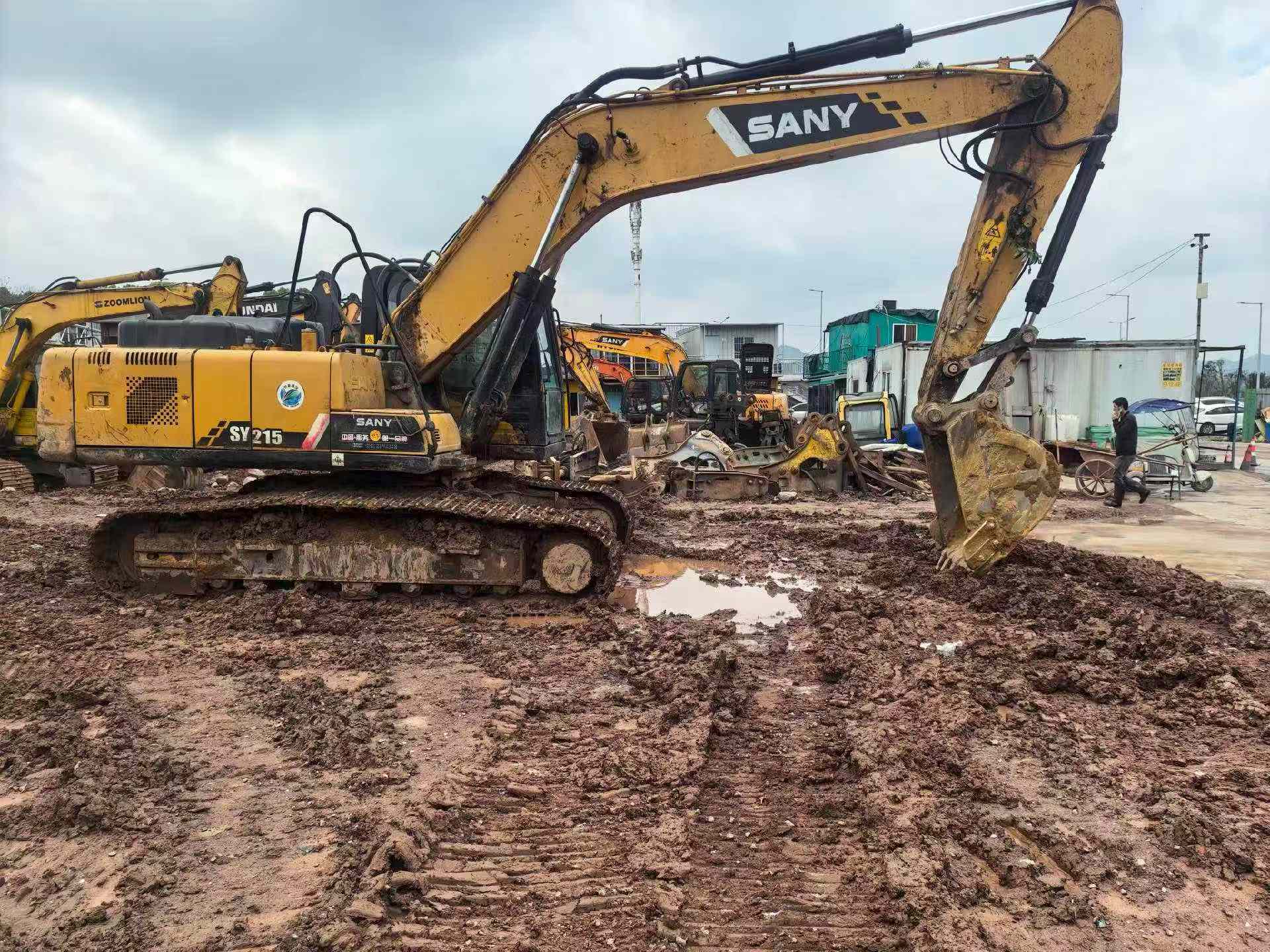

Buy Sany SY195C Used Excavator / 6

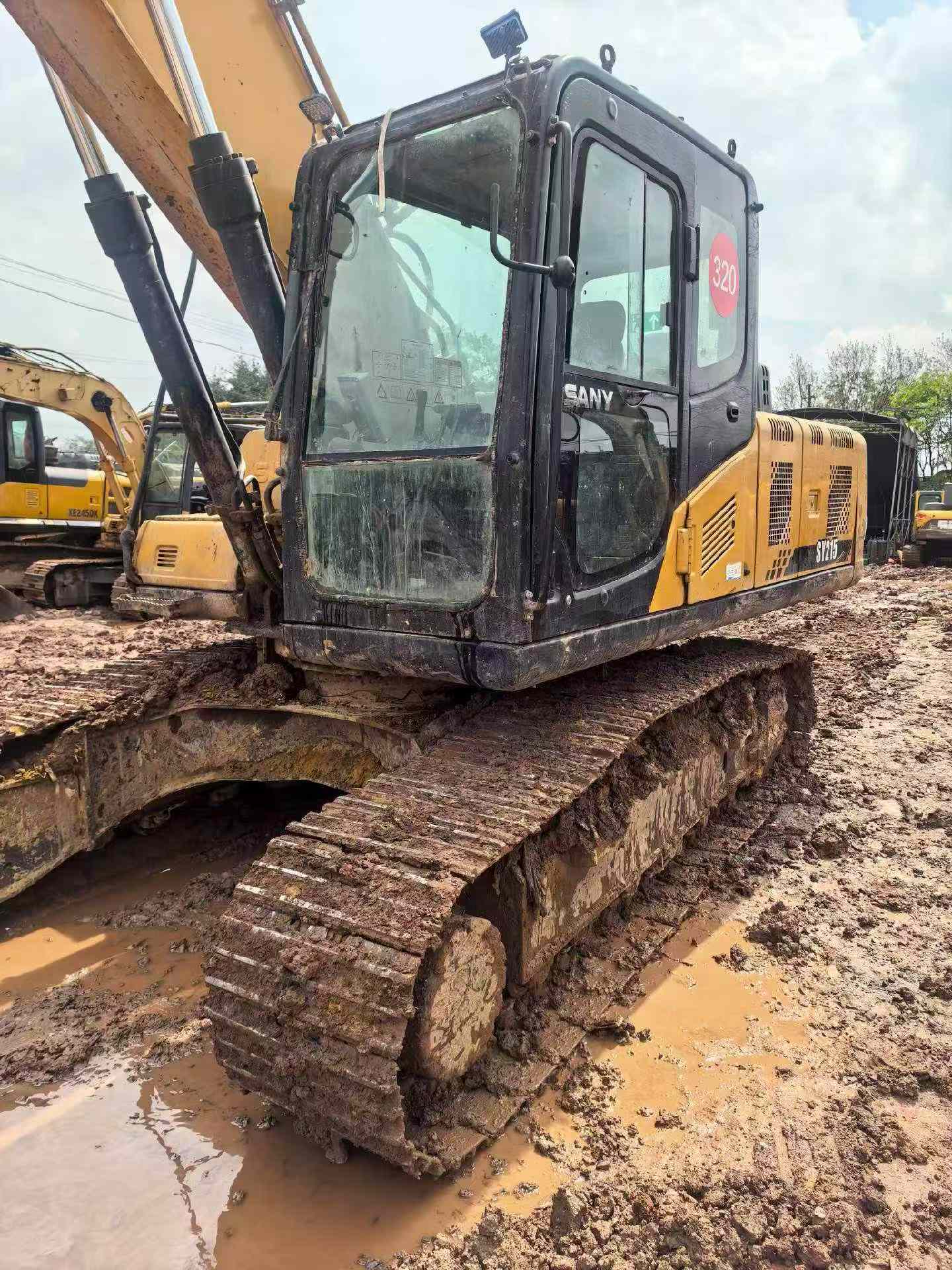

Buy Sany SY195C Used Excavator / 7

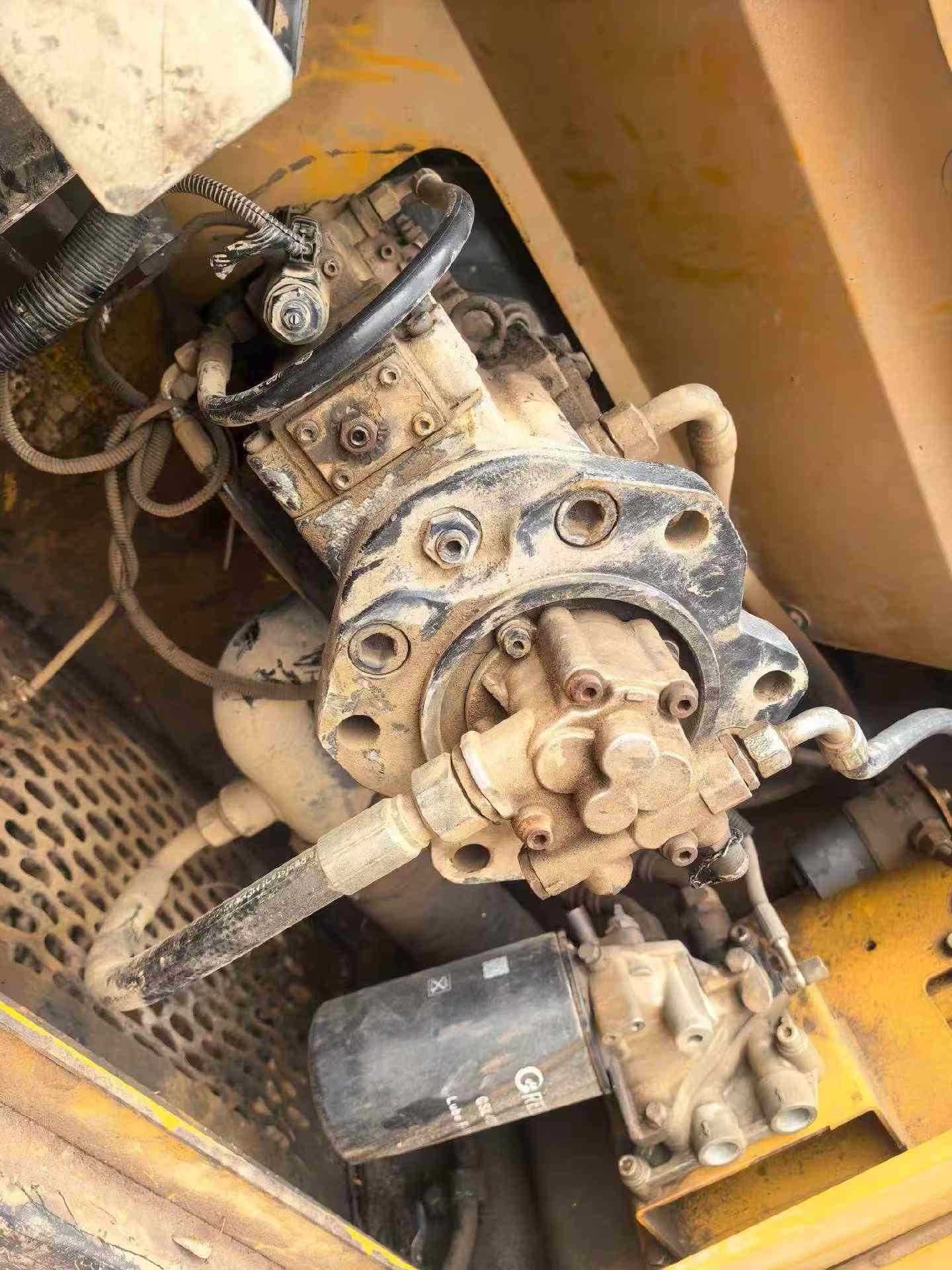

Buy Sany SY195C Used Excavator / 8

Product Description

Built for demanding jobsites, this 2019 Sany SY195C excavator delivers precise control and reliable performance across a 19-ton operating platform. Powered by a 118 kW (2000 rpm) 4M50 engine generating 580 N.m of torque, operators benefit from responsive hydraulics and smooth power delivery during extended shifts. The spacious cab provides excellent all-around visibility with a full height of 3075 mm, enabling confident maneuvering in confined spaces while maintaining awareness of surroundings.

Stability comes standard with a 2200 mm track gauge and 600 mm-wide track plates, distributing the 20,900 kg working weight across a ground pressure of just 47.3 kPa. Operators appreciate the 11 rpm rotation speed for fluid positioning, while dual travel speeds (5.4/3.3 km/h) offer flexibility between transit and precision work. With a maximum digging reach of 10,280 mm and bucket breakout force of 138 kN, this machine handles varied excavation tasks efficiently.

  • Bucket capacity: 0.8–1.1 m³ (standard 0.95 m³)
  • Maximum digging depth: 6,600 mm
  • Fuel tank: 340 L for extended runtime
  • Currently located in Chongqing, China
SpecificationsValue
No.1047611
Tonnage (tons)19
Working weight (kg)20900
Bucket capacity (m³)0.8~1.1(0.95)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2800
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3260
Maximum height at minimum turning radius (mm)7680
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
see more

Overview

No.1047611

Brand Name:

Sany

Model Number:

SY195C

Year:

2019

Location:

Chongqing China

Pub Date
