Product Description

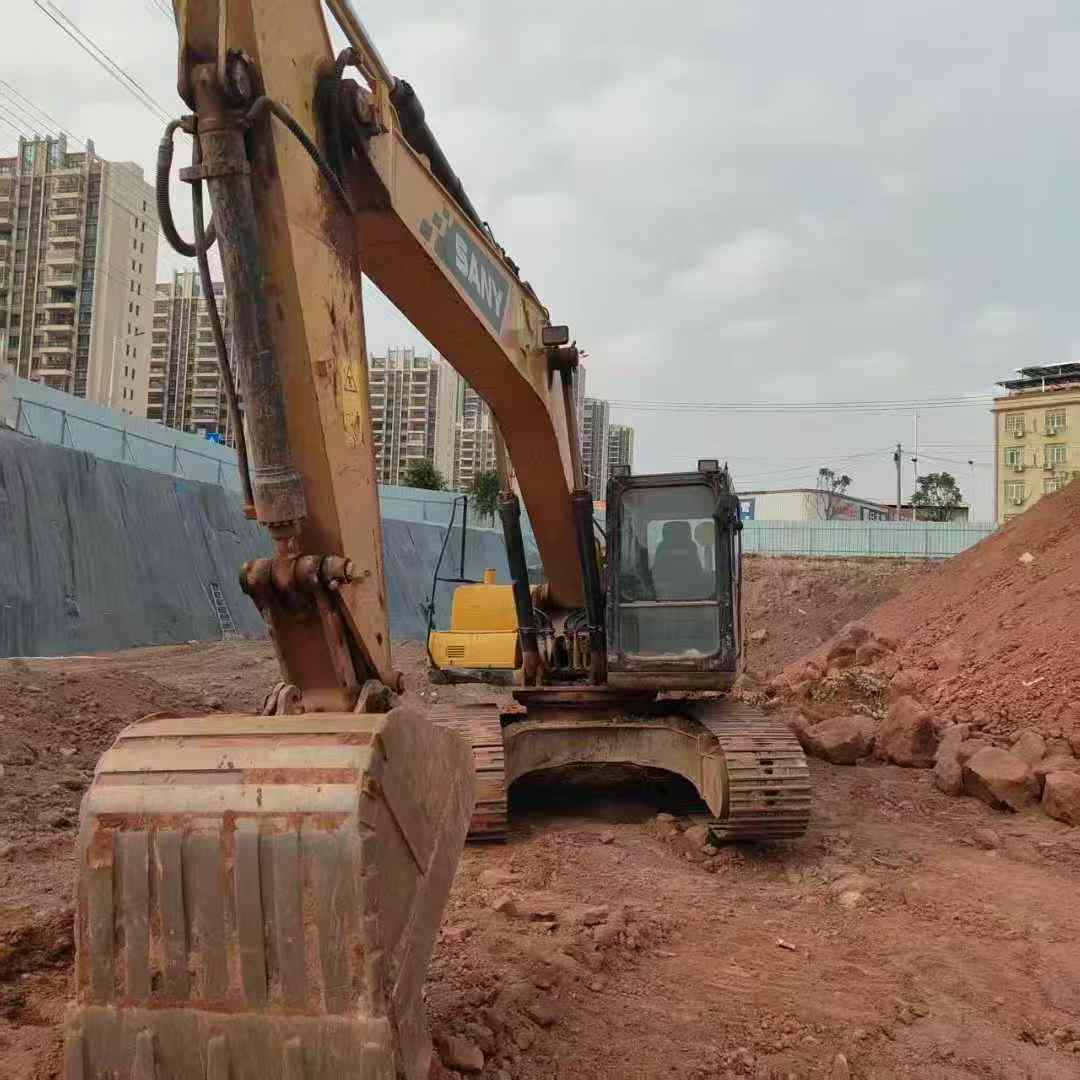

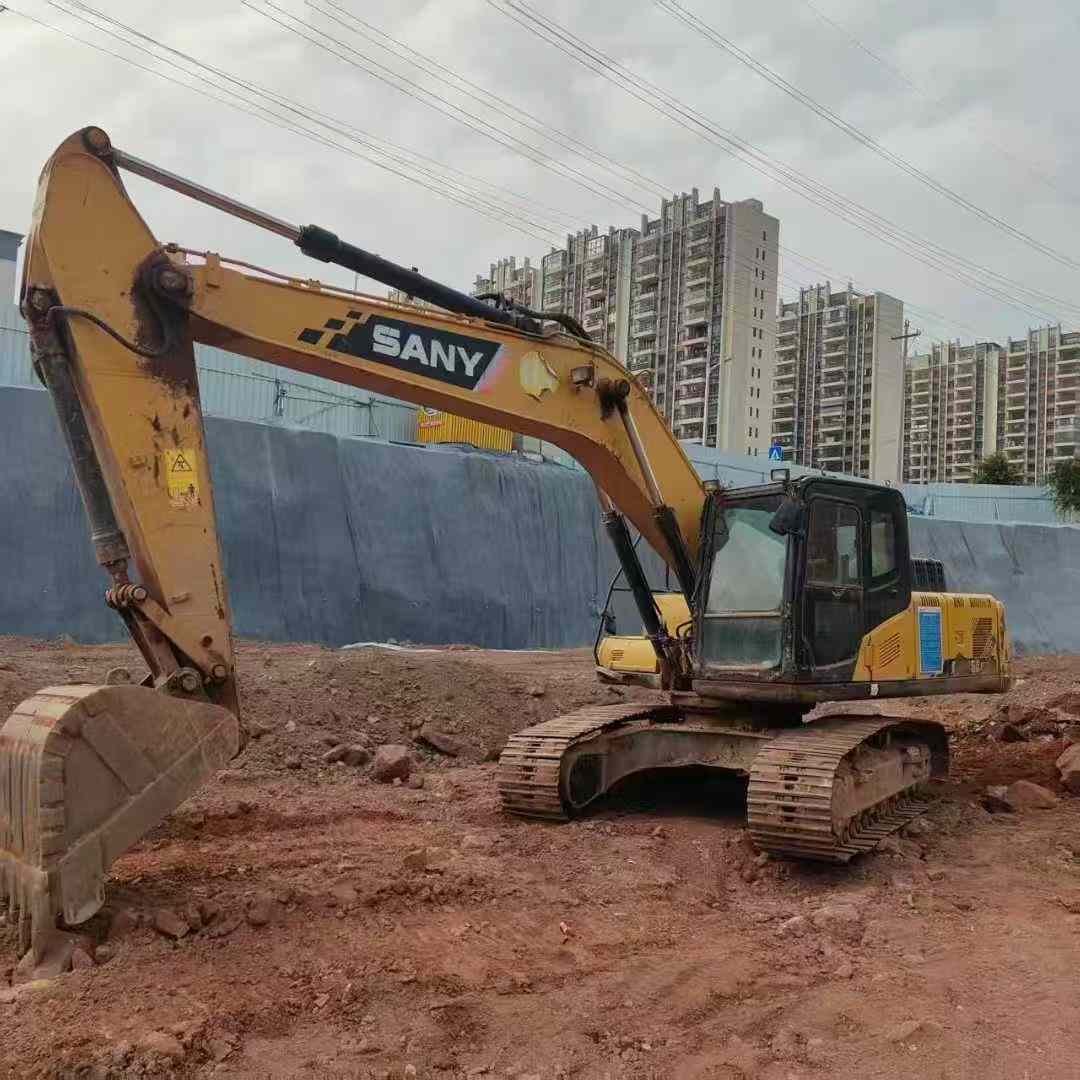

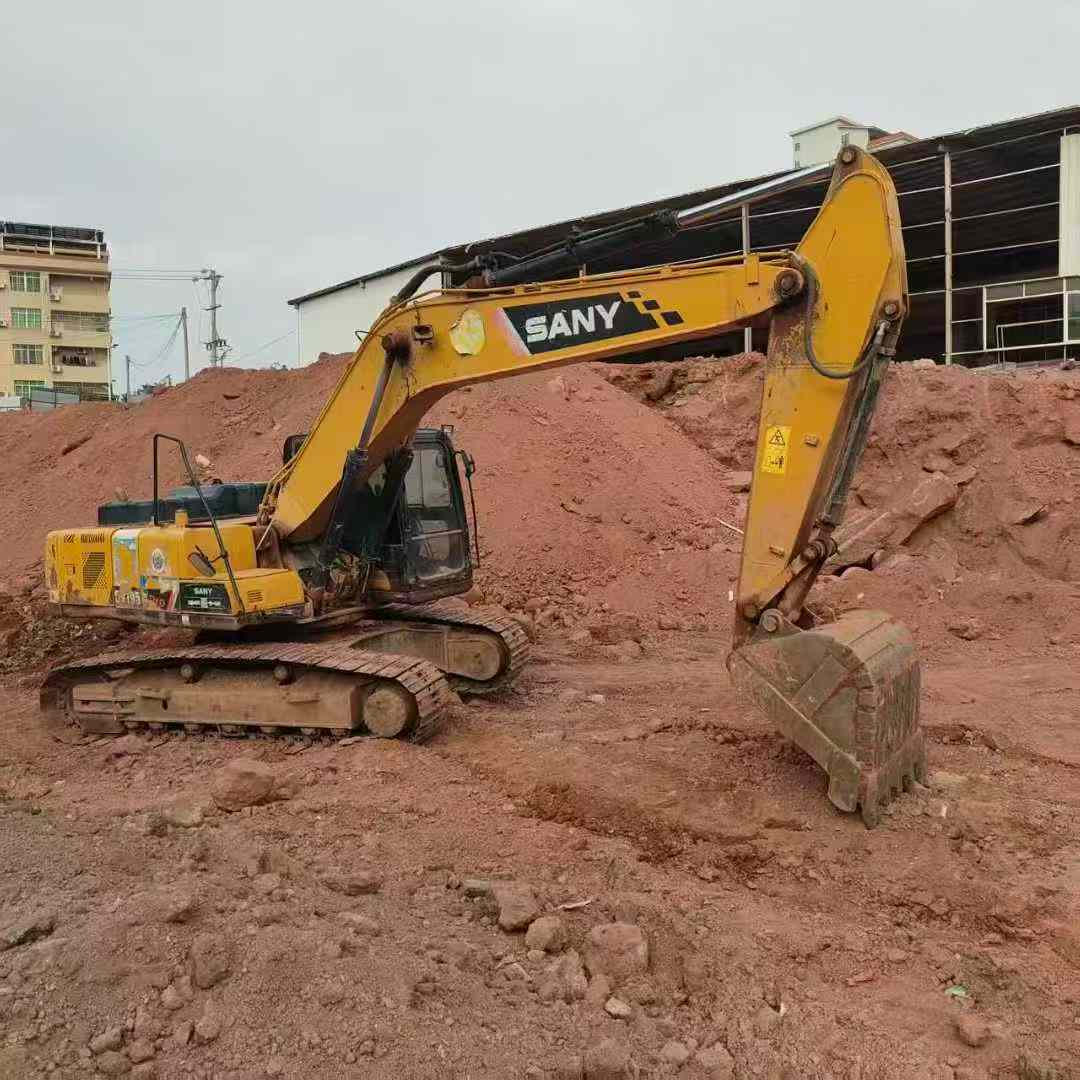

Engineered with a robust 4M50 engine delivering 118 kW at 2000 rpm and 580 N·m maximum torque, this 2020 Sany SY195C combines proven hydraulic performance with exceptional digging force. Operating at 19 tons with a 20,900 kg working weight, this excavator generates 138 kN bucket digging force and 103 kN arm digging force—specifications that define reliability in demanding earthmoving operations.
Built in China to Sany's engineering standards, the SY195C features a 0.8–1.1 m³ bucket capacity and reaches a maximum digging radius of 10,280 mm with 6,600 mm digging depth. Its 4.9L displacement engine pairs with a 340L fuel tank for extended runtime, while the hydraulic system—supported by a 239L tank—ensures consistent performance across rotation speeds of 11 rpm and travel speeds up to 5.4 km/h.
Key Technical Specifications:
- Rated Power: 118 kW @ 2000 rpm | Max Torque: 580 N·m @ 1600 rpm
- Digging Forces: 138 kN (bucket) / 103 kN (arm)
- Working Range: 10,280 mm radius / 9,600 mm max height
- Ground Pressure: 47.3 kPa | Climbing: 70% (35°)
- Location: Huizhou, Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1025008 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

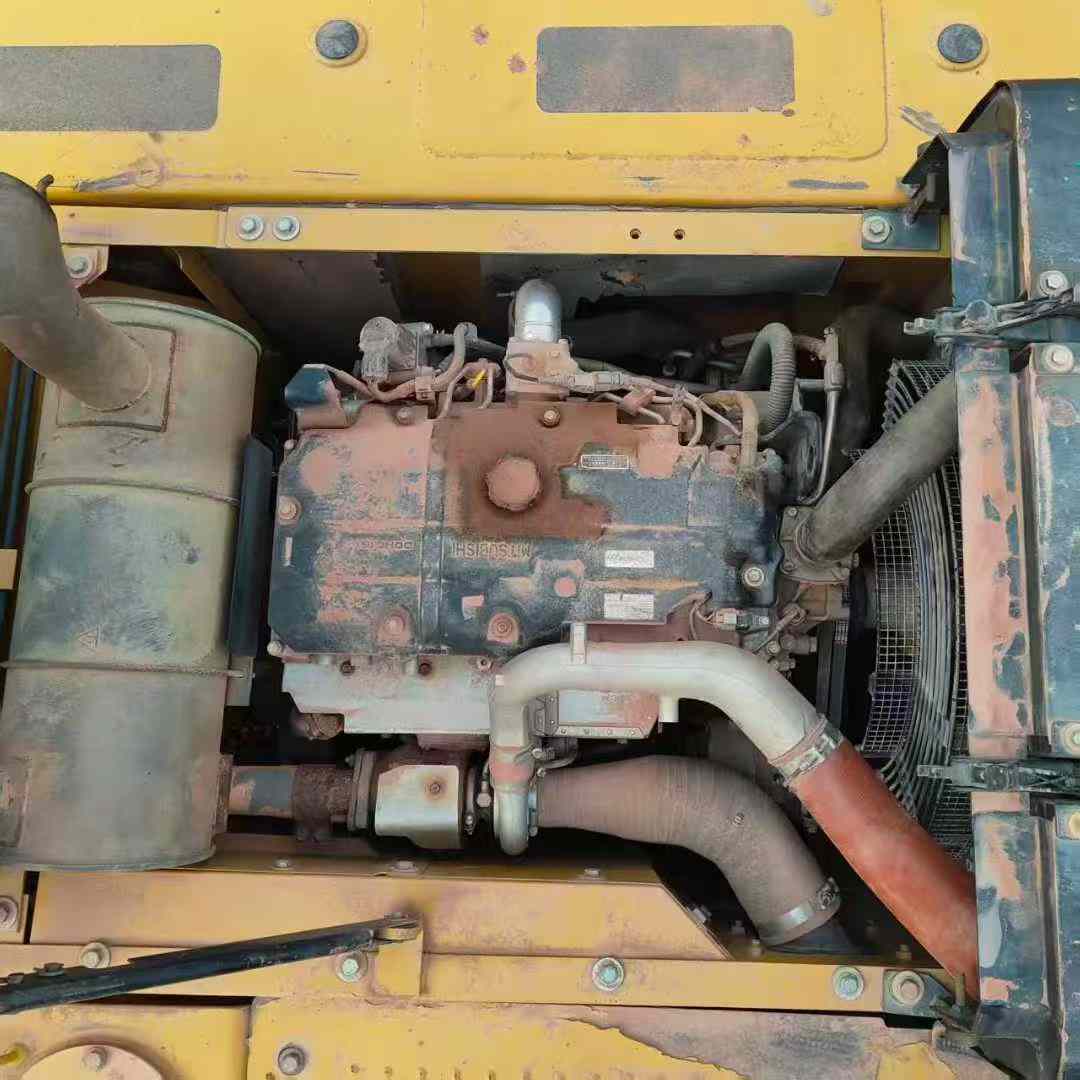

| Engine type | 4M50 |

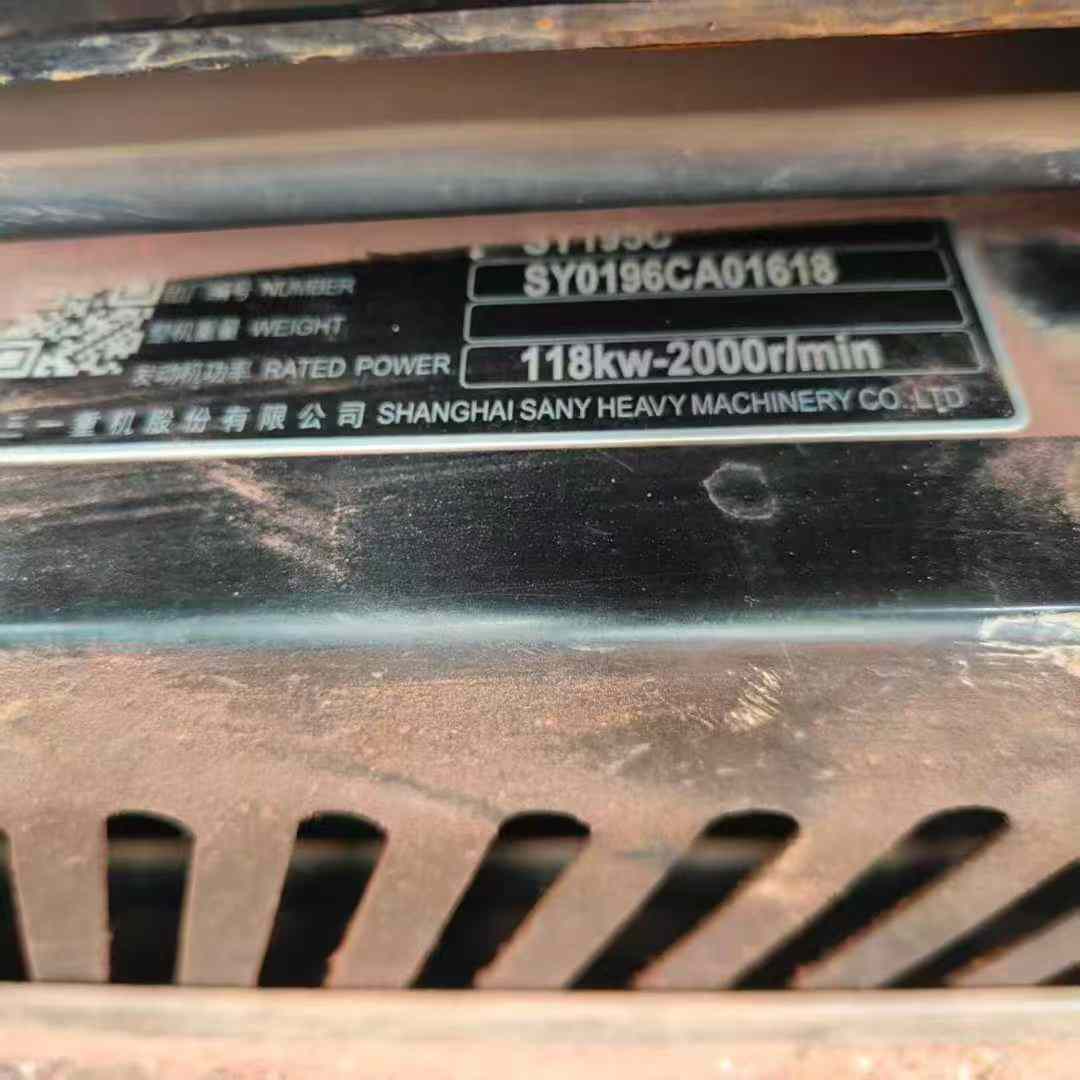

| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |

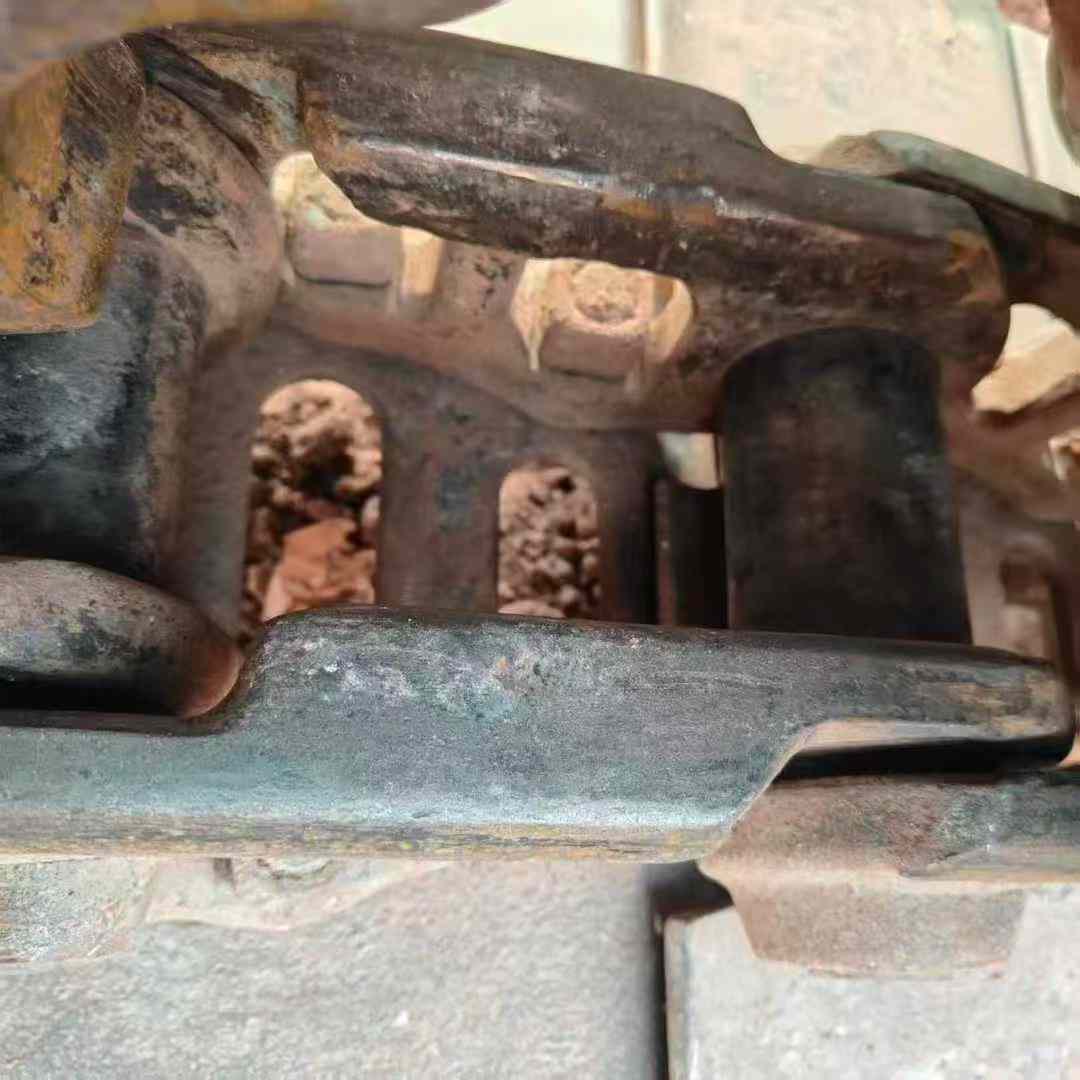

| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
