2020 Sany SY195C

1/5
Buy Sany SY195C Used Excavator / 1

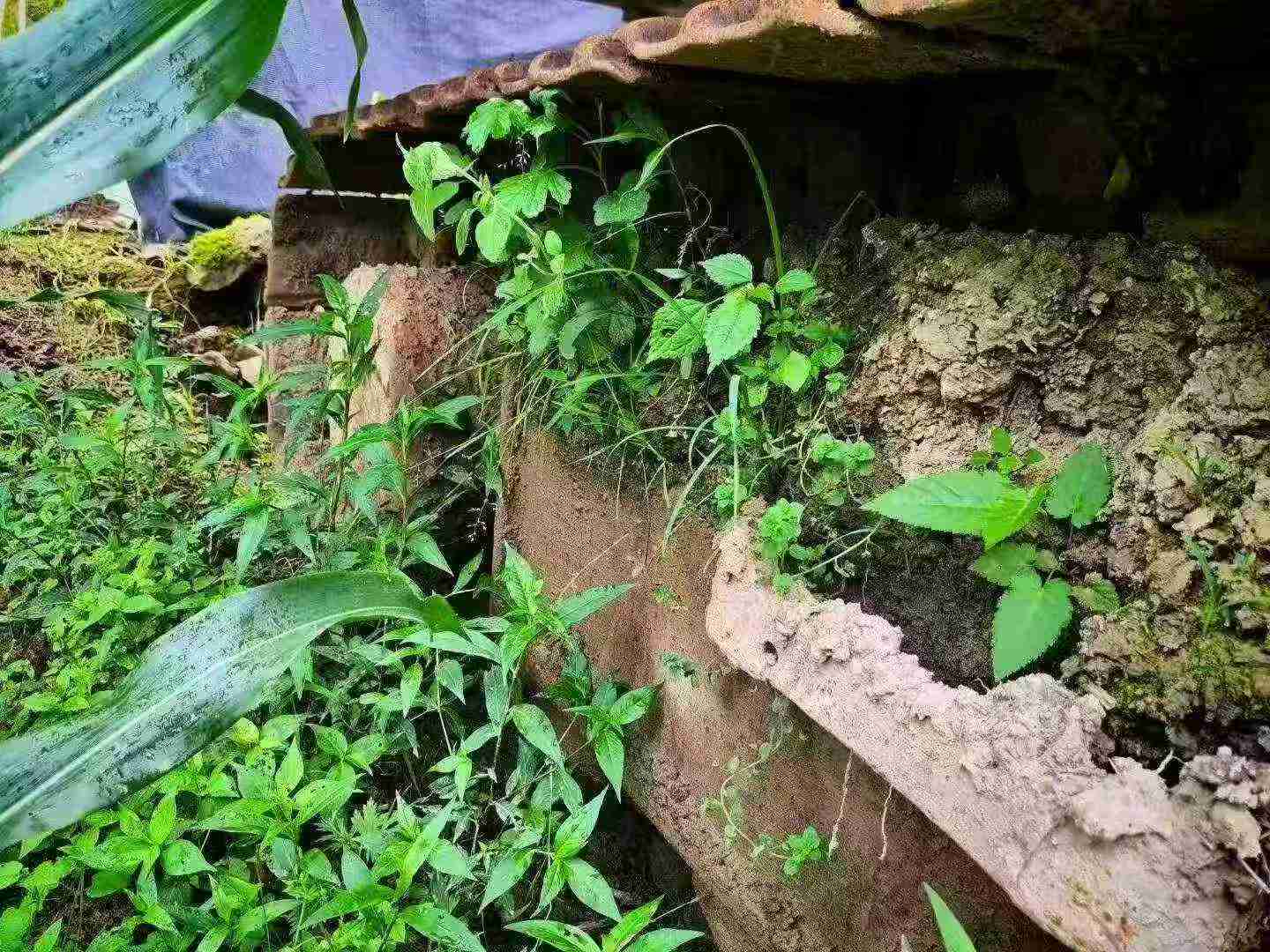

Buy Sany SY195C Used Excavator / 2

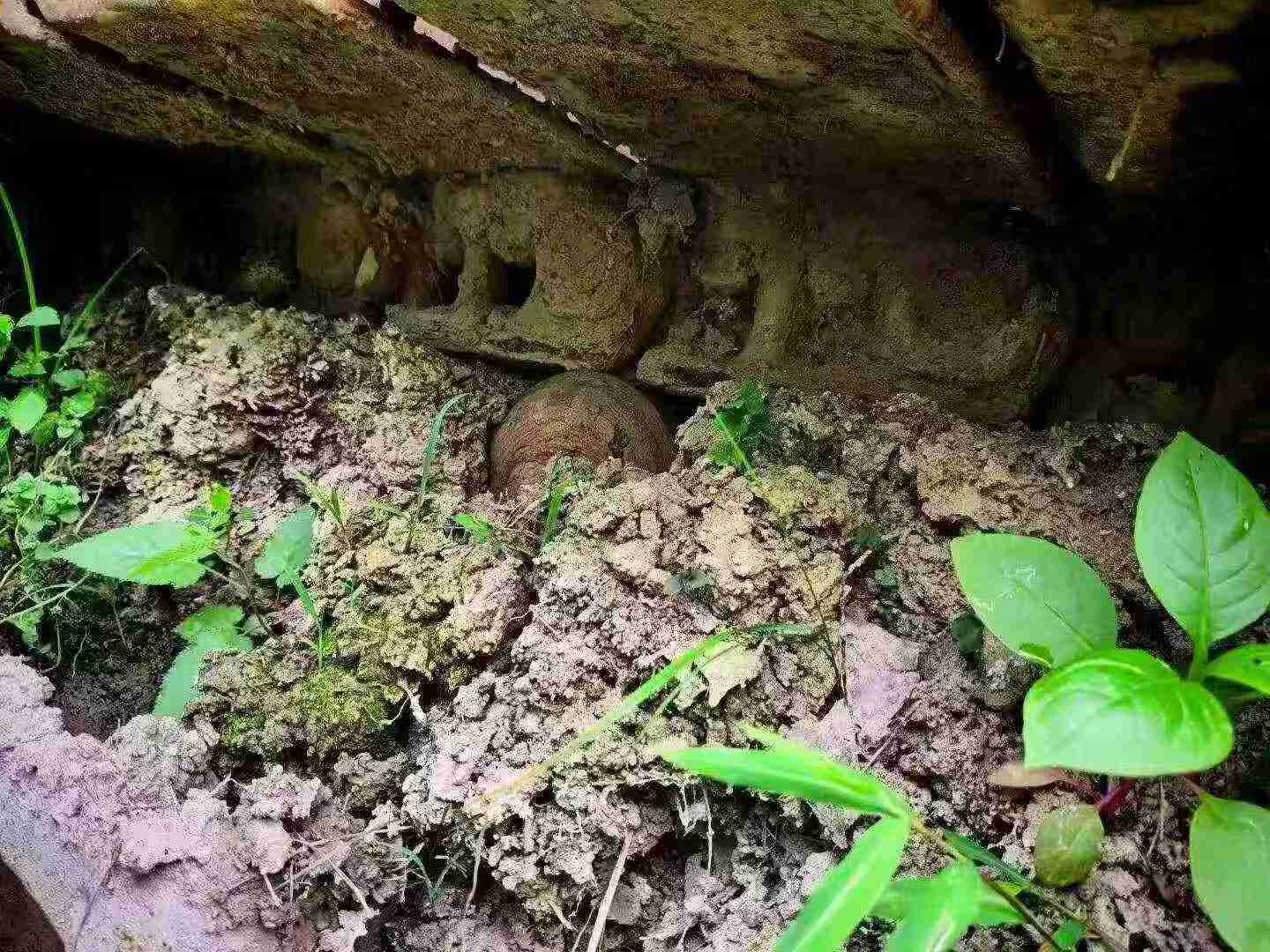

Buy Sany SY195C Used Excavator / 3

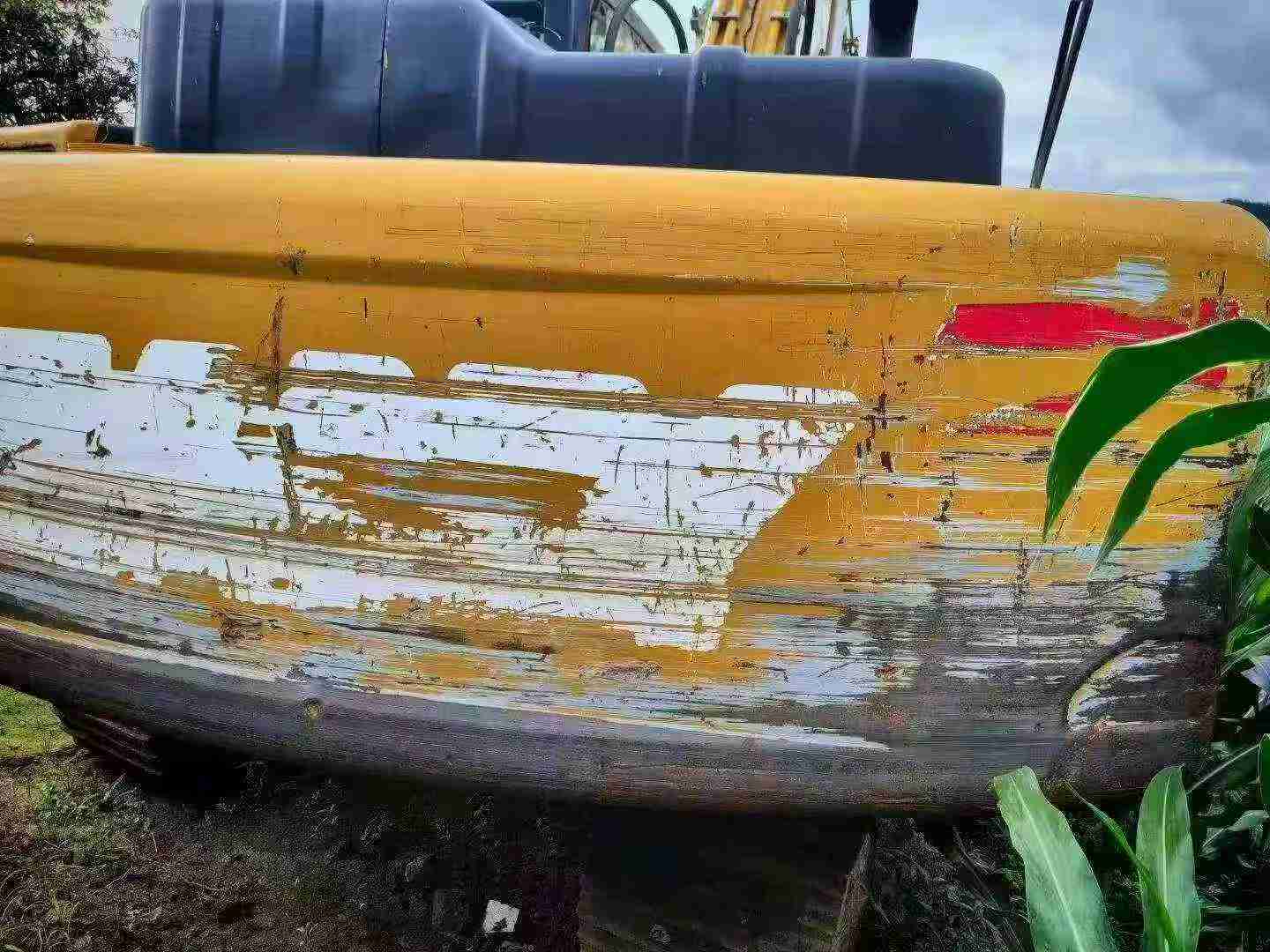

Buy Sany SY195C Used Excavator / 4

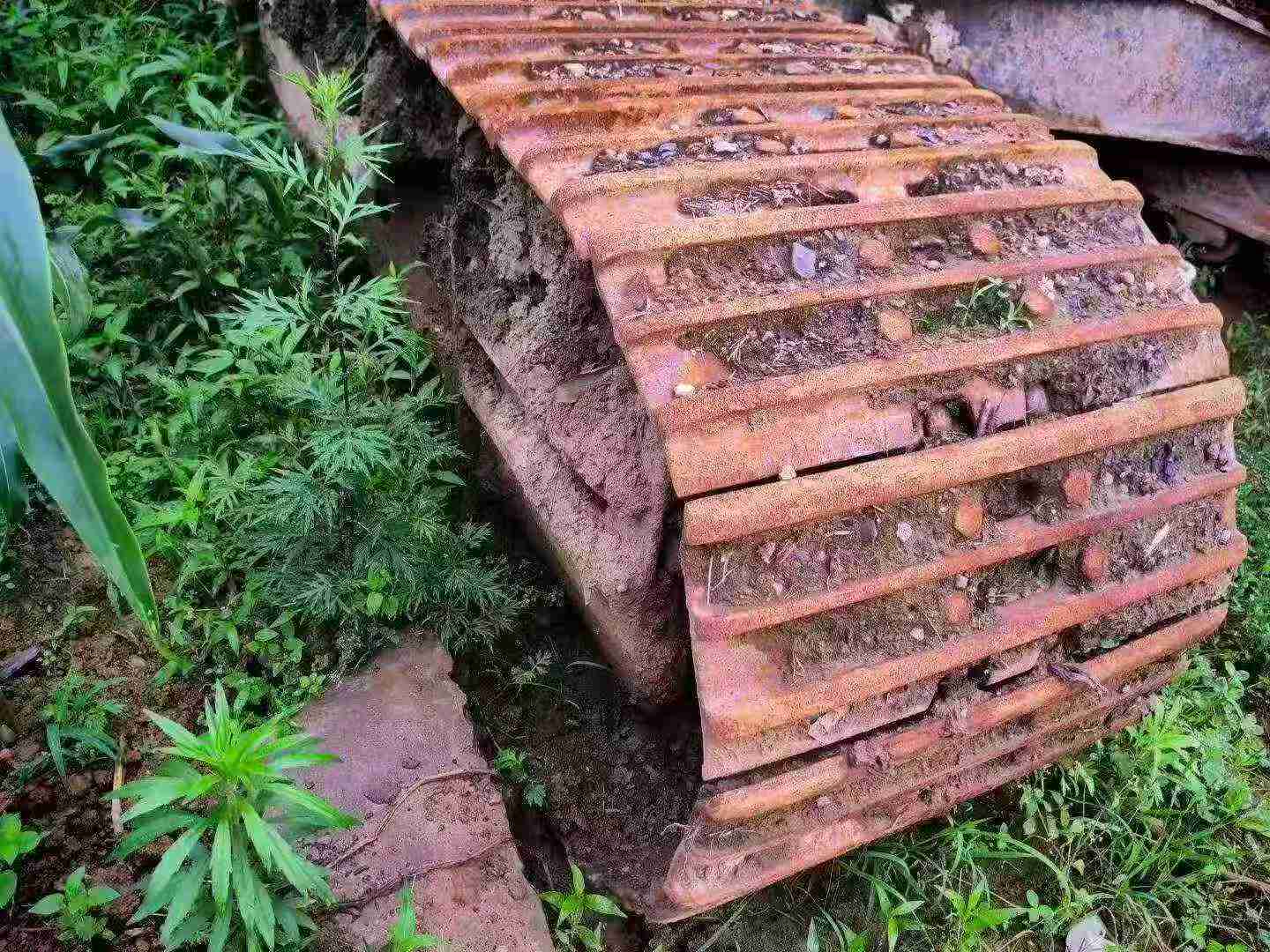

Buy Sany SY195C Used Excavator / 5

Product Description

This 2020 Sany SY195C excavator represents a solid mid-size solution for construction and earthmoving operations. Currently located in Sichuan, China, this machine offers reliable performance from one of Asia's leading heavy equipment manufacturers.

The SY195C is designed for versatility across general excavation, trenching, and material handling applications. With approximately 3-4 years of field operation, this unit provides an economical entry point for contractors seeking proven Sany engineering at competitive pricing.

  • Year of Manufacture: 2020
  • Model: Sany SY195C
  • Current Location: Sichuan Province, China
  • Equipment Category: Medium hydraulic excavator
  • Suitable for: Construction, infrastructure, and general earthworks

Inspection and detailed technical documentation available upon request. Shipping and export assistance can be arranged to qualified buyers worldwide.

SpecificationsValue
No.1093816
Tonnage (tons)19
Working weight (kg)20900
Bucket capacity (m³)0.8~1.1(0.95)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2800
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3260
Maximum height at minimum turning radius (mm)7680
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
see more

Overview

No.1093816

Brand Name:

Sany

Model Number:

SY195C

Year:

2020

Location:

Sichuan China
