2021 Sany SY195C

1/9
Buy Sany SY195C Used Excavator / 1

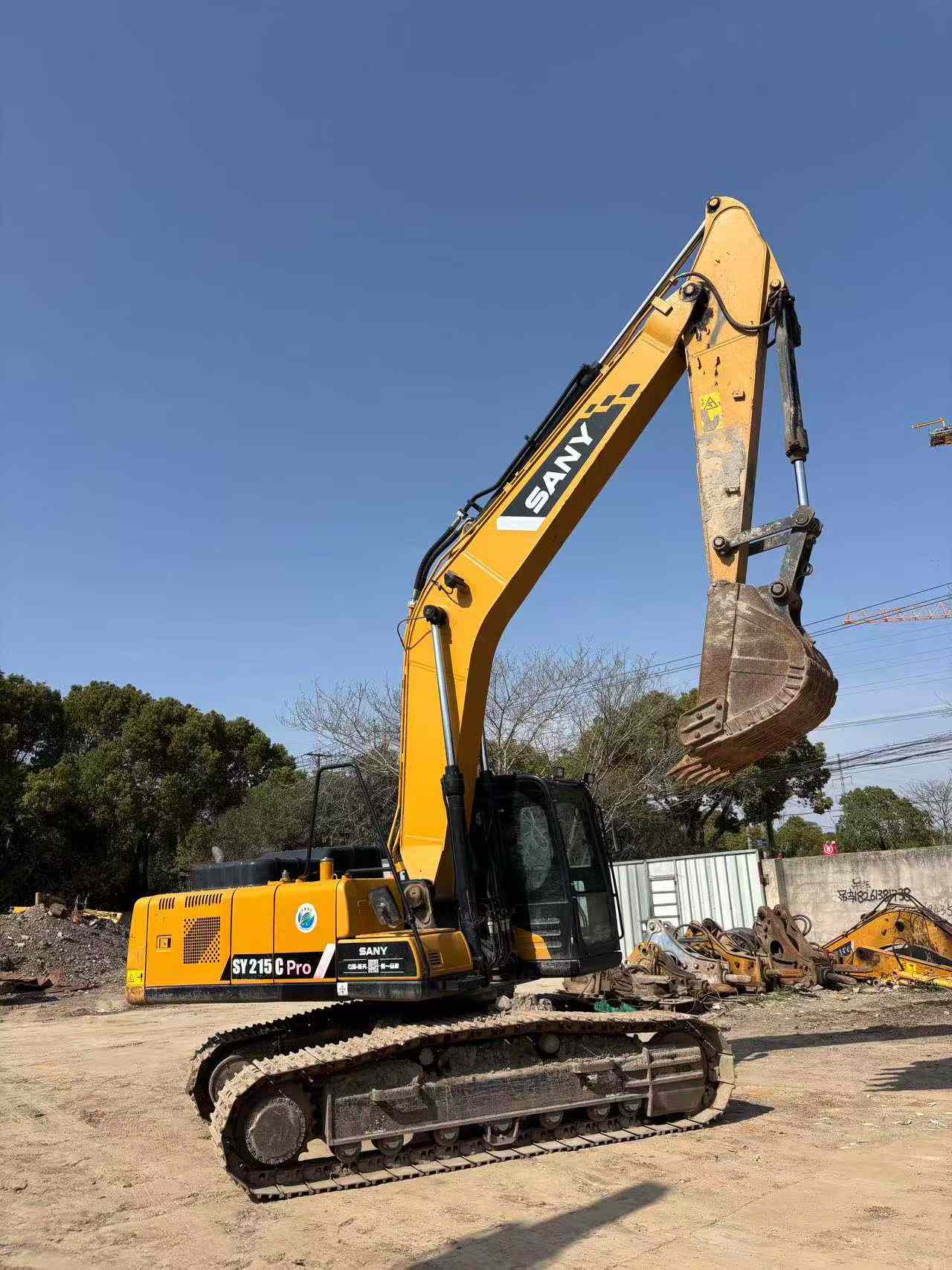

Buy Sany SY195C Used Excavator / 2

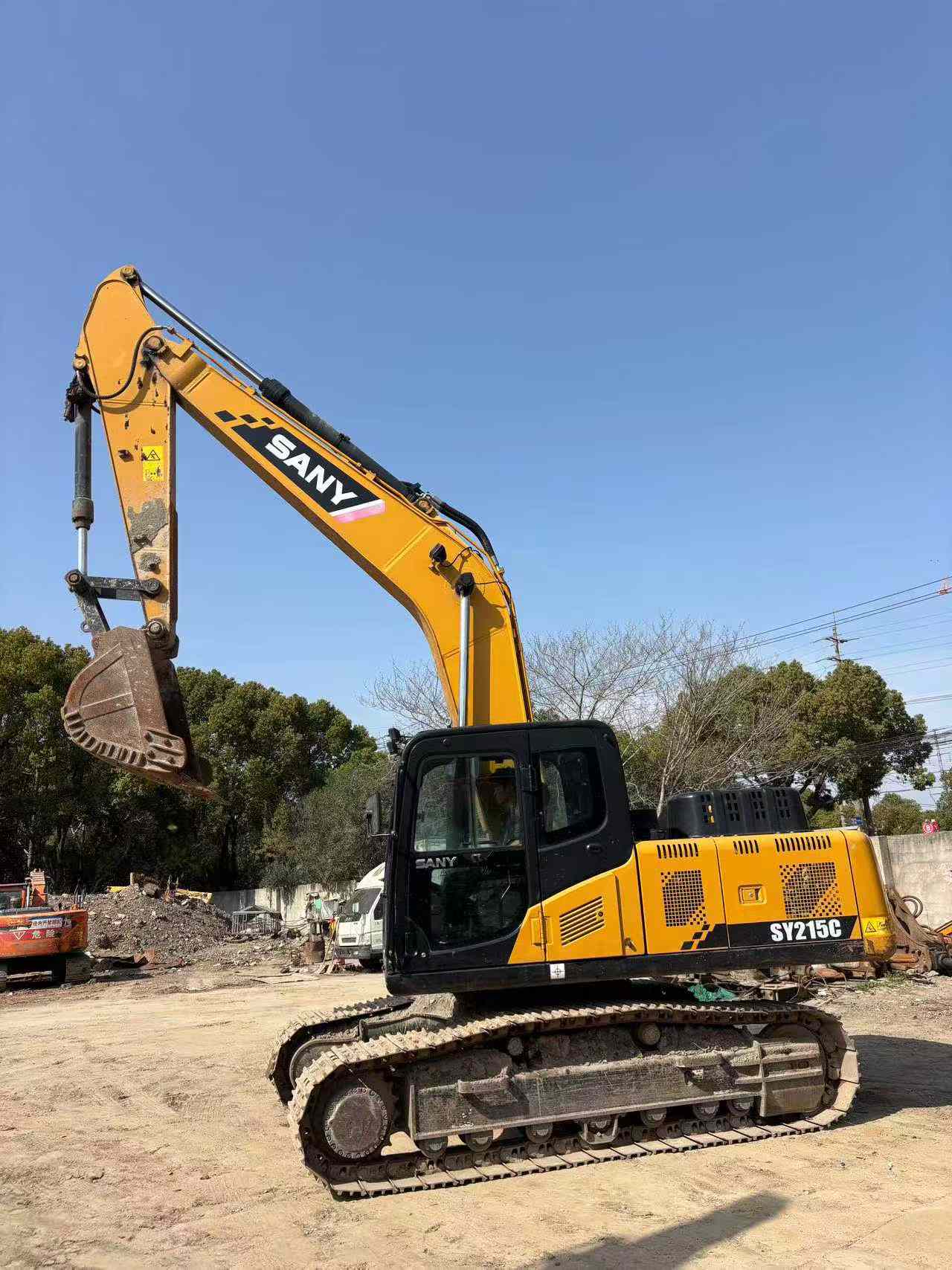

Buy Sany SY195C Used Excavator / 3

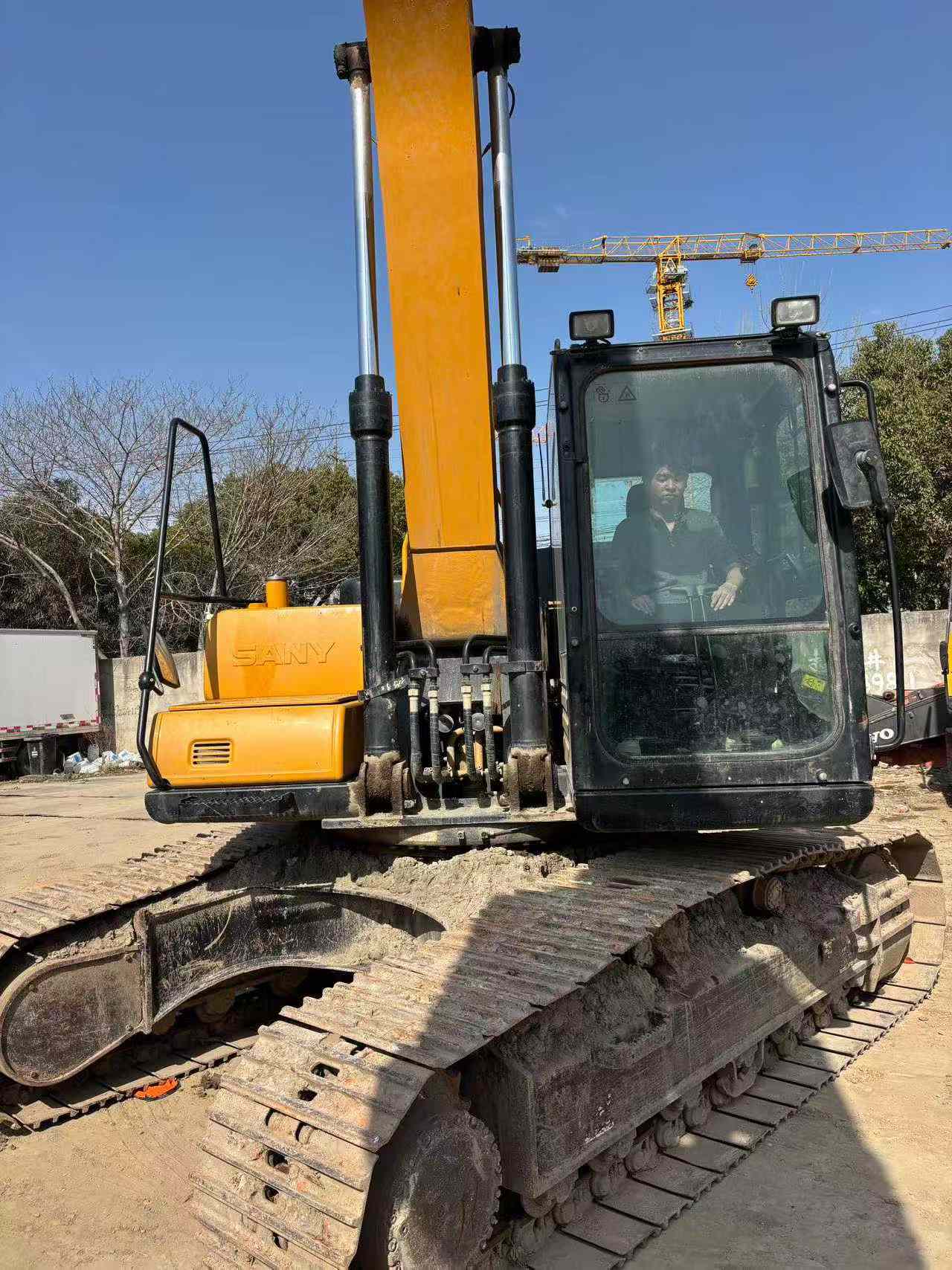

Buy Sany SY195C Used Excavator / 4

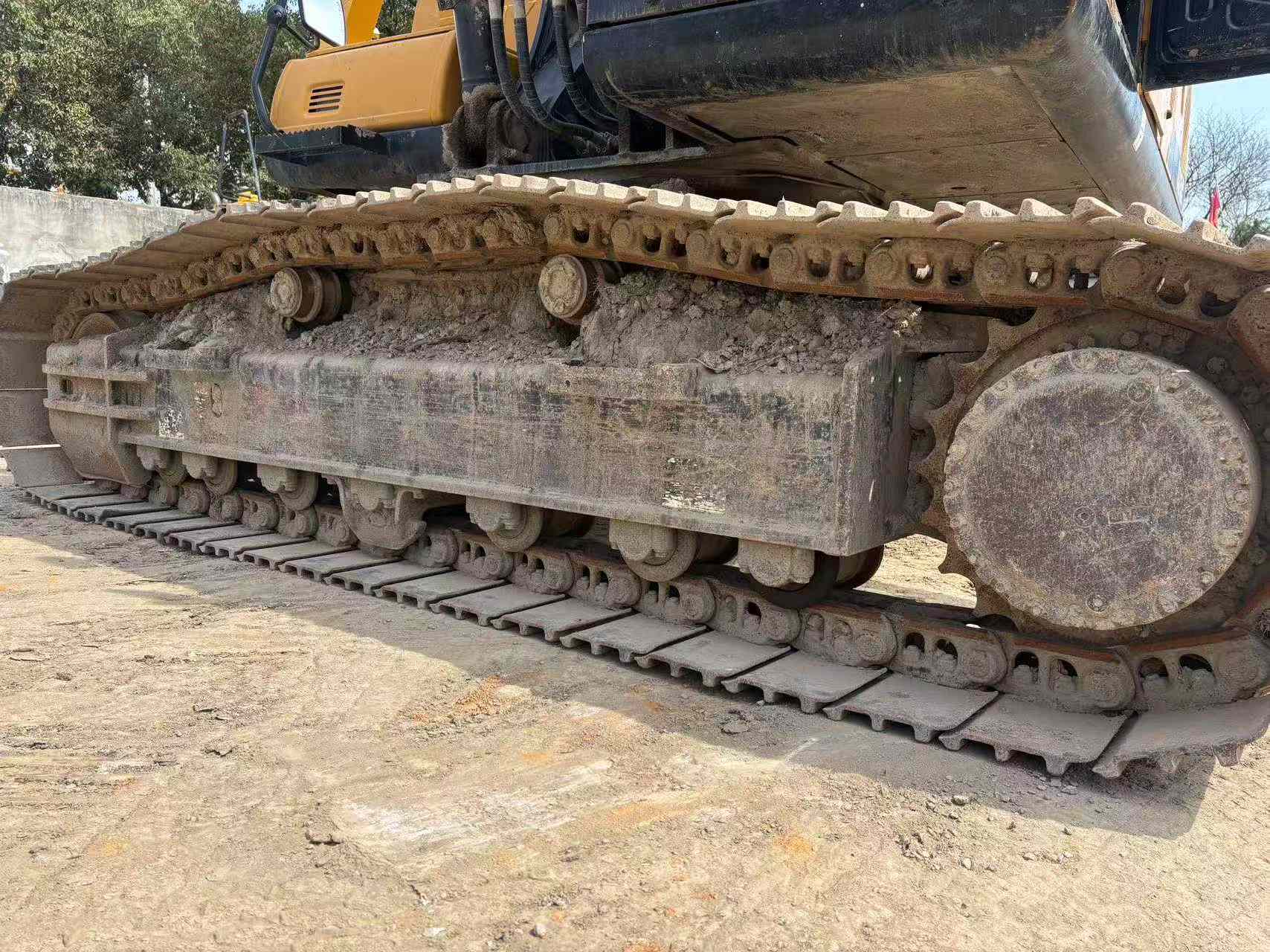

Buy Sany SY195C Used Excavator / 5

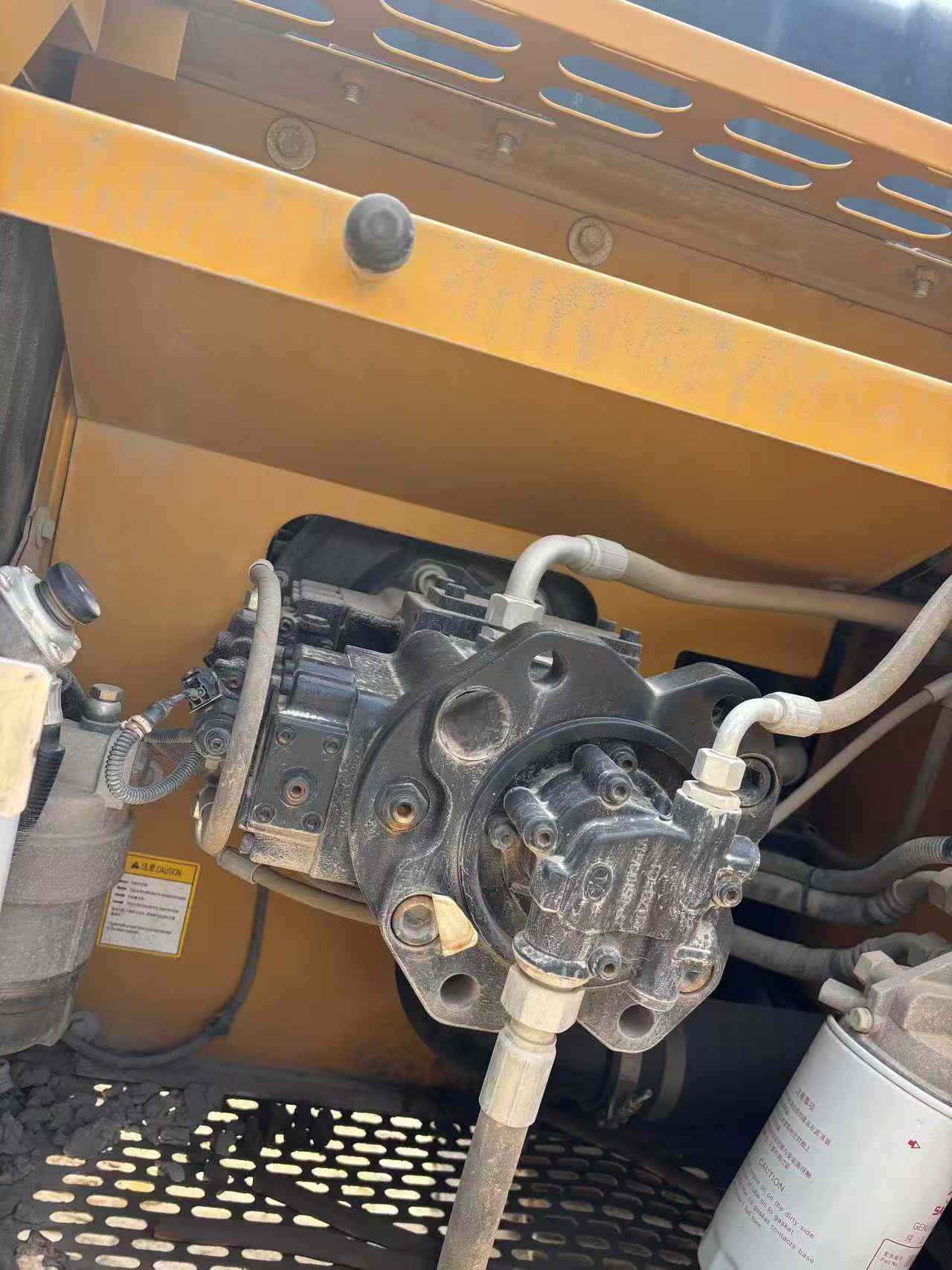

Buy Sany SY195C Used Excavator / 6

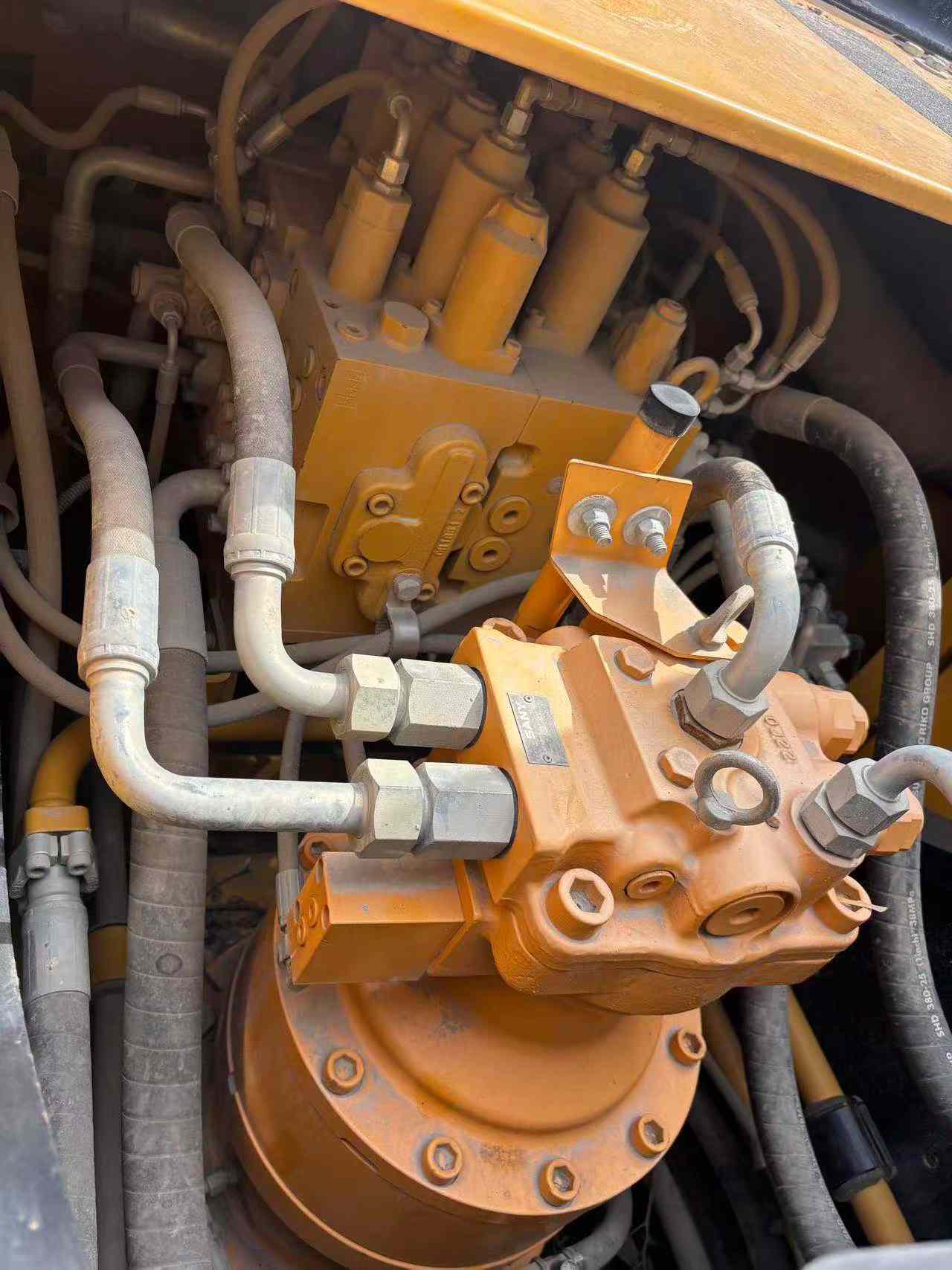

Buy Sany SY195C Used Excavator / 7

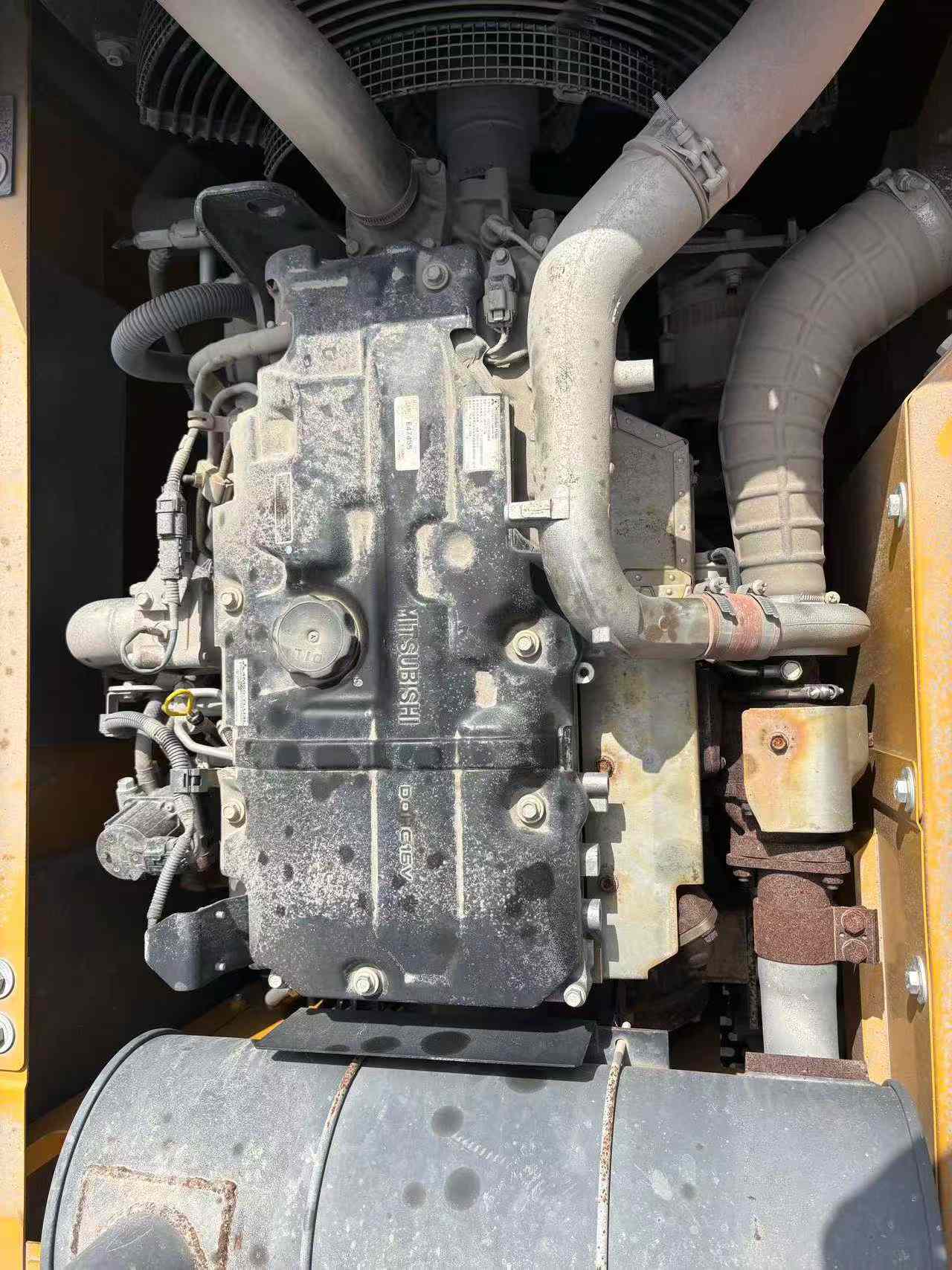

Buy Sany SY195C Used Excavator / 8

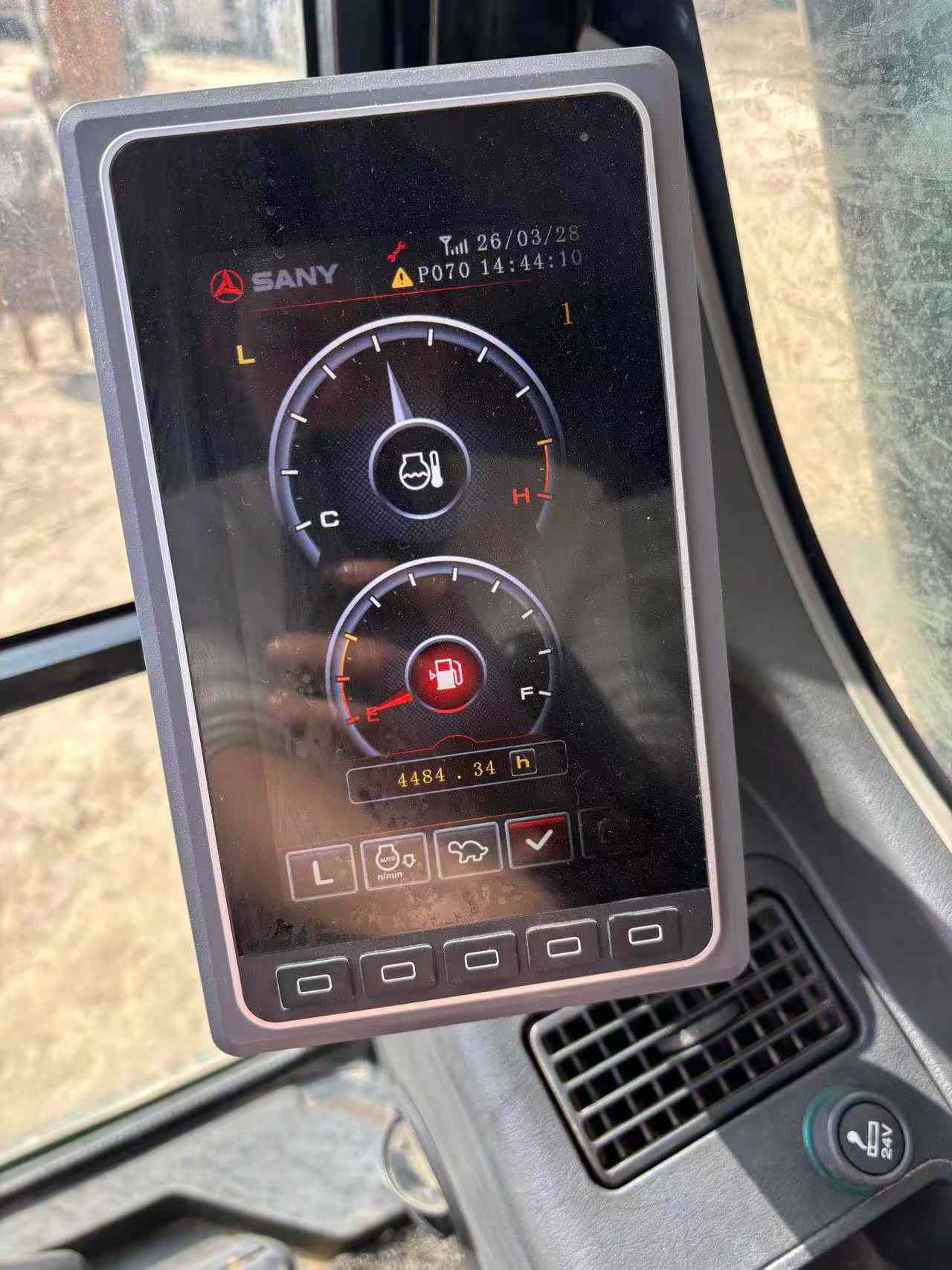

Buy Sany SY195C Used Excavator / 9

Product Description

Available now in Shanghai, this 2021 Sany SY195C excavator eliminates factory lead times and gets your project moving fast. Powered by a robust 4M50 engine delivering 118 kW at 2000 rpm, this 19-ton machine combines proven reliability with immediate deployment. The 0.95 m³ bucket and 138 kN digging force handle demanding excavation tasks, while the 10,280 mm maximum digging radius provides exceptional reach for site work.

  • Year: 2021
  • Model: Sany SY195C
  • Operating Weight: 20,900 kg
  • Engine: 4M50, 118 kW rated power
  • Bucket Capacity: 0.8–1.1 m³
  • Max Digging Depth: 6,600 mm
  • Max Digging Radius: 10,280 mm
  • Location: Shanghai, China

Skip months of waiting. Inspect in Shanghai and arrange fast shipping to your site. Contact Fair Trade Machinery today for specs, pricing, and logistics support.

SpecificationsValue
No.1043643
Tonnage (tons)19
Working weight (kg)20900
Bucket capacity (m³)0.8~1.1(0.95)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2800
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3260
Maximum height at minimum turning radius (mm)7680
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
see more

Overview

No.1043643

Brand Name:

Sany

Model Number:

SY195C

Year:

2021

Location:

Shanghai China

Pub Date
