Product Description

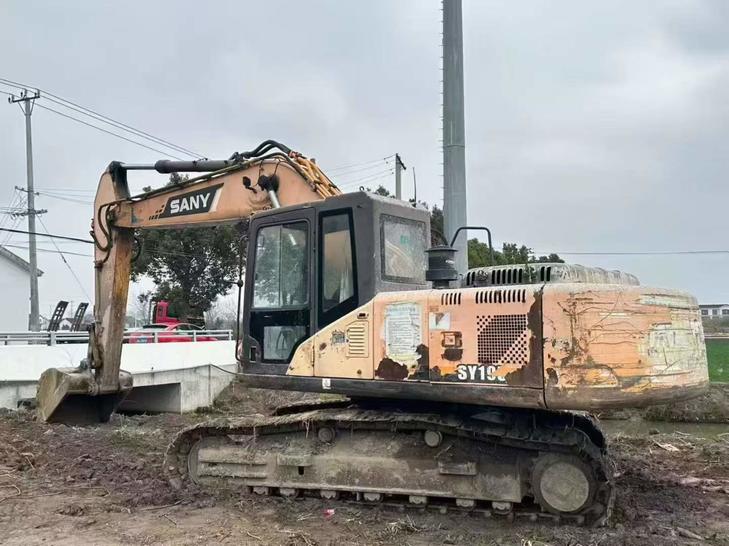

Built for high-volume earthmoving and deep foundation work, this 2013 Sany SY195C-9 excavator delivers 20-ton class performance with a robust SANY D06S2 six-cylinder turbocharged engine producing 114kW at 2050 rpm. Currently located in Zhejiang, this machine features a proven water-cooled powertrain designed for continuous operation in demanding site conditions.
Engineered with a maximum digging depth of 6,410mm and reach extending to 9,740mm, this excavator handles trenching, bulk excavation, and loading applications with precision. The 0.83m³ bucket (configurable from 0.7-1.0m³) generates 135kN digging force, while the arm delivers 109kN breakout force for tackling compacted materials and demolition tasks.
- 20,700kg working weight with 47.3kPa ground pressure for stable operation
- 5.4/3.3 km/h travel speeds for efficient site mobility
- 70% (35°) grading capability on sloped terrain
- 2,800mm transport width fits standard lowboy trailers
- 600mm track plates (700/800mm optional) adaptable to ground conditions
Ready for immediate deployment on grading, utility installation, or demolition projects requiring reliable mid-size excavation capacity.
| Specifications | Value |
|---|---|
| No. | 1022200 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D06S2 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 135 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3755 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9740 |
| Maximum digging depth (mm) | 6410 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5790 |
