Product Description
Proven performance meets exceptional value in this 2014 Sany SY195C-9 excavator, a 20-ton workhorse engineered for demanding job sites. Operating successfully for nearly a decade, this machine demonstrates Sany's commitment to durability and reliability. Powered by a robust 6-cylinder SANY D06S2 engine delivering 114kW at 2050 rpm, it combines impressive digging force (135kN bucket, 109kN arm) with a maximum digging reach of 9740mm and depth of 6410mm. Built to handle challenging terrain with 70% climbing ability and 440mm ground clearance, this excavator excels in excavation, loading, and grading applications.
- Working Weight: 20,700 kg

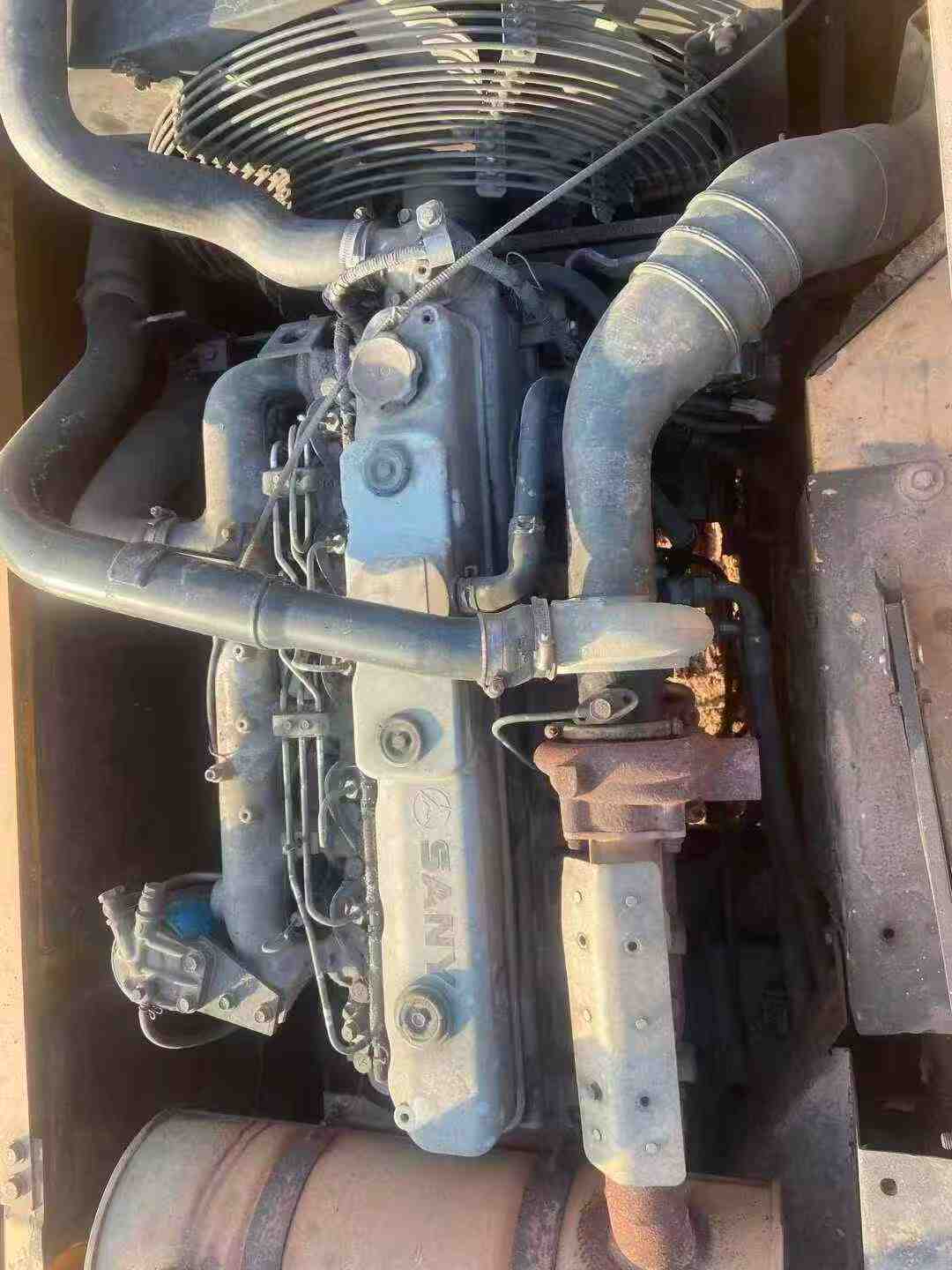

- Engine: SANY D06S2, 6-cylinder water-cooled, 114kW
- Bucket Capacity: 0.83 m³ (0.7-1.0 m³ optional)
- Max Digging Reach: 9740mm
- Max Digging Depth: 6410mm
- Travel Speed: 5.4/3.3 km/h
- Location: Luzhou, Sichuan, China
- Condition: Ready for immediate deployment
Contact Fair Trade Machinery today to acquire this proven excavator for your fleet.
| Specifications | Value |
|---|---|
| No. | 1013281 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D06S2 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 135 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3755 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9740 |
| Maximum digging depth (mm) | 6410 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5790 |
