Product Description

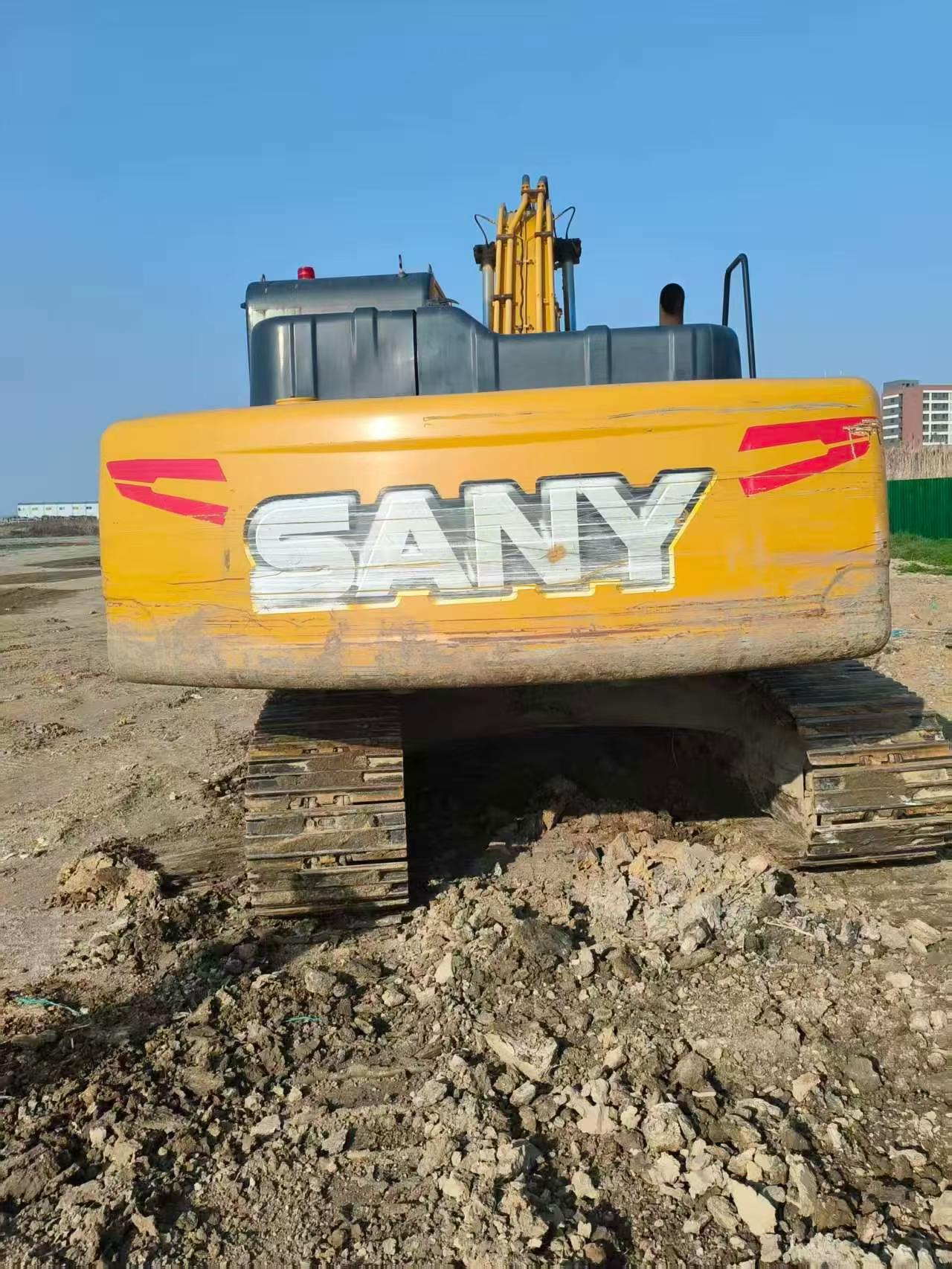

With a robust 20-ton working weight, the Sany SY195C-9 excavator, manufactured in 2017, offers exceptional performance and reliability. Equipped with a SANY D06S2 engine, this six-cylinder, four-stroke, turbocharged direct injection engine delivers 114 kW at 2050 rpm, ensuring powerful and efficient operation.
- Enhanced operator comfort and visibility: The full cab height of 2990 mm provides ample space and a clear view of the work area, crucial for precise and safe operations.
- Stable and versatile: A ground specific pressure of 47.3 Kpa and a climbing ability of 70% or 35° make it suitable for a variety of terrains and conditions.
- Efficient digging capabilities: With a bucket digging force of 135 kN and a rod digging force of 109 kN, this excavator handles tough materials with ease.
- Smooth and controlled movements: The machine's travel speed of 5.4/3.3 km/h and a rotation speed of 11 rpm ensure smooth and controlled operations, enhancing overall productivity.
| Specifications | Value |
|---|---|
| No. | 1029350 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D06S2 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 135 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3755 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9740 |
| Maximum digging depth (mm) | 6410 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5790 |
