Product Description

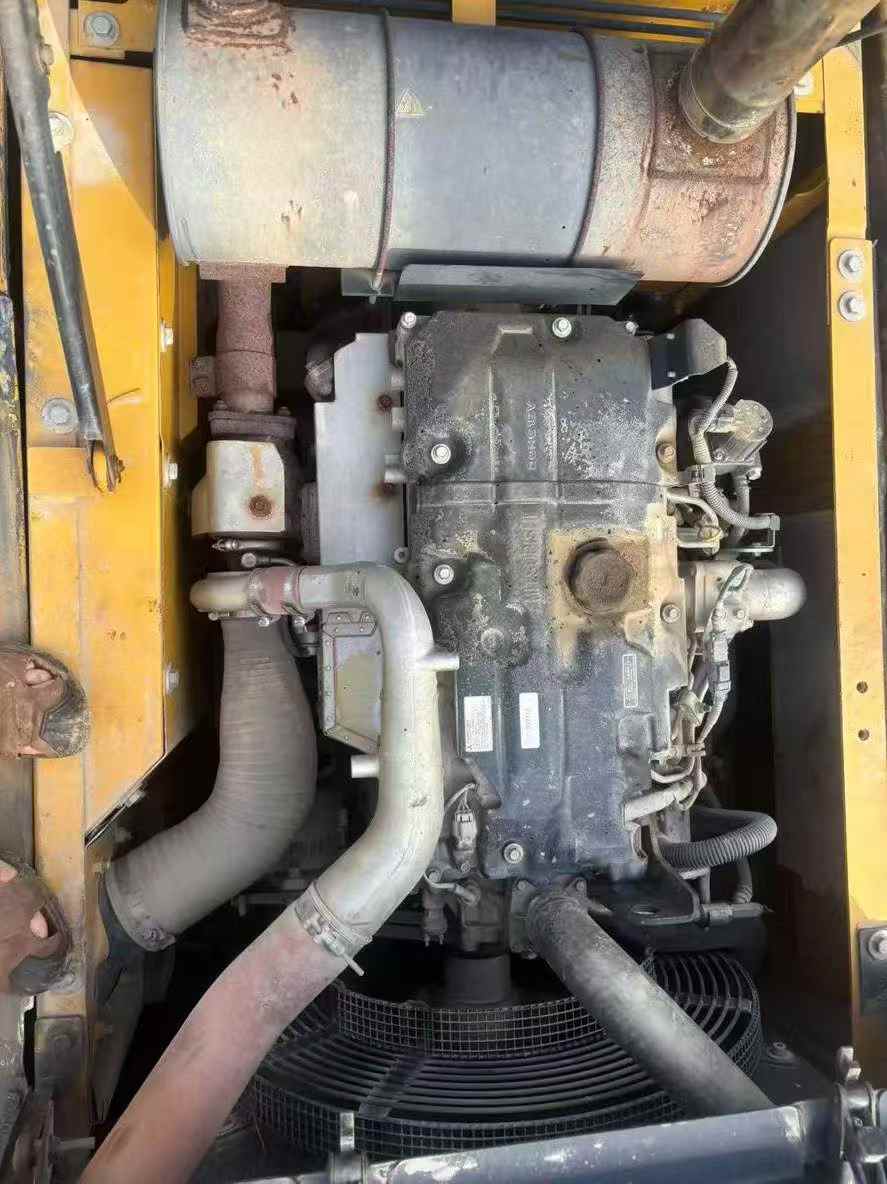

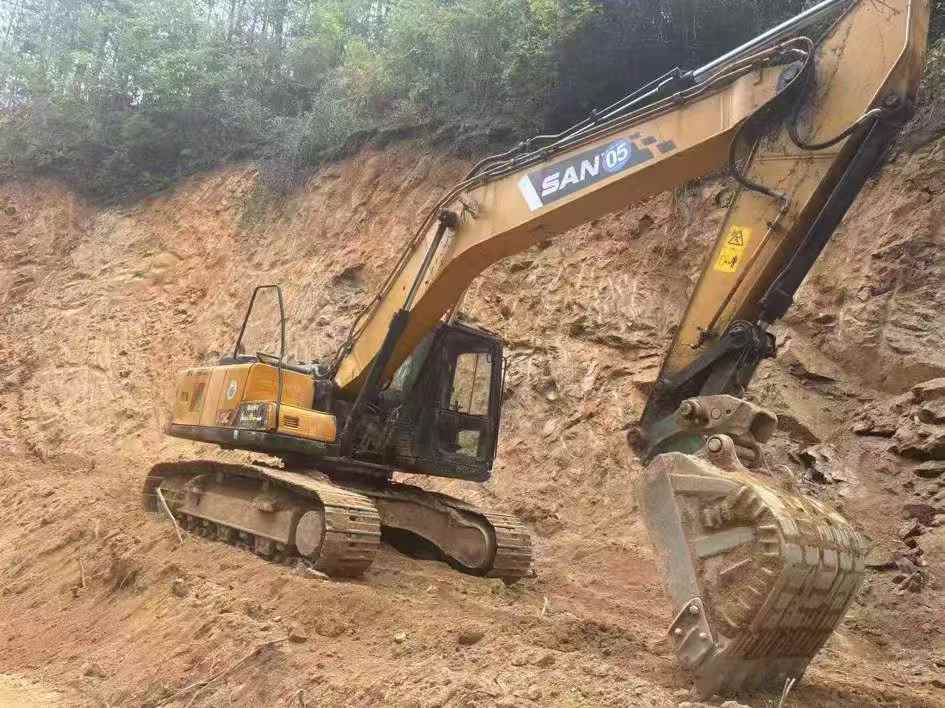

Expand your operational capacity with this 2017 Sany SY195C-9 excavator, a proven 20-ton workhorse engineered for contractors managing multiple job sites simultaneously. Powered by a robust SANY D06S2 6-cylinder turbocharged engine delivering 114 kW at 2050 RPM, this Shanghai-manufactured machine provides consistent performance when your primary equipment is stretched thin. The 0.83 m³ bucket configuration offers versatile digging capabilities, with maximum reach extending to 9,740 mm and excavation depth reaching 6,410 mm—specifications that match demanding site requirements without compromise.
- Operating Weight: 20,700 kg with water-cooled engine system
- Digging Power: 135 kN bucket force, 109 kN arm force
- Mobility: 5.4 km/h travel speed, 70% gradeability, 11 RPM rotation
- Transport Dimensions: 9,560 × 2,800 × 2,955 mm

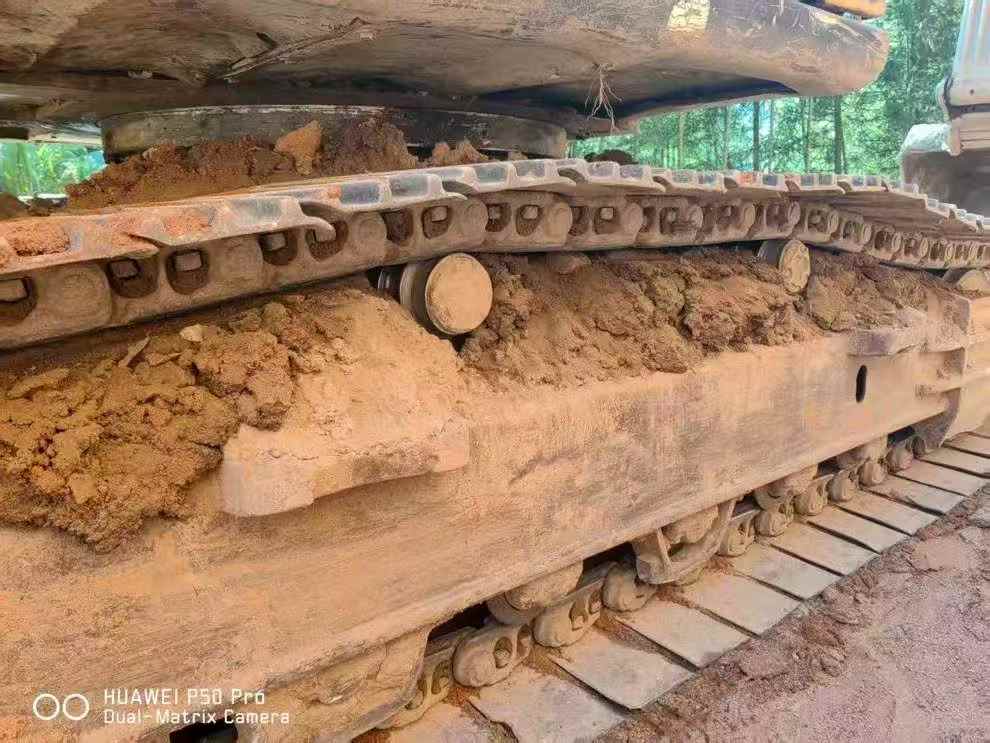

- Track Configuration: 600 mm shoes (700/800 mm optional), 2,200 mm gauge
- Current Location: Hunan, China—ready for international shipping
Reduce downtime risks across your fleet with reliable backup capacity. Contact Fair Trade Machinery for comple
| Specifications | Value |
|---|---|
| No. | 1043529 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D06S2 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 135 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3755 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9740 |
| Maximum digging depth (mm) | 6410 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5790 |
