2017 Sany SY195C-9

1/9
Buy Sany SY195C-9 Used Excavator / 1
Buy Sany SY195C-9 Used Excavator / 2
Buy Sany SY195C-9 Used Excavator / 3

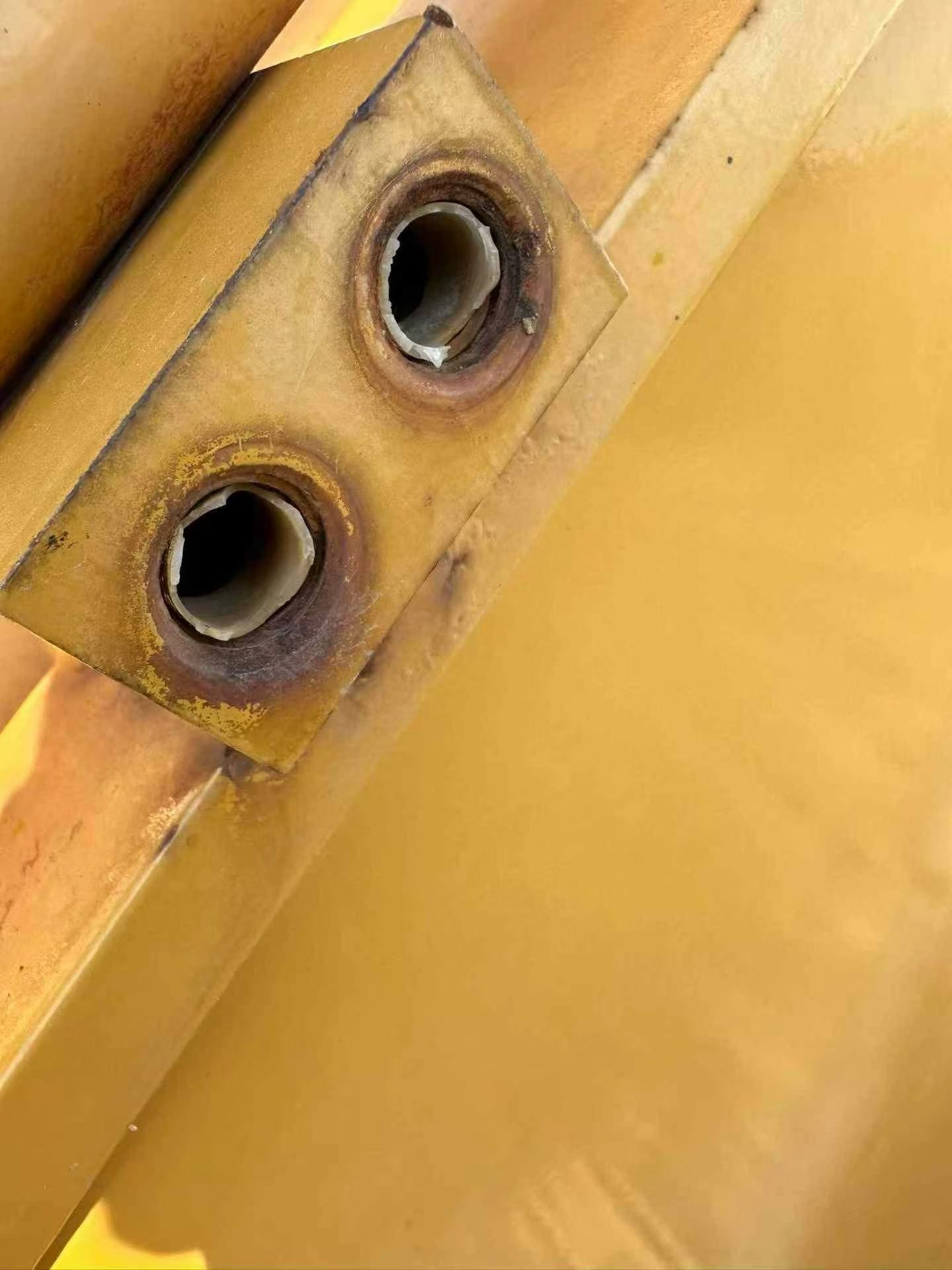

Buy Sany SY195C-9 Used Excavator / 4

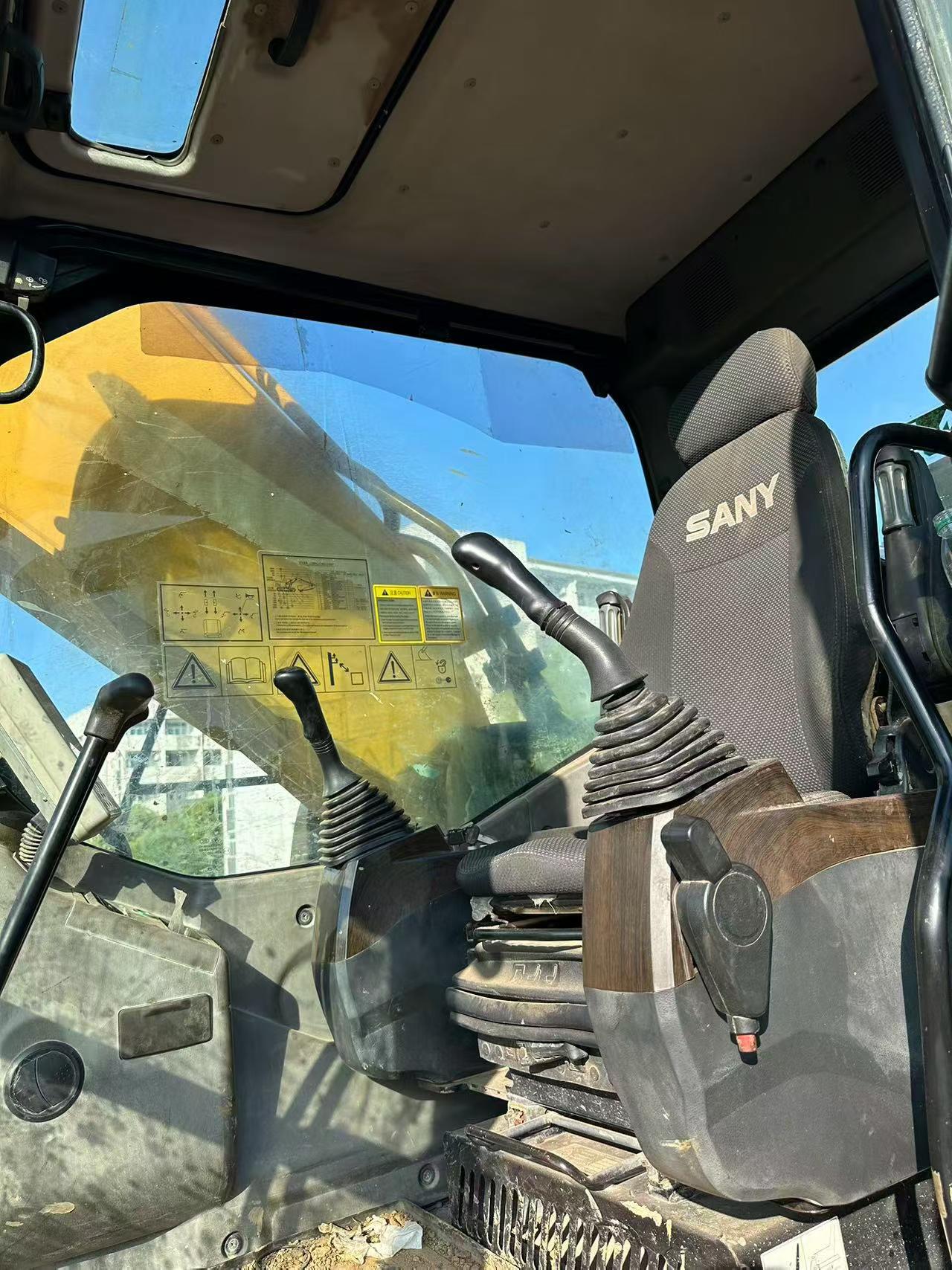

Buy Sany SY195C-9 Used Excavator / 5

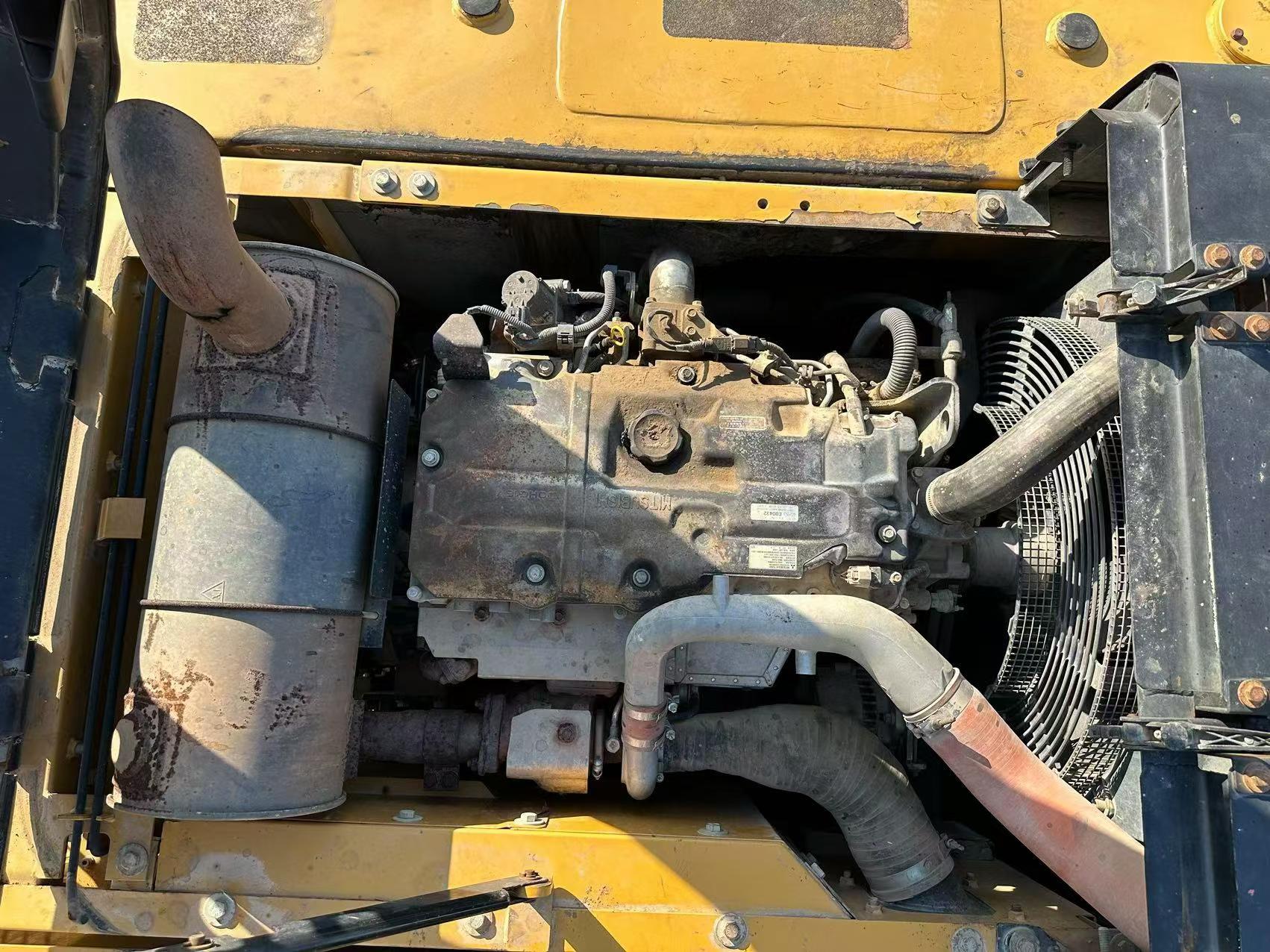

Buy Sany SY195C-9 Used Excavator / 6

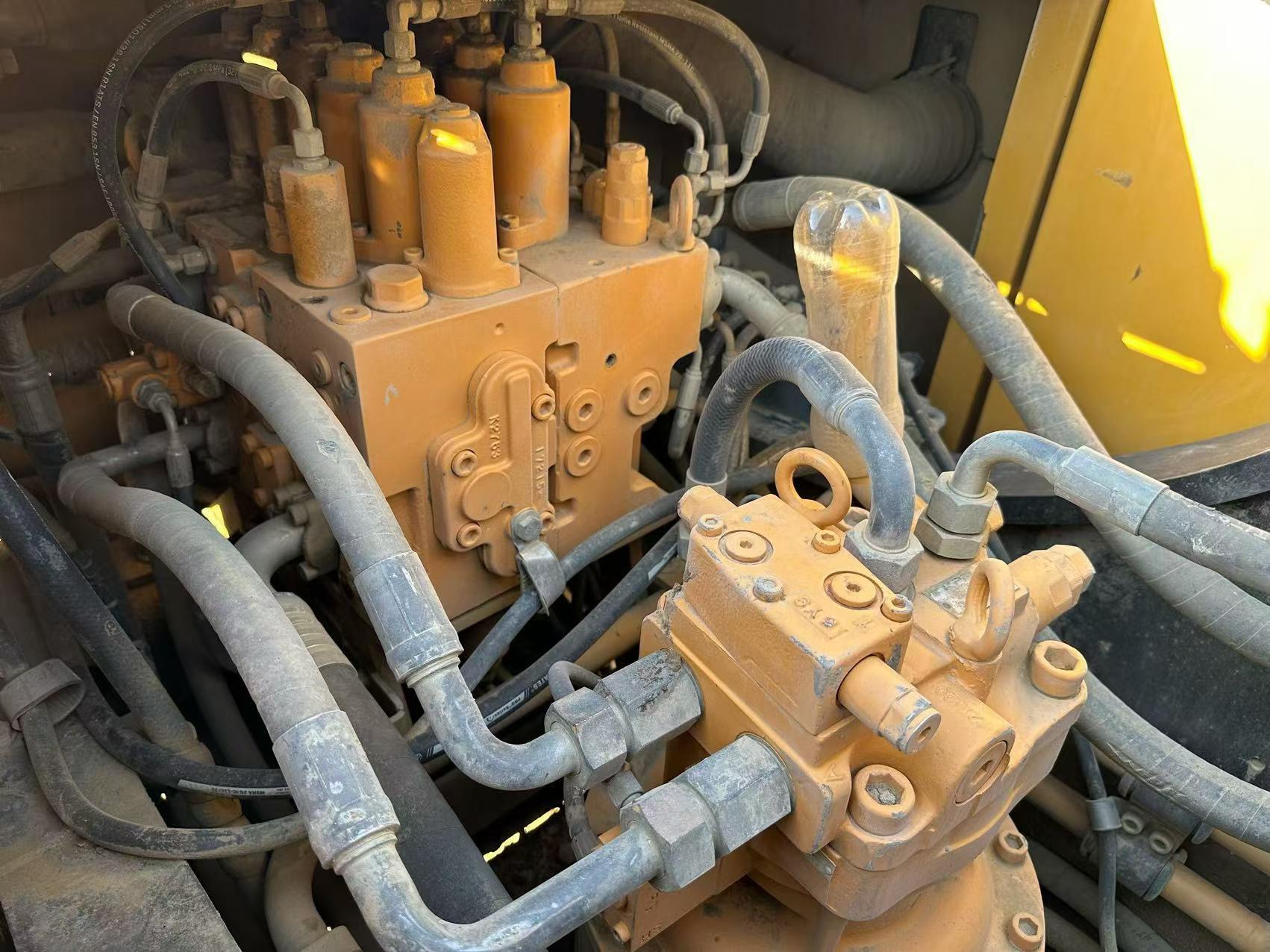

Buy Sany SY195C-9 Used Excavator / 7

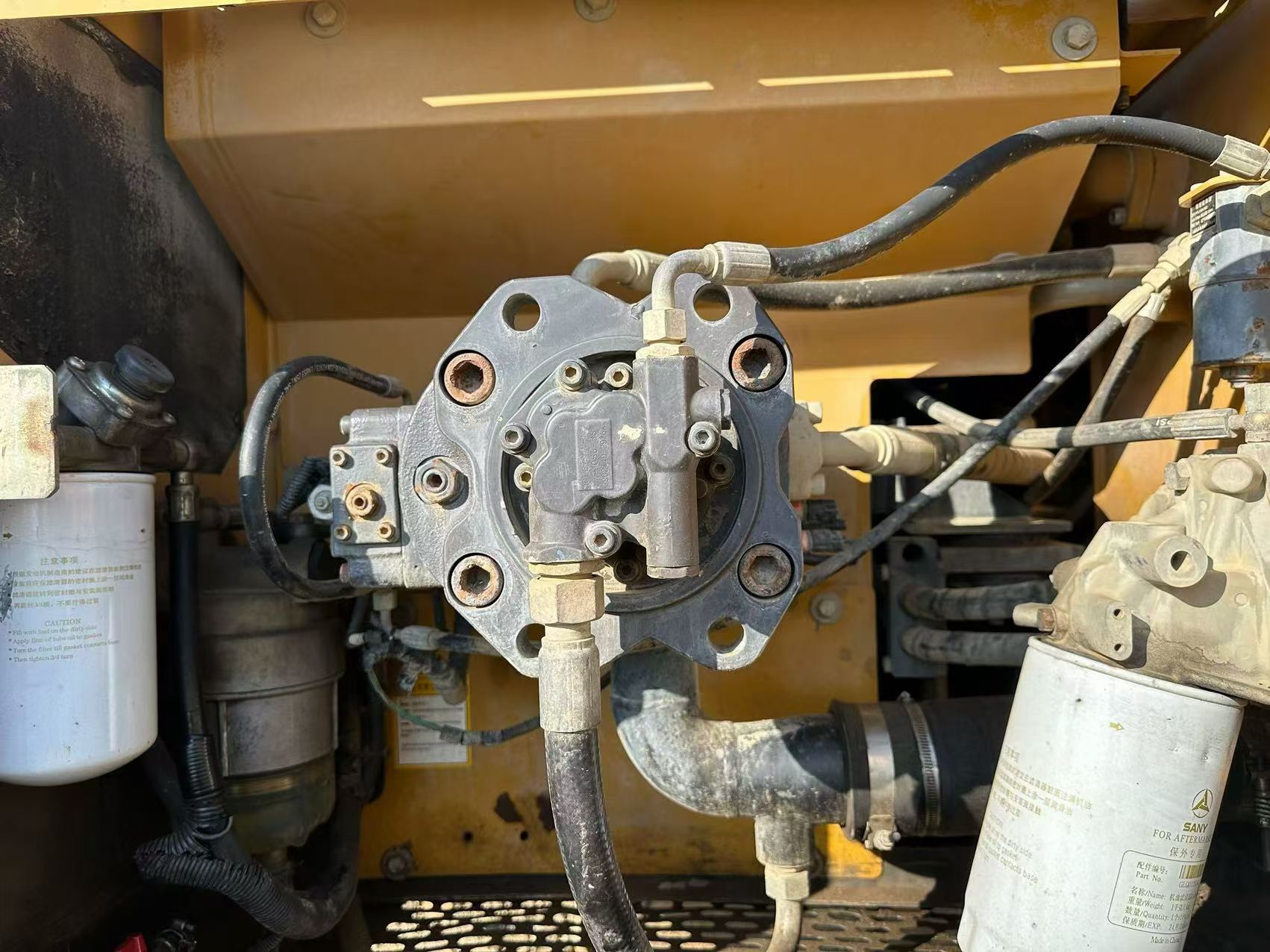

Buy Sany SY195C-9 Used Excavator / 8

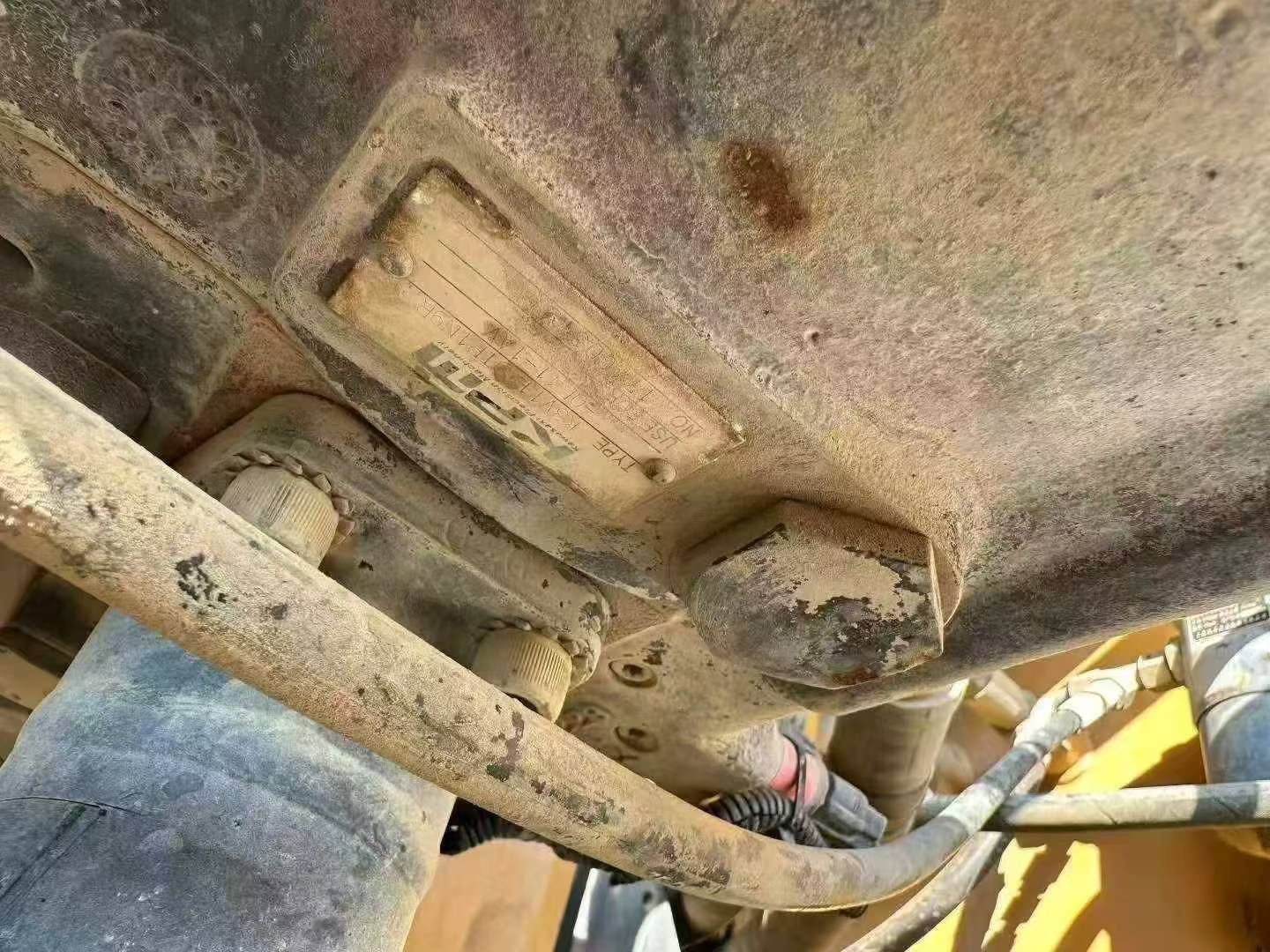

Buy Sany SY195C-9 Used Excavator / 9

Product Description

This 2017 Sany SY195C-9 hydraulic excavator offers reliable performance for earthmoving and general construction applications. Equipped with premium Kawasaki hydraulic components throughout, this machine delivers consistent power and efficiency on the jobsite. With approximately 19-ton operating weight and proven durability, the SY195C-9 is well-suited for contractors seeking dependable mid-size excavation capacity.

  • Year: 2017
  • Model: Sany SY195C-9
  • Full Kawasaki hydraulic system
  • Earthmoving configuration
  • Current location: Jiangsu, China
  • Competitive pricing available

This unit has been primarily used for earthwork operations and is priced competitively for the current market. Ideal for buyers looking for a cost-effective solution without compromising on hydraulic performance. Contact us for detailed specifications, inspection arrangements, and export documentation assistance.

SpecificationsValue
No.1075385
Tonnage (tons)20
Working weight (kg)20700
Bucket capacity (m³)0.83 (optional 0.7~1.0)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D06S2
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Number of cylinders (PCS)6-cylinder
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)135
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9560
Total transport width (mm)2800
Total transport height (mm)2955
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3755
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9740
Maximum digging depth (mm)6410
Maximum excavation height (mm)9410
Maximum unloading height (mm)6490
Maximum vertical digging depth (mm)5790
see more

Overview

No.1075385

Brand Name:

Sany

Model Number:

SY195C-9

Year:

2017

Location:

Jiangsu China

Pub Date
