Product Description

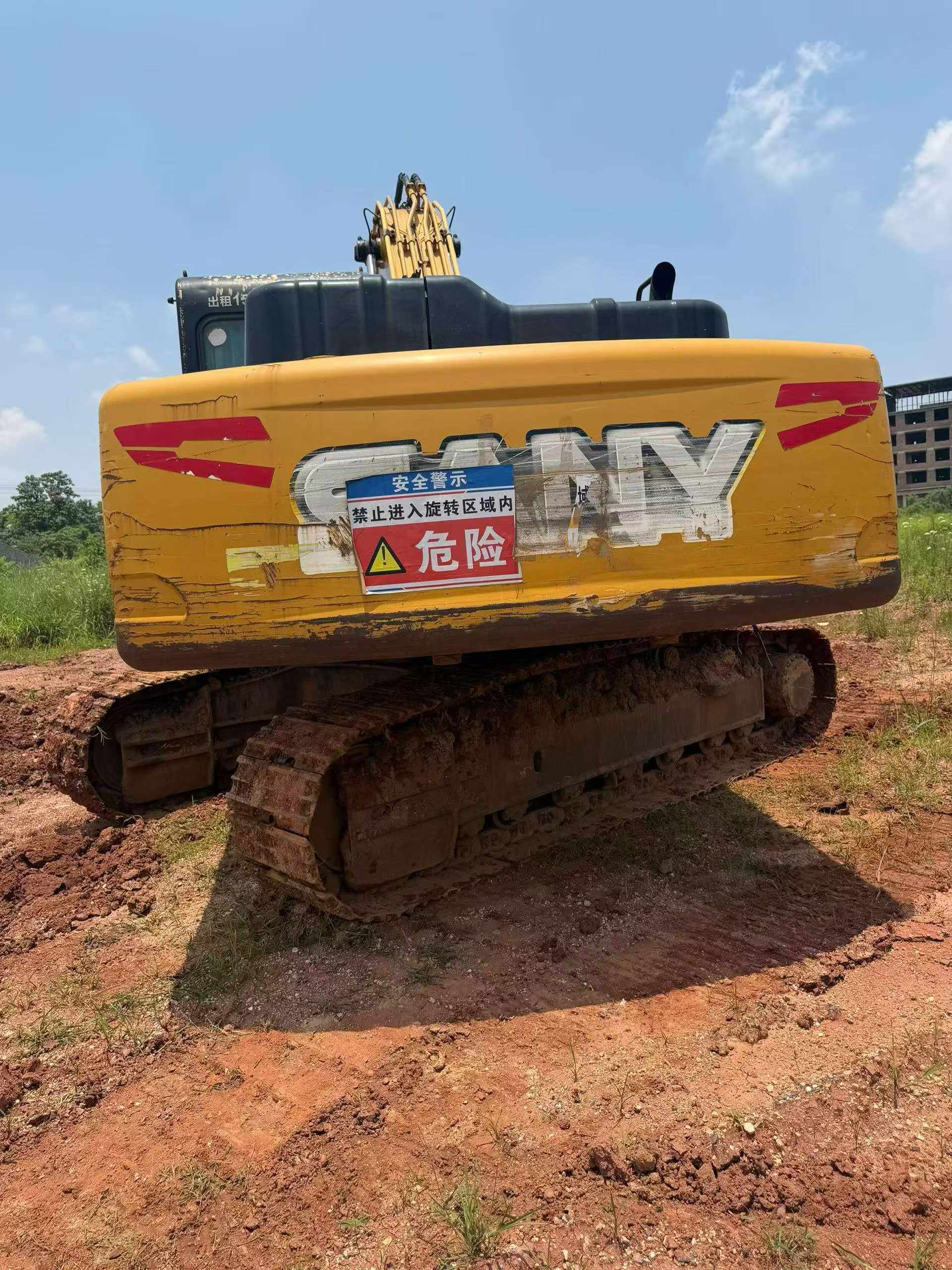

This 2019 Sany SY195C-9 crawler excavator represents excellent value in the mid-size excavator segment. Currently located in Hunan, China, this machine has been well-maintained and is ready for immediate deployment. The SY195C-9 is known for its reliable performance in construction, earthmoving, and general excavation applications.
Key highlights include:
- Operating weight approximately 19.5 tons with robust digging capabilities
- Fuel-efficient engine delivering strong hydraulic performance

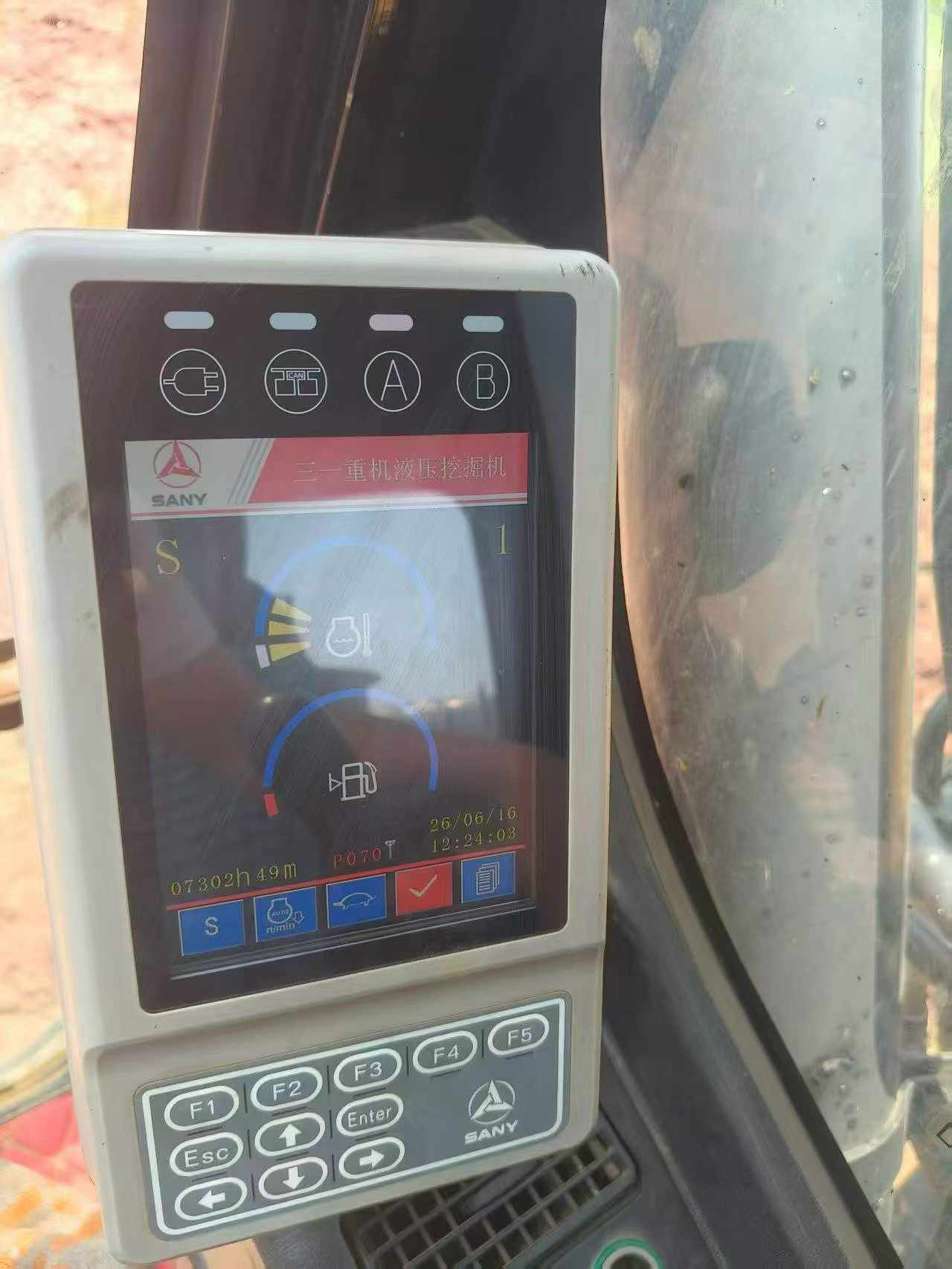

- Spacious operator cabin designed for extended work shifts
- Complete documentation and service records available
- Well-preserved condition suitable for immediate operation
This unit has been inspected and maintained to professional standards. Sany's reputation for durability and serviceability makes this excavator an intelligent choice for contractors seeking dependable equipment at competitive pricing. Ideal for medium-scale construction projects, trenching, and material handling operations.
| Specifications | Value |
|---|---|
| No. | 1085935 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

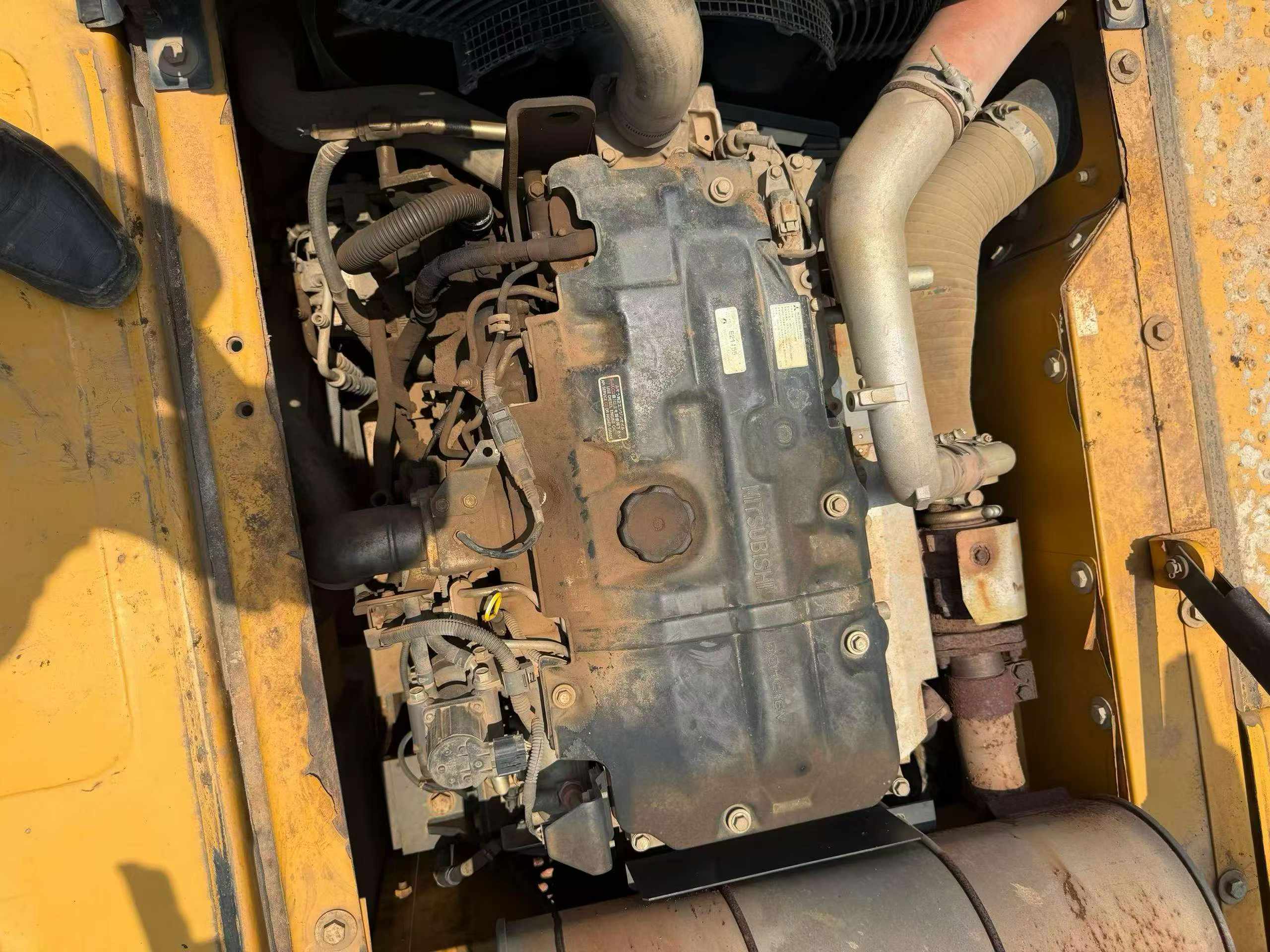

| Engine type | SANY D06S2 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 135 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3755 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9740 |
| Maximum digging depth (mm) | 6410 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5790 |
