Product Description

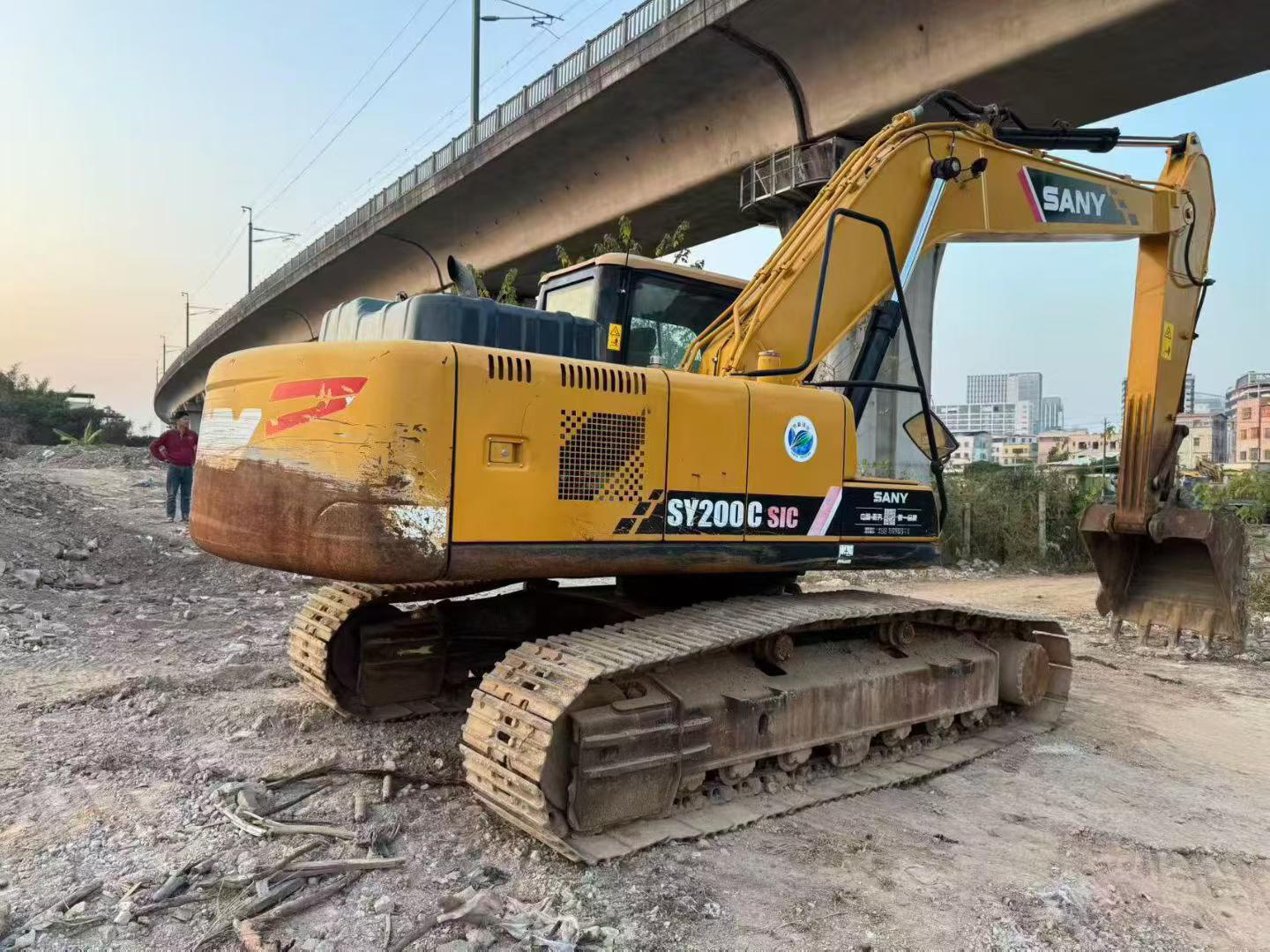

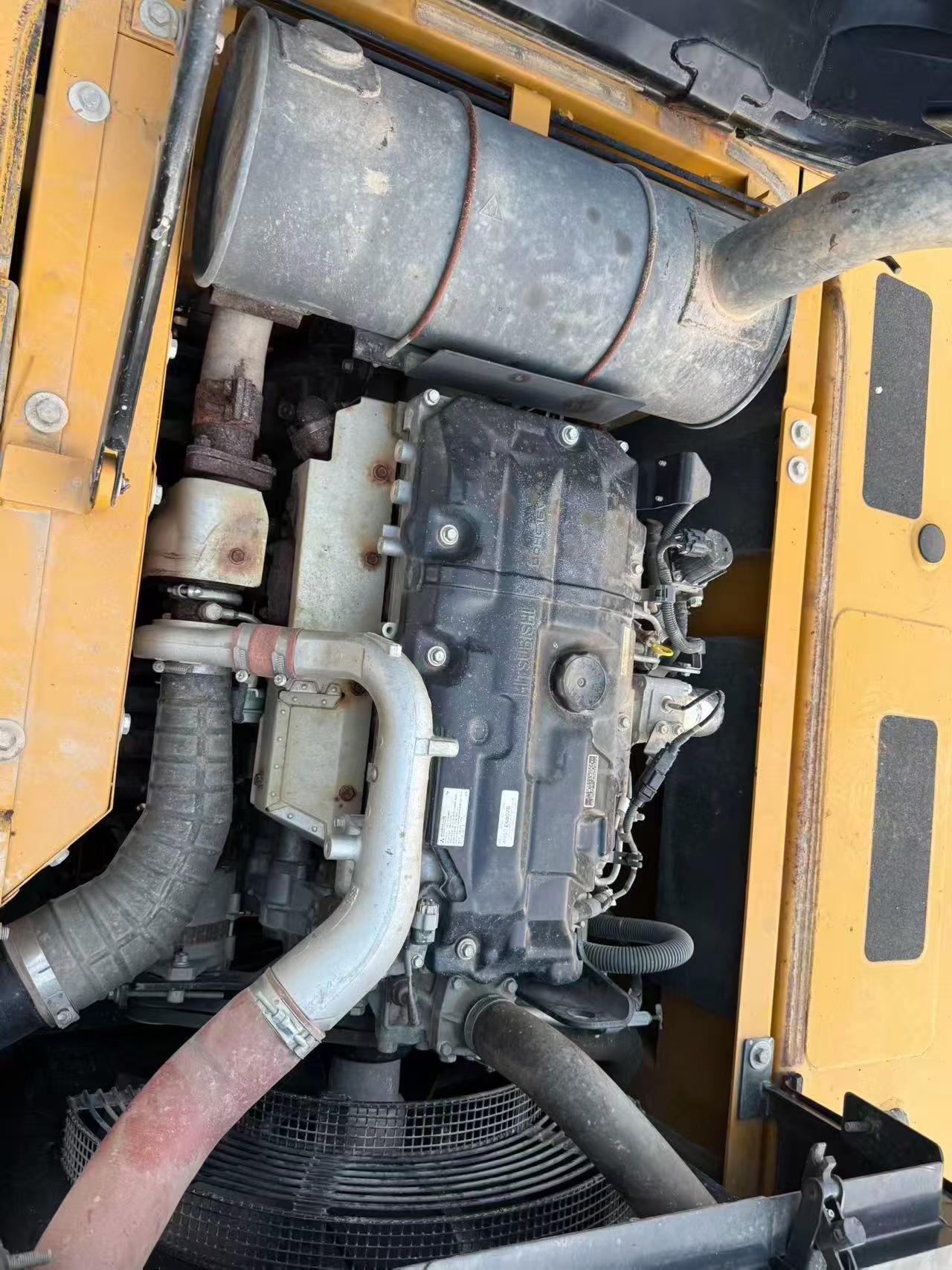

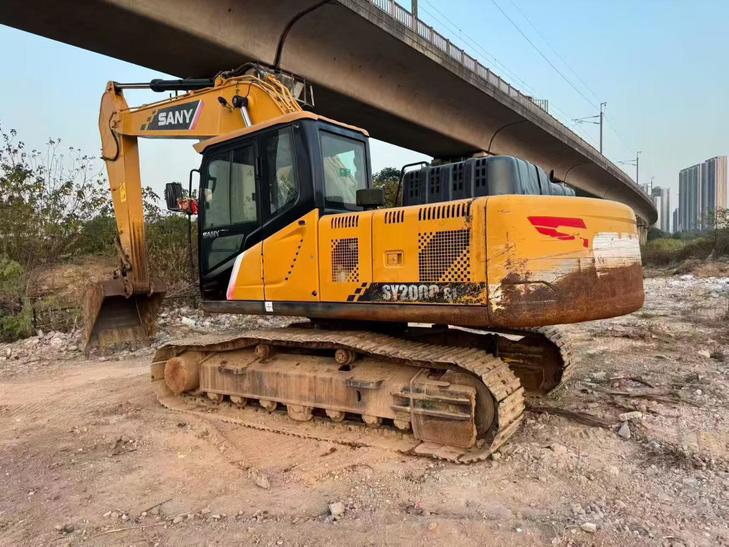

Engineered with a robust 118kW power plant delivering peak torque at 2000 rpm, this 2022 Sany SY200C excavator represents precision-focused hydraulic design for demanding earthmoving operations. Operating at 20 tons with a 21,500 kg working weight, the machine generates 138 kN bucket digging force and 103 kN arm digging force—performance metrics that translate directly to productivity in excavation, trenching, and material handling applications.
Hydraulic efficiency drives this model's technical advantage. With 0.8–1.0 m³ bucket capacity and 11 rpm rotation speed, operators achieve consistent cycle times across varied site conditions. Ground pressure remains controlled at 47.4 kPa, enabling stable operation on sensitive terrain while maintaining a 70% (35°) climbing capability for challenging gradients.
Key specifications include:
- Rated power: 118 kW at 2000 rpm (traditional power configuration)
- Travel speed: 5.4 km/h high / 3.4 km/h low range
- Backhoe bucket configuration with 1.0 m³ standard capacity
- Manufactured in China; currently located in Hunan Province
Built for contractors requiring proven excavation force and hydraulic responsiveness in a mid-sized platf
| Specifications | Value |
|---|---|
| No. | 1028698 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.8~1.0 (1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.4 |
