Product Description

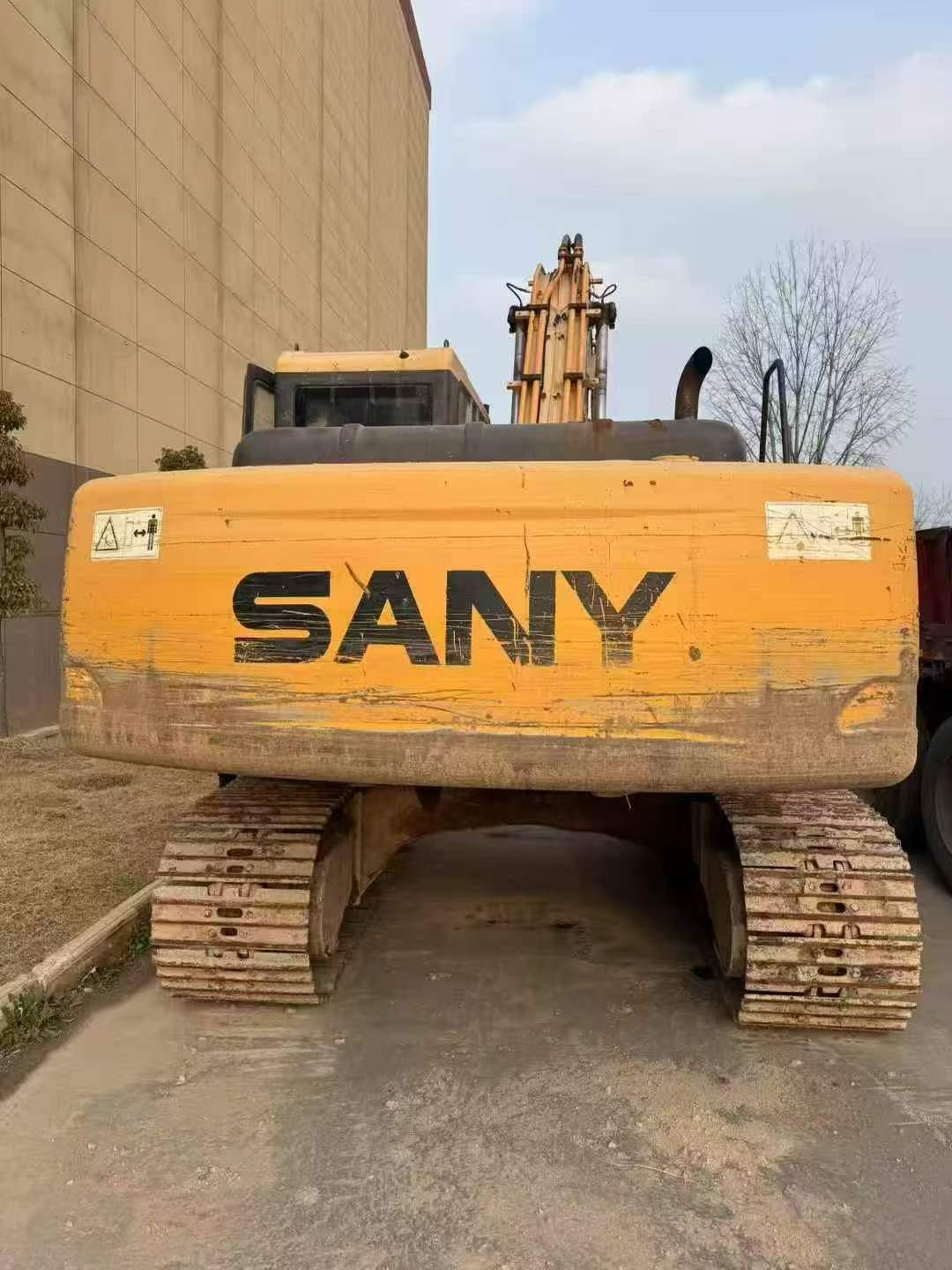

Ready to deploy from 江苏 (Jiangsu), this 2012 Sany SY205C 20-ton excavator eliminates factory wait times and delivers proven performance where you need it. With 118 kW rated power and a 0.9-1.1 m³ bucket capacity, this machine tackles medium to heavy-duty excavation with 138 kN bucket digging force and 10,280 mm maximum reach. Operating weight of 21,500 kg provides stability across diverse terrain while maintaining 47.3 kPa ground pressure.
- Available Now: Skip 6-12 month lead times—fast shipment from Jiangsu direct to your job site
- Proven Specs: 6,600 mm max digging depth, 9,600 mm max excavation height, 70% grading capability
- Operational Efficiency: 11 rpm rotation speed, 5.4 km/h travel speed, 3,730 mm front turn radius
- Transport-Ready Dimensions: 9,680 × 2,980 × 3,440 mm for container compatibility
- Chinese Manufacturing: Sany quality with traditional power system, designed for demanding applications
Secure this backhoe excavator today and put it to work while competitors wait for new builds. Contact Fair Trade Machinery for immediate logistics coordination and delivered pricing.
| Specifications | Value |
|---|---|
| No. | 1030055 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
