Product Description

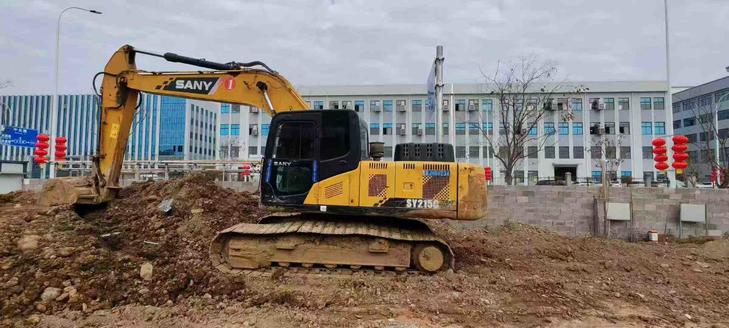

Engineered for precision and stability, this 2018 Sany SY205C delivers 20-ton performance with operator-centric design. Powered by a robust 118kW engine, this backhoe excavator combines reliable Chinese manufacturing with proven hydraulic efficiency. The spacious cab sits at 3075mm, providing commanding visibility across the 10,280mm maximum digging radius while maintaining excellent sightlines to the 600mm track plates during close-quarter maneuvering.
- Working weight: 21,500kg with optimized 47.3kPa ground pressure for soft terrain stability
- Bucket capacity: 0.9-1.1m³ with 138kN digging force and 109kN arm breakout power
- Enhanced maneuverability: 2,900mm rear swing radius and 3,730mm front turning radius
- Dual-speed travel: 5.4/3.3 km/h with 70% grading capability (35°)
- Maximum digging depth: 6,600mm with 9,600mm reach height
- 11rpm swing speed for smooth, controlled load handling
Currently located in Lishui, Zhejiang, this machine offers predictable operation with minimal overhang (9,680mm transport length) for regional jobsite mobility.
| Specifications | Value |
|---|---|
| No. | 1018893 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
