Product Description

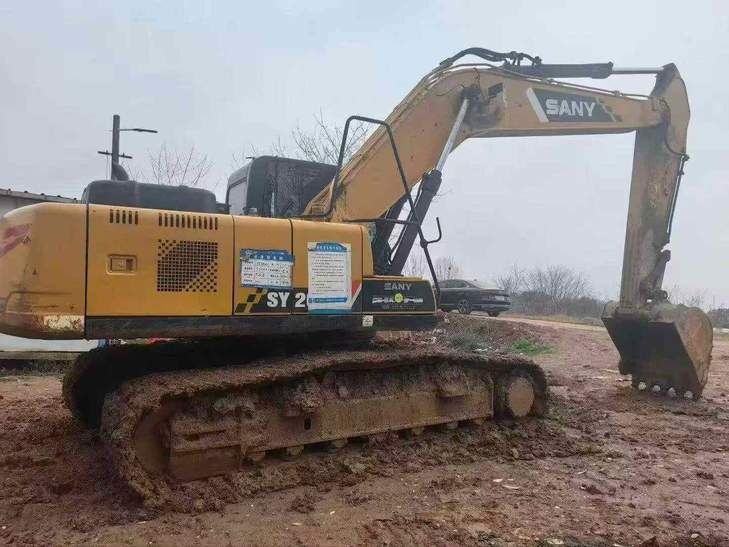

Built for demanding jobsites, this 2018 Sany SY205C delivers reliable performance with operator-focused engineering. Weighing 21,500 kg and powered by a robust 118 kW engine, this 20-ton excavator combines stability with precise control for efficient earthmoving operations.
Operators benefit from exceptional visibility and thoughtful cabin design that reduces fatigue during extended shifts. The machine's 47.3 kPa ground pressure ensures stable operation across varied terrain, while the 70% climbing ability tackles challenging grades with confidence. Responsive hydraulics provide 138 kN bucket digging force and 109 kN arm digging force, enabling productive cycles in tough materials.
- Maximum digging reach: 10,280 mm with 6,600 mm depth capability
- Bucket capacity: 0.9–1.1 m³ for versatile material handling
- Compact transport dimensions: 9,680 × 2,980 × 3,440 mm
- Dual travel speeds: 5.4/3.3 km/h for site flexibility
- Currently located in Shaoxing, Zhejiang, China
Sany's proven manufacturing delivers dependable hydraulic performance and straightforward maintenance access, making this SY205C a practical choice for contractors prioritizing uptime and operational comfort.
| Specifications | Value |
|---|---|
| No. | 1022346 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
