Product Description

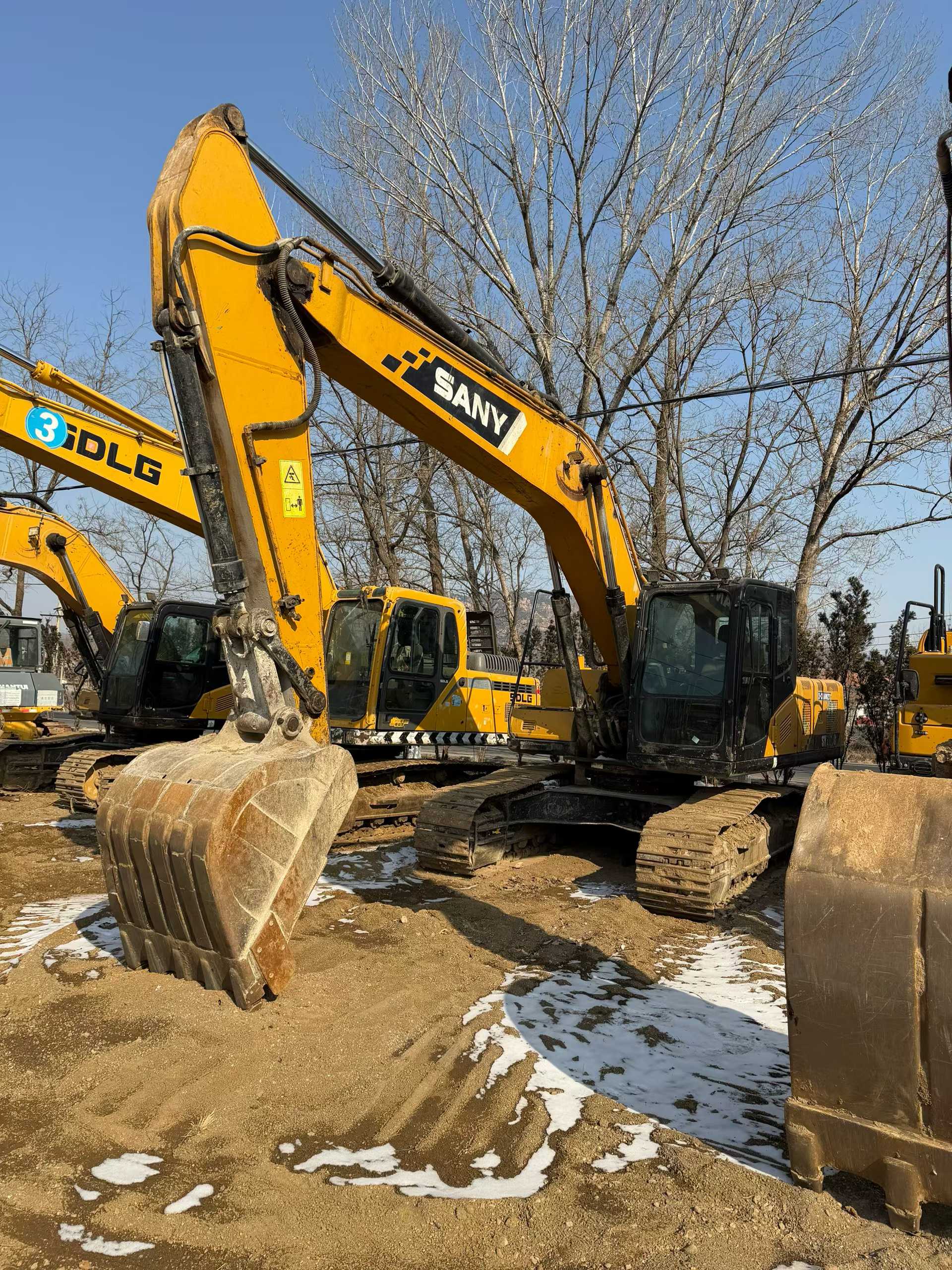

Built to endure the toughest jobsites, this 2018 Sany SY205C excavator demonstrates the legendary reliability that has made Sany a global industry leader. With five years of proven performance behind it, this 20-ton workhorse continues to deliver exceptional digging force—138 kN bucket force and 109 kN arm force—making light work of demanding excavation tasks. Powered by a robust 118 kW engine and equipped with a versatile 0.9-1.1 m³ bucket, this machine tackles everything from trenching to mass excavation with unwavering consistency.
- Operating Weight: 21,500 kg – stable and powerful on any terrain
- Maximum Digging Reach: 10,280 mm with 6,600 mm digging depth
- Maximum Digging Height: 9,600 mm for superior versatility
- 70% Climbing Ability: conquers steep grades with confidence
- Compact Transport Dimensions: 9,680 × 2,980 × 3,440 mm
- Currently Located: Linyi, Shandong, China
Designed for longevity and backed by years of field-proven durability, this SY205C represents exceptional value for contractors seeking reliable performance without compromise.
| Specifications | Value |
|---|---|
| No. | 1029647 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
